Technical Data Sheet
POWER LED
32-01/R5C-AQSC
Features
. High Flux Output.
. Designed for High Current Operation.
. Low Thermal Resistance.
. Low Profile.
. Packaged in Tubes for Use with Automatic
Insertion Equipment.
. The product itself will remain within RoHS compliant version.
Descriptions
This revolutionary package design allows the light designer to reduce the number of LEDs
required and provide a more uniform and unique illuminated appearance than with other LED
solutions. This is possible through the efficient optical package design and high-current capabilities.
The low profile package can be easily coupled with reflectors or lenses to efficiently distribute
light and provide the desired light appearance.
Applications
. Automotive Lighting
. Electronic Signs and Signals
. Special Lighting application
Device Selection Guide
Chip
Material
AlGaInP
Emitted Color
Brilliant Red
PART NO.
32-01/R5C-AQSC
Lens Color
Water Clear
Everlight Electronics Co., Ltd.
Device number:DLE-302-020
http:\\www.everlight.com
Established date: 02-16-2006
Rev. 1
Page: 1 of 6
Established by: Eddie Huang
Technical Data Sheet
POWER LED
32-01/R5C-AQSC

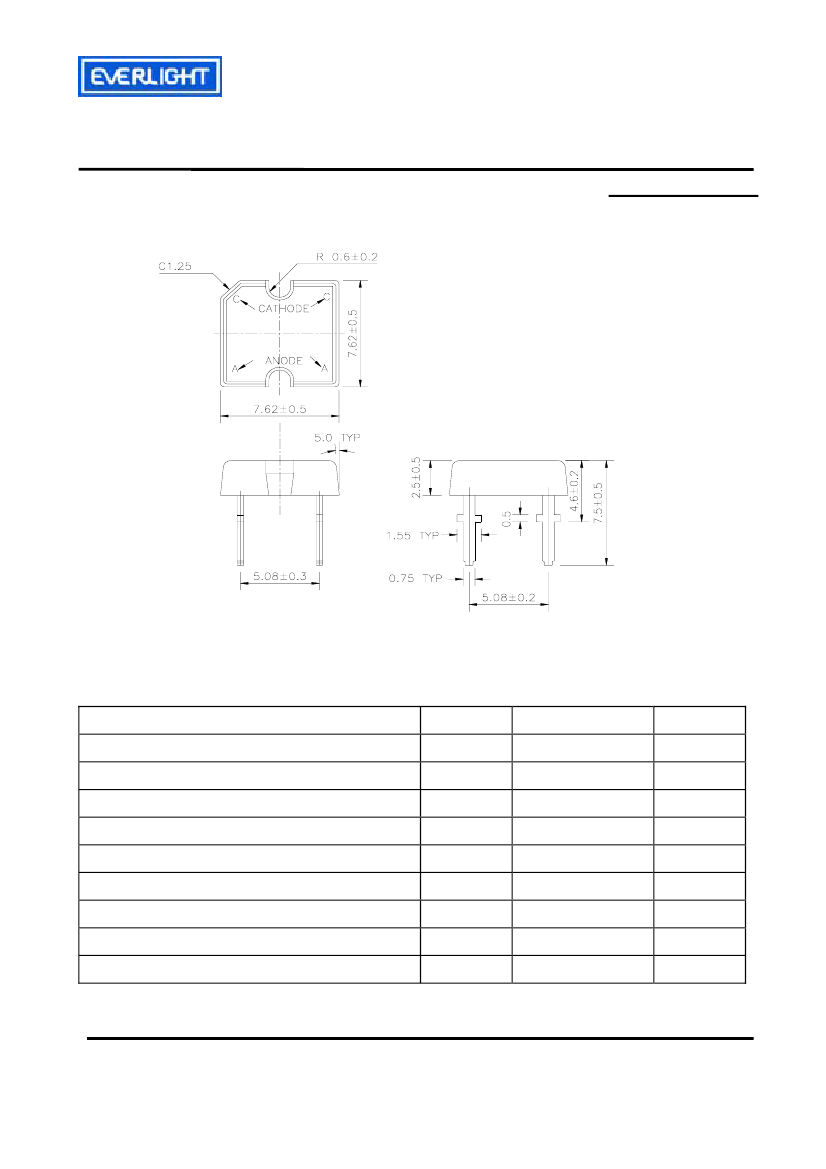

Package Dimensions
Notes:
1.All dimensions are in millimeters
1.An epoxy meniscus may extend about 1.5mm(0.059") down the leads
2.Tolerances unless dimensions
±0.25mm
Absolute Maximum Ratings (Ta=25℃)
Parameter
Continuous Forward Current
Peak Forward Current(Duty 1/10 @ 1KHZ)
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering Temperature(T=5 sec)
LED Junction Temperature
Power Dissipation
Electrostatic Discharge
Symbol
I
F
I
FP
V
R
T
opr
T
stg
T
sol
T
j
P
d
ESD
Rating
70
160
5
-40 ~ +100
-40 ~ +100
260 ± 5
115
220
2K
Units
mA
mA
V
℃
℃
℃
℃
mW
V
Everlight Electronics Co., Ltd.
Device number:DLE-302-020
http:\\www.everlight.com
Established date: 02-16-2006
Rev. 1
Page: 2 of 6
Established by: Eddie Huang
Technical Data Sheet
POWER LED
32-01/R5C-AQSC
Electro-Optical Characteristics (Ta=25℃)
Parameter
Total Flux
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
Symbol
Φv
2θ1/2
λp
λd
△λ
V
F
I
R
Min.
3600
----
----
622
----
2.1
----
Typ.
4000
130
632
624
20
2.6
----
Max.
7150
----
----
630
----
3.1
10
Condition
I
F
=70mA
I
F
=70mA
I
F
=70mA
I
F
=70mA
I
F
=70mA
I
F
=70mA
V
R
=5V
Unit
mlm
deg
nm
nm
nm
V
µA
Rank
32-01/R5C-AQSC (1)
(1)
V
F
(V)
Bin
3
4
5
6
7
Min
2.1
2.3
2.5
2.7
2.9
Max
2.3
2.5
2.7
2.9
3.1
Bin
2
3
(2)
(2)
λd(nm)
Min
622
626
Max
626
630
Bin
Q
R
S
(3)
(3)
Φv(mlm)
Min
3600
4500
5650
Max
4500
5650
7150
*Measurement Uncertainty of Forward Voltage：±0.1V
*Measurement Uncertainty of Luminous Intensity:
±10%
*
Measurement Uncertainty of
Dominant Wavelength
±1.0nm
Everlight Electronics Co., Ltd.
Device number:DLE-302-020
http:\\www.everlight.com
Established date: 02-16-2006
Rev. 1
Page: 3 of 6
Established by: Eddie Huang
Technical Data Sheet
POWER LED
32-01/R5C-AQSC

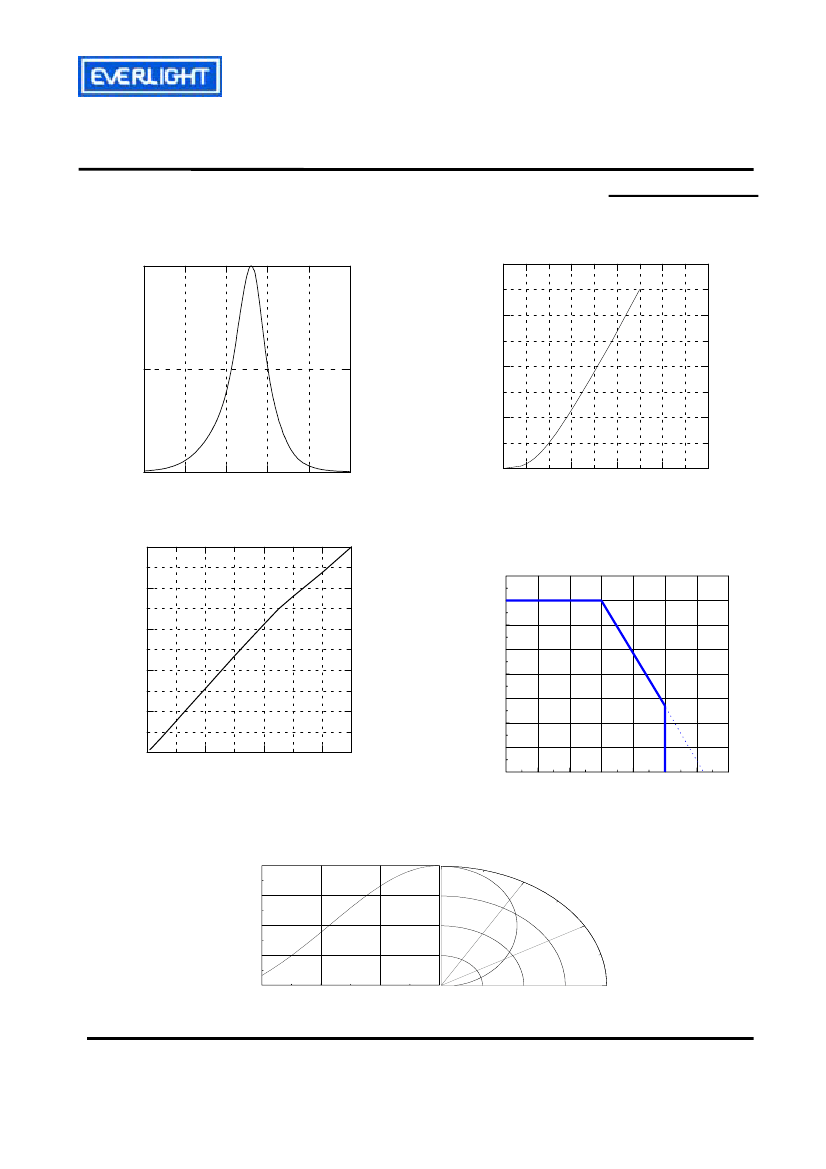

Typical Electro-Optical Characteristics Curves
Relative Intensity vs. Wavelength
1.00
Forward Current vs. Forward Voltage
80
FORWARD CURRENT (mA)
600
620
640
WAVELENGTH (nm)
660
680
60
RELATIVE INTENSITY
0.50
40
20
0.00
580
0
1.40 1.60 1.80 2.00 2.20 2.40 2.60 2.80 3.00 3.20
FORWARD VOLTAGE (V)
Relative Intensity vs. Forward Current
1.00
Forward Current vs. Ambient Temp.
80
0.80
RELATIVE INTENSITY
70
MAXMUM DC CURRENT(mA)
0.60
60
50
40
30
20
10
0
0
20 40 60 80 100 120 140
AMBIENT TEMPERATURE (C)
0.40
0.20
0.00
0
10
20
30
40
50
60
FORWARD CURRENT (mA)
70
Relative Intensity vs. Angle Displacement
0
1 .0
Relative Intensity
30
0 .8
0 .6
0 .4
0 .2
-9 0
90
60
-6 0
-3 0
0
V ie w in g a n g le
Everlight Electronics Co., Ltd.
Device number:DLE-302-020
http:\\www.everlight.com
Established date: 02-16-2006
Rev. 1
Page: 4 of 6
Established by: Eddie Huang
Technical Data Sheet
POWER LED
32-01/R5C-AQSC
Packing Quantity Specification
(1) 60 pcs/1 tube, 30 tubes/1 small inside box, 12 small inside boxes/1 outside box
(2) 60 pcs/1 tube, 105 tubes/1 big inside box, 4 big inside boxes/1 outside box
Label Form Specification
(1)Tube Label Form
PART NO:
32-01/R5C-AQSC
LOT NO:
QTY: 60
CAT:
(2)Box Label Form
EVERLIGHT
CPN:
P/N:
RoHS
32-01/R5C-AQSC
QTY：
LOT NO：
MADE IN TAIWAN
CAT:
HUE:
REF:
PART NO: Everlgiht’s Production Number
QTY: Packing Quantity
LOT NO: Lot Number
CAT: Ranks of Forward Voltage, Dominant Wavelength and Total Flux
CPN: Customer’s Production Number
P/N : Production Number
HUE: Reference
REF: Reference
MADE IN TAIWAN: Production Place
Everlight Electronics Co., Ltd.
Device number:DLE-302-020
http:\\www.everlight.com
Established date: 02-16-2006
Rev. 1
Page: 5 of 6
Established by: Eddie Huang
