ECN#
3
REV.
001
2
REVISIONS
DESCRIPTION
REVISED PER ECR111009AZ01
DATE
4-23-10
1
INITIALS
SMU
NOTES:

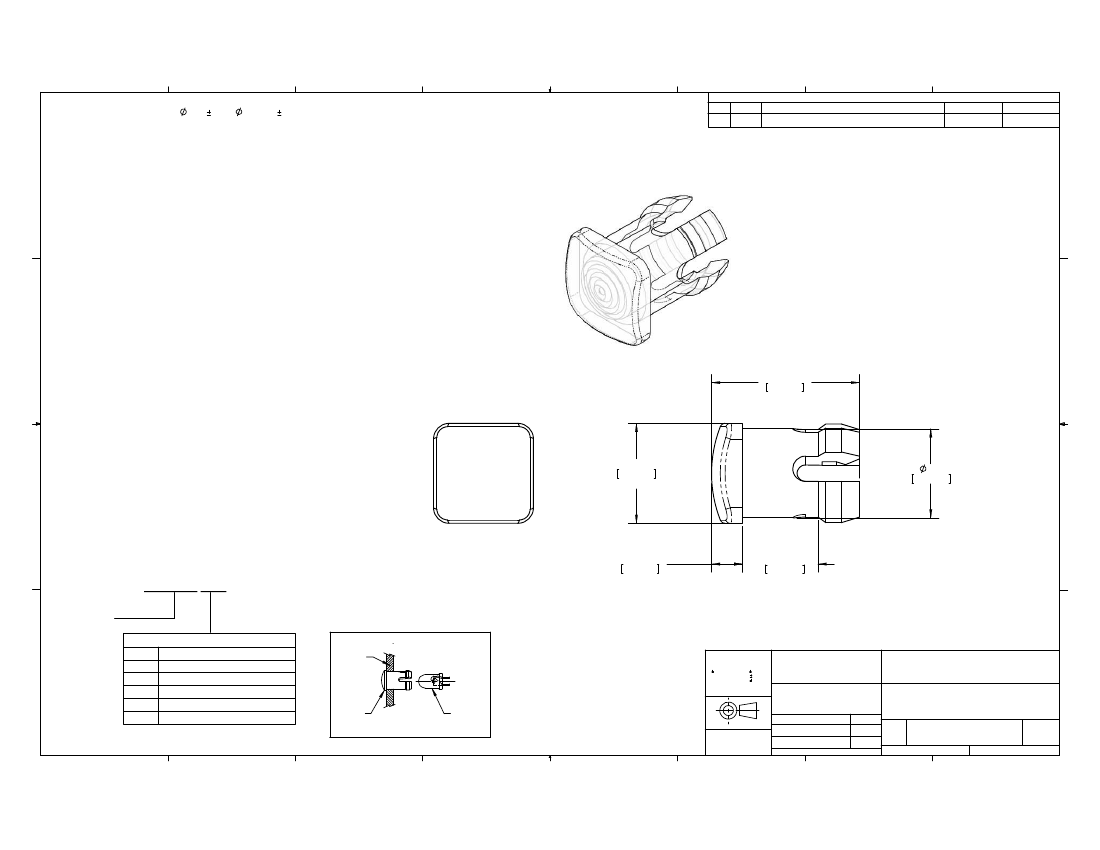

MOUNTING: Mounts in a .171 .002 [ 4.34mm .05] panel hole on .250 [6.35mm] centers.
1.
Panel thickness .063 [1.6mm] to .125 [3.17mm]. Panel hole should be deburred, but not
chamfered.
2.
ASSEMBLY: Insert lens through panel hole, and insert LED into lens.
3.
MATERIAL: Polycarbonate, UL 94-V2
4.
U.S. & Foreign Pat. Issued & Pend.
D
D
C
C
.290
7.37mm
.190
4.83mm
SQ
B
.171
4.34mm
B
.060
1.52mm
ORDERING CODE :
.125
3.18mm
SMQ 250 XXX
MODEL
A
RTP
ATP
GTP
BTP
YTP
CTP
LENS COLOR
RED TRANSPARENT
AMBER TRANSPARENT
GREEN TRANSPARENT
BLUE TRANSPARENT
YELLOW TRANSPARENT
CLEAR TRANSPARENT
DISPLAY
PANEL
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES:
MATERIAL
ANGLES
1'
FINISH
DECIMALS
.X
.020
.010
.XX
.XXX .005
POLYCARBONATE,
UL 94-V2
FINISH
VISUAL COMMUNICATIONS COMPANY, INC.
190 Bosstick Boulevard, Suite101 San Marcos, CA 92069 USA
Phone (760) 560-1300 Fax (760) 560-1301 email vccsales@vcclite.com
A
BREAK ALL CORNERS AND SHARP
EDGES .030 MAX
TITLE:
SEE NOTES
LENS
ASSEMBLY
LED
THIRD ANGLE PROJECTION
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
VISUAL COMMUNICATIONS COMPANY, INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
VISUAL COMMUNICATIONS COMPANY, INC IS
PROHIBITED.
3MM SQUARE LOW
PROFILE FRESNEL LENS
REV
APPROVAL
DATE
SMU 4-23-10
DZ 4-23-10
DRAWN:
CHECKED:
SIZE
DWG. NO.
B
SMQ 250 XXX
SCALE: 12:1
001
DO NOT SCALE DRAWING
SHEET 1 OF 1
8
7
6
5
4
3
2
1
