PG1101W-TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PG1101W-TR

PG1101W-TR: Descriptionled green clear 1206 smd; CategoryLED optoelectronic/LED photoelectric; File Size675KB，21 Pages; ManufacturerStanley Electric Co; Environmental Compliance

Download Datasheet Parametric Compare View All

PG1101W-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PG1101W-TR	-	-	View	Buy Now

PG1101W-TR Overview

led green clear 1206 smd

PG1101W-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Confidence	4
Samacsys Status	Released
Samacsys PartID	662401
Samacsys Pin Count	2
Samacsys Part Category	LED
Samacsys Package Category	Other
Samacsys Footprint Name	PG1101W-TR-5
Samacsys Released Date	2019-12-16 11:03:21
Is Samacsys	N
color	GREEN
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	3 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.5 mm
method of packing	TAPE AND REEL
peak wavelength	560 nm
shape	RECTANGULAR
size	2 mm
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

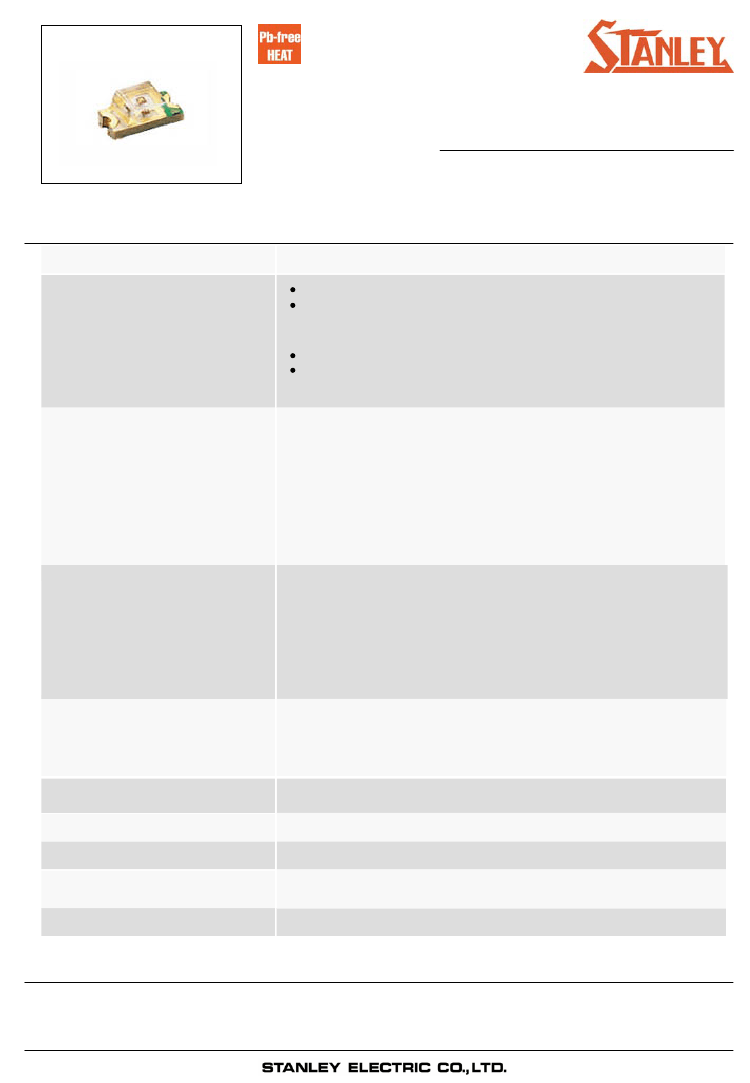

1101W Series

Single Color 3216 Type

Features

Package

Product features

3216 Type, Water Clear resin

Outer Dimension 3.0 x 1.5 x 1.5mm ( L x W x H )

Temperature range

Storage Temperature

: -40℃½100℃

Operating Temperature : -30℃½85℃

Lead–free soldering compatible

RoHS compliant

Green

Yellow Green

Yellow

Orange

Red

: 558nm(BG),567nm(PG)

: 572nm(PY)

: 590nm(AY)

: 606nm(AA)

: 647nm(BR)

Dominant wavelength

Half Intensity Angle

BG,PG,PY

AY,AA

:θx = 144 deg.,

θy

=148 deg.

:θx = 144 deg.,

θy

=137 deg.

:θx = 148 deg.,

θy

=145 deg.

:θx = 140 deg.,

θy

=145 deg.

:θx = 145 deg.,

θy

=149 deg.

:θx = 152 deg.,

θy

=141 deg.

: GaP

: GaAsP

: GaAlAs

Die materials

Rank grouping parameter

Assembly method

Soldering methods

Taping and reel

ESD

Sorted by luminous intensity per rank taping

Auto pick & place machine (Auto Mounter)

Reflow soldering and manual soldering

2,500pcs per reel in a 8mm width tape. (Standard)

Reel diameter:φ180mm

More than 2kV(HBM)

Recommended Applications

Communication Machine, Electric Household Appliances, OA/FA, Amusement Equipment, Other General Applications

2007.8.31

Page 1

PG1101W-TR Related Products

	PG1101W-TR	PY1101W-TR	BG1101W-TR	AA1101W-TR	BR1101W-TR	AY1101W-TR
Description	led green clear 1206 smd	led yellow-green clear 1206 smd	led pure green clear 1206 smd	led orange clear 1206 smd	led red clear 1206 smd	led yellow clear 1206 smd
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	unknow	unknow	unknow	compliant	compliant
color	GREEN	YELLOW	PURE GREEN	ORANGE	RED	YELLOW
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	3 mcd	4 mcd	1.4 mcd	3.6 mcd	4.5 mcd	3.2 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	560 nm	570 nm	555 nm	605 nm	660 nm	580 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
surface mount	YES	YES	YES	YES	YES	YES
Base Number Matches	1	-	1	1	1	1
Maker	-	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co	-	Stanley Electric Co

Recommended Resources

Long time timing circuit composed of 555

Application of TC9142P in PLL control of photocopier imaging motor

HA1384 power amplifier circuit diagram

TA7270P audio IC circuit diagram

Circuit Diagram 2 for Expanding the Output Capacity of the Power Transformer

200MHz common source and common gate amplifier circuit

What kind of foundation should I have to engage in hardware design (not electronic design, that is, not mainly VLSI)? Please explain in detail: I am a beginner. My senior brother works in Datang Telecom. His undergraduate major is computer science and technology. His graduate major is computer control technology. He has worked on automotive e...; pipihaoyun Embedded System

Which driver is the charging status related to?: When the device is connected to USB or AC for charging, does the notification of this event come from power or battery? Or other?...; 小猪崽 Embedded System

What is LPM1603A?: There is a chip on the air conditioner fan board. The first line of the chip is LPM1603A, the second line is 1511EM403, and the third line is T01. I couldn't find it on Baidu. Please help me find it. ...; suoma Discrete Device

[National Technology N32G457 Review] Implementation of Environmental Status Detection Device: [i=s]This post was last edited by jinglixixi on 2022-2-28 22:48[/i]The function of the environmental status detection device is to detect the temperature, humidity, air pressure and light intensity of...; jinglixixi Domestic Chip Exchange

Experiment 17: ...; dizhonghua88 MCU

[BearPi-HM Nano, play Hongmeng "Touch and Go"] Part 2: Setting up the environment is so simple: 1. Introduction This article contains a lot of content, but it is actually not difficult. The official tutorial only takes more than ten minutes to explain it. It can be said to be a fool-proof tutori...; PowerWorld ARM Technology
