PBK-1-9-B: DescriptionAC/DC converter 9V 1W; CategoryPower/power management The power supply circuit; File Size1MB，7 Pages; ManufacturerCUI; Websitehttp://www.cui.com; Environmental Compliance

Download Datasheet Parametric View All

PBK-1-9-B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PBK-1-9-B	-	-	View	Buy Now

PBK-1-9-B Overview

AC/DC converter 9V 1W

PBK-1-9-B Parametric

Parameter Name	Attribute value
Brand Name	CUI Inc
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CUI
Reach Compliance Code	compli
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Certification	CE, UL
Efficiency (main output)	67%
high	13 mm
Maximum input voltage	264 V
Minimum input voltage	85 V
length	35 mm
Maximum grid adjustment rate	1.5%
Maximum load regulation	2.5%
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	0.111 A
Nominal output voltage	9 V
Protect	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Ripple voltage (main output)	0.04242 Vrms
Maximum total power output	1 W
width	25 mm

Preview

Download Datasheet

View All

For more information, please visit the

product page.

date

page

02/02/2018

1 of 7

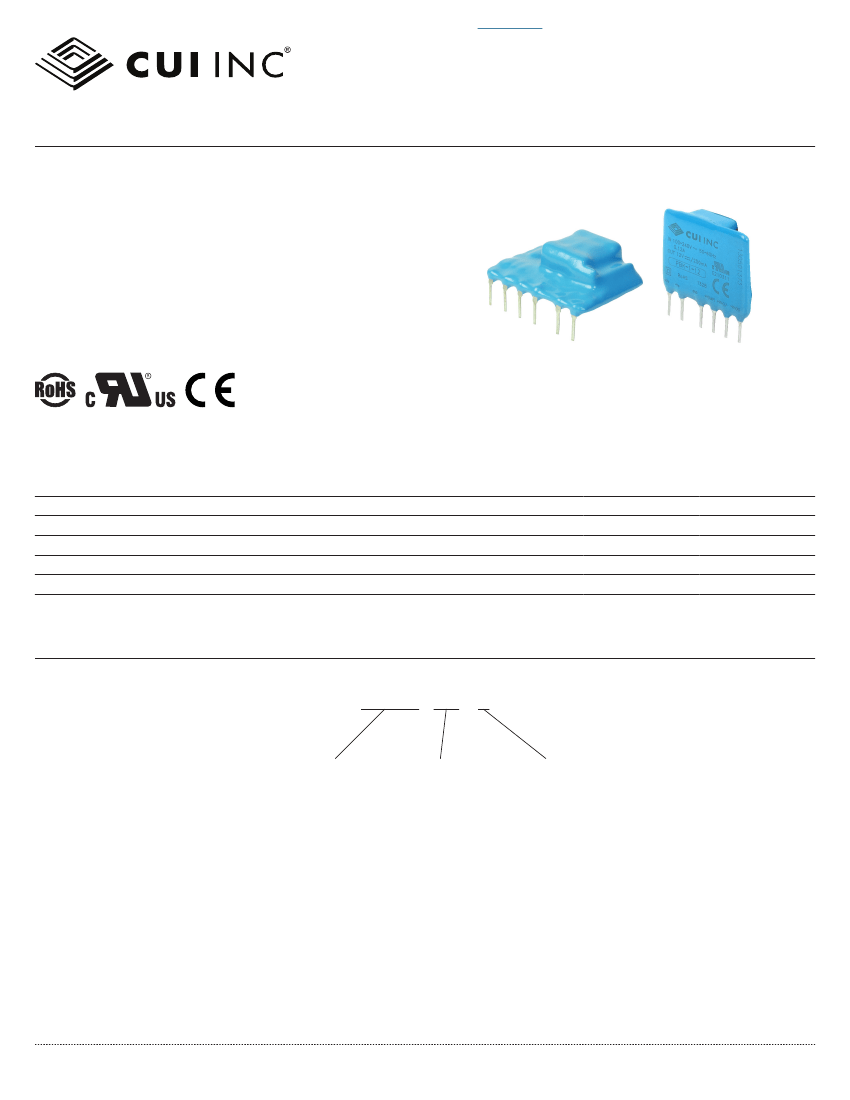

SERIES:

PBK-1

│

DESCRIPTION:

AC-DC POWER SUPPLY

• up to 1 W continuous output

• compact SIP package

• single regulated outputs from 5~24 V

• 3,000 Vac isolation

• over current and short circuit protections

• CE, UL60950-1 safety approval

• wide input voltage: 70~400 Vdc (85~264 Vac)

• efficiency up to 68%

MODEL

PBK-1-5

PBK-1-9

PBK-1-12

PBK-1-15

PBK-1-24

Note:

output

voltage

(Vdc)

output

current

max

(mA)

output

power

max

(W)

200

111

PBK-1-

XX - X

Output Voltage

Base Number

cui.com

1. Measured at 20 MHz bandwidth, see Test Configuration section.

2. At 230 Vac.

PART NUMBER KEY

Orientation

“blank” = vertical

B = right-angle

ripple

and noise

max

(mVp-p)

FEATURES

efficiency

typ

(%)

150
