ISJ0505A datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> ISJ0505A

Preview

ISJ0505A: DescriptionDC/DC converter 5V 1W; CategoryPower/power management The power supply circuit; File Size142KB，1 Pages; ManufacturerXP Power; Websitehttps://www.xppower.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ISJ0505A Overview

DC/DC converter 5V 1W

ISJ0505A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	XP Power
package instruction	,
Reach Compliance Code	compli
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	R-XDMA-G7
length	19.5 mm
Maximum load regulation	7.5%
Number of functions	1
Output times	1
Number of terminals	7
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	5.5 V
Minimum output voltage	5 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum seat height	5.25 mm
surface mount	YES
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	1 W
Fine-tuning/adjustable output	NO
width	6.6 mm

Preview

Download Datasheet

View All

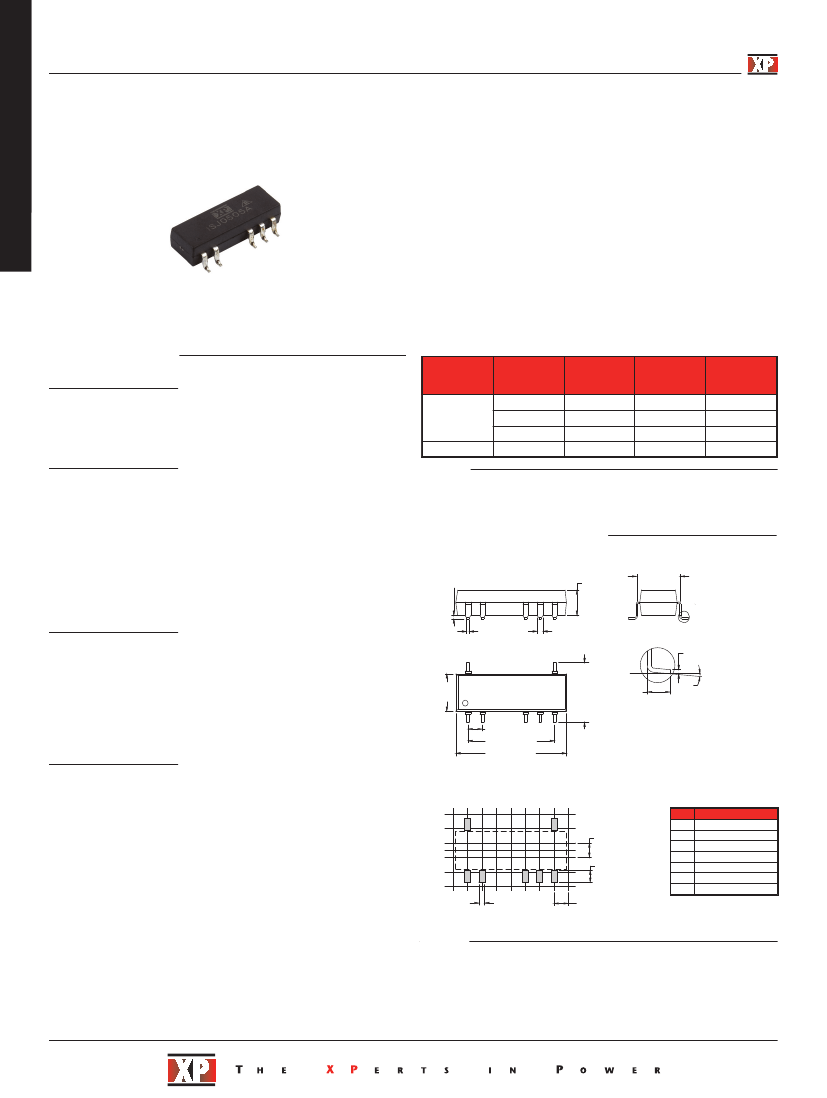

DC DC

1 Watt

ISJ Series

•

Single Output

Ultra Slim SMD Package

Industry Standard Pinout

1500 VDC Isolation

MTBF >3.5 MHrs

40 °C to +85 °C Operation

3 Year Warranty

xppower.com

Specification

Input

Input Voltage Range

Input Reverse Voltage

Protection

• Nominal ±10%

• None

Input

Voltage

Output

Voltage

5.0 V

Output

Current

200 mA

83 mA

67 mA

200 mA

Efficiency

(typ)

74%

77%

76%

73%

Model

Number

ISJ0505A

(1)

ISJ0512A

ISJ0515A

ISJ1205A

5 VDC

12 VDC

12.0 V

15.0 V

5.0 V

Output

Output Voltage

•

Minimum Load

•

Line Regulation

•

Load Regulation

•

Setpoint Accuracy

•

Ripple & Noise

•

Temperature Coefficient

•

Short Circuit Protection

•

See table

10%

1.2%/1%

∆

Vin

7.5% max for 10-100% load change

100-110% of nominal at 10% load

75 mV pk-pk 20 MHz bandwidth

0.03%/°C

Continuous

Notes

1. ISJ0505A available with 3000 VDC isolation, add suffix ‘-H’ to part number.

Mechanical Details

0.02

(0.5)

Side View

0.17 (4.5)

0.31

(7.97)

General

Efficiency

Isolation Voltage

Isolation Resistance

Isolation Capacitance

Switching Frequency

MTBF

•

See table

1500 VDC minimum

(1)

10

9

Ω

25 pF typical

100 kHz typical at nominal input, full load

>3.5 MHrs to MIL-HDBK-217F at 25 °C, GB

0.02

(0.5)

0.04 (1.0)

0.01 (2.5)

0.415 (10.53)

0.26

(6.6)

14

1 2

Top View

5

0.10 (2.54)

0.60 (15.24)

0.76 (19.5)

6

8

7

5º

0.05 (1.3)

Environmental

Operating Temperature

Storage Temperature

Case Temperature

Cooling

Lead Temperature

•

-40 °C to +85 °C

-55 °C to +125 °C

105 °C max

Convection-cooled

250 °C, 0.06 in (1.5 mm) from case, 10 s

Recommended footprint

Top view grid: 0.1 x 0.1 in (2.54 x 2.54 mm)

1

2

5

6

7

8

14

Function

Vin

GND

0 V.

+Vout

N.C.

14

1

2

5

6

8

7

0.10 (2.54)

0.08 (2.1)

0.03 (1.0)

0.10 (2.54)

N.C. Not connected

Notes

1. All dimensions in inches (mm)

2. Tolerance: ±0.010 (±0.25)

4. Pin tolerance: ±0.004 (±0.10 mm)

3. Weight: 0.003 lbs (1.4 g)

24-Jun-13
