OPXC1SPOT Overview

module spot base univ 6deg

OPXC1SPOT Parametric

Parameter Name	Attribute value
Datasheets
Universal TIR Optics
Standard Package	1,000
Category	Optoelectronics
Family	Optics - LEDs, Lamps - Lenses

Preview

Download Datasheet

View All

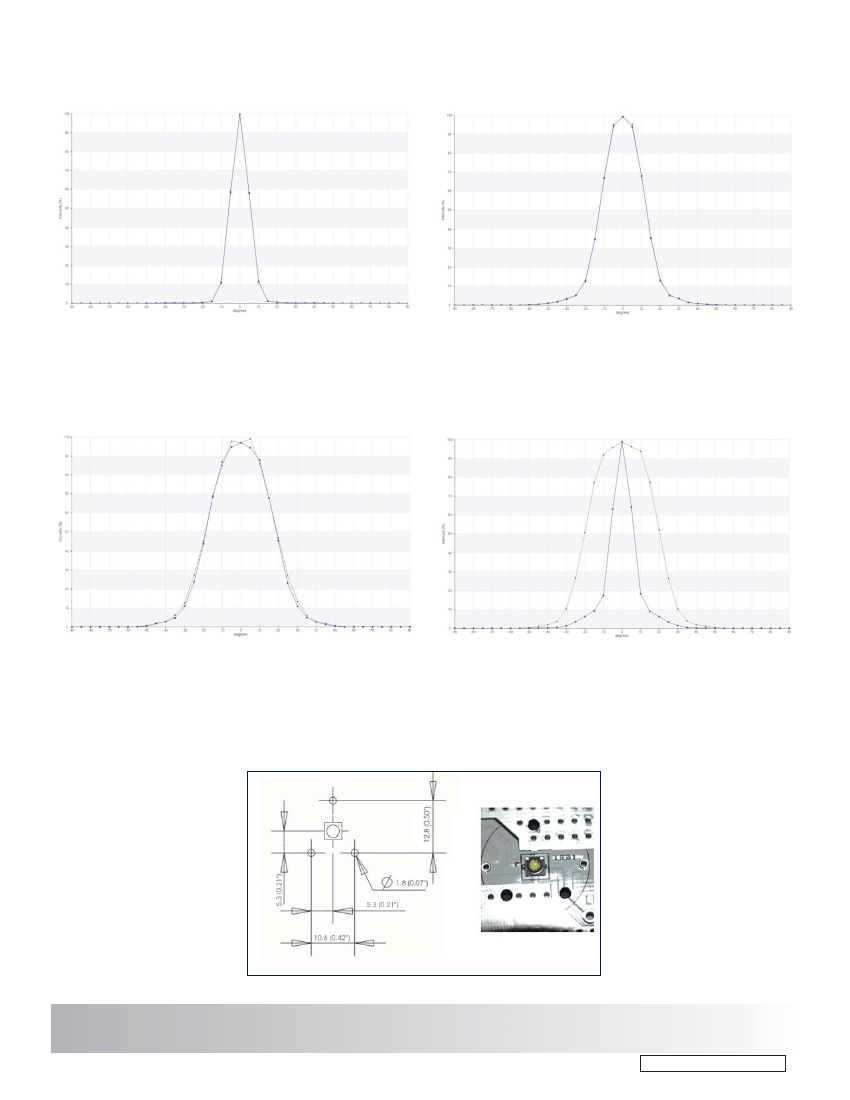

Spot

Wide

Oval

Medium

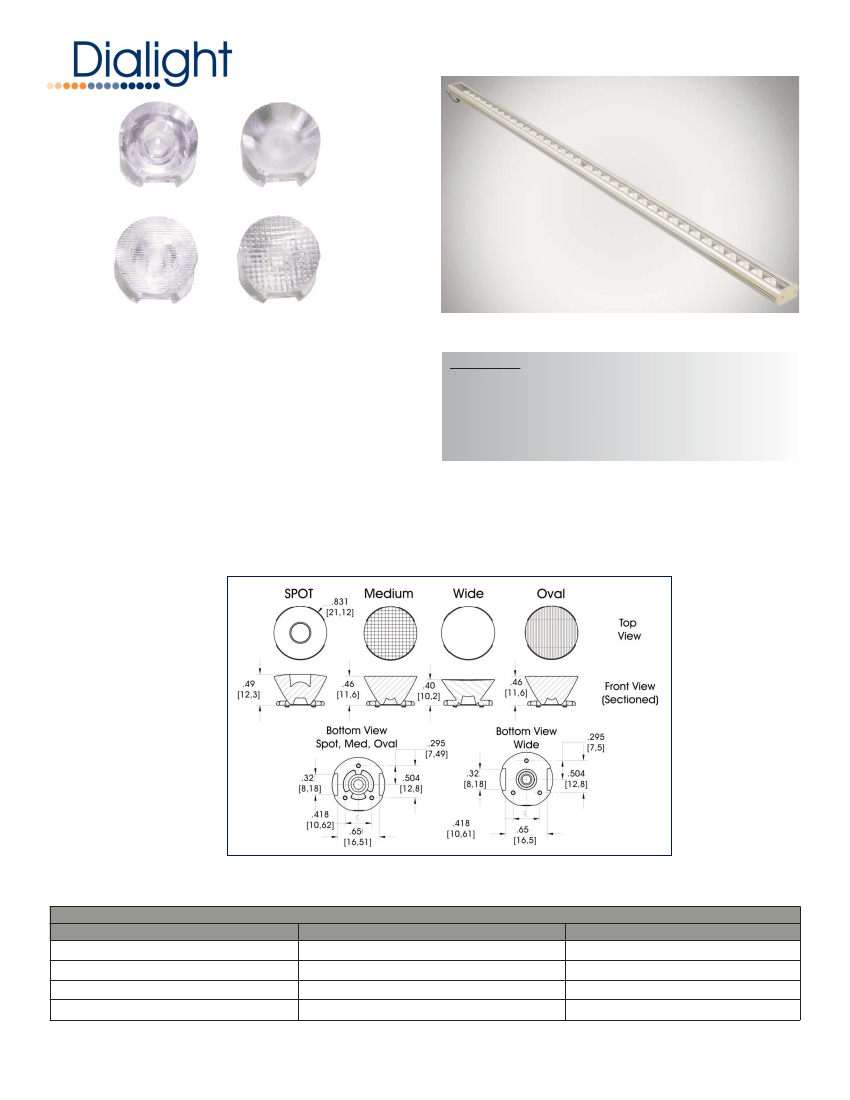

Universal TIR Optics

Adhesive-Backed Lens System

Features / Benefits

•

For LUXEON

Rebel ES, rebel LXLM

For Cree XPG and XTE

For Nichia 219B

Available in spot, medium, wide and oval lenses

Integral self-adhesive pad

Compact size

Greater than 80% efficiency

3 alignment tabs to ensure accurate placement over LED

Specifications

Operating Temp:

Material:

Listing:

-40°F to +230°F (-40°C to +110°C)

Optical grade polycarbonate

UL 94-V2

Ordering Codes

BASE LENSES

Dialight P/N

OPXC-1-SPOT

OPXC-1-MED

OPXC-1-WIDE

OPXC-1-OVAL

All angles refer to half divergence

Dashes are for reference only

Description

Spot Base Module

Medium Base Module

Wide Base Module

Oval Base Module

Degree type

6º

14º

21º

6º X 20º

www.dialight.com

OPXC1SPOT Related Products

	OPXC1SPOT	OPXC1WIDE
Description	module spot base univ 6deg	module wide base univ 21deg
Standard Package	1,000	1,000
Category	Optoelectronics	Optoelectronics
Family	Optics - LEDs, Lamps - Lenses	Optics - LEDs, Lamps - Lenses
