5UAC-1.5K

Description
led TH 5mm amb 608nm water clr
CategoryLED optoelectronic/LED
File Size210KB,1 Pages
ManufacturerBivar
Environmental Compliance
Download Datasheet Parametric Compare View All

5UAC-1.5K Overview

led TH 5mm amb 608nm water clr

5UAC-1.5K Parametric

Parameter NameAttribute value
Datasheets
5UAC-1.5K Drawing
Standard Package100
CategoryOptoelectronics
FamilyLED Indication - Discrete
PackagingBulk
ColAmbe
Wavelength - Domi608nm
Wavelength - Peak-
Millicandela Rating1500mcd
Voltage - Forward (Vf) (Typ)1.94V
Current - Tes20mA
Viewing Angle30°
Lens TypeCle
Lens Style/SizeRound with Domed Top, 5mm, T-1 3/4
Package / CaseRadial
Size / Dimensi-
Heigh8.61mm
Mounting TypeThrough Hole
Luminous Flux @ Current - Tes-

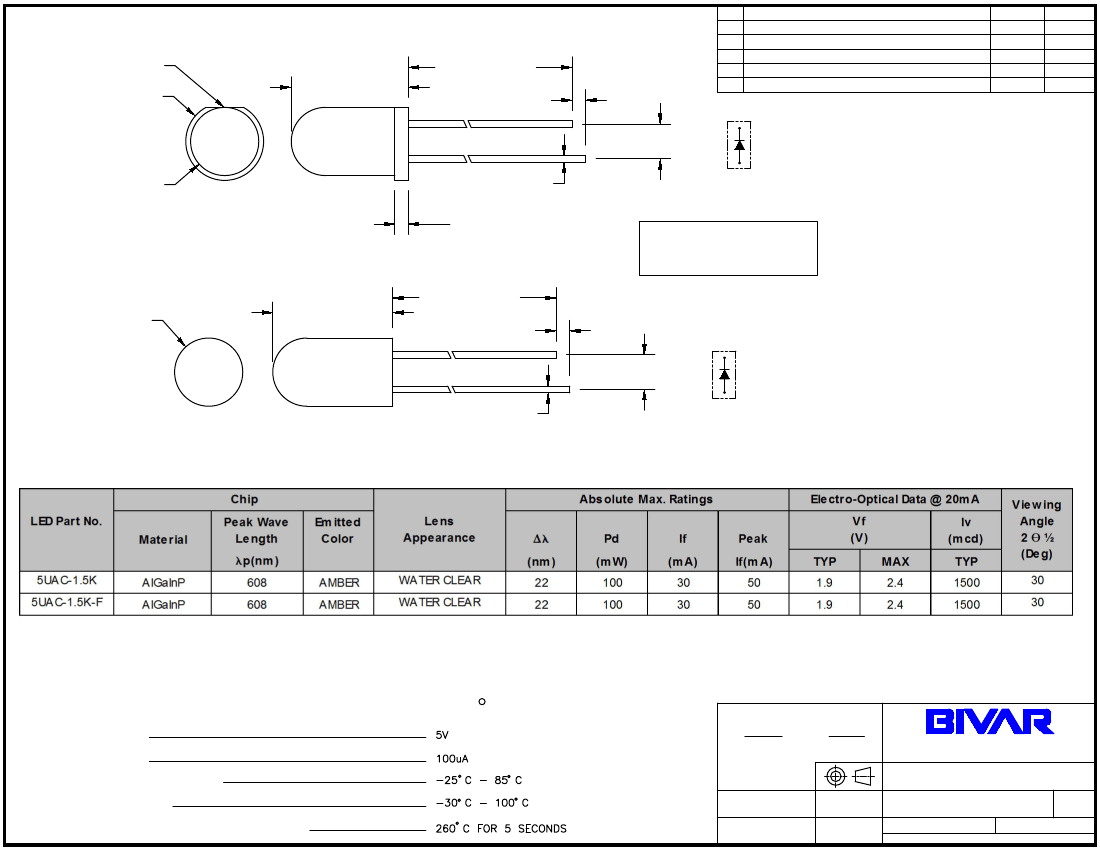

REV.
DESCRIPTION
DATE
APPROVED
A
Engineering Release
02/10/15
J. C.
Flat Edge
Cathode ID
0.339 [8.6mm]
Flange Dia.
0.94 [24.0mm]
MIN.
0.04 [1.0mm]
MIN.
0.100 [2.5mm]
0.020 [0.5mm] SQ.
Flanged LED :
P/N: 5UAC-1.5K-F
MIN.
0.039 [1.0mm]
Recommended Mounting
+.003
-.002
0.94 [24.0mm]
0.346 [8.8mm]
MIN.
0.04 [1.0mm]
MIN.
0.100 [2.5mm]
0.020 [0.5mm] SQ.
Non-Flanged LED:
P/N: 5UAC-1.5K
MIN.
ABSOLUTE MAXIMUM RATINGS (Ta=25 C)
REVERSE VOLTAGE
REVERSE CURRENT
OPERATING TEMPERATURE RANGE
STANDARD TOLERANCE
( UNLESS OTHERWISE SPECIFIED )
DECIMALS
ANGULAR
4 THOMAS, IRVINE, CA. 92618
TEL: (949) 951-8808
FAX: (949) 951-3974
TITLE:
DESIGNED:
DATE:
LED
STORAGE TEMPERATURE
LEAD SOLDERING TEMPERATURE(1/16" FROM BODY)
Brian Oliver
CHECKED:
02/10/15
DATE:
PART NO:
5UAC-1.5K-X
REVISION:
A
A. Wright
02/10/15
CAGE CODE : 32559
SHEET #
1
OF
1
CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
