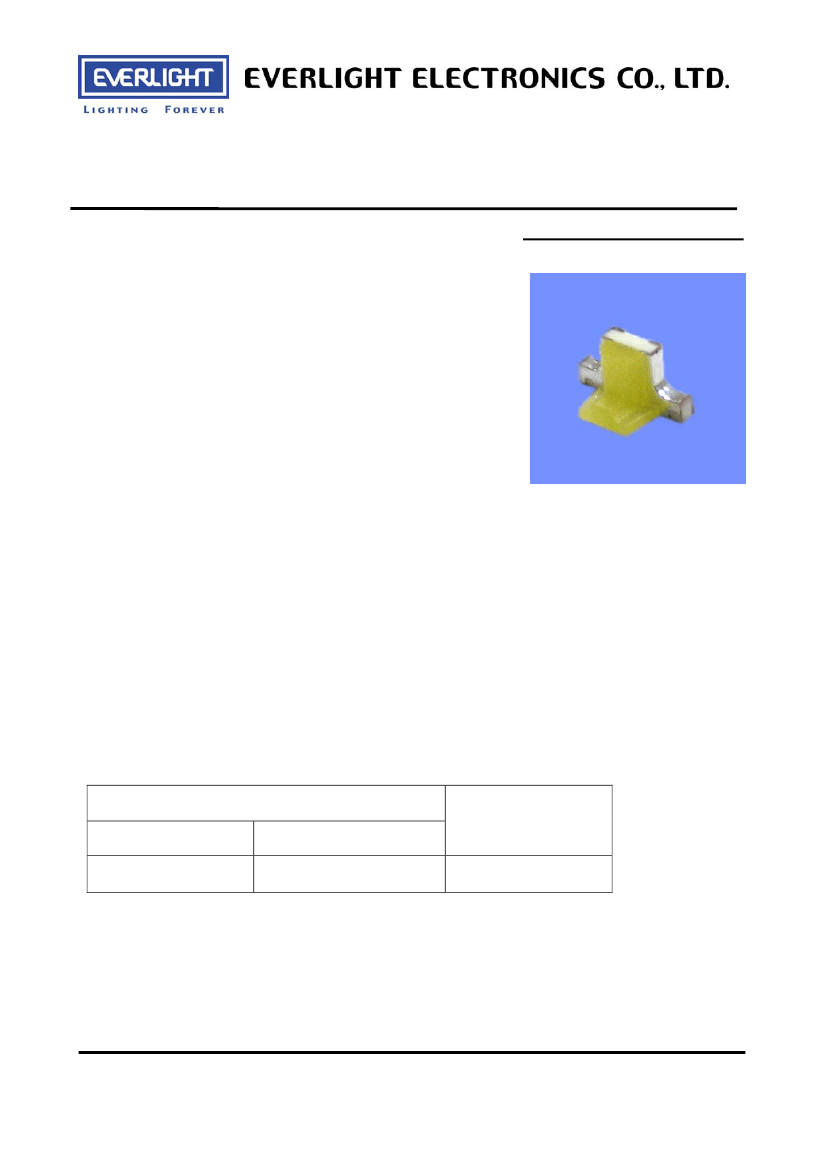

Technical Data Sheet
Through hole type side emitting LEDS
58-215/T3D-AT1U2/4T
Features
․Package
in 12mm tape on 13〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․Pb-free.
․The
product itself will remain within RoHS
compliant version.
Descriptions
․The
58-215 SMD LED is much smaller
than lead frame type components, thus
enable smaller board size, higher packing
density, reduced storage space and finally
smaller equipment to be obtained.
․Besides,
lightweight makes them ideal for
miniature applications. etc.
Applications
․Backlighting
in dashboard and switch.
․Telecommunication:
indicator and backlighting in
telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
Device Selection Guide
Chip
Resin Color
Material
InGaN
Emitted Color
Pure White
Yellow Diffused
Everlight Electronics Co., Ltd.
Device No. : DSE-0000554
http://www.everlight.com
Prepared date: 17-Dec-2008
Rev. 1
Page: 1 of 12
Prepared by: Ashley Kuo
58-215/T3D-AT1U2/4T

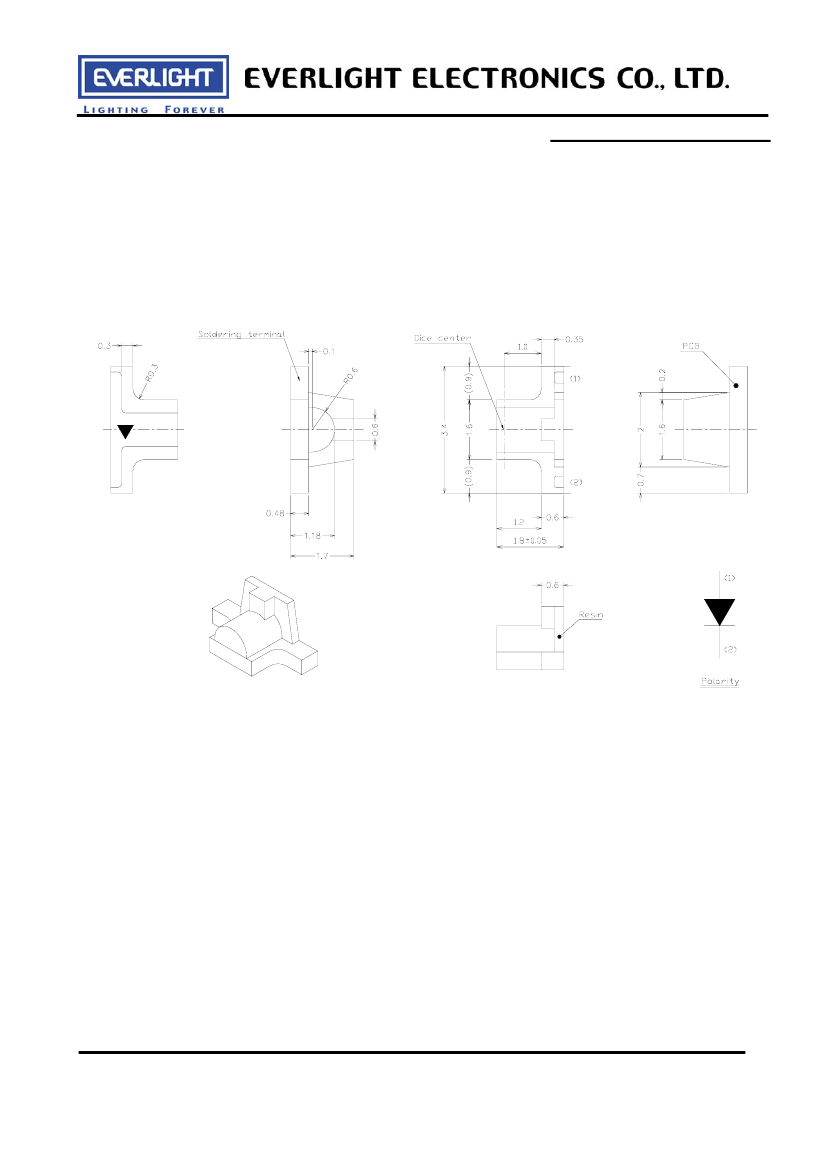

Package Outline Dimensions
Note:
The tolerances unless mentioned is
±0.1mm
,Unit = mm
Everlight Electronics Co., Ltd.
Device No. : DSE-0000554
http://www.everlight.com
Prepared date: 17-Dec-2008
Rev. 1
Page: 2 of 12
Prepared by: Ashley Kuo
58-215/T3D-AT1U2/4T
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
Electrostatic Discharge(HBM)
Operating Temperature
Storage Temperature
Symbol
V
R
I
F
I
FP
Pd
ESD
Topr
Tstg
Rating
5
25
100
95
150
-40 ~ +85
-40 ~ +90
Unit
V
mA
mA
mW
V
℃
℃
Reflow Soldering : 260
℃
for 10 sec.
Soldering Temperature
Tsol
Hand Soldering : 350
℃
for 3 sec.
Everlight Electronics Co., Ltd.
Device No. : DSE-0000554
http://www.everlight.com
Prepared date: 17-Dec-2008
Rev. 1
Page: 3 of 12
Prepared by: Ashley Kuo
58-215/T3D-AT1U2/4T
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity
Symbol
Iv
2θ1/2 (X)
Min.
285
Typ.
-----
135
Max.
715
Unit
mcd
Condition
Viewing Angle
-----
2θ1/2 (Y)
130
2.7
-----
-----
-----
V
F
I
R
-----
3.7
50
deg
V
μA
I
F
=20mA
Forward Voltage
Reverse Current
V
R
=5V
Bin Range of Luminous Intensity
Bin Code
T1
T2
U1
U2
Min.
285
360
450
565
Max.
360
450
565
715
mcd
I
F
=20mA
Unit
Conduction
Notes:
1.Tolerance of Luminous Intensity
±11%
Everlight Electronics Co., Ltd.
Device No. : DSE-0000554
http://www.everlight.com
Prepared date: 17-Dec-2008
Rev. 1
Page: 4 of 12
Prepared by: Ashley Kuo
58-215/T3D-AT1U2/4T
Chromaticity Coordinates Specifications for Bin Grading
Group
Bin Code
CIE_x
0.274
0.274
0.294
0.294
0.274
0.274
0.294
0.294
0.294
0.294
0.314
0.314
0.294
0.294
0.314
0.314
0.314
0.314
0.334
0.334
0.314
0.314
0.334
0.334
CIE_y
0.226
0.258
0.286
0.254
0.258
0.291
0.319
0.286
0.254
0.286
0.315
0.282
0.286
0.319
0.347
0.315
0.282
0.315
0.343
0.311
0.315
0.347
0.376
0.343
Condition
1
2
3
A
4
I
F
=20mA
5
6
Notes:
1.The C.I.E. 1931 chromaticity diagram ( Tolerance
±0.01).
2.The products are sensitive to static electricity and care must be fully taken when
handling products.
Everlight Electronics Co., Ltd.
Device No. : DSE-0000554
http://www.everlight.com
Prepared date: 17-Dec-2008
Rev. 1
Page: 5 of 12
Prepared by: Ashley Kuo
