MTE5066N-UR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> MTE5066N-UR

MTE5066N-UR: Descriptionled visible red emitter; CategoryLED optoelectronic/LED; File Size307KB，4 Pages; ManufacturerMarktech; Websitehttps://www.marktechopto.com/; Environmental Compliance

Download Datasheet Parametric View All

MTE5066N-UR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MTE5066N-UR	-	-	View	Buy Now

MTE5066N-UR Overview

led visible red emitter

MTE5066N-UR Parametric

Parameter Name	Attribute value
Datasheets
MTE5066N-UR
Product Photos
MTE2056N-XX
Standard Package	7
Category	Optoelectronics
Family	Infrared, UV, Visible Emitters
Packaging	Bulk
Current - DC Forward (If) (Max)	50mA
Radiant Intensity (Ie) Min @ If	-
Wavelength	660nm
Voltage - Forward (Vf) (Typ)	1.8V
Viewing Angle	12°
Orientati	Top View
Mounting Type	Through Hole
Package / Case	Radial, Lensed Metal Can, TO-46-2
Dynamic Catalog	4.65mm TO-18 Metal Can Round with Domed Top Visible LEDs
Other Names	1125-1104MTE5066N-UR-DIGMTE5066NUR

Preview

Download Datasheet

View All

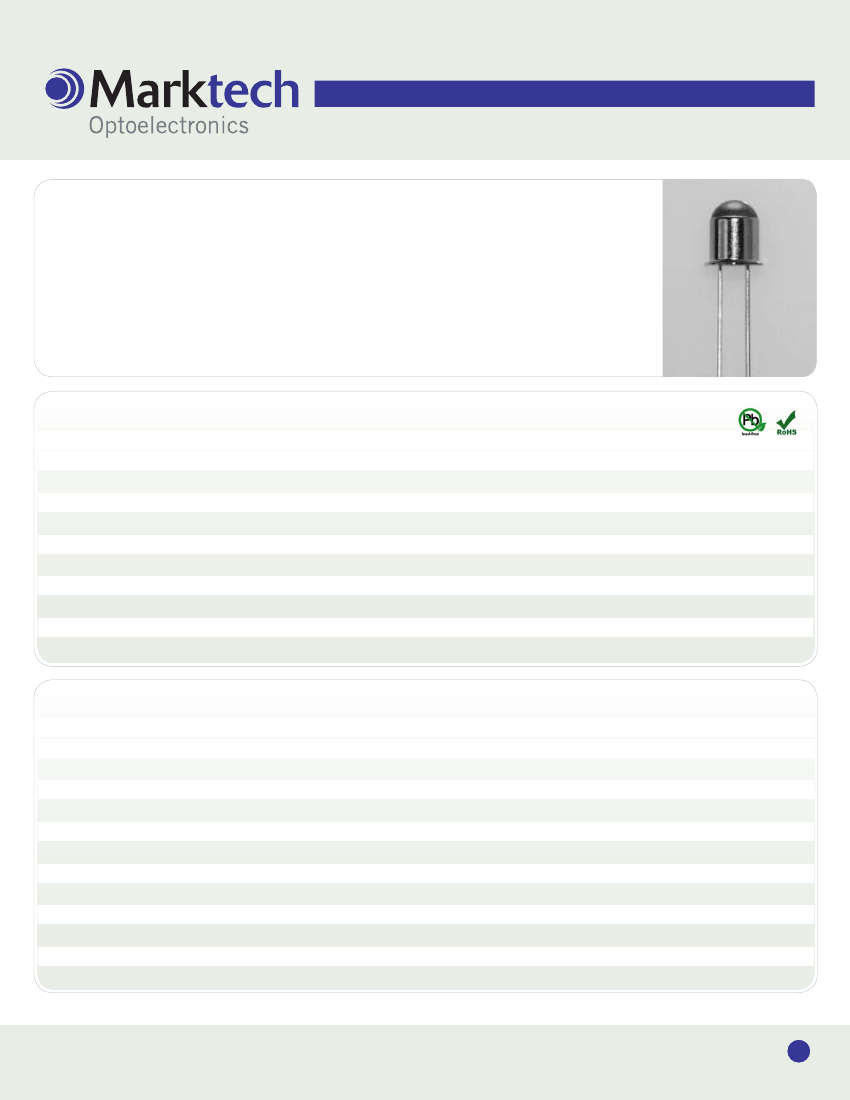

Visible Red LED

Product No:

MT E5066N-UR

Peak Emission Wavelength: 660nm

The 660nm red LED Series is designed for applications requiring high accurary and precision. Custom

package solutions and sorting are available.

FE AT U R E S

A PPL I C A TI O N S

High Reliability

High Output Power

Narrow Radiation Pattern

Optical Sensing

> Optical Instruments

Linear & Rotary Encoder

> Machine Vision / CCD

Absolute Maximum Ratings (Ta=25ºC)

IT E M S

SY M BO L

RA TI N GS

UNIT

Forward Current (DC)

Forward Current (Pulse)*1

Reverse Voltage

Power Dissipation

Operating Temperature Range

Storage Temperature Range

Junction Temperature

Lead Soldering Temperature*2

IFP

Topr

Tstg

Tls

0.5

110

-20 ~ +85

-30 ~ +100

100

260

ºC

*1: Tw=10µsec, T=10msec; *2: Time 5 Sec max, Position: Up to 3mm from the body.

Electrical & Optical Characteristics (Ta = 25ºC)

IT E M S

SY M BO L

C O N D I TI O N S

MIN

T YP

MA X

UNIT

Power Output

Forward Voltage

Reverse Current

Peak Emission Wavelength

Spectral Line Half Width

Half Intensity Beam Angle

Rise Time

Fall Time

Junction Capacitance

Temperature Coefficient of PO

Temperature Coefficient of VF

λp

∆λ

P/T

V/T

IF=20mA

VR=5V

IF=20mA

IFP=20mA

1MHz, V=0V

IF=10mA

1.5

3.0

1.8

660

±6

-0.5

-1.5

2.2

100

µA

deg

%/ºC

mV/ºC

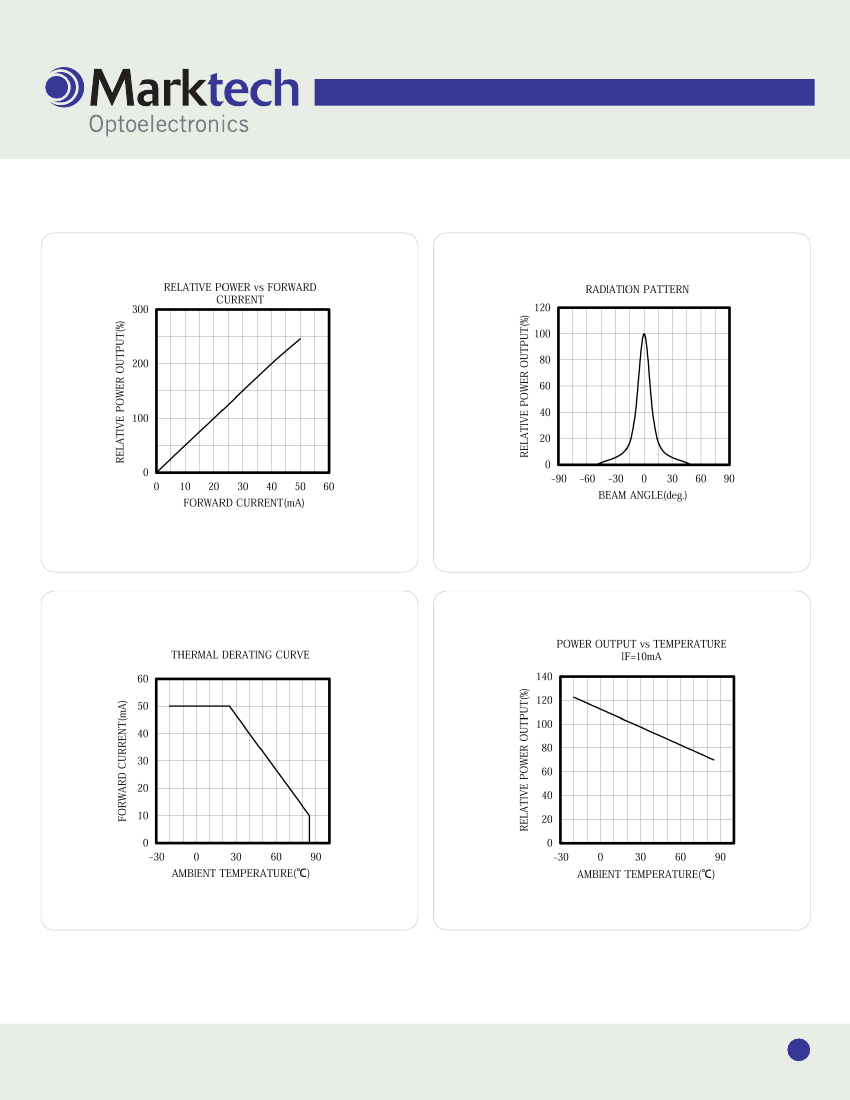

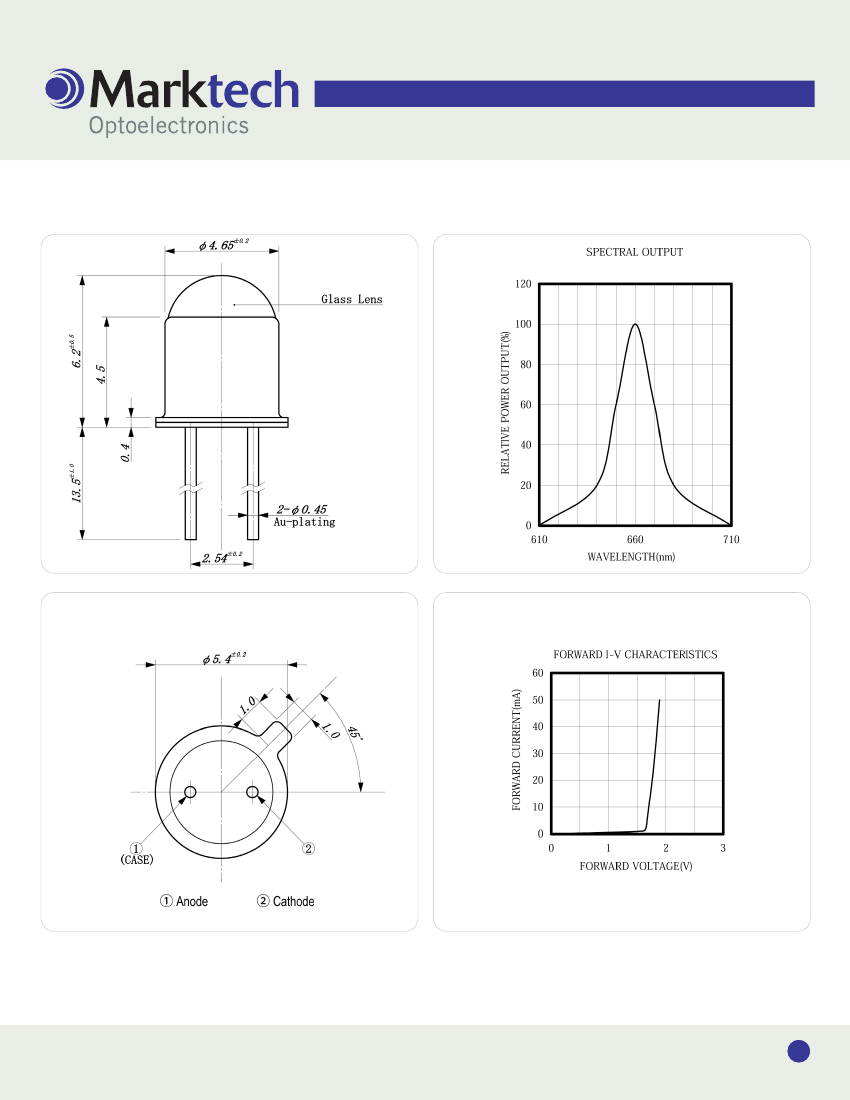

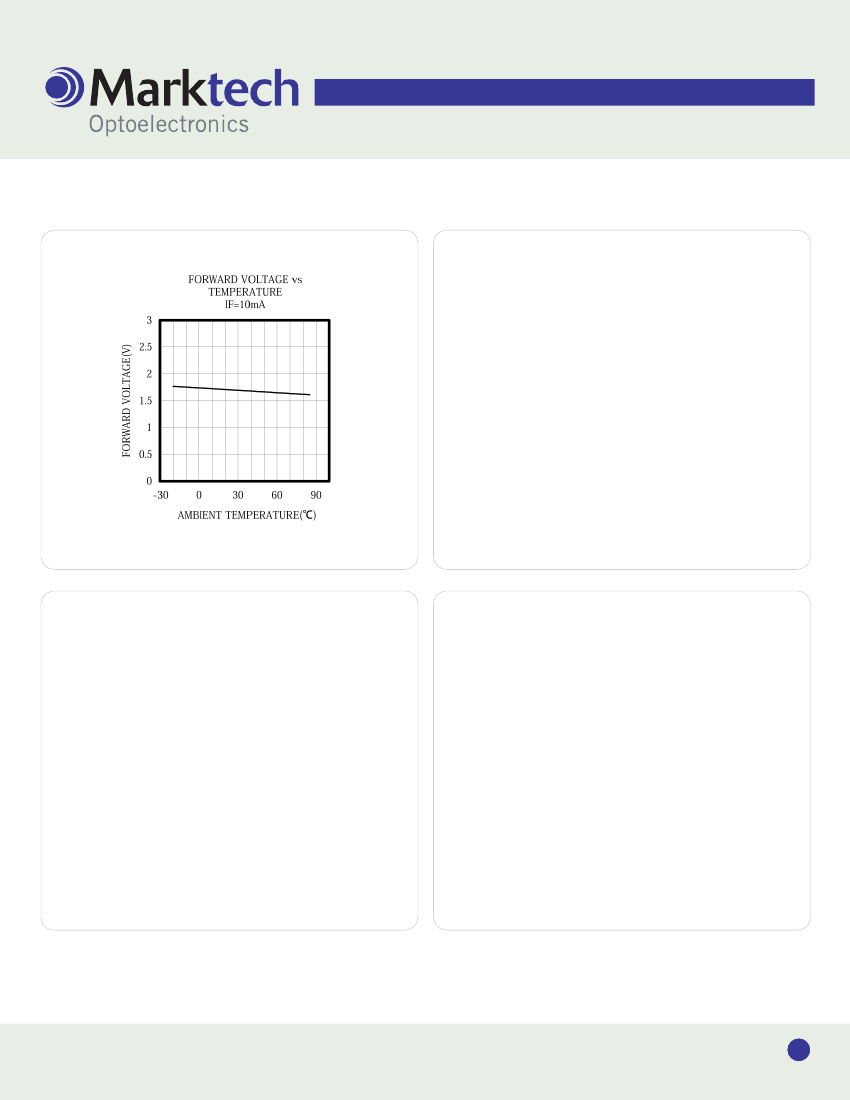

2011-07-08

Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA

TOLL FREE:

www.marktechopto.com

EMAIL:

1-800-984-5337

•

PHONE:

518-956-2980

•

FAX:

518-785-4725

•

info@marktechopto.com
