DM54S32W datasheet, PDF - EEWORLD Datasheet

DM54S32W: DescriptionOR Gate, S Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14; Categorylogic logic; File Size91KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

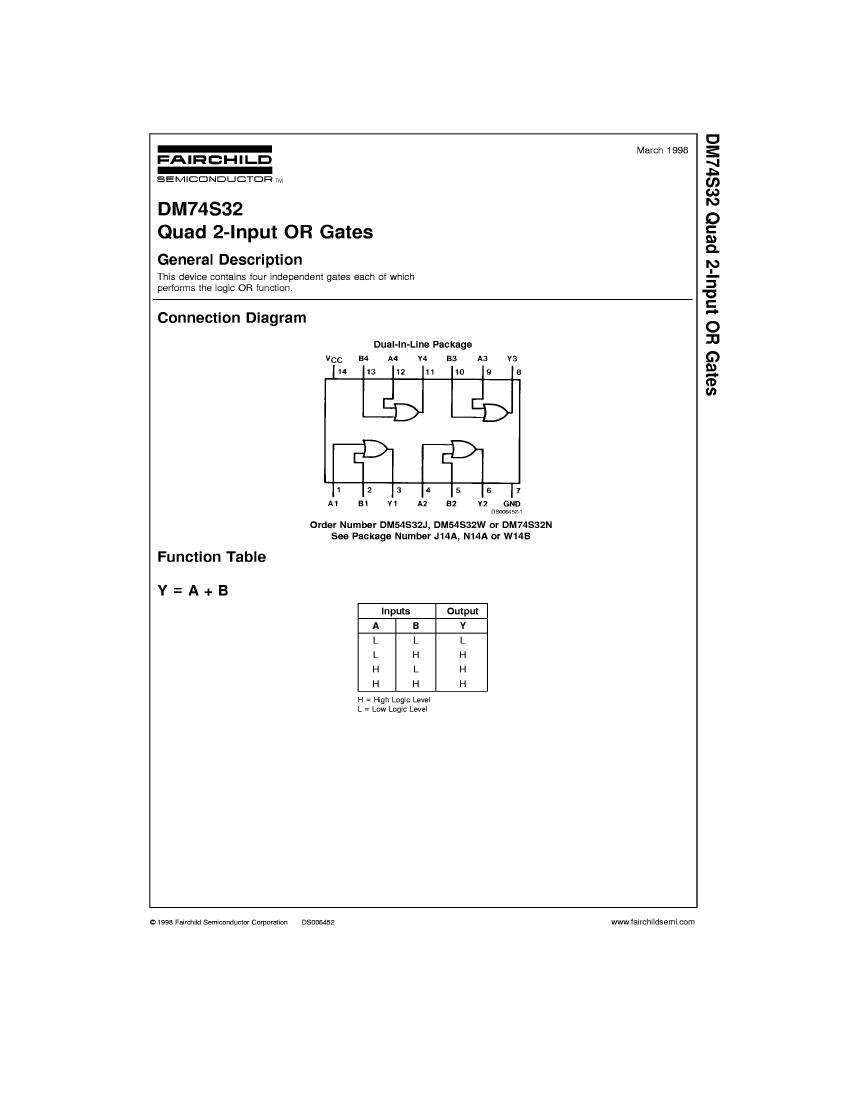

DM54S32W Overview

OR Gate, S Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14

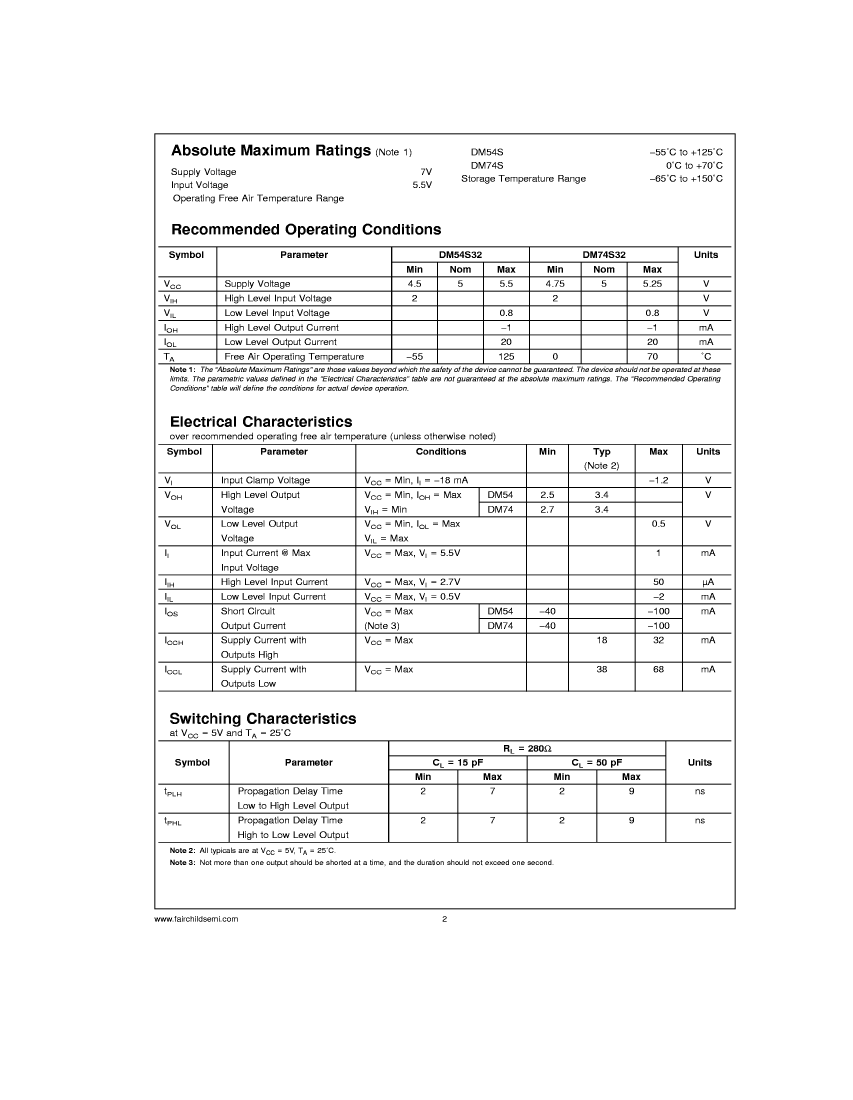

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DFP
package instruction	DFP, FL14,.3
Contacts	14
Reach Compliance Code	unknow
series	S
JESD-30 code	R-GDFP-F14
JESD-609 code	e0
Logic integrated circuit type	OR GATE
MaximumI(ol)	0.02 A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C

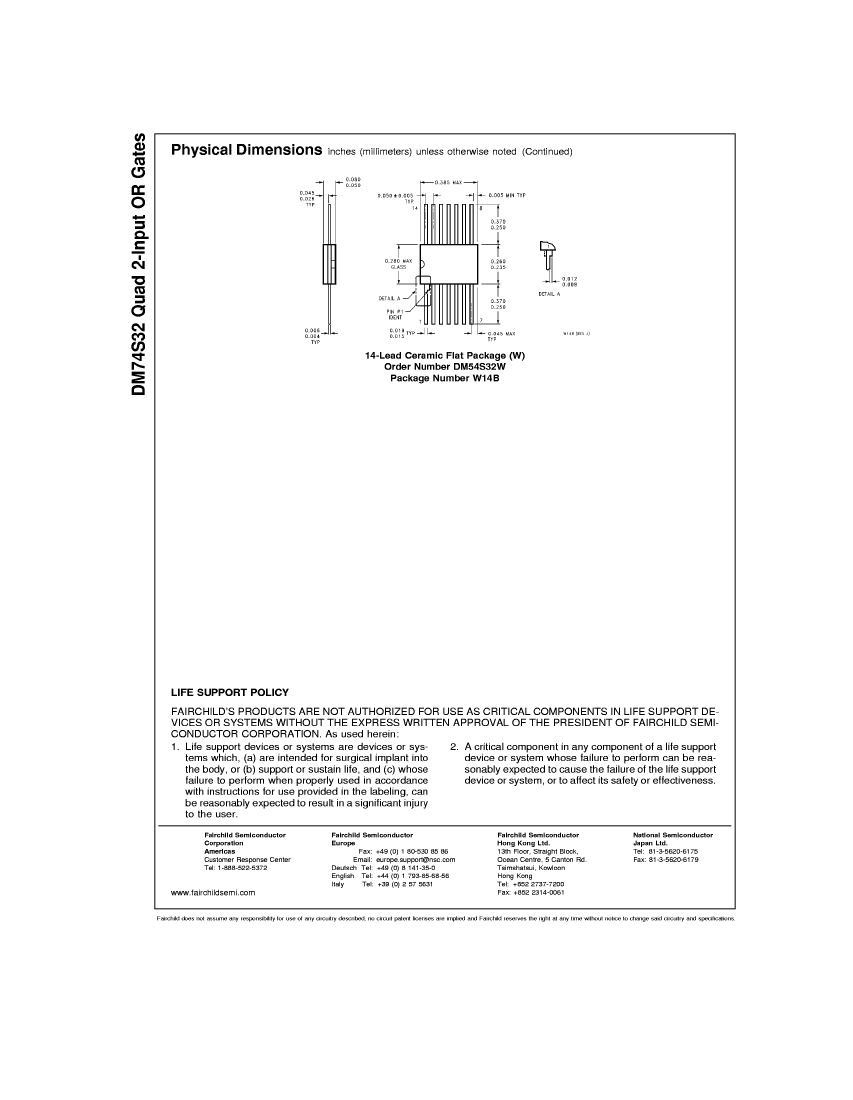

Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	68 mA
Prop。Delay @ Nom-Su	9 ns
propagation delay (tpd)	9 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	2.032 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.2865 mm
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

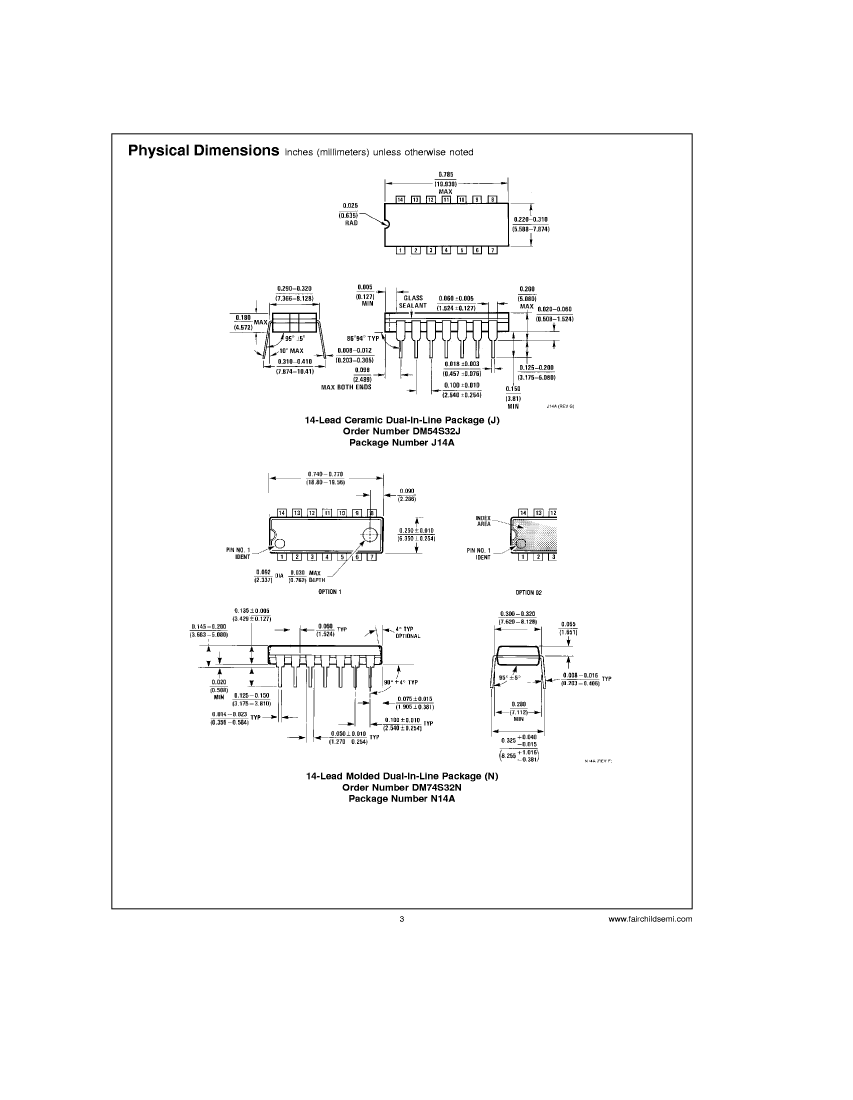

	DM54S32W	DM54S32J
Description	OR Gate, S Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14	OR Gate, S Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	DFP	DIP
package instruction	DFP, FL14,.3	DIP, DIP14,.3
Contacts	14	14
Reach Compliance Code	unknow	unknown
series	S	S
JESD-30 code	R-GDFP-F14	R-GDIP-T14
JESD-609 code	e0	e0
Logic integrated circuit type	OR GATE	OR GATE
MaximumI(ol)	0.02 A	0.02 A
Number of functions	4	4
Number of entries	2	2
Number of terminals	14	14
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DIP
Encapsulate equivalent code	FL14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
Maximum supply current (ICC)	68 mA	68 mA
propagation delay (tpd)	9 ns	9 ns
Certification status	Not Qualified	Not Qualified
Schmitt trigger	NO	NO
Maximum seat height	2.032 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	6.2865 mm	7.62 mm
