MTE1300NN1-WRC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> MTE1300NN1-WRC

MTE1300NN1-WRC: Descriptionhigh power infrared led 1300nm; CategoryLED optoelectronic/LED; File Size370KB，3 Pages; ManufacturerMarktech; Websitehttps://www.marktechopto.com/; Environmental Compliance

Download Datasheet Parametric View All

MTE1300NN1-WRC Overview

high power infrared led 1300nm

MTE1300NN1-WRC Parametric

Parameter Name	Attribute value
Datasheets
MTE1300NN1-WRC
Product Photos
MTE1300NN1-WRC
Featured Produc
LED Emitters
Standard Package	50
Category	Optoelectronics
Family	Infrared, UV, Visible Emitters
Packaging	Bulk
Current - DC Forward (If) (Max)	100mA
Radiant Intensity (Ie) Min @ If	-
Wavelength	1300nm
Voltage - Forward (Vf) (Typ)	0.8V
Viewing Angle	12°
Orientati	Top View
Mounting Type	Through Hole
Package / Case	Radial, Metal C
Dynamic Catalog	Infrared Emitters
Other Names	1125-1161MTE1300NN1-WRC-DIG

Preview

Download Datasheet

View All

Infrared Emitter

Product No:

MTE130 0NN1-WRC

Peak Emission Wavelength: 1300nm

The 1300nm IR emitter series is designed for applications requiring high output and precise optical /

mechanical axis alignment. Custom package solutions and sorting are available.

FE AT U R E S

A PPL I C A TI O N S

Metal Can Package

High Output Power

High Reliability

Narrow Viewing Angle

Optical Switches

Security Systems

Fiber Optical Communications

Absolute Maximum Ratings (Ta=25ºC)

IT E M S

SY M BO L

RA TI N GS

UNIT

Forward Current (DC)

Forward Current (Pulse)*1

Reverse Voltage

Power Dissipation

Operating Temperature Range

Storage Temperature Range

Junction Temperature

Lead Soldering Temperature*2

IFP

Topr

Tstg

Tls

100

-25 ~ +85

-30 ~ +100

100

260

ºC

*1: Tw=10µsec, T=10msec; *2: Time 5 Sec max, Position: Up to 3mm from the body.

Electrical & Optical Characteristics (Ta = 25ºC)

IT E M S

SY M BO L

C O N D I TI O N S

MIN

T YP

MA X

UNIT

Power Output

Forward Voltage

Reverse Current

Peak Emission Wavelength

Spectral Line Half Width

Half Intensity Beam Angle

λp

∆λ

IF=50mA

VR=5V

IF=50mA

1.4

0.8

1300

±6

1.1

100

µA

deg

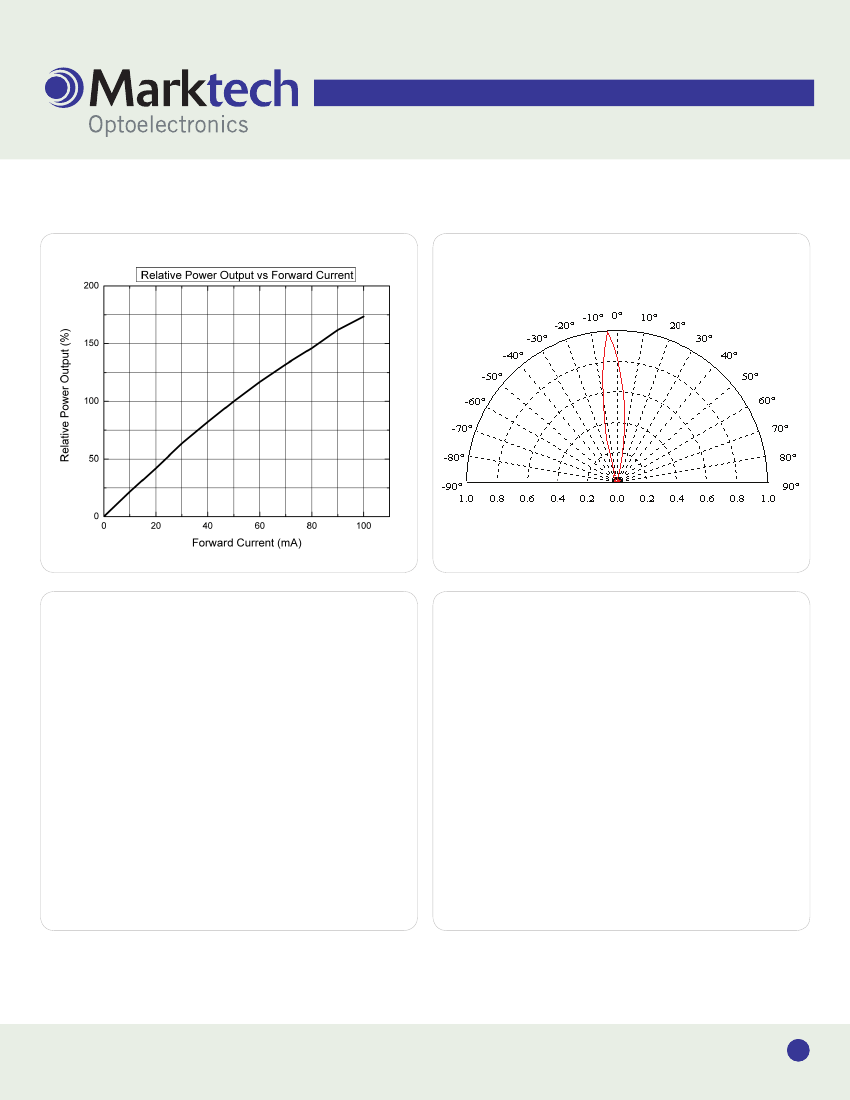

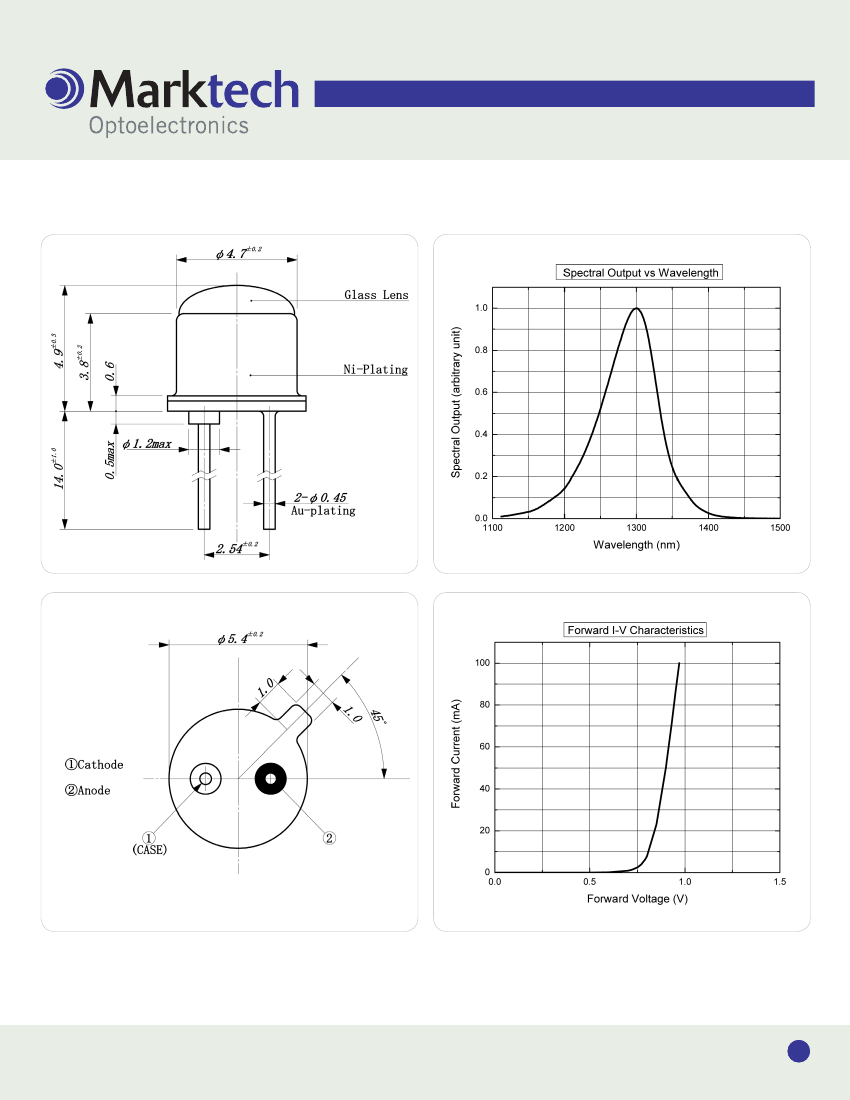

2013-3-12

Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA

TOLL FREE:

www.marktechopto.com

EMAIL:

1-800-984-5337

•

PHONE:

518-956-2980

•

FAX:

518-785-4725

•
