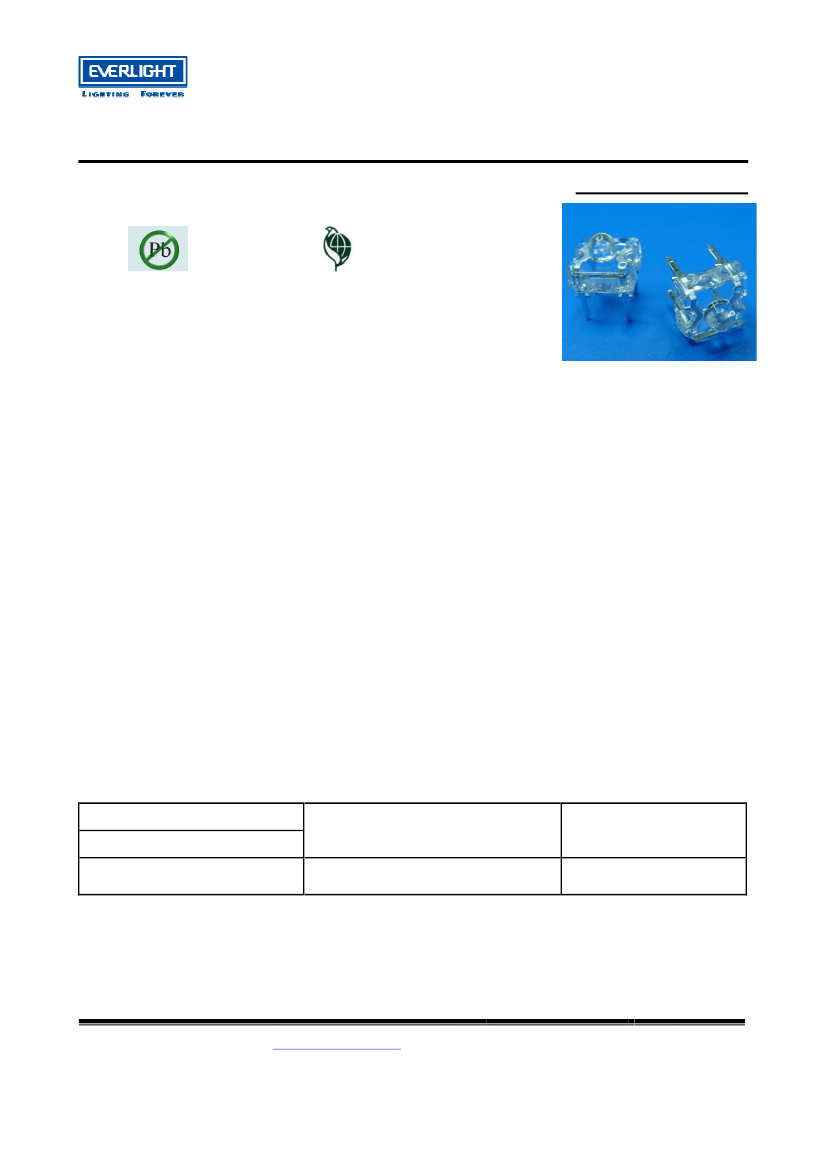

EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet
3mm Piranha
30-01-B4C-AKNB
Lead (Pb) Free Product - RoHS Compliant
Feature
‧
‧
‧
‧
‧
‧
Low profile.
Uniform color.
High flux output.
Colorless clear resin.
Brightness: 1125 to 2850 mlm at 30mA.
Packaged in tubes for use with automatic insertion equipment.
Applications
‧
Electronic Signs and Signals.
‧
Channel Letter
‧
General applications.
Device Selection Guide
Chip
Material
InGaN
Emitted Color
Blue
Resin Color
Water Clear
Everlight Electronics Co., Ltd.
Device No.:
http://www.everlight.com
Published date: Nov.-24-2009
Rev.:
2.0
Ken Lee
Page:
1 of 12
DLE-300-097
Created by:
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet
3mm Piranha
30-01-B4C-AKNB
Absolute Maximum Ratings (Ta=25
℃
)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Junction Temperature
Operating Temperature
Storage Temperature
Thermal Resistance
Symbol
V
R
I
F
I
FP
T
j
T
opr
Tstg
Rth
J-A
ESD
HBM
ESD
MM
T
sol
Rating
5
30
110
110
-40 ~ +100
-40 ~ +100
220
4000
200
Unit
V
mA
mA
℃
℃
℃
K/W
V
V
ESD
(Classification acc. AEC Q101)
Soldering Temperature
Wave Soldering : 260
℃
for 5 sec.
Hand Soldering : 300
℃
for 3 sec.
Everlight Electronics Co., Ltd.
Device No.:
http://www.everlight.com
Published date: Nov.-24-2009
Rev.:
2.0
Ken Lee
Page:
2 of 12
DLE-300-097
Created by:
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet
3mm Piranha
30-01-B4C-AKNB
Electro-Optical Characteristics (Ta=25
℃
)
Parameter
Total Flux
Peak Wavelength
Dominant Wavelength
Viewing Angle
Forward Voltage
Reverse Current
Symbol
Φ
V
λp
λd
2θ
1/2
V
F
I
R
Min.
1125
----
464
---
2.8
---
Typ.
---
468
470
80
---
---
Max.
2850
----
476
---
3.8
10
Unit
mlm
nm
nm
deg
V
µA
Condition
I
F
=30mA
I
F
=30mA
I
F
=30mA
I
F
=30mA
I
F
=30mA
V
R
=5V
Note:
1. Tolerance of Total Flux: ±11%
2. Tolerance of Dominant Wavelength: ±1.0nm
3. Tolerance of Forward Voltage: ±0.1V
Everlight Electronics Co., Ltd.
Device No.:
http://www.everlight.com
Published date: Nov.-24-2009
Rev.:
2.0
Ken Lee
Page:
3 of 12
DLE-300-097
Created by:
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet
3mm Piranha
30-01-B4C-AKNB
Bin Range of Forward Voltage
Bin Code
0
1
2
3
4
Min.
2.8
3.0
3.2
3.4
3.6
Max.
3.0
3.2
3.4
3.6
3.8
V
I
F
=30mA
Unit
Condition
Note:
Tolerance of Forward Voltage: ±0.1V
Bin Range of Dominant Wavelength
Bin Code
3
4
5
Min.
464
468
472
Max.
468
472
476
nm
I
F
=30mA
Unit
Condition
Note:
Tolerance of Dominant Wavelength: ±1nm
Bin Range of Total Flux
Bin Code
K
L
M
N
Note:
Tolerance of Total Flux: ±11%
Min.
1125
1425
1800
2250
Max.
1425
1800
2250
2850
mlm
I
F
=30mA
Unit
Condition
Everlight Electronics Co., Ltd.
Device No.:
http://www.everlight.com
Published date: Nov.-24-2009
Rev.:
2.0
Ken Lee
Page:
4 of 12
DLE-300-097
Created by:
EVERLIGHT ELECTRONICS CO., LTD.
Technical Data Sheet
3mm Piranha
30-01-B4C-AKNB

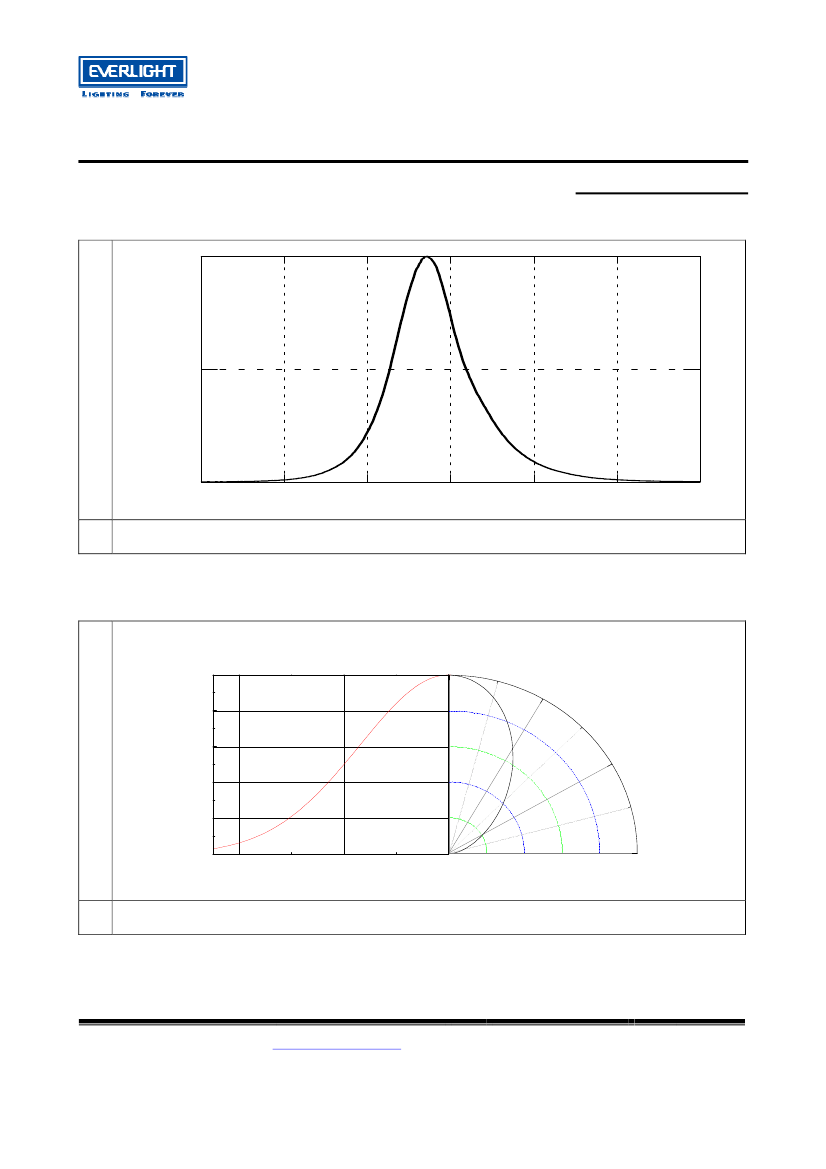

Typical Electro-Optical Characteristics Curves
Typical Curve of Spectral Distribution
1.00
Relative Intensity(％)
％
0.50
0.00
400
425
450
475
500
525
550
Wavelength(nm)
Diagram Characteristics of Radiation
0
Relative Intensity(a.u.)
1.0
0.8
0.6
0.4
0.2
0.0
-80
-40
0
30
60
90
Viewing Angle (degree)
View Angle(degree)
Everlight Electronics Co., Ltd.
Device No.:
http://www.everlight.com
Published date: Nov.-24-2009
Rev.:
2.0
Ken Lee
Page:
5 of 12
DLE-300-097
