0513-2091: DescriptionCard Edge Connector, 9 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size227KB，2 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

0513-2091 Overview

Card Edge Connector, 9 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking

0513-2091 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
Board mount options	SOLDER HOLDING FLANGE
body width	0.047 inch
subject depth	0.168 inch
body length	0.402 inch
Connector type	FFC/FPC CONNECTOR
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
maximum insertion force	ZIF N
insulator material	NYLON
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	9
Base Number Matches	1

Preview

Download Datasheet

View All

CONECTOR ACODADO CINTA FLEXIBLE SMD

SERIE 0513.

Paso 0.50 mm. (0.020”). Para soldar a PCB

Características

!

Disponible de 6 a 33 circuitos

Material: nylon 6/6 UL 94V-0

Contacto en bronce fosforoso estañado

!

Fuerza de inserción 0 y alta presión del contacto

Para cable flaxible de 0.3 mm. de espesor y paso 0.50 mm.

Cumple normas RoHS

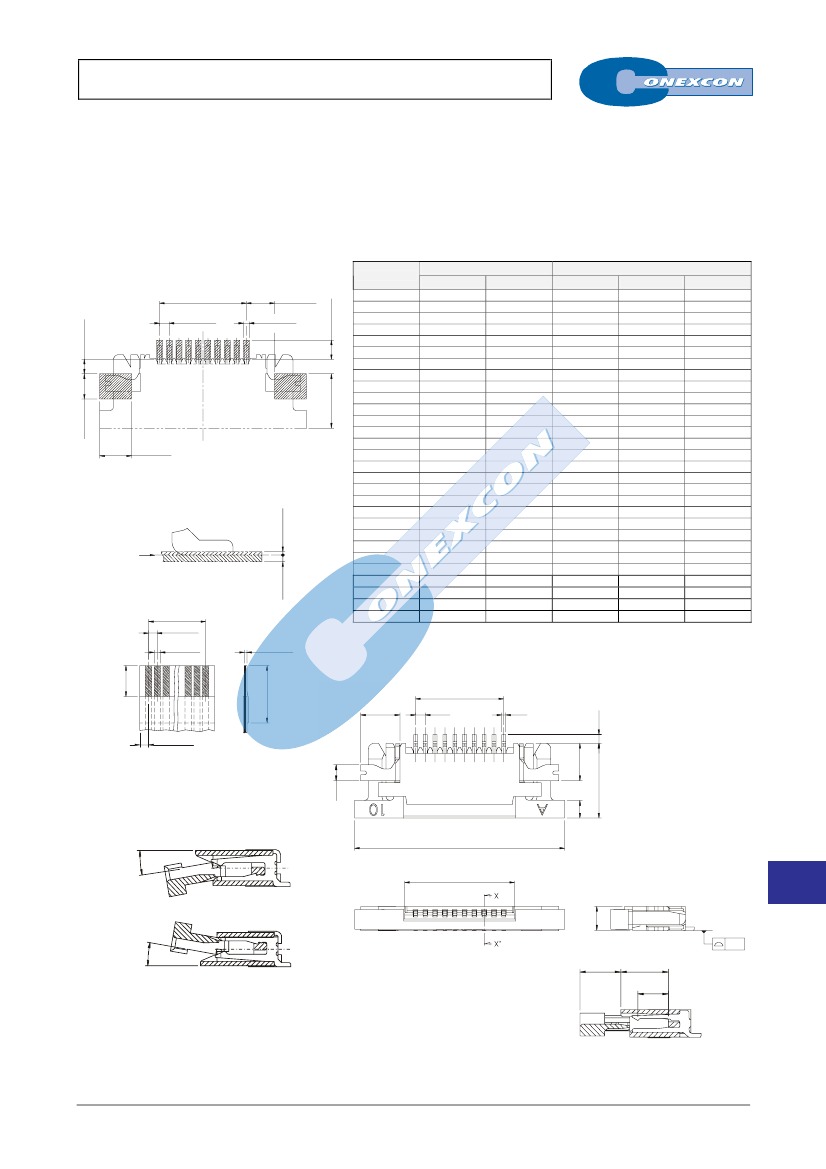

Códigos y dimensiones

Figuras y dimensiones

CIRCUITOS

1.0±0.05

.039±0.002

A±0.05

0.75±0.10

.030±.004

0.5±0.05

.020±0.002

1.45±0.05

.057±0.002

0.3±0.05

.012±0.002

CÓDIGO

Cont. superior

0513-2051

0513-2061

0513-2071

0513-2081

0513-2091

0513-2101

0513-2111

0513-2121

0513-2131

0513-2141

0513-2151

0513-2161

0513-2171

0513-2181

0513-2191

0513-2201

0513-2211

0513-2221

0513-2231

0513-2241

0513-2251

0513-2261

0513-2271

0513-2281

0513-2291

0513-2301

0513-2311

0513-2321

0513-2331

Cont. inferior

0513-2052

0513-2062

0513-2072

0513-2082

0513-2092

0513-2102

0513-2112

0513-2122

0513-2132

0513-2142

0513-2152

0513-2162

0513-2172

0513-2182

0513-2192

0513-2202

0513-2212

0513-2222

0513-2232

0513-2242

0513-2252

0513-2262

0513-2272

0513-2282

0513-2292

0513-2302

0513-2312

0513-2322

0513-2332

A

2,00(0,079)

2,50(0,098)

3,00(0,118)

3,50(0,138)

4,00(0,157)

4,50(0,177)

5,00(0,197)

5,50(0,217)

6,00(0,236)

6,50(0,256)

7,00(0,276)

7,50(0,295)

8,00(0,315)

8,50(0,335)

9,00(0,354)

9,50(0,374)

10,00(0,394)

10,50(0,413)

11,00(0,433)

11,50(0,453)

12,00(0,472)

12,50(0,492)

13,00(0,512)

13,50(0,531)

14,00(0,551)

14,50(0,571)

15,00(0,591)

15,50(0,610)

16,00(0,630)

DIMENSIONES

B

8,20(0,323)

8,70(0,343)

9,20(0,362)

9,70(0,382)

10,20(0,402)

10,70(0,421)

11,20(0,441)

11,70(0,461)

12,20(0,480)

12,70(0,500)

13,20(0,520)

13,70(0,539)

14,20(0,559)

14,70(0,579)

15,20(0,598)

15,70(0,618)

16,20(0,638)

16,70(0,657)

17,20(0,677)

17,70(0,697)

18,20(0,717)

18,70(0,736)

19,20(0,756)

19,70(0,776)

20,20(0,795)

20,70(0,815)

21,20(0,835)

21,70(0,854)

22,20(0,874)

C

3,10(0,122)

3,60(0,142)

4,10(0,161)

4,60(0,181)

5,10(0,201)

5,60(0,220)

6,10(0,240)

6,60(0,260)

7,10(0,280)

7,60(0,299)

8,10(0,319)

8,60(0,339)

9,10(0,358)

9,60(0,378)

10,10(0,398)

10,60(0,417)

11,10(0,437)

11,60(0,457)

12,10(0,476)

12,60(0,496)

13,10(0,516)

13,60(0,535)

14,10(0,555)

14,60(0,575)

15,10(0,594)

15,60(0,614)

16,10(0,634)

16,60(0,654)

17,10(0,673)

1.65±0.10

.065±.004

MECANIZADO RECOMENDADO

Detalles del contacto

A±0.08

0.5±0.05

.020±.002

0.3±0.03

.012±.001

05

06

07

08

09

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

1.3±0.10

.051±.004

0.05 max.

0.1 max.

.004

.002

2.80

.110

2.0

.079

Min.

0.3±0.03

.012±.001

4.0 Min.

.157

Nota:

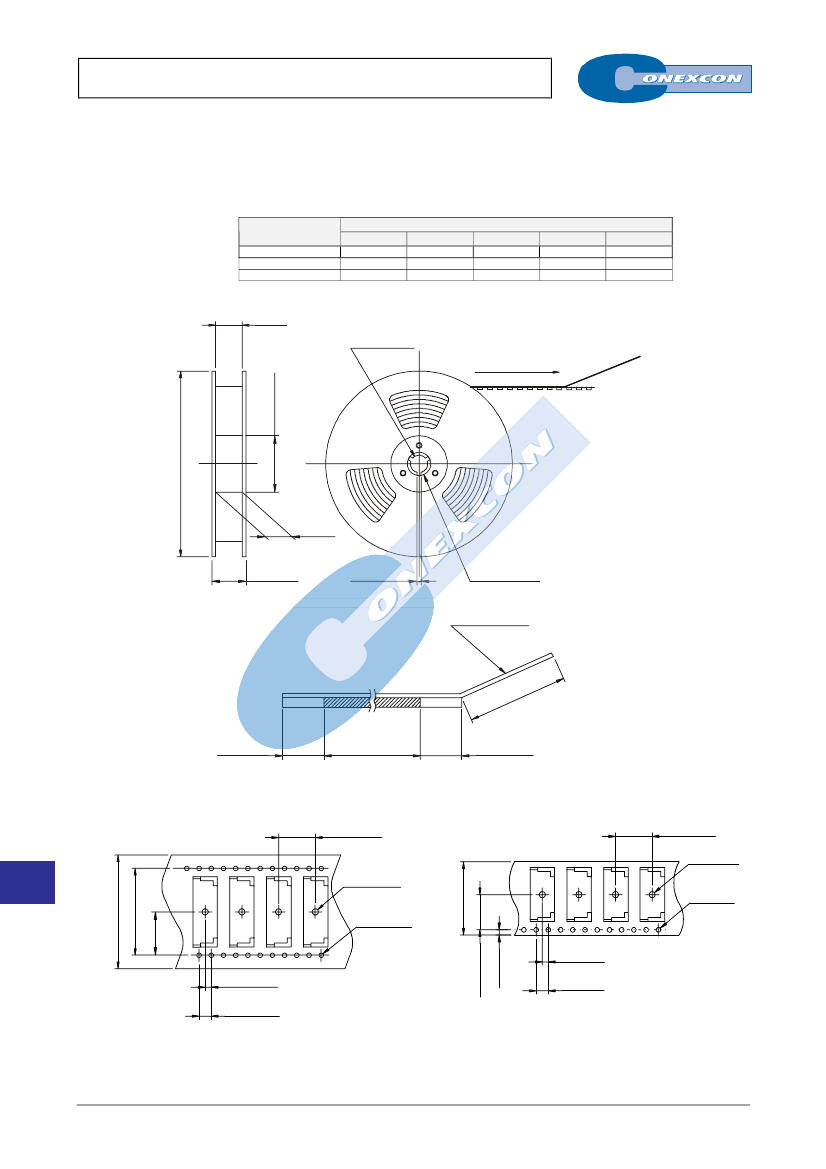

Para pedir los conectores en rollos para montaje robotizado,

añadir una

R

al final del código elegido

A

0.45

.018

1.9

.075

0.8

.031

.035

0.9

.150

3.8

2.00

.079

0.5

.020

0.2

.008

0.5±0.1

.039±.004

Dimensiones del cable recomendadas

SEC.: X-X'

B

10º

C

Contacto Superior

.047

1.2

P

0.1

10º

Contacto inferior

1.8

.071

2.1

.083

1.35

.053

Sec.: X-X

CATÁLOGO GENERAL

P-7
