3BCC

Description
led TH 3mm R/G water clr
CategoryLED optoelectronic/LED
File Size489KB,2 Pages
ManufacturerBivar
Environmental Compliance
Download Datasheet Parametric Compare View All

3BCC Online Shopping

Suppliers Part Number Price MOQ In stock
3BCC - - View Buy Now

3BCC Overview

led TH 3mm R/G water clr

3BCC Parametric

Parameter NameAttribute value
Datasheets
3BCC-xx-x Drawing
Standard Package100
CategoryOptoelectronics
FamilyLED Indication - Discrete
PackagingBulk
ColGreen, Red
Wavelength - Domi568nm, 625nm
Wavelength - Peak-
Millicandela Rating10mcd Green, 10mcd Red
Voltage - Forward (Vf) (Typ)2.1V Green, 2V Red
Current - Tes30mA
Viewing Angle40°
Lens TypeCle
Lens Style/SizeRound with Domed Top, 3mm, T-1
Package / CaseRadial
Size / Dimensi-
Heigh5.30mm
Mounting TypeThrough Hole
Luminous Flux @ Current - Tes-
REV.
DESCRIPTION
DATE
APPROVED
A
B
C
Engineering Release
Added R/Y & A/G LED Specs
Added LED Specs
01/15/09
05/06/10
02/10/15
T. Y.
T. Y.
J. C.
0.177 [4.5mm]
1.00 [25.4mm]
MIN.
N-Flange Dia.
0.04 [1.0mm]
MIN.
0.100 [2.5mm]
0.020 [0.5mm] SQ.
MIN.
Shouldered Lead
"3BCC-XX" LED
Recommended Mounting
+.003
-.002
0.209 [5.3mm]
Flat Edge ID
1.00 [25.4mm]
MIN.
Flange Dia.
0.04 [1.0mm]
MIN.
0.100 [2.5mm]
0.020 [0.5mm] SQ.
MIN.
Flanged "3BCC-XX-F"LED
0.032 [0.8mm]
SHORT
LEAD
CATHODE
RED
YELLOW
RED
AMBER
PART NO.
3BCC-X
3BCC-Y/G-X
3BCC-R/Y-X
3BCC-A/G-X
LONG
LEAD
CATHODE
GREEN
GREEN
YELLOW
GREEN
STANDARD TOLERANCE
( UNLESS OTHERWISE SPECIFIED )
DECIMALS
ANGULAR
REVERSE VOLTAGE
REVERSE CURRENT
OPERATING TEMPERATURE RANGE
5V
100uA
DESIGNED:
DATE:
4 THOMAS, IRVINE, CA. 92618
TEL: (949) 951-8808
FAX: (949) 951-3974
TITLE:
T1 (3mm) BI-COLOR LED
PART NO:
REVISION:
STORAGE TEMPERATURE
LEAD SOLDERING TEMPERATURE(1/16" FROM BODY)
Raffy Paje
CHECKED:
01/15/09
DATE:
3BCC-XX-X
C
F. Jensen
01/15/09
CAGE CODE : 32559
SHEET #
1
OF
2
CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.

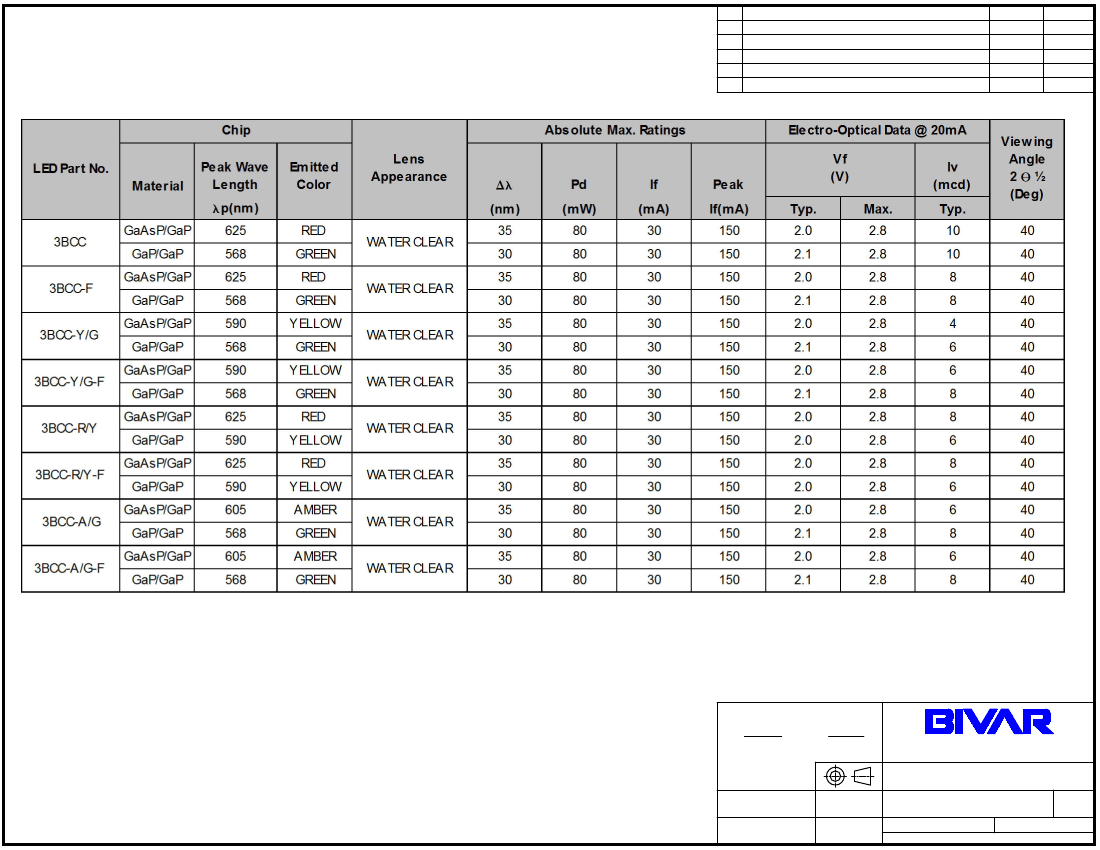

3BCC Related Products

3BCC 3BCC-Y/G
Description led TH 3mm R/G water clr led TH 3mm Y/G water clr
Standard Package 100 100
Category Optoelectronics Optoelectronics
Family LED Indication - Discrete LED Indication - Discrete
Packaging Bulk Bulk
Col Green, Red Green, Yellow
Wavelength - Domi 568nm, 625nm 568nm, 590nm
Millicandela Rating 10mcd Green, 10mcd Red 6mcd Green, 4mcd Yellow
Voltage - Forward (Vf) (Typ) 2.1V Green, 2V Red 2.1V Green, 2V Yellow
Current - Tes 30mA 20mA
Viewing Angle 40° 40°
Lens Type Cle Cle
Lens Style/Size Round with Domed Top, 3mm, T-1 Round with Domed Top, 3mm, T-1
Package / Case Radial Radial
Heigh 5.30mm 5.30mm
Mounting Type Through Hole Through Hole
