Series P
Toggles
Internationally Approved Toggles
A
Rockers
General
Specifications
Electrical Capacity
Resistive Load:
Motor Load:
Lamp Load:
10A @ 125V AC or 6A @ 250V AC
400W @ 125V AC
2A @ 125V AC for On-Off-On circuit & 3A @ 125V AC for other circuits
Pushbuttons
Other Ratings
Programmable Illuminated PB
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Angle of Throw:
10 milliohms maximum
1,000 megohms minimum @ 500V DC
2,000V AC minimum between contacts for 1 minute minimum;
4,000V AC minimum between contacts & case for 1 minute minimum
100,000 operations minimum
25,000 operations minimum
25°
Materials & Finishes
Toggle Cap:
Lever:
Bushing:
Frame:
Case/Base:
Movable Contacts:
Stationary Contacts:
Terminals:
Polypropylene for No Code, Code D; Polyvinyl chloride for Code B (see Ordering Example)
Brass with chrome plating
Brass with nickel plating
Stainless steel
Diallyl phthalate resin (UL94V-0)
Silver alloy with silver plating
Pure silver with silver plating
Copper with silver plating
Rotaries
Keylocks
Slides
Environmental Data
Operating Temp Range:
Humidity:
Vibration:
Shock:
Tactiles
–10°C through +85°C (+14°F through +185°F)
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Installation
Tilt
Soldering Time & Temp:
Cleaning:
Wave Soldering Recommended (Straight PC): See Profile A in Supplement section.
Manual Soldering: See Profile A in Supplement section.
These devices are not process sealed. Hand clean locally using alcohol based solution.
Touch
Standards & Certifications
Flammability Standards:
UL:
Indicators
UL94V-0 rated case/base
File No. E44145 - Recognized only when ordered with marking on switch.
Add “/U” or “/CUL” to end of part number to order UL recognized switch.
Models with No Code, E, F & D are recognized at 10A @ 125V AC & 6A @ 250V AC.
File No. 023535_0_000 - Certified only when ordered with marking on switch.
Add “/C” to end of part number to order CSA certified switch.
Models with No Code, E, F and D are certified at 10A @ 125V AC & 6A @ 250V AC.
License No. 119174
Models with No Code, B & D are approved at 10A @ 125V AC & 6A @ 250V AC.
Models with No Code, B & D meet EN 61058-1 standard.
CSA:
Accessories
VDE:
Supplement
A96
www.nkkswitches.com
8/11/17
Internationally Approved Toggles
Series P
A
Toggles
Supplement
Accessories
Indicators
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Pushbuttons
Rockers
Distinctive
Characteristics

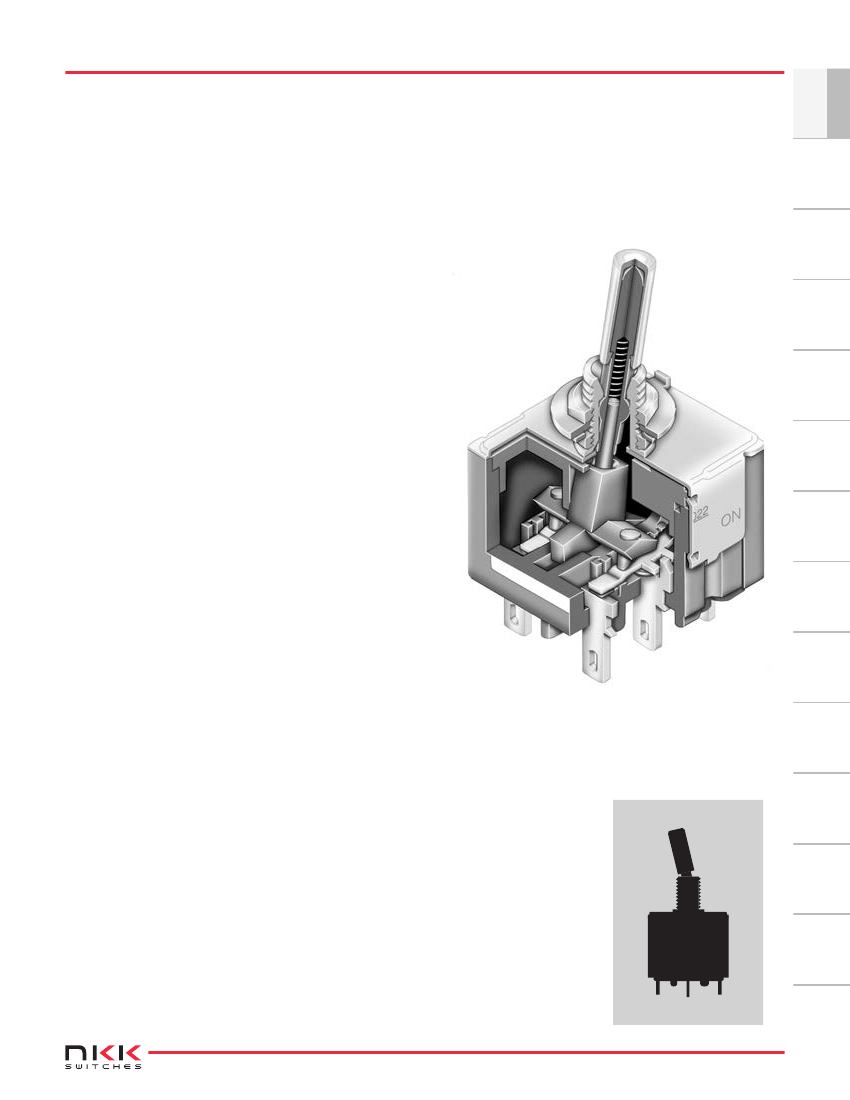

Meets EN 61058-1 standard.
High torque bushing construction prevents rotation or separation
from frame during installation.
Stainless steel frame resists corrosion and increases
environmental safety.
Case/base of heat resistant resin meets UL94V-0
flammability standard.
Contacts of special silver alloy resist arcing and
guarantee stable electrical contact and long life.
High insulating barriers increase isolation of
circuits in double pole devices and provide
added protection to contact points.
Prominent external insulating barriers
increase insulation resistance and dielectric
strength.
Epoxy sealed terminals prevent entry of flux, solvents,
and other contaminants.
Clinching of the frame to the case well above the base and
terminals provides 4,000V dielectric strength.
Actual Size
www.nkkswitches.com
A97
Series P
Toggles
Internationally Approved Toggles

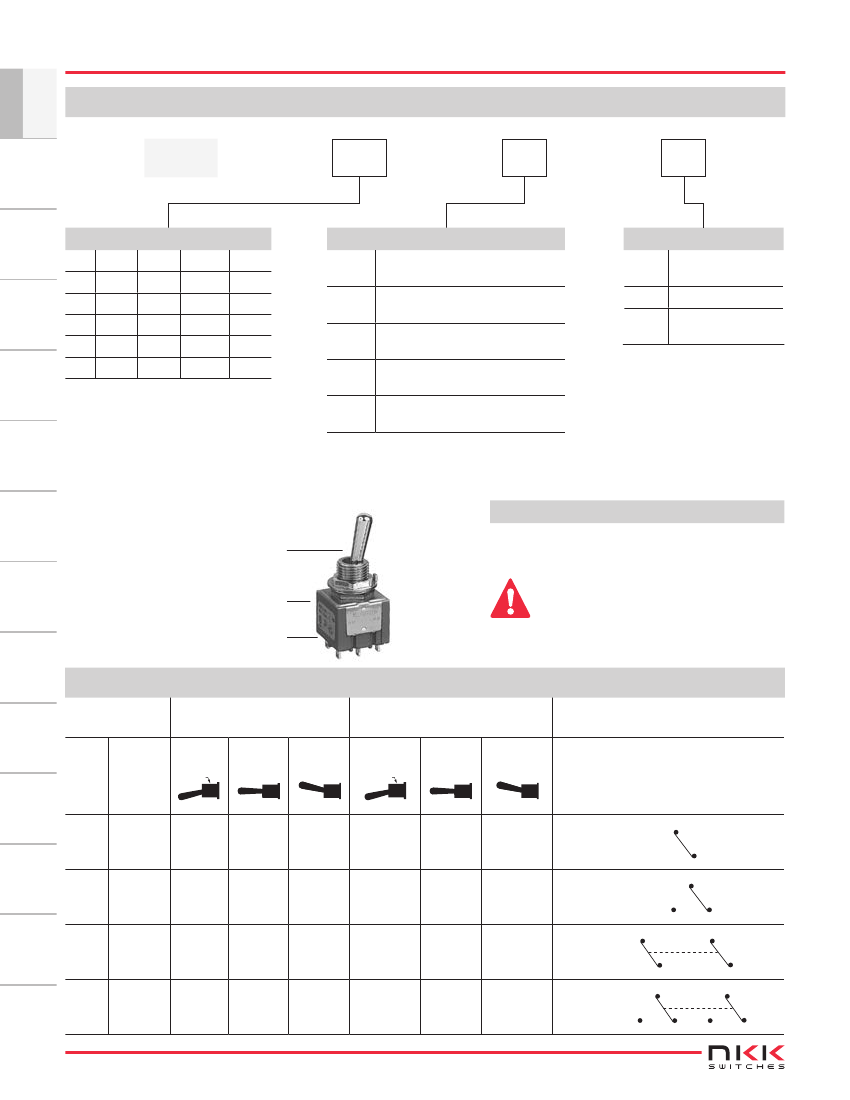

TYPICAL SWITCH ORDERING EXAMPLE
A
Pushbuttons
Rockers
P20
Poles & Circuits
11
12
13
21
22
23
SPST
SPDT
SPDT
DPST
DPDT
DPDT
ON
ON
ON
ON
ON
ON
NONE
NONE
OFF
NONE
NONE
OFF
OFF
ON
ON
OFF
ON
ON
22
Toggles & Bushings
No
Code
E
B
F
D
B
Terminals
No
Code
P
Z
Solder Lug
Straight PC
.187” (4.75mm)
Quick Connect
.512” (13.0mm) White Cap
with 6mm Bushing
.450” (11.4mm) Flatted
with 6mm Bushing
.689” (17.5mm) Large Bat &
AT406B Cap with 12mm Bushing
.689” (17.5mm) Large Bat
with 12mm Bushing
.748” (19.0mm) White Capped
Column with 12mm Bushing
Keylocks
Programmable Illuminated PB
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
P2022F
Rotaries
IMPORTANT:
.689” (17.5mm) Large Bat
with 12mm Bushing
DPDT
ON-NONE-ON Circuit
Solder Lug Terminals
VDE is marked on all models except those with
codes E & F. Switches are supplied without UL,
cULus & CSA marking unless specified.
UL, cULus & CSA recognized only when ordered
with marking on the switch.
Specific models, ratings, & ordering instructions
are noted on the General Specifications page.
Tactiles
Slides
POLES & CIRCUITS
Toggle Position
Connected Terminals
Up
Down
Keyway
Throw & Schematics
Up
Note: Terminal numbers are on
the switch.
Tilt
Down
Pole
Model
Keyway
Center
Center
Touch
SP
Indicators
P2011
ON
NONE
OFF
1-1b
OPEN
OPEN
SPST
1 (COM)
1b
1 (COM)
SP
P2012
P2013
ON
ON
NONE
OFF
ON
ON
1-1b
OPEN
1-1a
SPDT
1
1a
1b
2
2b
Accessories
DP
P2021
ON
NONE
OFF
1-1b 2-2b
OPEN
OPEN
DPST
(COM)
1b
Supplement
DP
P2022
P2023
ON
ON
NONE
OFF
ON
ON
1-1b 2-2b
OPEN
1-1a 2-2a
DPDT
1a
1
(COM)
1b
2a
2
2b
A98
www.nkkswitches.com
Internationally Approved Toggles
TOGGLES & BUSHINGS
No
Code
.512”
(13.0mm)
White Cap
with 6mm
Bushing
25°
(2.54)
.100
(11.4)
.450
Series P
A
.689” (17.5mm)
Large Bat
with 12mm
Bushing
(6.0) Dia
.236
(17.5)
.689
25°
E
.450”
(11.4mm)
Flatted
with 6mm
Bushing
25°
(5.08)
.200
B
25°
(8.0) Dia
.315
(18.0)
.709
(4.2) Dia
.165
(13.0)
.512
(19.0)
.748
Panel Cutouts
Panel Thickness
with Keyway
.134” (3.4mm)
maximum
(5.6)
.220
(6.35) Dia
.250
(0.6)
.024
Panel Thickness
with Locking Ring
.102” (2.6mm)
maximum
(6.35) Dia
.250
(6.5)
.256
(2.2) Dia
.087
Panel Thickness
with Keyway
.256” (6.5mm)
maximum
(12.5) Dia
.492
(11.5)
.453
(1.5)
.060
Panel Thickness
with Locking Ring
.217” (5.5mm)
maximum
(12.5) Dia
.492
(9.0)
.354
(3.0) Dia
.118
Standard Hardware
TERMINALS
No Code
Solder Lug
Epoxy Seal
(2.0)
(4.5) .079
(2.6)
.177
.102
(1.25)
.049
Thk = (1.0)
.039
1b
Z
.187” (4.75mm)
Quick Connect
(6.35)
.250
(1.3) Dia
.051
(9.0)
.354
P
Epoxy Seal
Straight PC
(7.6)
.299
(1.17)
.046
Thk = (1.0)
.039
1b
2b
1b
2b
1b
(4.8)
.189
SPST
1
(7.62) Typ
.300
(1.8) Dia Typ
.071
SPDT
1
(7.62) Typ
.300
DPST
2
1
(7.62) Typ
.300
(1.8) Dia Typ
.071
DPDT
2
1
(7.62) Typ
.300
1a

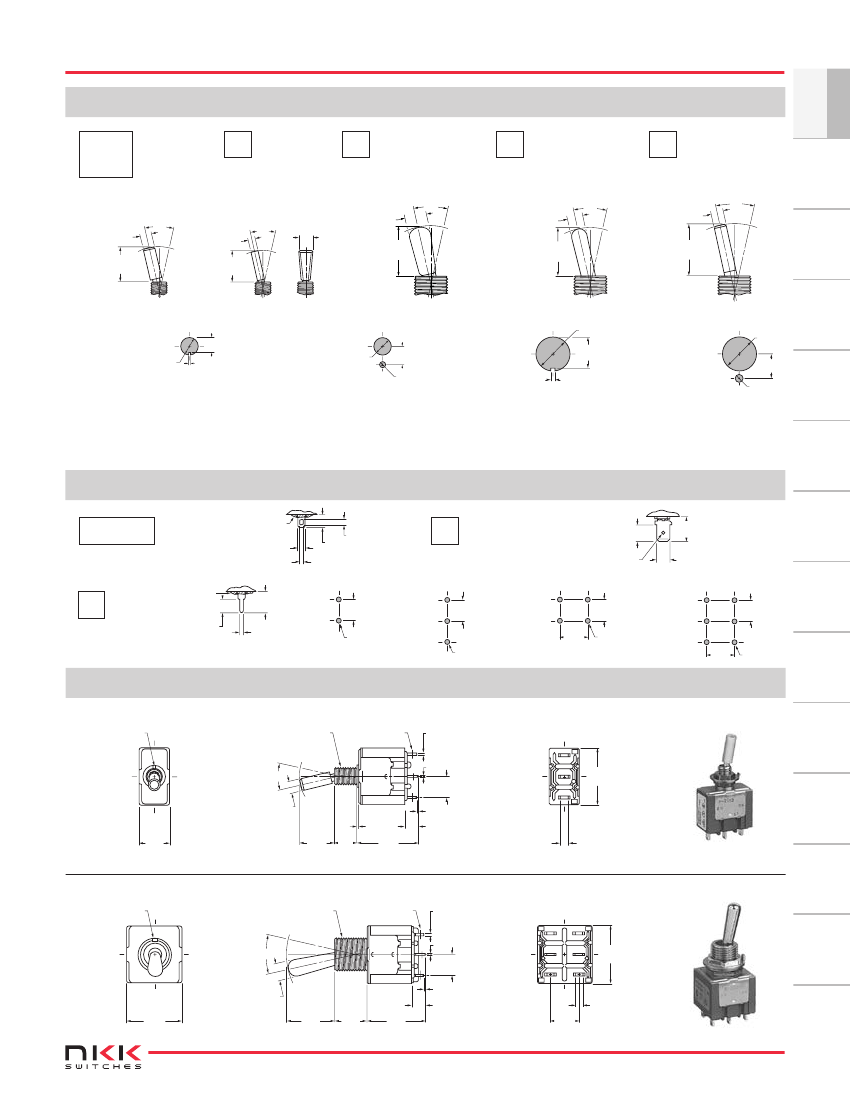

TYPICAL SWITCH DIMENSIONS
P2011, P2012, P2013
Keyway
M6 P0.75
6mm Bushing
1b
25°
(4.2) Dia
.165
(11.0)
.433
(13.0)
.512
(0.9)
.035
(8.0)
.315
(22.0)
.866
(5.0)
.197
(0.5)
.020
1a
(2.6)
.102
P2021F, P2022F, P2023F
Keyway
M12 P1
(1.25) x (2.0) Typ
.049 x .079
(1.0) Typ
.039
2b
1b
12mm Bushing
25°
(0.8)
.031
(7.62)
.300
(0.5)
.020
2
1
(20.5)
.807
2a
1a
(20.0)
.787
(17.5)
.689
(12.0)
.472
(21.1)
.831
(5.0)
.197
(10.16)
.400
(2.6) Typ
.102
P2021 models do not have terminals 1a & 2a.
www.nkkswitches.com
P2022F
A99
Supplement
(6.0) Dia
.236
Accessories
Indicators
P2011 models do not have terminal 1a.
P2012
Touch
(0.8)
.031
(7.62)
.300
1
(20.5)
.807
Tilt
(1.25) x (2.0) Typ
.049 x .079
(1.0) Typ
.039
Tactiles
(1.8) Dia Typ
.071
(10.16)
.400
2a
1a
(10.16)
.400
(1.8) Dia Typ
.071
Slides
(4.75)
.187
Thk = (0.8)
.031
Rotaries
Keylocks
For 6mm Bushing:
1 Locking Ring AT507M, 1 Internal Tooth Lockwasher AT509, 2 Hex Nuts AT513M
For 12mm Bushing:
1 Hex Face Nut AT503M, 1 Locking Ring AT506M, 1 Internal Tooth Lockwasher AT508, 1 Hex Mounting Nut AT527M
Optional Splashproof Boot Assemblies (for code F):
AT401 & AT4181 boots plus hex nut & o-ring; see Accessories & Hardware section.
Programmable Illuminated PB
Pushbuttons
(4.4) Dia
.173
25°
Rockers
.689” (17.5mm)
Large Bat &
AT406B Cap with
12mm Bushing
F
D
.748” (19.0mm)
White Capped
Column with
12mm Bushing
Toggles
