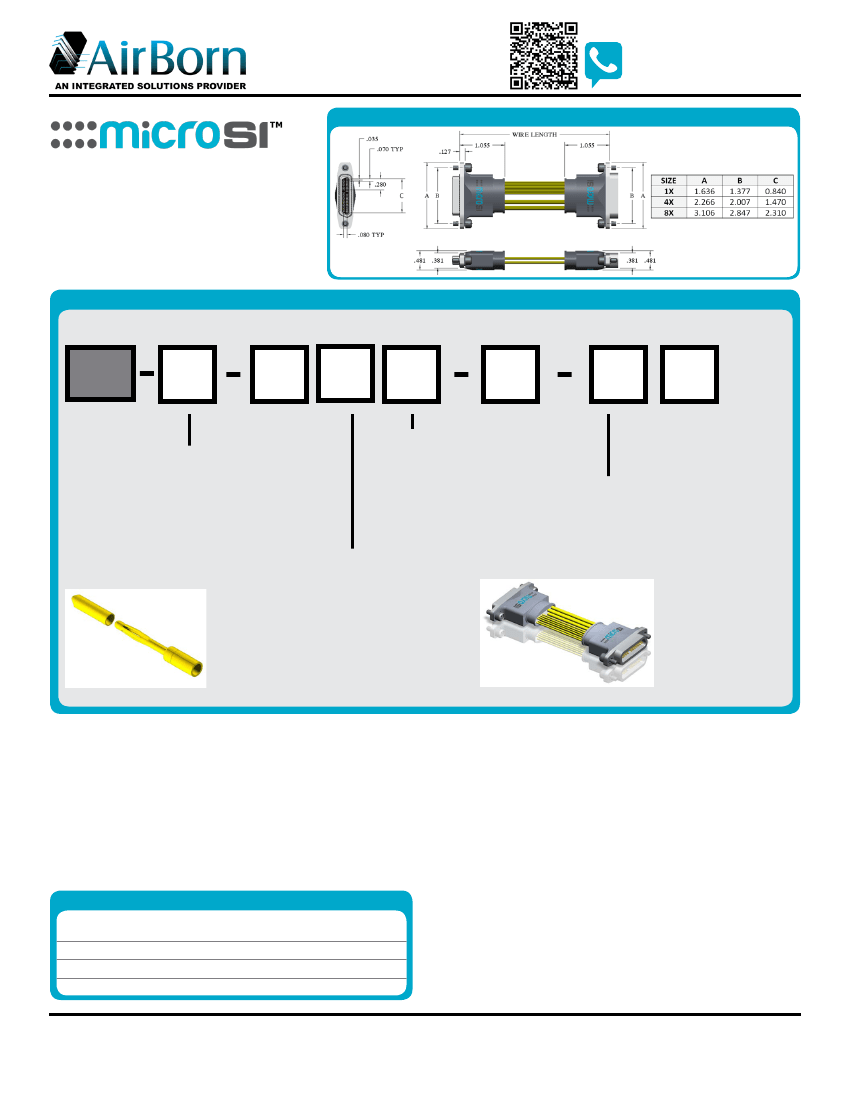

GENERAL DIMENSIONS
MJSI – Cable Assembly
CONTACT CUSTOMER SERVICE
MJSI cable assemblies are used in jumper
applications where signal integrity is desired.
They have a wide range of styles, wiring options,
and hardware options. All cable assemblies are
available in custom lengths.
ORDER FORM
CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION
Part Number Format: MJSI-XXX-XXXX-XXX-XXXX
Sample
OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
PLEASE
ENTER
CODE
ENTER
CODE
ENTER
CODE
ENTER
CODE
ENTER
CODE
ENTER
CODE
ENTER
CODE
MJSI
SERIES
Cable Assembly
1.78 mm
SIZE & INTERFACE
POLARIZATION*
01L – 1X Left (23 pins, 4 DP +9SB)
01R – 1X Right (23 pins, 4 DP +9SB)
04L – 4X Left (41 pins, 10 DP +9SB)
04R – 4X Right (41 pins, 10 DP +9SB)
08L – 8X Left (65 pins, 18 DP +9SB)
08R – 8X Right (65 pins, 18 DP +9SB)
STYLE
11 – Male-to-Male, Twinax
100Ω 24 AWG
14 – Male-to-Male, Twinax
100Ω 30 AWG
21 – Male-to-Female, Twinax
100Ω 24 AWG
24 – Male-to-Female, Twinax
100Ω 30 AWG
31 – Female-to-Female,
Twinax 100Ω 24 AWG
34 – Female-to-Female
100Ω 30 AWG
WIRE LENGTH
1
Inches, 3 digits
Ex. 018 = 18 inches
HARDWARE
620 – Fixed Jacknuts
810 – Turning Jackscrews
Captivated**
860 – Fixed Jacknuts & Turning
Jackscrews Captivated**
870 – Fixed Jacknuts on Male
& Turing Jackscrews
Captivated** on Female
(styles 21 & 24, only)
NXX – Keying Jacknuts***
JXX – Keying Jackscrews***
AXX – Keying Jacknuts & Keying
Jackscrews*** (for styles
21 & 24, jacknuts on
female)
BXX – Keying Jacknuts on Male
& Keying Jackscrews on
Female*** (styles 21 &
24, only)
OVERALL****
0 – None
1 – Silver-Plated Braid
2 – Tin-Plated Braid
3 – Silver-Plated Braid, Halar® Sleeving
4 – Tin-Plated Braid, Halar® Sleeving
5 – Halar® Sleeving (no braid)
High-Reliability
Contact
MIL-DTL-83513
SIDEBAND WIRES
(color code per MIL-STD-681)
A – 22759/11-24
B – 22759/11-26
C – 22759/11-28
D – 22759/33-24
S
E – 22759/33-26
S
F – 22759/33-28
S
G – 22759/33-30
S
H – NEMA HP3-EXBEB 24 AWG
J – NEMA HP3-EXBDB 26 AWG
K – NEMA HP3-EXBCB 28 AWG
L – NEMA HP3-EXBBB 30 AWG
BODY PLATING,
INTERNAL SOLDER
1 – Electroless Nickel,
SAC305
2 – Electroless Nickel,
Sn/Pb
S
5 – Gold, SAC305
6 – Gold, Sn/Pb
S
PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
NOTES
1.
2.
3.
S
*
**
***
****
All microSI females have fluorosilicone interfacial seals installed.
Overall braid and/or Halar® will be 1.0 ± 0.5 inches shorter than specified wire length.
Minimum length without overall braid or Halar® is 3 inches. If overall braid or Halar® is
specified the minimum length is 6 inches.
Hardware is the same for both connectors unless otherwise noted.
Option not RoHS compliant
Left or right polarization is determined by looking at the male interface with the LONG
SIDE downward. Polarization matches the angled side. Sidebands are on the non-
angled side.
Captivated hardware is factory-installed and non-removable.
Factory-installed and non-removable.
Halar is a registered trademark of Ausimont.
MATERIALS and FINISHES
Socket Contact: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Brass
Pin Contacts: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .BeCu
alloy strip
Contact Finish:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gold plate, 50 µ” minimum
Shells: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Aluminum alloy 6061-T6
Shell Finishes:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electroless nickel or Gold
Molded Insulators:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glass-filled liquid crystal polymer (LCP)
Embedment:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Frey Eng. Co. compound CF3003-80 & L-II-49
Hardware:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Corrosion-resistant steel
Interfacial Seal Gaskets:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluorosilicone
EMI Gaskets:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Corrosion-resistant steel
NOTE: AirBorn can manufacture special configurations to your exact specifications.
SIGNAL INTEGRITY PERFORMANCE (Connectors Only)
1
2
3
4
Diff. Impedance, filtered to 79 ps (20-80%)
Diff. Insertion Loss
Diff. Return Loss
Intra-Pair
100 ohm
10 GHz @ -3 dB
7.5 GHz @ -10 dB
< 2 ps
PERFORMANCE
Contact Rating:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 amperes maximum
Operating Temperature:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
-55° C to 125° C
Maximum Working Voltage:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
200V, RMS, 60Hz
Insulation Resistance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5,000 megohms minimum @ 500 VDC
Durability:.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
500 connector mating cycles
Contact Engaging Force:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.0 ounces maximum/contact
Contact Separating Force:.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0.5 ounces minimum/contact
Mating and Unmating Force:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10 ounces maximum/contact
NOTE: Performance values are estimates at this time. Actual values will be determined when final
product testing is complete.
www.airborn.com
(512 ) 863-5585
MJSI-PNB-1C
