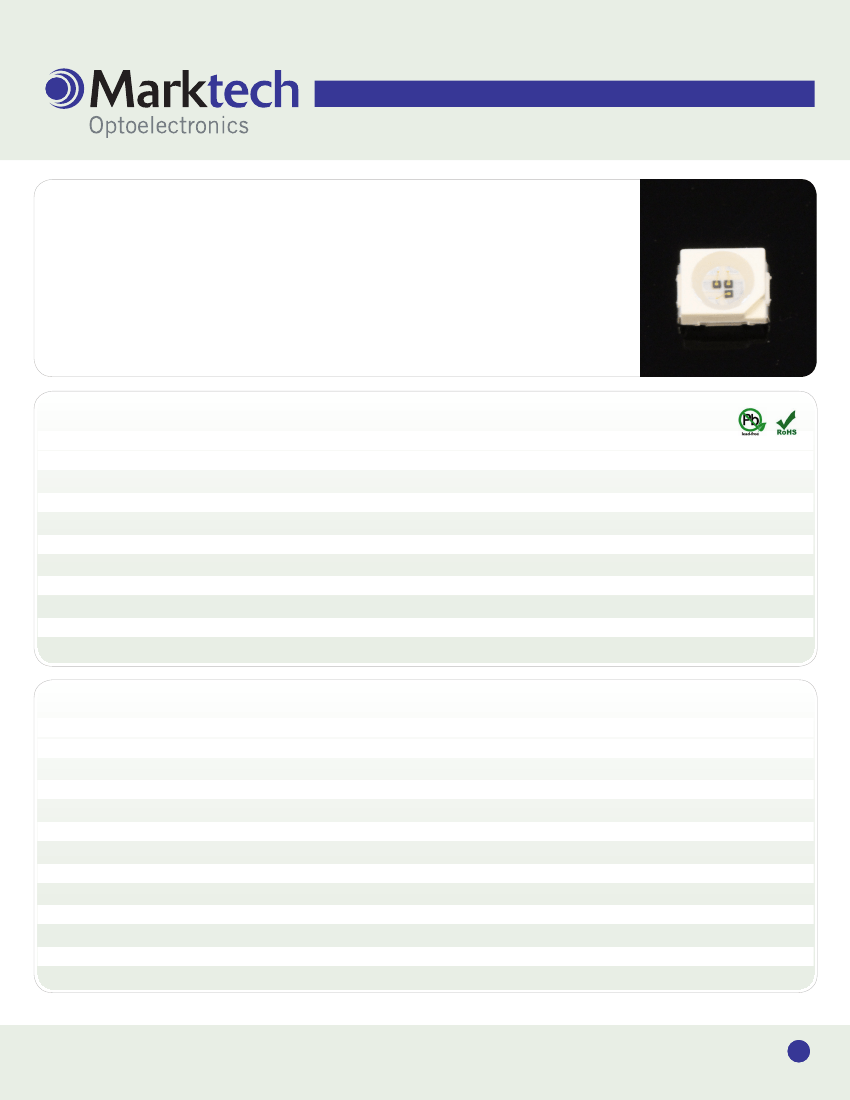

Multichip Emitter
Product No:
M TMS 7700SMT4
Peak Emission Wavelength: 770nm (3)
The MTMS7700SMT4 is a multi-chip emitter designed for applications requiring same emission sources
in a small, densely packaged area. These devices can be custom designed for specific wavelengths
and outputs.
FE AT U R E S
A P PL IC ATI O N S
>
PLCC-4 Package
>
High Reliability
>
High Output Power
>
Medical Instrumentation
>
Currency Validation
>
Biofluorescence Analysis
Absolute Maximum Ratings (Ta=25ºC)
IT E M S
SY M BO L
RA TI N GS
UNIT
Forward Current (DC)
Forward Current (Pulse)*1
Reverse Voltage
Power Dissipation
Operating Temperature Range
Storage Temperature Range
IF
IFP
VR
PD
Topr
Tstg
50
0.5
5
160
-20 ~ +80
-30 ~ +100
mA
A
V
mW
ºC
ºC
*1: Tw=10µsec, T=10msec.
Electrical & Optical Characteristics (Ta = 25ºC)(Per Chip)
IT E MS
SY M B OL
C O N D I TI O N S
MIN
T YP
MAX
UNIT
Power Output
Forward Voltage
Reverse Current
Peak Emission Wavelength
Spectral Line Half Width
PO
VF
IR
λp
∆λ
IF=20mA
IF=20mA
VR=5V
IF=20mA
IF=20mA
--
--
--
--
--
6.7
1.6
--
770
35
--
1.9
100
--
--
mW
V
µA
nm
nm
2014-01-14
Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA
TOLL FREE:
www.marktechopto.com
EMAIL:
1
1-800-984-5337
•
PHONE:
518-956-2980
•
FAX:
518-785-4725
•
info@marktechopto.com
Multichip Emitter
Product No:
M TMS 7700SMT4

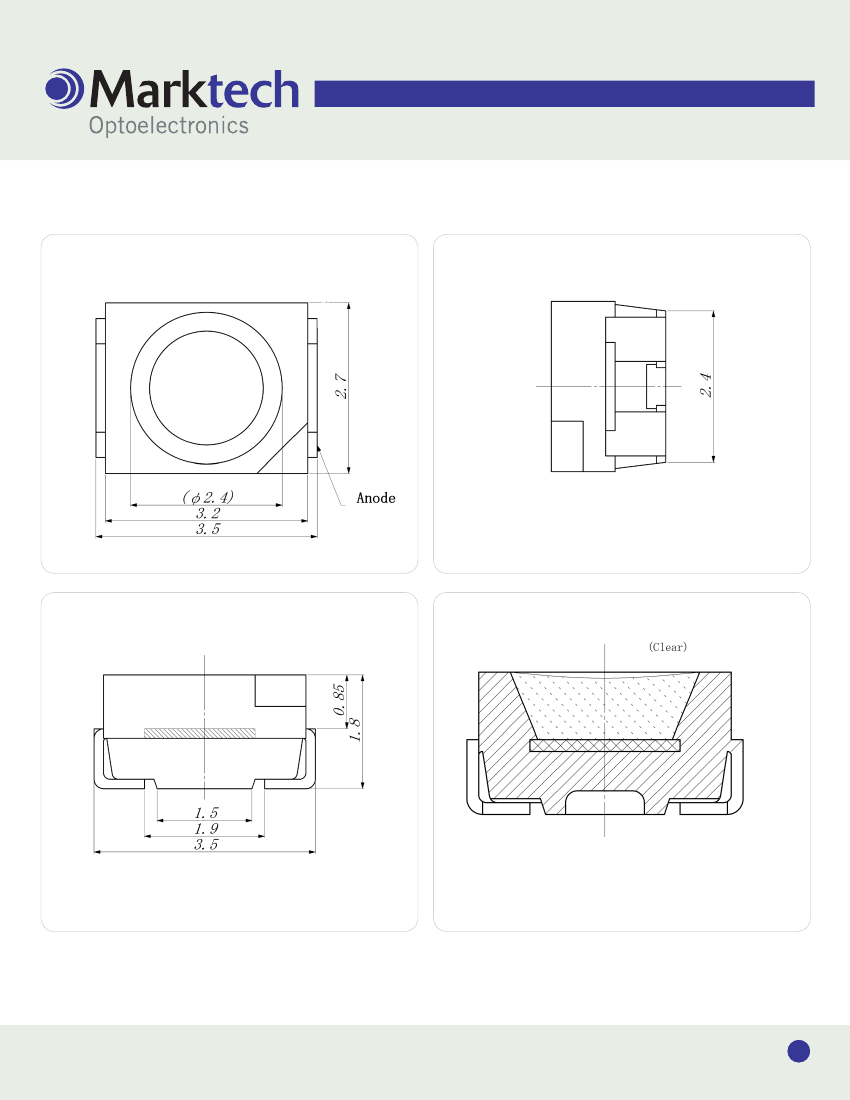

Unit: mm, Tolerance: ±0.2
2014-01-14
Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA
TOLL FREE:
www.marktechopto.com
EMAIL:
2
1-800-984-5337
•
PHONE:
518-956-2980
•
FAX:
518-785-4725
•
info@marktechopto.com

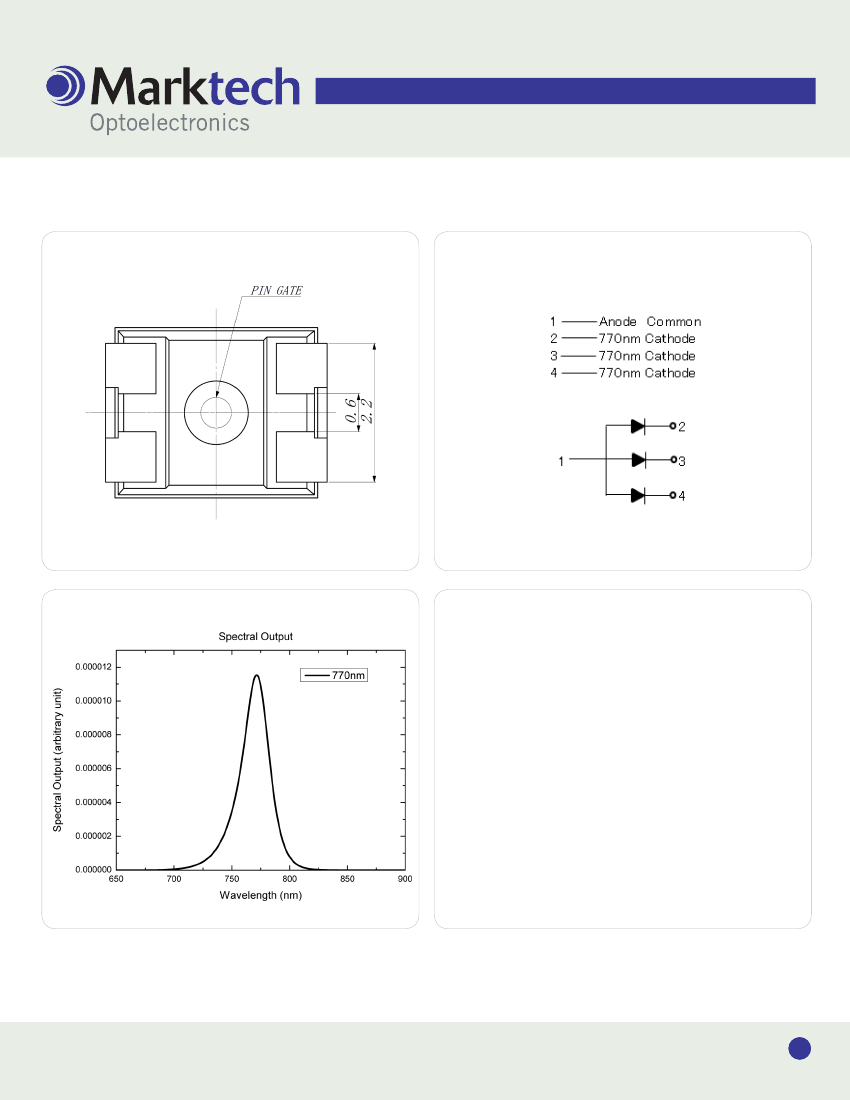

Multichip Emitter
Product No:
MTM S7700SMT4
Unit: mm, Tolerance: ±0.2
2014-01-14
Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA
TOLL FREE:
www.marktechopto.com
EMAIL:
3
1-800-984-5337
•
PHONE:
518-956-2980
•
FAX:
518-785-4725
•
info@marktechopto.com
Multichip Emitter
Product No:
MTM S7700SMT4
S ol der i n g Co n d i t i o n s :
( 1) Re flow So l d er i n g

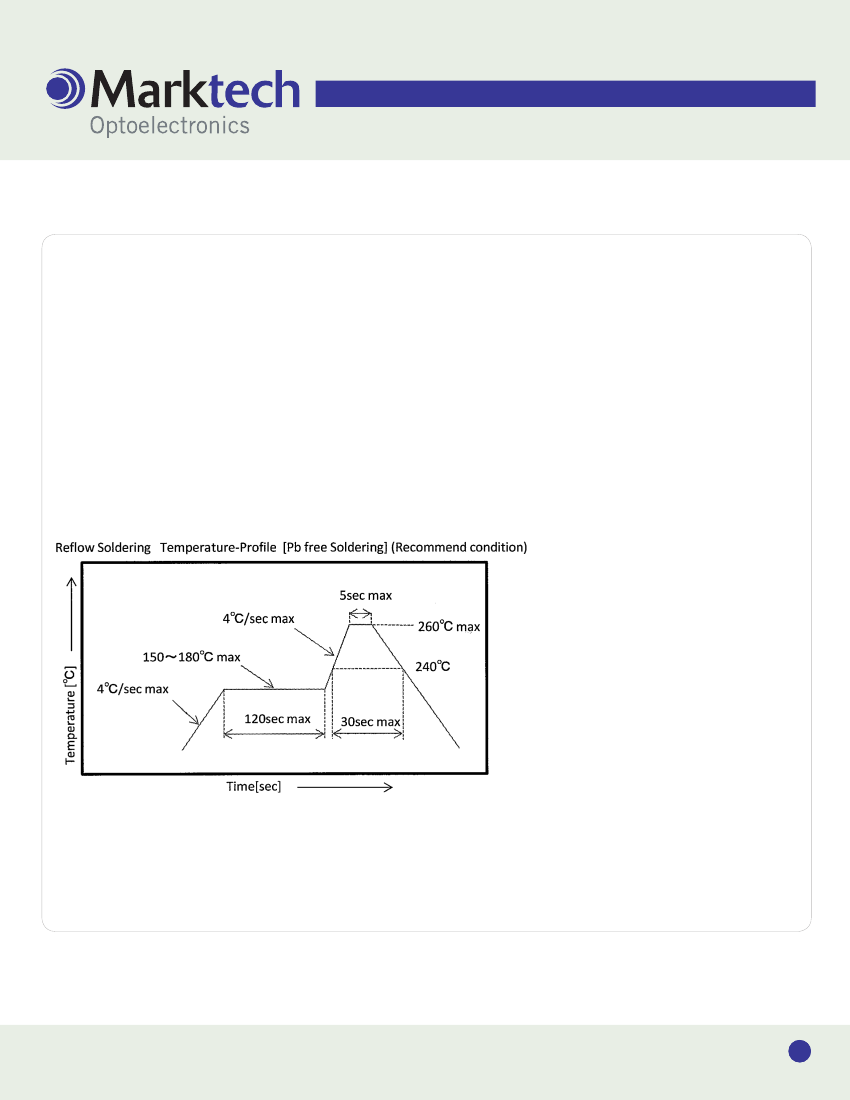

a. P l e as e i m p l e m ent t he f o llo win g t em pe r atu re pr ofil e.
b. P lea s e d o n o t h an d le th e pr o duc t un t il it h as retu rn ed to ambient
tem p e ra t u r e .
( 2) H an d Sol d er i n g
a. S ol de ri ng t i p te mp era tu re m u st be un der 320
0
C.
b. S old e ri ng m u s t be d o n e w it h in 3 s ec onds each.
c. W h en s o l d e r i n g , d o n o t add pr es su r e t o th e resi n por tion .
d. P l e as e d o n o t h and l e th e pr od uc t u n t il it has retu rn ed to ambient
tem p e ra t u r e .
