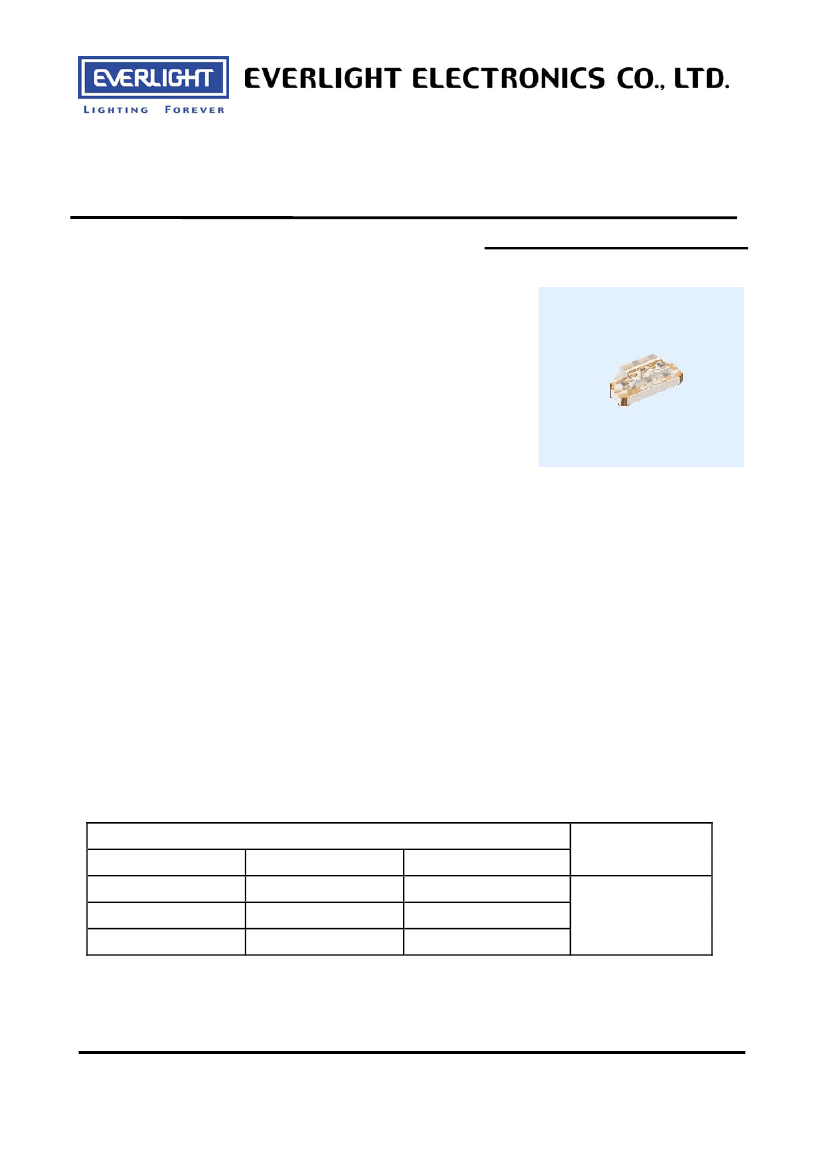

Technical Data Sheet
Full Color Chip LED
(Chip
LED with Right Angle Lens)
22-23B/R6GTBTW-C01/2C
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․
Full-color type.
․Pb-free.
․The
product itself will remain within RoHS
compliant version.
Descriptions
․The
22-23B SMD LED is much smaller
than lead frame type components, thus
enable smaller board size, higher packing
density, reduced storage space and finally
smaller equipment to be obtained.
․Besides,
lightweight makes them ideal for
miniature applications. etc.
Applications
․Telecommunication:
indicator and backlighting in
telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
Device Selection Guide
Chip
Type
R6
GT
BT
Material
AlGaInP
InGaN/SiC
InGaN/SiC
Emitted Color
Brilliant Red
Brilliant Green
Blue
White Diffused
Resin Color
Everlight Electronics Co., Ltd.
Device No. : DSE-0000617
http://www.everlight.com
Prepared date: 03-Jul-2008
Rev. 1
Page: 1 of 13
Prepared by: Jay Chou
22-23B/R6GTBTW-C01/2C

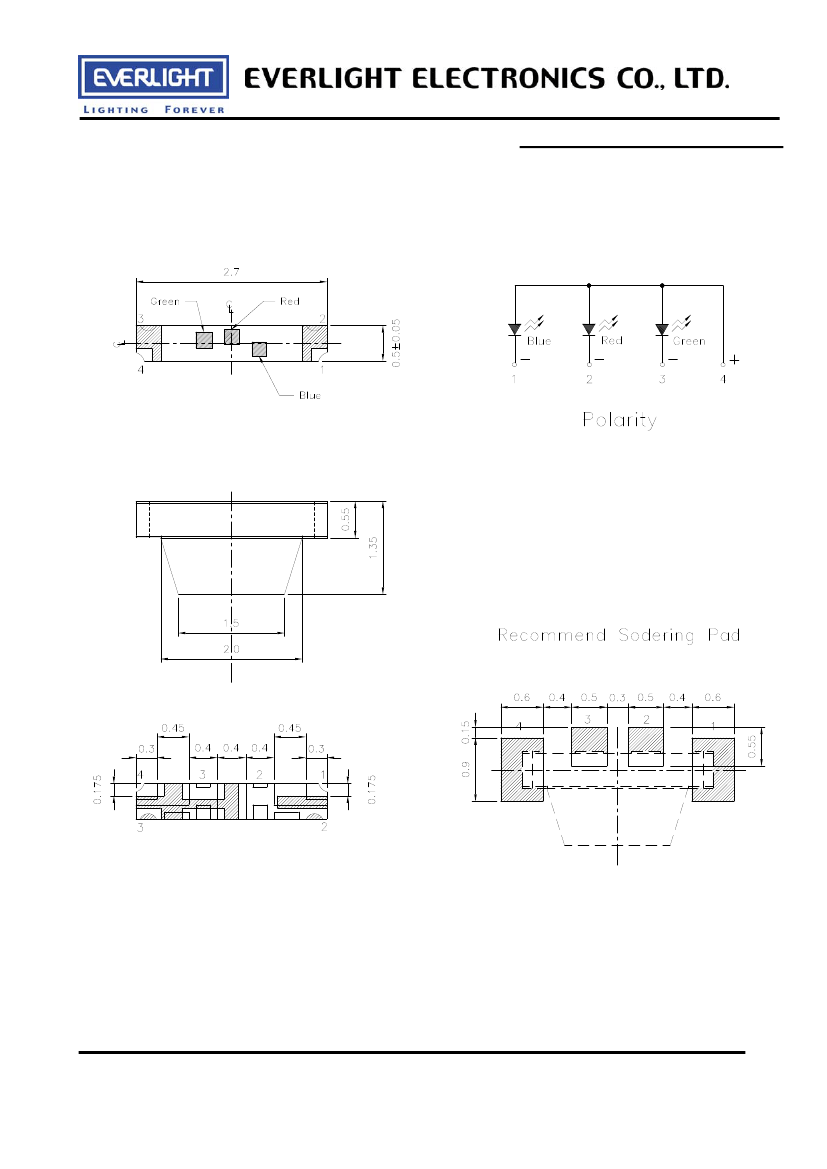

Package Outline Dimensions
Note:
The tolerances unless mentioned is
±0.1mm
,Unit = mm
Everlight Electronics Co., Ltd.
Device No. : DSE-0000617
http://www.everlight.com
Prepared date: 03-Jul-2008
Rev. 1
Page: 2 of 13
Prepared by: Jay Chou
22-23B/R6GTBTW-C01/2C
Absolute Maximum Ratings (Ta=25℃)
Parameter
Symbol
Rating
Unit
Reverse Voltage
V
R
5
R6:25
V
Forward Current
I
F
GT:30
BT:30
R6:60
mA
Peak Forward Current
(Duty 1/10 @1KHz)
I
FP
GT:100
BT:100
R6:60
mA
Power Dissipation
Pd
GT:120
BT:120
R6:2000
mW
Electrostatic Discharge(HBM)
ESD
GT:1000
BT:1000
V
Operating Temperature
Topr
-40 ~ +85
℃
Storage Temperature
Tstg
-40 ~ +90
℃
Soldering Temperature
Tsol
Reflow Soldering : 260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
Everlight Electronics Co., Ltd.
Device No. : DSE-0000617
http://www.everlight.com
Prepared date: 03-Jul-2008
Rev. 1
Page: 3 of 13
Prepared by: Jay Chou
22-23B/R6GTBTW-C01/2C
Electro-Optical Characteristics (Ta=25℃)
Parameter
Symbol
R6
GT
BT
Min.
14.5
28.5
11.5
-----
130
626
-----
613.0
520.0
465.0
20
35
25
-----
-----
518
468
625.0
530.0
475.0
nm
I
F
=5mA
nm
I
F
=5mA
-----
nm
I
F
=5mA
-----
Typ.
Max.
36.0
112
28.5
-----
deg
I
F
=5mA
mcd
I
F
=5mA
Unit
Condition
Luminous Intensity
Iv
Viewing Angle
2θ1/2
R6
GT
BT
R6
GT
BT
R6
GT
BT
R6
GT
BT
R6
GT
BT
Peak Wavelength
λp
Dominant Wavelength
λd
Spectrum Radiation
Bandwidth
△
λ
-----
1.70
2.70
2.70
-----
-----
2.00
3.20
3.10
10
50
50
Forward Voltage
V
F
V
I
F
=5mA
Reverse Current
I
R
-----
μA
V
R
=5V
Notes:
1.Tolerance of Luminous Intensity
±11%
2. Tolerance of Dominant Wavelength
±1nm
3.Tolerance of Forward Voltage
±0.1V
Everlight Electronics Co., Ltd.
Device No. : DSE-0000617
http://www.everlight.com
Prepared date: 03-Jul-2008
Rev. 1
Page: 4 of 13
Prepared by: Jay Chou
22-23B/R6GTBTW-C01/2C
R6
Bin Range Of Luminous Intensity
Bin
1
2
Min
14.5
22.5
Max
22.5
36.0
Unit
mcd
Condition
I
F
=5mA
Bin Range Of Dom. Wavelength
Bin
1
2
Min
613
619
Max
619
625
Unit
nm
Condition
I
F
=5mA
GT
Bin Range Of Luminous Intensity
Bin
N
P
Q
Min
28.5
45.0
72.0
Max
45.0
72.0
112
mcd
I
F
=5mA
Unit
Condition
Bin Range Of Dom. Wavelength
Bin
X
Y
Min
520
525
Max
525
530
Unit
nm
Condition
I
F
=5mA
BT
Bin Range Of Luminous Intensity
Bin
L
M
Min
11.5
18.0
Max
18.0
28.5
Unit
mcd
Condition
I
F
=5mA
Notes:
1.Tolerance of Luminous Intensity
±11%
2. Tolerance of Dominant Wavelength
±1nm
Everlight Electronics Co., Ltd.
Device No. : DSE-0000617
http://www.everlight.com
Prepared date: 03-Jul-2008
Rev. 1
Page: 5 of 13
Prepared by: Jay Chou
