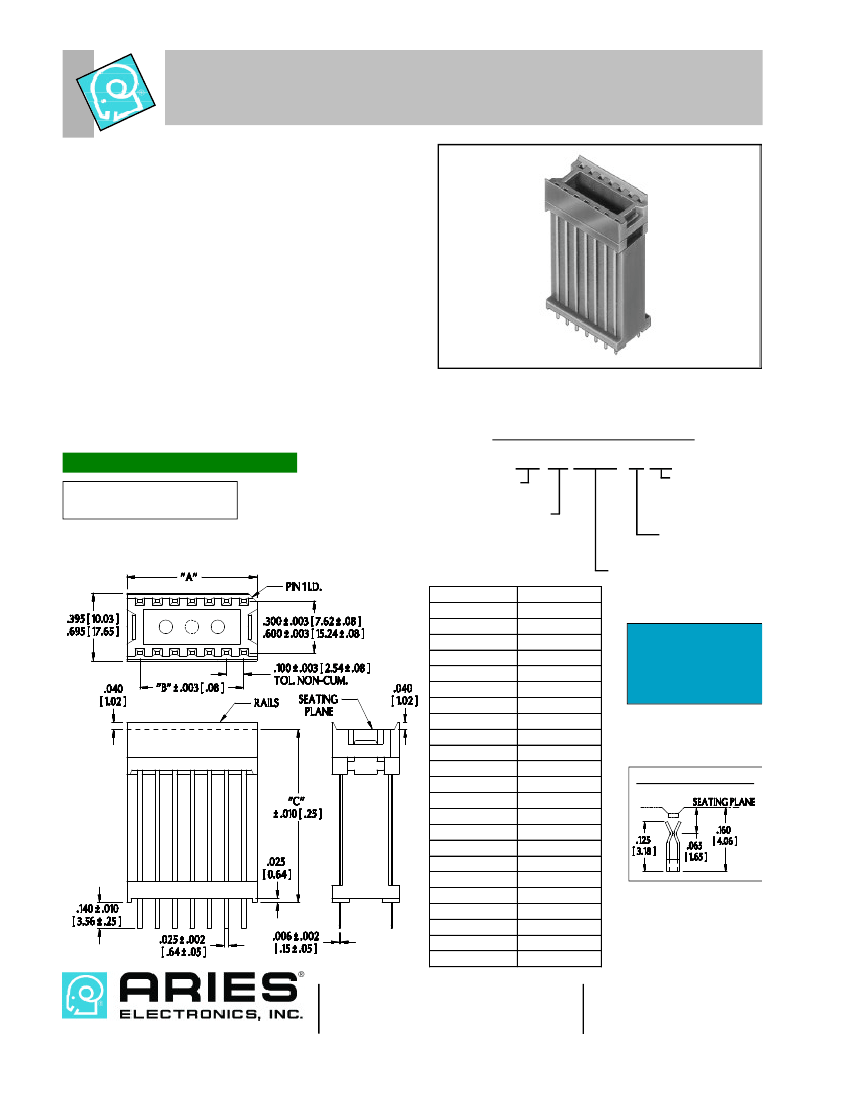

Series 8XXX
Elevator Sockets with Bifurcated Contacts
FEATURES:
• Ideal for elevating devices (displays, switches, etc.) to desired
level with .260 to 1.250 [6.60 to 31.75] height extension.
SPECIFICATIONS:
• Standard socket body is red UL 94-HB Glass-filled Nylon.
• High temp socket body is black UL 94V-0 4/6 Nylon.
• Bifurcated contacts are Grade A Phosphor Bronze per
QQ-B-750.
• Contact plating is 50-150µ [1.27-3.81µm] 60/40 Tin/Lead Alloy
over 50µ [1.27µm] min. Nickel per QQ-N-290. 10µ [.25µm]
min. Gold per MIL-G-45204 also available (consult factory).
• Contact current rating=1 Amp.
• Insertion Force=110 grams/pin average; Withdrawal Force=75
grams/pin average.
• Operating temperature=221°F [105°C].
• Accepts flat leads up to .014 thk. x .020 wide [.36-.51], round
leads up to .020 [.51] in diameter.
• Socket accepts lead lengths from seating plane .075-.160
[1.91-4.06].
MOUNTING CONSIDERATIONS:
•Suggested PCB hole size=.035 ± .002 [.89 ± .05]. dia.
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
X X -X8 X X X X - 1 0 X X
No. of pins:
14, 16, 18
Row-to-row spacing:
8= .300 [7.62] centers
(14 & 16 pin)
68= .600 [15.24] centers
(18 pin only)
Optional suffix:
WR=without rails
V0=UL 94V-0
plastic
Tin plated solder
tail pin
Dim. “C”: seating plane
height (see table)
A
LL
DIMENSIONS
:
INCHES
[
MILLIMETERS
]
All tolerances ± .005 [.13]
unless otherwise specified
“A”=(NO. OF PINS PER ROW X .100 [2.54]) + .050 [1.27]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
Part no.
10-28440-10
14-8260-10
14-8350-10
14-8400-10
14-8435-10
14-8470-10
14-8510-10
14-8620-10
14-8770-10
14-8870-10
14-81000-10
14-81100-10
14-81187-10
14-81250-10
16-8430-10
16-8480-10
16-8700-10
16-8810-10
16-81250-10
18-68500-10
18-68587-10
18-68660-10
18-681250-10
Dim. “C”
.440 [11.18]
.260 [6.60]
.350 [8.89]
.400 [10.16]
.440 [11.17]
.470 [11.93]
.510 [12.95]
.620 [15.74]
.770 [19.55]
.870 [22.09]
1.000 [25.40]
1.100 [27.94]
1.180 [29.97]
1.250 [31.75]
.430 [10.92]
.480 [12.19]
.700 [17.78]
.810 [20.57]
1.250 [31.75]
.500 [12.70]
.587 [14.90]
.660 [16.76]
1.250 [31.75]
Elevator sockets with
collet contacts also
available. Consult
Data Sheet Nos.
13007 and 13008.
CONTACT DETAIL
13006
REV.D
http://www.arieselec.com • info@arieselec.com
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
