M83513/02-HC

Description
D Microminiature Connector,
CategoryThe connector    The connector
File Size348KB,4 Pages
ManufacturerMin-E-Con LLC
Download Datasheet Parametric View All

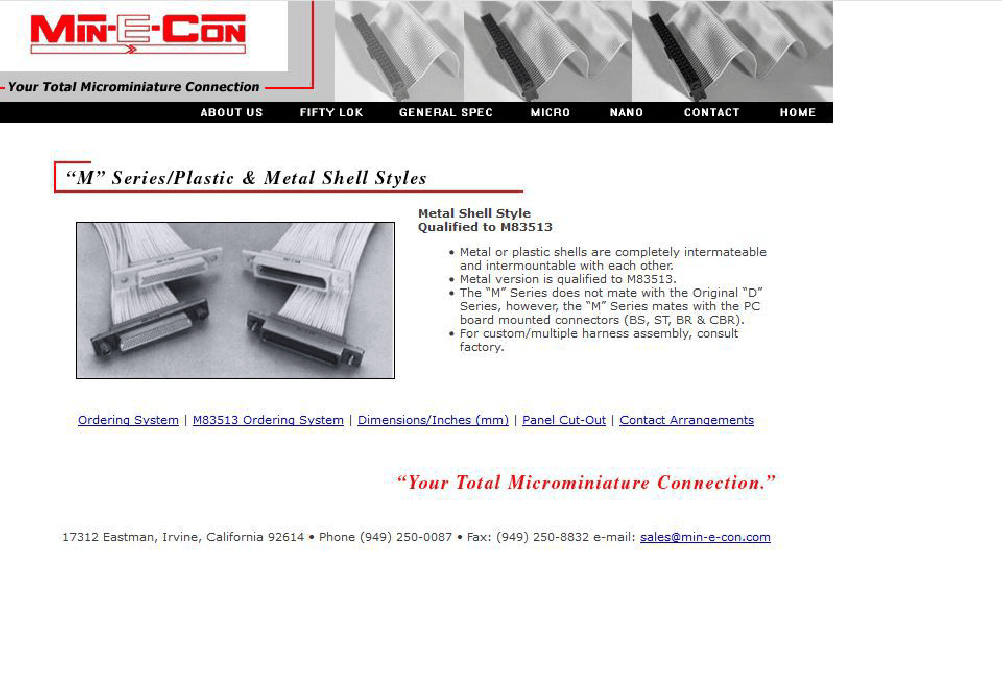

M83513/02-HC Overview

D Microminiature Connector,

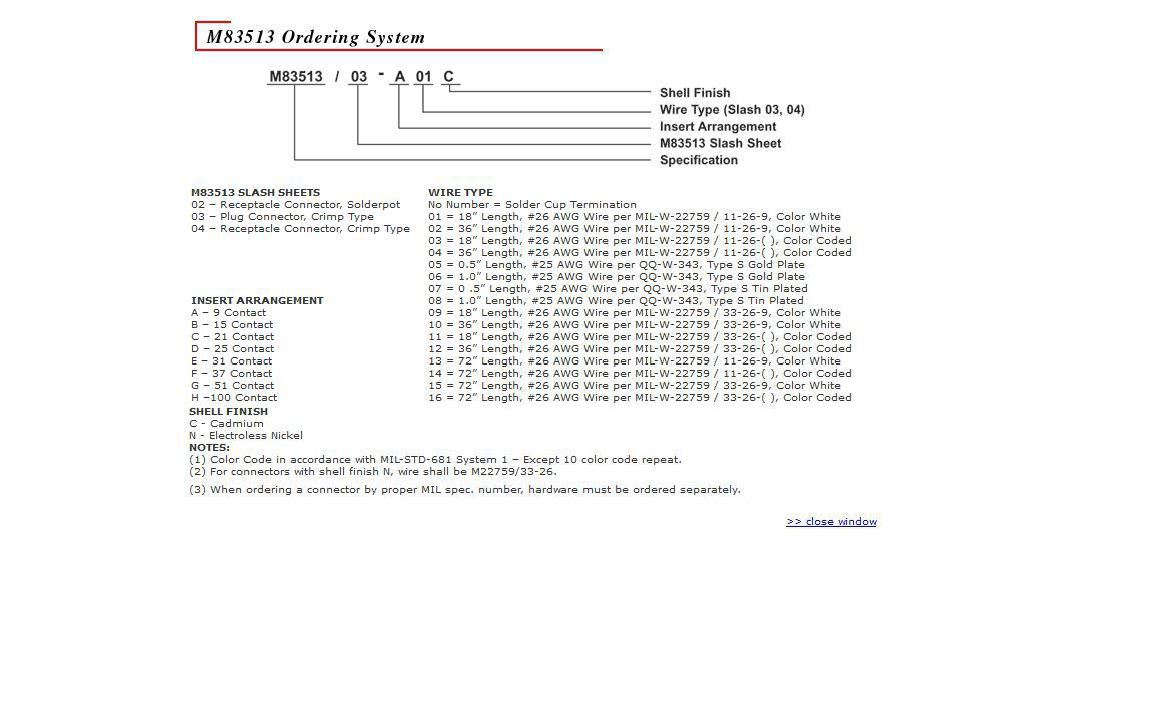

M83513/02-HC Parametric

Parameter NameAttribute value
MakerMin-E-Con LLC
Reach Compliance Codeunknown
Other featuresSTANDARD: MIL-DTL-83513

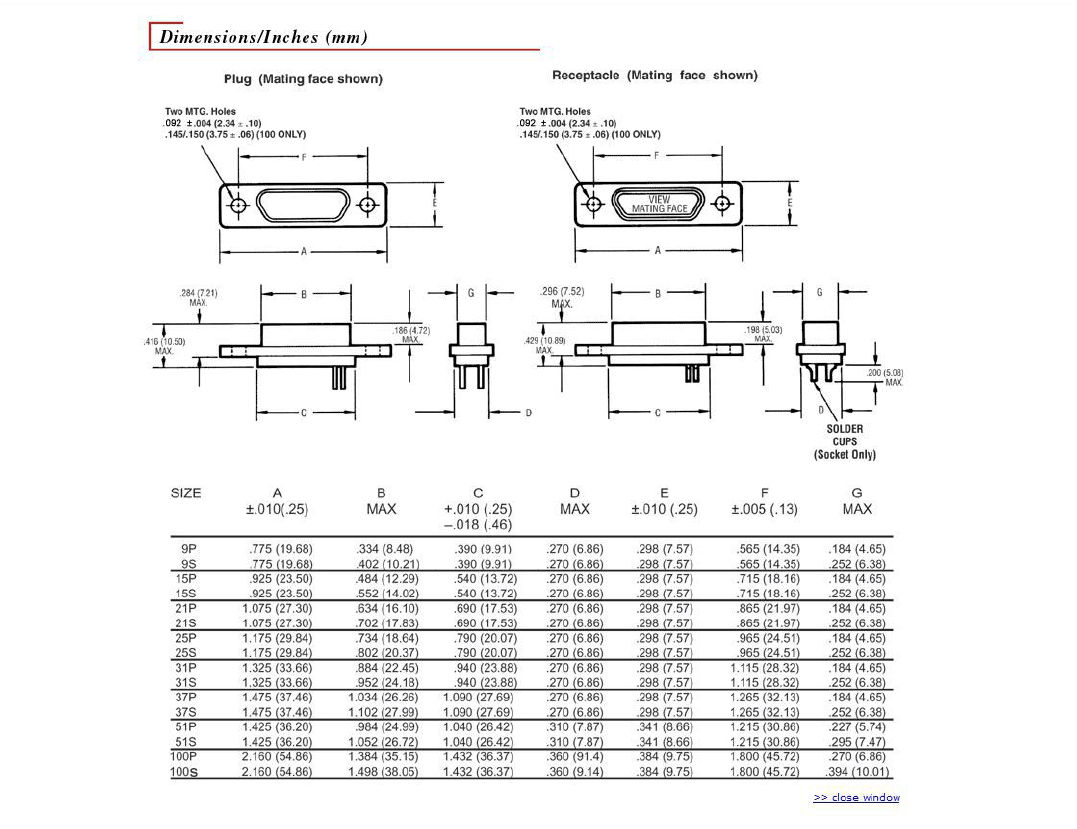

body width0.384 inch
subject depth0.223 inch
body length2.16 inch
Body/casing typeRECEPTACLE
Connector typeD MICROMINIATURE CONNECTOR
Contact arrangementS100P0
Contact point genderFEMALE
contact modeSTAGGERED
Contact resistance8 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage600VAC V
Durability500 Cycles
empty shellNO
Filter functionNO
maximum insertion force2.78 N
Insulation resistance5000000000 Ω
Plug contact pitch0.05 inch
Match contact row spacing0.043 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO

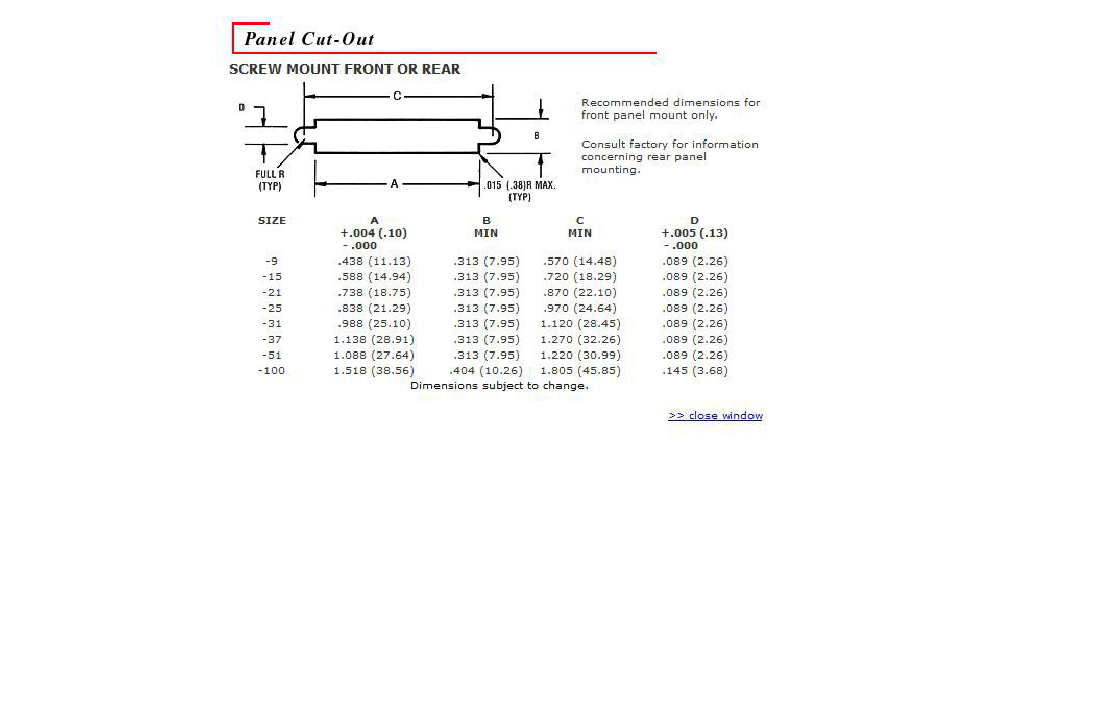

Installation option 1HOLE .15
Installation typeCABLE
Number of connectorsONE
Number of rows loaded4
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Plating thickness50u inch
Rated current (signal)3 A
GuidelineMIL
Shell surfaceCADMIUM
Shell materialMETAL
Housing sizeH
Terminal length0.2 inch
Termination typeSOLDER
Total number of contacts100
Maximum wire diameter24 AWG
Minimum wire diameter26 AWG
Evacuation force-minimum value0.139 N
Base Number Matches1
