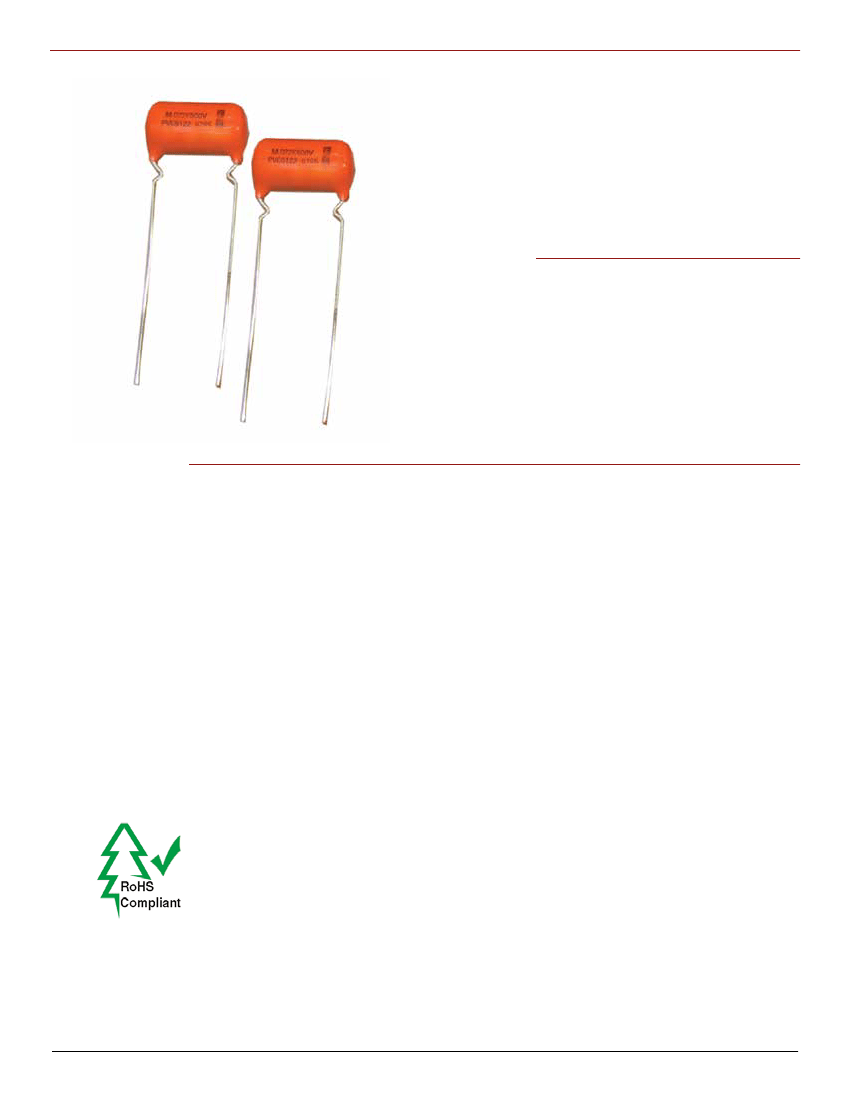

Polyester Film/Foil (100 V– 1000 V) and Polypropylene Film/Foil (1200 V - 2000 V)
Type PVC
Polyester and Polypropylene Film/Foil Capacitors
The Type PVC is a sturdy film and extended foil con-
struction ideal for bypass and coupling applications.
Extended foil construction is as good as it gets for low
DF and high current applications. The PVC is encap-
sulated in a rugged, flame retardant, epoxy coating
with the leads crimped to provide secure seating on
printed circuit boards.
Highlights
♦
♦
♦
♦
♦
♦
♦
♦
Specifications
Capacitance Range:
Capacitance Tolerance:
Voltage Range:
O
bs
Se o
e le
41 te
8P
or
0.001 µF to 1.0 µF
±10%
Polyester: 100 Vdc to 1000 Vdc (70 Vac – 200 Vac 50/60 Hz)
Polypropylene: 1200 Vdc to 2000 Vdc (475 Vac – 500 Vac 50/60 Hz)
Operating Temperature Range:
Polyester: –55 ºC to +125 ºC
Polypropylene: –55 ºC to +105 ºC
(Full rated voltage up to 85 ºC. Derate linearly to 50% rated voltage at max
temperature)
Insulation Resistance (IR):
Polyester: 100,000 MΩ for
≤
0.25 µF, 25,000 MΩ
•
µF for
≥
0.25 µF
Polypropylene: 400,000 MΩ for
≤
0.50 µF, 200,000 MΩ
•
µF for
≥
0.50 µF
After 2 minutes at rated voltage or 500V whichever is less. +25 ºC
0.75% max for <1200 V, 0.1% max for
≥1200
V. +25 ºC
Dissipation Factor (DF):
250% rated voltage for <1000 V, 200% rated voltage for
≥1000
V. 5 sec-
Dielectric Withstand Voltage:
onds, +25 ºC
500 hours at +85 ºC, 1.5 times rated DC voltage
Life Test:
Complies with the EU Directive 2002/95/
EC requirement restricting the use of
Lead (Pb), Mercury (Hg), Cadmium
(Cd), Hexavalent chromium (Cr(VI)),
PolyBrominated Biphenyls (PBB) and
PolyBrominated Diphenyl Ethers (PBDE).
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
71
5P
as
re
pl
ac
em
RoHS Compliant
Rugged epoxy case material meets UL94V0
Film/foil polyester 100 – 1000 Vdc
Film/foil polypropylene - 1200 Vdc to 2000 Vdc
Non-inductively wound
Non-polar
Crimped leads for secure PC board insertion
Lead material: tinned copper clad steel
en
t
Type PVC
Polyester and Polypropylene Film/Foil Capacitors
Outline Drawing
Lead Pull Test
Capacitor leads shall withstand a steady pull of 5
pounds applied radially to the capacitor body for
1 minute.
Lead Blend Test
Capacitor leads shall be bent without breakage
below the lead crimp, first 90º in one direction
then back to the original position and then 90º in
the opposite direction.
Ratings
Inches
Catalog
Part Number
PVC1118
PVC1122
PVC1127
PVC1133
PVC114
PVC1147
PVC1156
PVC1168
PVC1182
PVC101
PVC1015
PVC1022
PVC1025
PVC1033
PVC1039
PVC1047
PVC105
PVC1056
PVC1068
PVC1082
PVC11
Cap
(µF)
0.018
0.022
0.027
0.033
0.040
0.047
0.056
0.068
0.082
0.10
0.15
0.22
0.25
0.33
0.39
0.47
0.50
0.56
0.68
0.82
1.00
L
Max
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.9
0.9
0.9
1.2
1.2
1.2
1.6
1.6
1.6
1.6
1.6
1.6
1.6
Dia
Max
0.33
0.35
0.35
0.35
0.35
0.35
0.38
0.38
0.40
0.40
0.45
0.45
0.50
0.50
0.50
0.50
0.60
0.60
0.60
0.65
0.70
S
Lead Spacing
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.500
0.688
0.688
0.688
0.969
0.969
0.969
1.344
1.344
1.344
1.344
1.344
1.344
1.344
0.500
0.500
0.500
0.500
0.500
0.688
0.688
0.688
0.688
0.688
0.969
∅d
100 Vdc / 70 Vac
L
Max
17.8
17.8
17.8
17.8
17.8
17.8
17.8
17.8
22.9
22.9
22.9
30.5
30.5
30.5
40.6
40.6
40.6
40.6
40.6
40.6
40.6
17.8
17.8
17.8
17.8
17.8
22.9
22.9
22.9
22.9
22.9
30.5
Millimeters
Dia
S
Max
8.4
8.9
8.9
8.9
8.9
8.9
9.7
9.7
10.2
10.2
11.4
11.4
12.7
12.7
12.7
12.7
15.2
15.2
15.2
16.5
17.8
8.4
8.4
8.4
8.4
8.4
9.7
9.7
9.7
9.7
9.7
9.7
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
0.032
as
5P
71
O
bs
Se o
e le
41 te
8P
or
200 Vdc / 140 Vac
12.7
12.7
12.7
12.7
12.7
17.5
17.5
17.5
17.5
17.5
24.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
PVC211
0.010
0.7
0.33
PVC2115
PVC2118
PVC212
PVC2122
PVC2133
PVC2139
PVC214
PVC215
PVC2156
PVC2147
0.015
0.018
0.020
0.022
0.033
0.039
0.040
0.047
0.050
0.056
0.7
0.7
0.7
0.7
0.9
0.9
0.9
0.9
0.9
1.2
0.33
0.33
0.33
0.33
0.38
0.38
0.38
0.38
0.38
0.38
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
re
pl
ac
em
Lead Spacing
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
17.5
17.5
17.5
24.6
24.6
24.6
34.1
34.1
34.1
34.1
34.1
34.1
34.1
en
t
∅d
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
