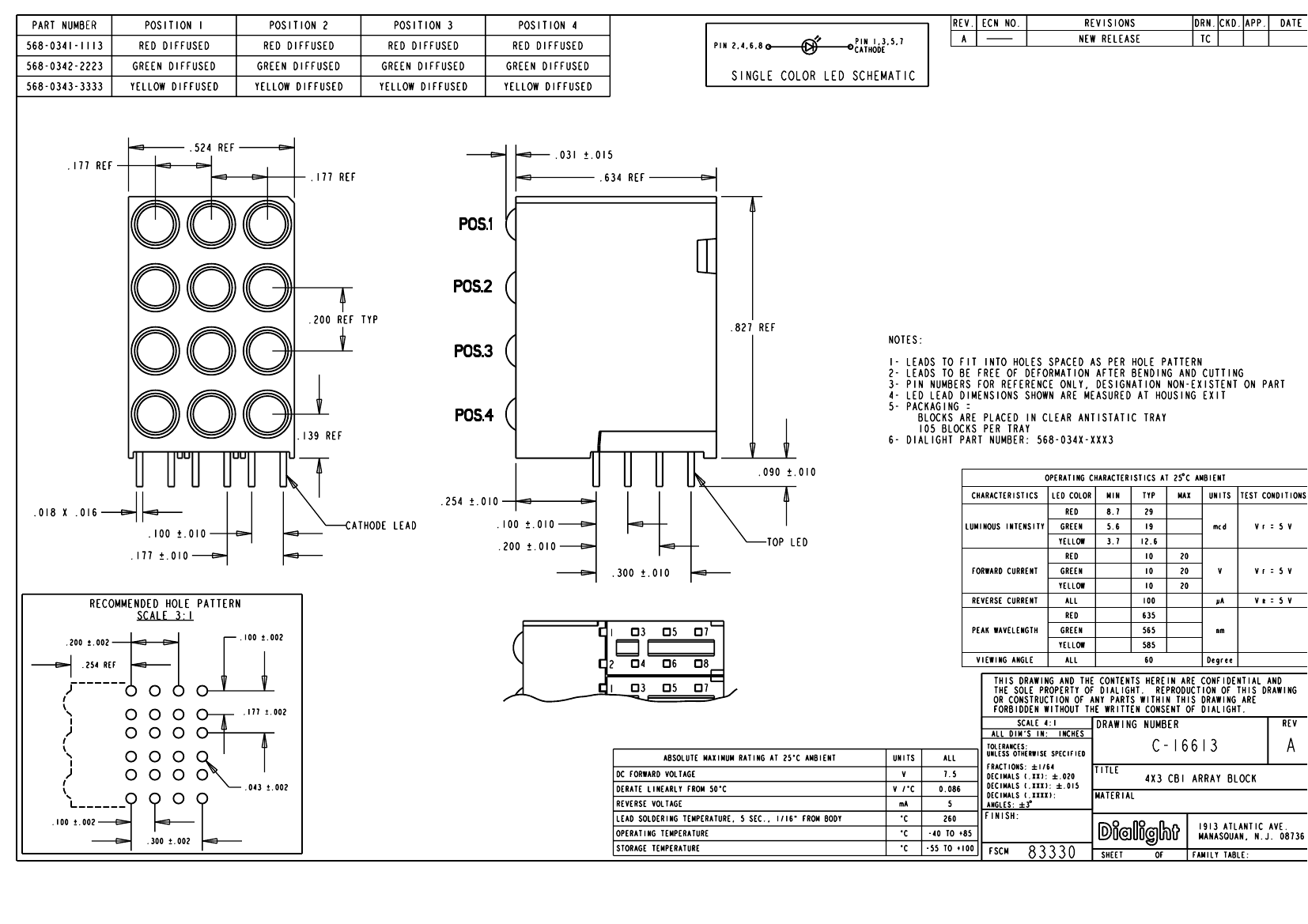

568-0342-2223 datasheet, PDF - EEWORLD Datasheet

568-0342-2223: Descriptionled 4hi X 3W 3mm 5V green PC mnt; CategoryLED optoelectronic/LED photoelectric; File Size95KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric Compare View All

568-0342-2223 Overview

led 4hi X 3W 3mm 5V green PC mnt

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	DIALIGHT
Reach Compliance Code	compliant
color	GREEN
Configuration	SEPARATE, 12 ELEMENTS WITH BUILT-IN RESISTOR
Maximum forward current	0.03 A
JESD-609 code	e0
Lens type	DIFFUSED
Nominal luminous intensity	19.0 mcd
Installation features	RADIAL MOUNT
Number of functions	12
Number of terminals	24
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	21.01 mm
method of packing	BULK
peak wavelength	565 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
perspective	60 deg
Base Number Matches	1

	568-0342-2223	568-0343-3333	56803411113	56803422223	56803433333
Description	led 4hi X 3W 3mm 5V green PC mnt	led 4hi X 3W 3mm 5V yellow pcmnt	LED 4HI X 3W 3MM 5V RED PC MNT	LED 4HI X 3W 3MM 5V GREEN PC MNT	LED 4HI X 3W 3MM 5V YELLOW PCMNT
color	GREEN	YELLOW	Red (x 12)	Green (x 12)	Yellow (x 12)
Configuration	SEPARATE, 12 ELEMENTS WITH BUILT-IN RESISTOR	SEPARATE, 12 ELEMENTS WITH BUILT-IN RESISTOR	4 height x 3 width	4 height x 3 width	4 height x 3 width
Lens type	DIFFUSED	DIFFUSED	scattering, colored	scattering, colored	scattering, colored
perspective	60 deg	60 deg	60°	60°	60°
Wavelength - Peak	-	-	635nm	565nm	585nm
current	-	-	10mA	10mA	10mA
millicandela level	-	-	29mcd	19mcd	12.6mcd
Lens style/size	-	-	Round, with dome, 3mm (T-1)	Round, with dome, 3mm (T-1)	Round, with dome, 3mm (T-1)
Rated voltage	-	-	5V	5V	5V
Installation type	-	-	Through hole, right angle	Through hole, right angle	Through hole, right angle
