BNC8146-0059BE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BNC8146-0059BE

BNC8146-0059BE: DescriptionRF BNC Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack; CategoryThe connector The connector; File Size849KB，1 Pages; ManufacturerJYEBAO Co., Ltd.

Download Datasheet Parametric Compare View All

BNC8146-0059BE Overview

RF BNC Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack

BNC8146-0059BE Parametric

Parameter Name	Attribute value
Maker	JYEBAO Co., Ltd.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.689 inch
subject depth	1.142 inch
body length	0.689 inch
Body/casing type	JACK
Cable type	RG-59
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact point gender	FEMALE
Contact resistance	1.5 mΩ
Contact style	COAX
Dielectric withstand voltage	2100VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	TEFLON
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	1 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
reliability	COMMERCIAL
Shell material	BRASS
Termination type	CRIMP
Total number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

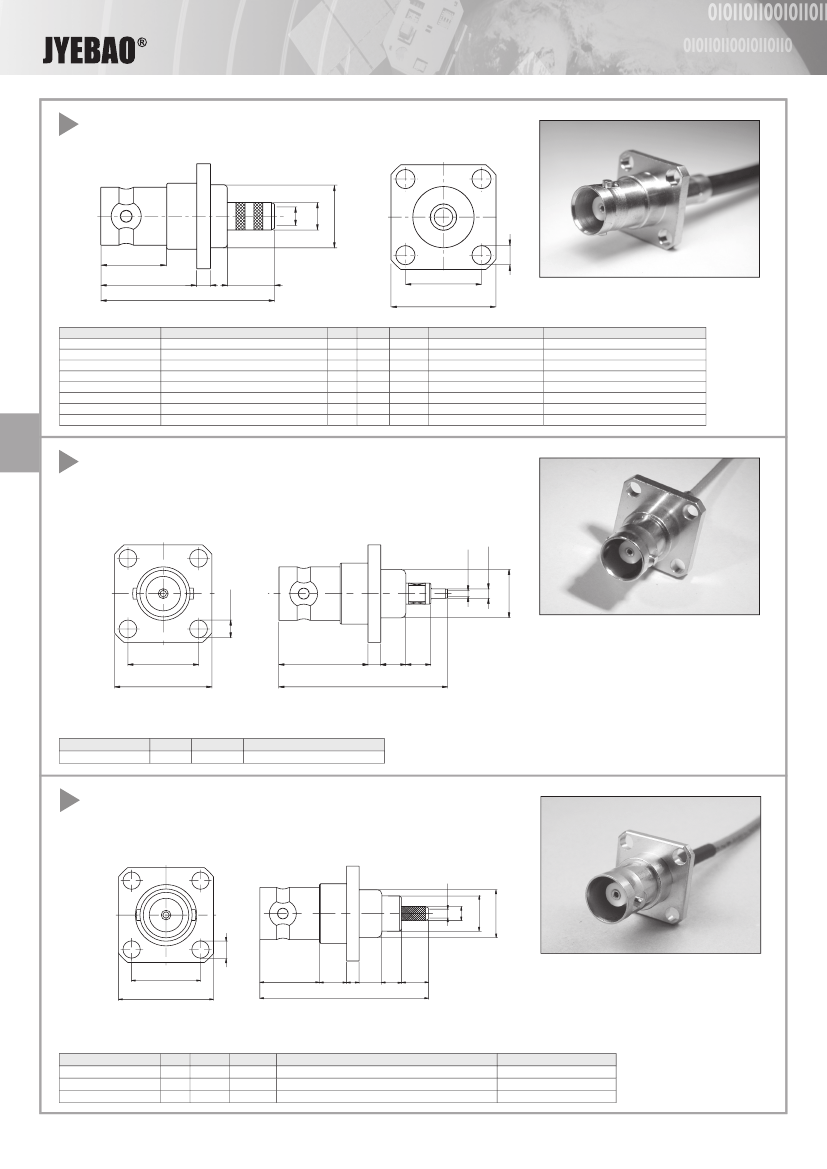

BNC JACK CRIMP FOR PANEL RECEPTACLE

10.5

(.413)

øD

ød

(.433)

(.630)

2.3

(.091)

7.9

(.311)

12.7

(.500)

17.5 S.Q.

(.689 S.Q.)

Measurements

L=29.0 (1.142) ød=3.1(.122)

øD=4.4 (.173)

M.H.

12.82g

12.70g

12.82g

12.97g

Weight

13.12g

Material

Part Number

BNC8146-0058

BNC8146-0058BE

BNC8146-0059

BNC8146-0059BE

BNC8146-0122

BNC8146-0142

BNC8146-0142/G

BNC8146-0223

Suitable Cables

RG58, JBY195

RG59

RG122

RG55,RG142,RG142-E,RG400

RG223

ø3.2

(ø.126)

Remarks

BE= Beryllium Copper Pin

Impedance=75ohm

Impedance=75ohm, BE= Beryllium Copper Pin

L=29.0 (1.142) ød=3.9 (.154) øD=5.6 (.220)

L=27.5 (1.083) ød=2.7 (.106) øD=3.8 (.150)

L=29.0 (1.142) ød=3.1 (.122) øD=4.4 (.173)

L=29.0(1.142) ød=3.1 (.122) øD=4.4 (.173)

G= Gold Plated Body

ø1

(ø.039)

ø1.7

(ø.067)

ø8.7

(ø.343)

12.7 S.Q.

(.500 S.Q.)

17.5 S.Q.

(.689 S.Q.)

4xø3.2

(4xø.126)

(.630)

2.3 4.5

(.091) (.177)

31.4

(.091)

4.5

(.177)

Part Number

BNC8146-0178

M.H.

Material

Suitable Cables

RG178,RG178-FEP,RG196

BNC JACK CRIMP FOR PANEL RECEPTACLE

ø1.65

(ø.065)

ø2.35

(ø.093)

12.7

(.500)

17.5 S.Q.

(.689 S.Q.)

ø3.2

(ø.126)

(.433)

(.197)

31.4

(1.236)

2.3

3.6

(.091) (.142)

5.0

(.197)

Part Number

BNC8146-0179

BNC8146-0316

BNC8146-0316BE

M.H.

Weight

13.07g

12.77g

Material

Suitable Cables

RG179,RG179-FEP

RG174,RG188,RG316,RG316-E,RG316-FEP,JBY100

RG174,RG188,RG316,RG316D-E,RD316-FEP,JBY100

ø6.5

(ø.256)

ø8.7

(ø.343)

BNC

125

BNC JACK CRIMP FOR PANEL RECEPTACLE

Remarks

Impedance=75ohm

BE= Beryllium Copper Pin

Material & Plating: See Page 437

Mounting Hole (M.H.): See Page 439

www.jyebao.com.tw

Tel : 886-2-29029282

Fax: 886-2-29029283

E-mail: jyebao@jyebao.com.tw

BNC8146-0059BE Related Products

	BNC8146-0059BE	BNC8146-0058	BNC8146-0142G	BNC8146-0178	BNC8146-0316BE	BNC8146-0058BE	BNC8146-0179	BNC8146-0059	BNC8146-0316	BNC8146-0142
Description	RF BNC Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack	RF BNC Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack	RF BNC Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack	RF BNC Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack	RF BNC Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack	RF BNC Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack	RF BNC Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack	RF BNC Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack	RF BNC Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack	RF BNC Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack
Maker	JYEBAO Co., Ltd.	JYEBAO Co., Ltd.	JYEBAO Co., Ltd.	JYEBAO Co., Ltd.	JYEBAO Co., Ltd.	JYEBAO Co., Ltd.	JYEBAO Co., Ltd.	JYEBAO Co., Ltd.	JYEBAO Co., Ltd.	JYEBAO Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.689 inch	0.689 inch	0.689 inch	0.689 inch	0.689 inch	0.689 inch	0.689 inch	0.689 inch	0.689 inch	0.689 inch
subject depth	1.142 inch	1.142 inch	1.142 inch	0.091 inch	1.236 inch	1.142 inch	1.236 inch	1.142 inch	1.236 inch	1.142 inch
body length	0.689 inch	0.689 inch	0.689 inch	0.689 inch	0.689 inch	0.689 inch	0.689 inch	0.689 inch	0.689 inch	0.689 inch
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK
Cable type	RG-59	RG-58	RG-142	RG-178	RG-316	RG-58	RG-179	RG-59	RG-316	RG-142
Characteristic impedance	75 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	75 Ω	75 Ω	50 Ω	50 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact resistance	1.5 mΩ	1.5 mΩ	1.5 mΩ	1.5 mΩ	1.5 mΩ	1.5 mΩ	1.5 mΩ	1.5 mΩ	1.5 mΩ	1.5 mΩ
Contact style	COAX	COAX	COAX	COAX	COAX	COAX	COAX	COAX	COAX	COAX
Dielectric withstand voltage	2100VAC V	2100VAC V	2100VAC V	2100VAC V	2100VAC V	2100VAC V	2100VAC V	2100VAC V	2100VAC V	2100VAC V
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	TEFLON	TEFLON	TEFLON	TEFLON	TEFLON	TEFLON	TEFLON	TEFLON	TEFLON	TEFLON
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of ports	1	1	1	1	1	1	1	1	1	1
Maximum operating frequency	1 GHz	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	1 GHz	1 GHz	4 GHz	4 GHz
Maximum operating temperature	165 °C	165 °C	165 °C	165 °C	165 °C	165 °C	165 °C	165 °C	165 °C	165 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	1	1	1	1	1	1	1	1	1	1
Base Number Matches	1	1	1	1	1	1	1	1	1	1
