IRFS17N20DTRR

Description
mosfet N-CH 200v 16a d2pak
CategoryDiscrete semiconductor    The transistor
File Size152KB,12 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Download Datasheet Parametric Compare View All

IRFS17N20DTRR Overview

mosfet N-CH 200v 16a d2pak

IRFS17N20DTRR Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerInternational Rectifier ( Infineon )
package instructionSMALL OUTLINE, R-PSSO-G2
Contacts3
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresAVALANCHE RATED
Avalanche Energy Efficiency Rating (Eas)240 mJ
Shell connectionDRAIN
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage200 V
Maximum drain current (ID)16 A
Maximum drain-source on-resistance0.17 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeR-PSSO-G2
JESD-609 codee0
Humidity sensitivity level1
Number of components1
Number of terminals2
Operating modeENHANCEMENT MODE
Maximum operating temperature175 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)225
Polarity/channel typeN-CHANNEL
Maximum pulsed drain current (IDM)64 A
Certification statusNot Qualified
surface mountYES
Terminal surfaceTIN LEAD
Terminal formGULL WING
Terminal locationSINGLE
Maximum time at peak reflow temperature30
transistor applicationsSWITCHING
Transistor component materialsSILICON
Base Number Matches1

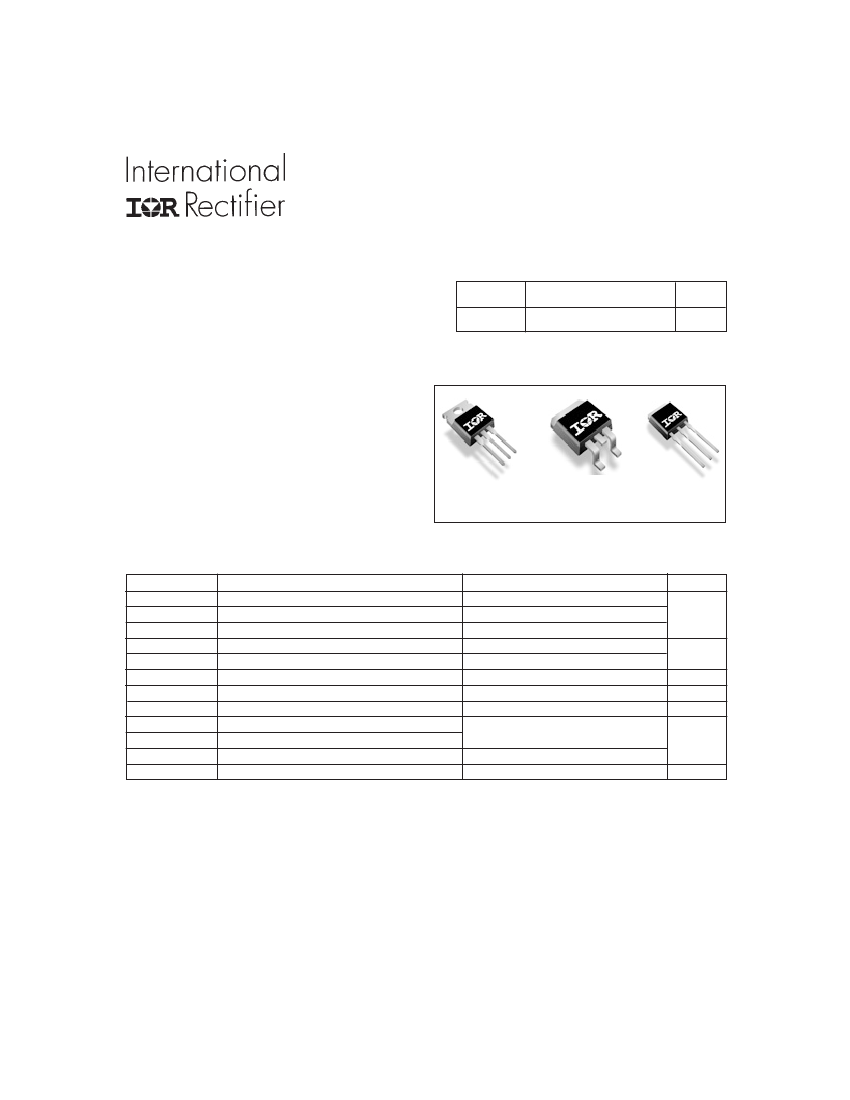

PD- 93902A
SMPS MOSFET
IRFB17N20D
IRFS17N20D
IRFSL17N20D
HEXFET
®
Power MOSFET
Applications
l
High frequency DC-DC converters
Benefits
l
Low Gate-to-Drain Charge to Reduce
Switching Losses
l
Fully Characterized Capacitance Including
Effective C
OSS
to Simplify Design, (See
App. Note AN1001)
l
Fully Characterized Avalanche Voltage
and Current
V
DSS
200V
R
DS(on)
max
0.17Ω
I
D
16A
TO-220AB
IRFB17N20D
D
2
Pak
IRFS17N20D
TO-262
IRFSL17N20D
Absolute Maximum Ratings
Parameter
I
D
@ T
C
= 25°C
I
D
@ T
C
= 100°C
I
DM
P
D
@T
A
= 25°C
P
D
@T
C
= 25°C
V
GS
dv/dt
T
J
T
STG
Continuous Drain Current, V
GS
@ 10V
Continuous Drain Current, V
GS
@ 10V
Pulsed Drain Current

Power Dissipation
‡
Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Peak Diode Recovery dv/dt
ƒ
Operating Junction and
Storage Temperature Range
Soldering Temperature, for 10 seconds
Mounting torqe, 6-32 or M3 screw†
Max.
16
12
64
3.8
140
0.90
± 30
2.7
-55 to + 175
300 (1.6mm from case )
10 lbf•in (1.1N•m)
Units
A
W
W/°C
V
V/ns
°C
Typical SMPS Topologies
l
Telecom 48V input Forward Converter
Notes

through
…
are on page 11
www.irf.com
1
4/26/00

IRFS17N20DTRR Related Products

IRFS17N20DTRR IRFS17N20DTRL
Description mosfet N-CH 200v 16a d2pak mosfet N-CH 200v 16a d2pak
Is it Rohs certified? incompatible incompatible
Maker International Rectifier ( Infineon ) International Rectifier ( Infineon )
package instruction SMALL OUTLINE, R-PSSO-G2 SMALL OUTLINE, R-PSSO-G2
Contacts 3 3
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Other features AVALANCHE RATED AVALANCHE RATED
Avalanche Energy Efficiency Rating (Eas) 240 mJ 240 mJ
Shell connection DRAIN DRAIN
Configuration SINGLE WITH BUILT-IN DIODE SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage 200 V 200 V
Maximum drain current (ID) 16 A 16 A
Maximum drain-source on-resistance 0.17 Ω 0.17 Ω
FET technology METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR
JESD-30 code R-PSSO-G2 R-PSSO-G2
JESD-609 code e0 e0
Humidity sensitivity level 1 1
Number of components 1 1
Number of terminals 2 2
Operating mode ENHANCEMENT MODE ENHANCEMENT MODE
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 225 225
Polarity/channel type N-CHANNEL N-CHANNEL
Maximum pulsed drain current (IDM) 64 A 64 A
Certification status Not Qualified Not Qualified
surface mount YES YES
Terminal surface TIN LEAD TIN LEAD
Terminal form GULL WING GULL WING
Terminal location SINGLE SINGLE
Maximum time at peak reflow temperature 30 30
transistor applications SWITCHING SWITCHING
Transistor component materials SILICON SILICON
Base Number Matches 1 1
