Designed primarily for wideband large–signal output and
driver from 30–500 MHz.
N–Channel enhancement mode MOSFET
Rev. V1

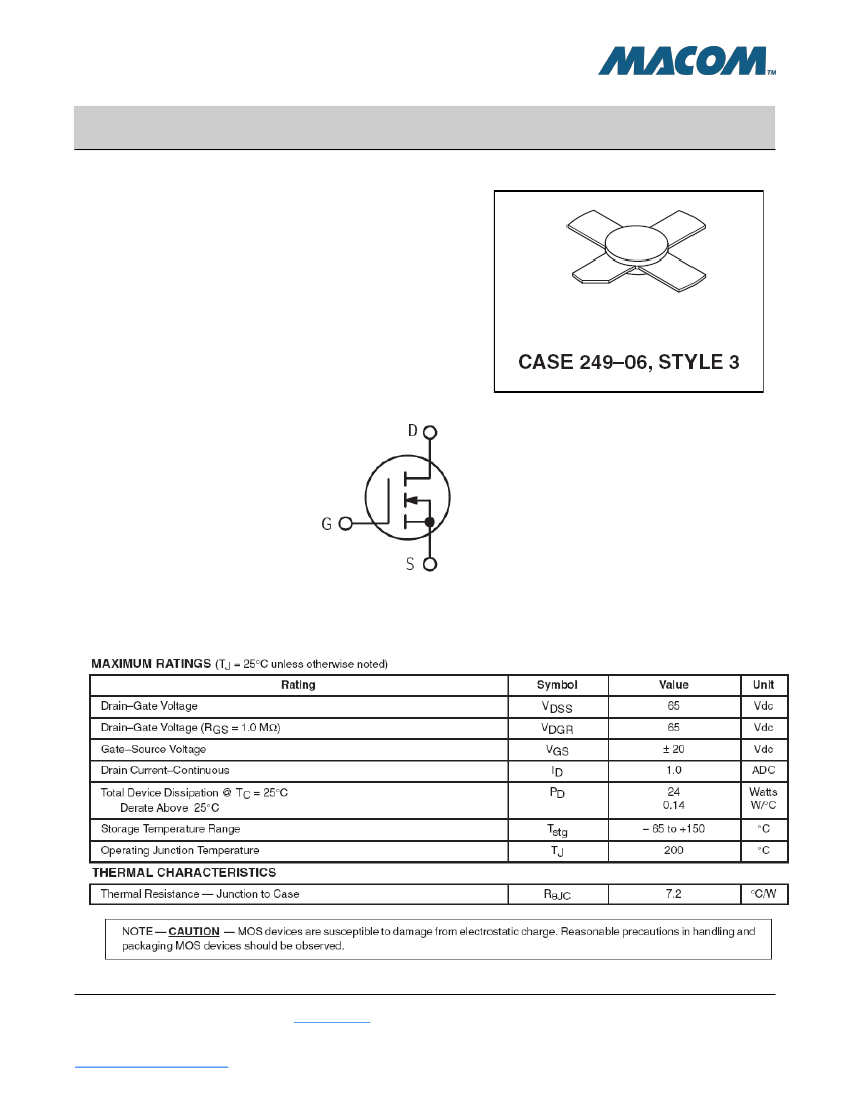

Product Image
Guaranteed 28 V, 500 MHz performance
Output power = 4.0 W
Gain = 16 dB (min.)
Efficiency = 55% (typ.)
Excellent thermal stability, ideally suited for Class A operation
Facilitates manual gain control, ALC and modulation techniques
100% Tested for load mismatch at all phase angles with 30:1 VSWR
Low Crss – 0.8 pF Typical at VDS = 28 V
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support

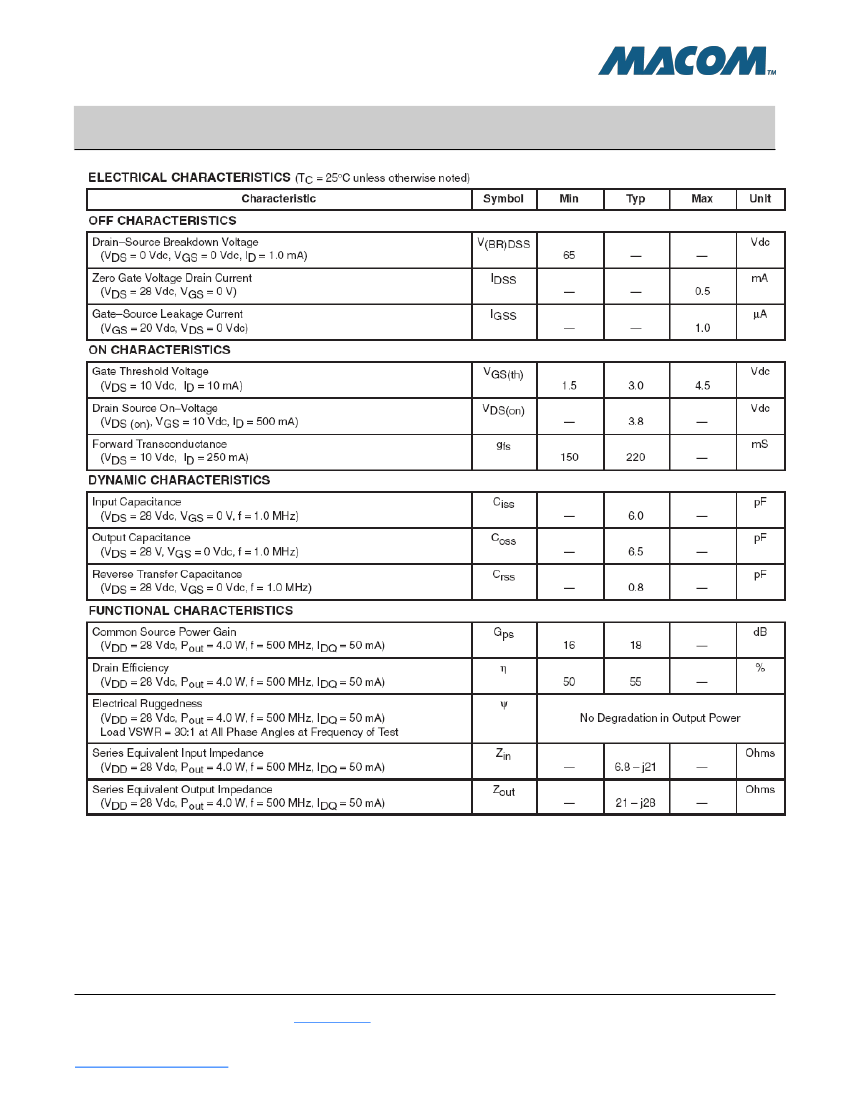

MRF160
The RF MOSFET Line: Broadband Power FET
4W, to 500MHz, 28V
Rev. V1
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support

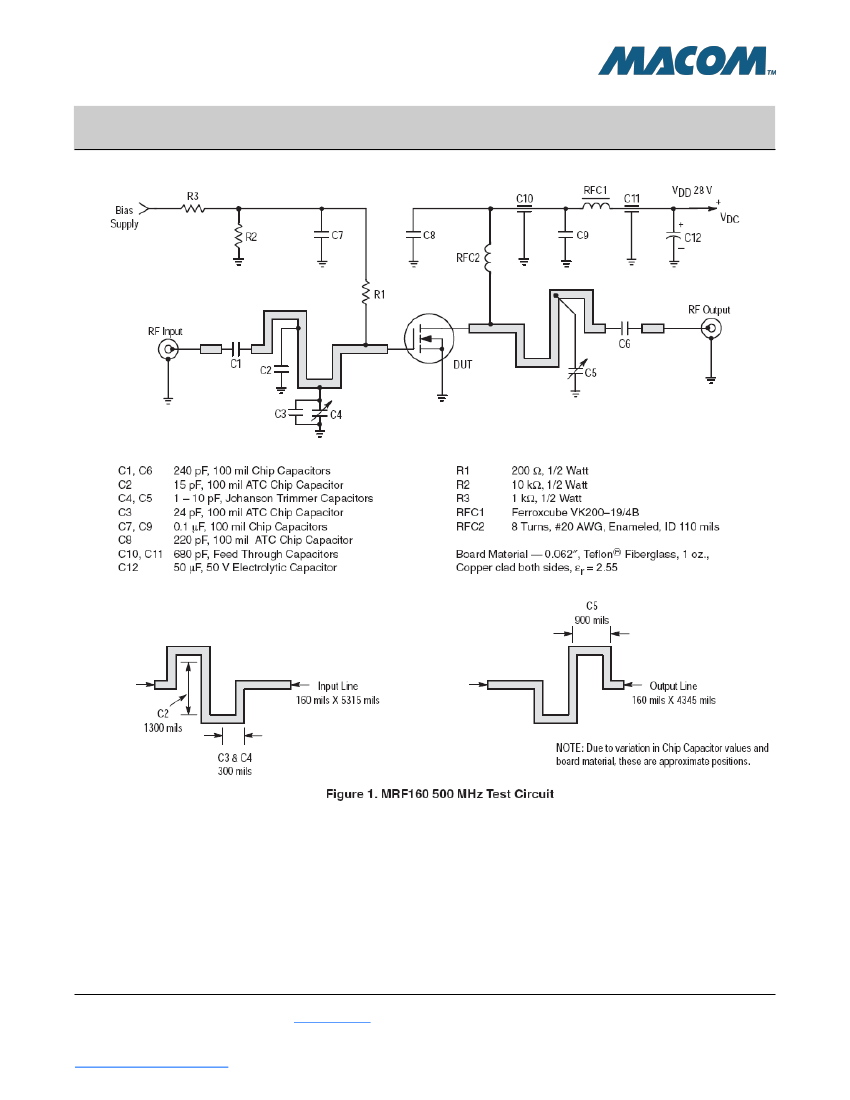

MRF160
The RF MOSFET Line: Broadband Power FET
4W, to 500MHz, 28V
Rev. V1
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support

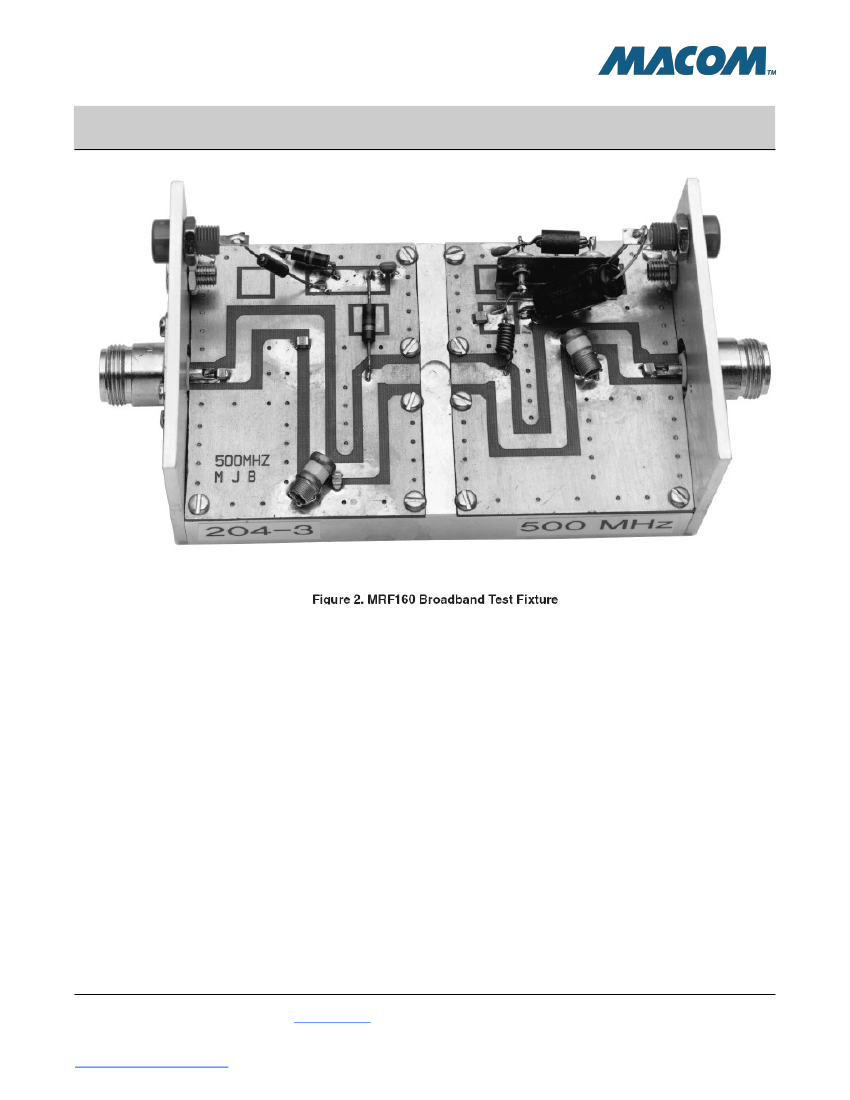

MRF160
The RF MOSFET Line: Broadband Power FET
4W, to 500MHz, 28V
Rev. V1
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support

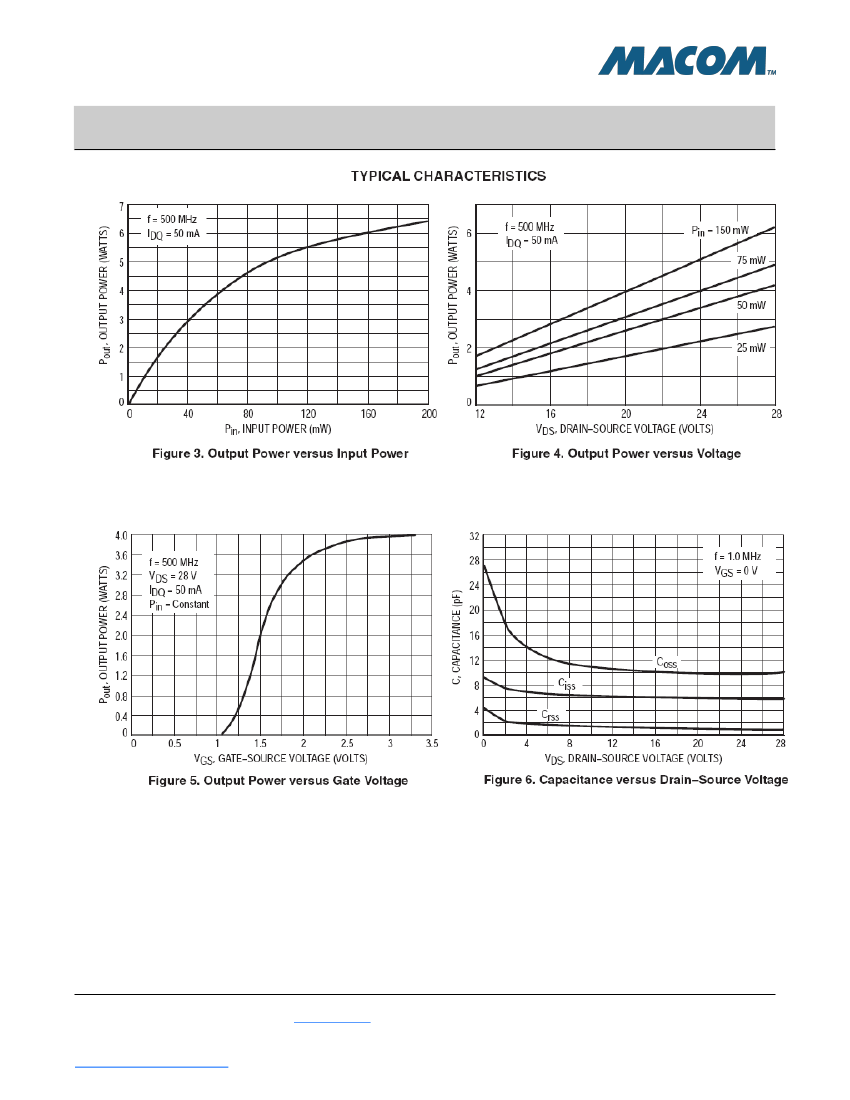

MRF160
The RF MOSFET Line: Broadband Power FET
4W, to 500MHz, 28V
Rev. V1
5
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
