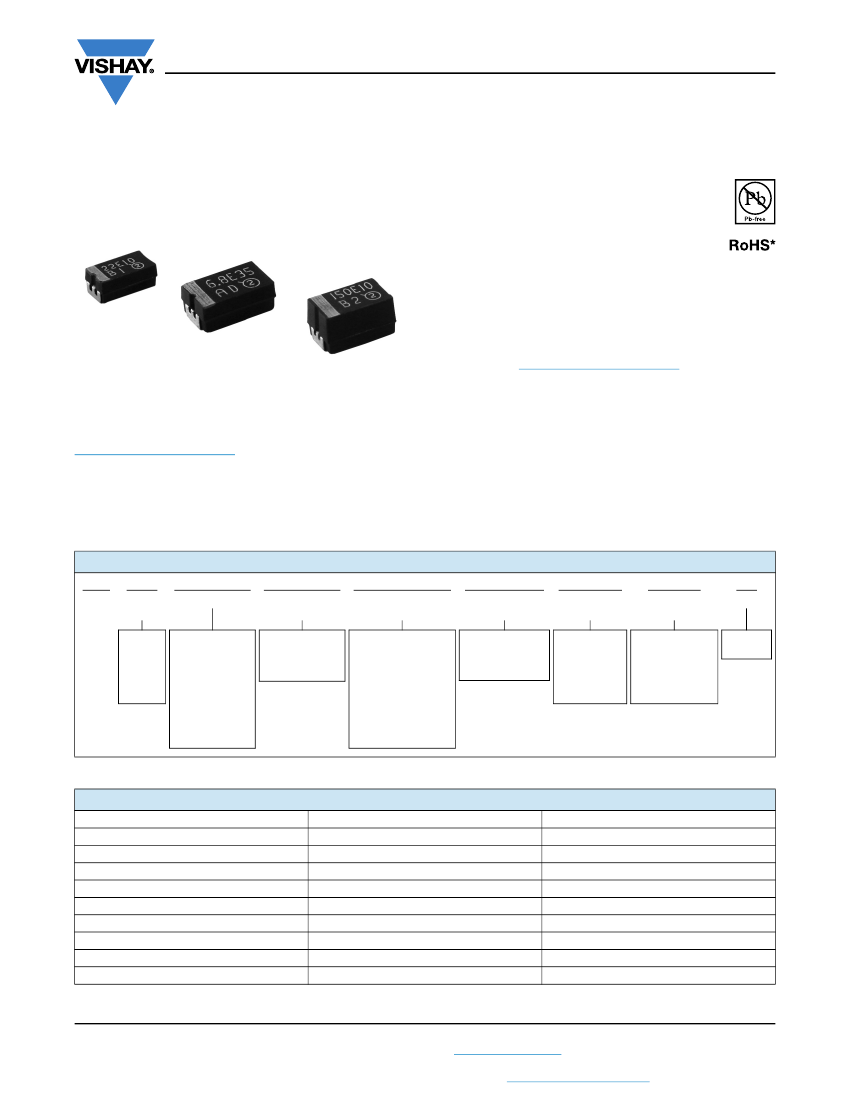

T86
www.vishay.com
Vishay Sprague
Solid Tantalum Surface Mount Chip Capacitors
T
ANTAMOUNT®
, Molded Case, Hi-Rel COTS, Built-In-Fuse
FEATURES
• Weibull grading and surge current test
options per MIL-PRF-55365
Available
• Standard and low ESR options
• Terminations: 100 % matte tin, standard,
Available
tin/lead available
• Molded case available in three case sizes
• Compliant terminations
• Compatible with “High Volume” automatic pick and place
equipment
• Moisture sensitivity level 1
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and/or parts that are non-RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information/tables in this datasheet for details.
PERFORMANCE/ELECTRICAL
CHARACTERISTICS
www.vishay.com/doc?40088
Operating Temperature:
- 55 °C to + 125 °C
(Above 85 °C voltage derating is required)
Capacitance Range:
0.47 μF to 470 μF
Capacitance Tolerance:
± 10 %, ± 20 %
Voltage Rating:
4 V
DC
to 50 V
DC
APPLICATIONS
•
•
•
•
Industrial
Medical
Military/aerospace
Telecom
ORDERING INFORMATION
T86
TYPE
D
CASE
CODE
See
Ratings
and
Case
Codes
Table
107
CAPACITANCE
K
CAPACITANCE
TOLERANCE
K = ± 10 %
M = ± 20 %
J=±5%
(special order)
010
DC VOLTAGE
RATING AT + 85 °C
This is expressed
in V. To complete
the three-digit
block, zeros
precede the
voltage rating.
A decimal point
is indicated
by an “R”
(6R3 = 6.3 V).
E
TERMINATION/
PACKAGING
See table
Termination
and Packaging
Codes
A
RELIABILITY
LEVEL
A = 1.0 %
B = 0.1 %
C = 0.01 %
S = Hi-Rel
standard
Z = Non-ER
A
SURGE
CURRENT
A = 10 cycles
at + 25 °C
B = 10 cycles at
- 55 °C/+ 85 °C
S = 3 cycles
at + 25 °C
S
ESR
This is
expressed in
picofarads.
The first two
digits are the
significant
figures. The
third is the
number of
zeros to follow.
S = Std.
L = Low
TERMINATION AND PACKAGING CODES
CODE
C
H
U
E
L
R
K
M
N
TERMINATION
Matte tin
Matte tin
Matte tin
Solder plated, tin/lead
Solder plated, tin/lead
Solder plated, tin/lead
Solder fused, tin/lead
Solder fused, tin/lead
Solder fused, tin/lead
PACKAGING
7" (178 mm) reels
7" (178 mm) reels, ½ reel
7" (178 mm) reels, partial reel
7" (178 mm) reels
7" (178 mm) reels, ½ reel
7" (178 mm) reels, partial reel
7" (178 mm) reels
7" (178 mm) reels, ½ reel
7" (178 mm) reels, partial reel
Revision: 27-Jun-13
Document Number: 40145
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T86
www.vishay.com
Vishay Sprague

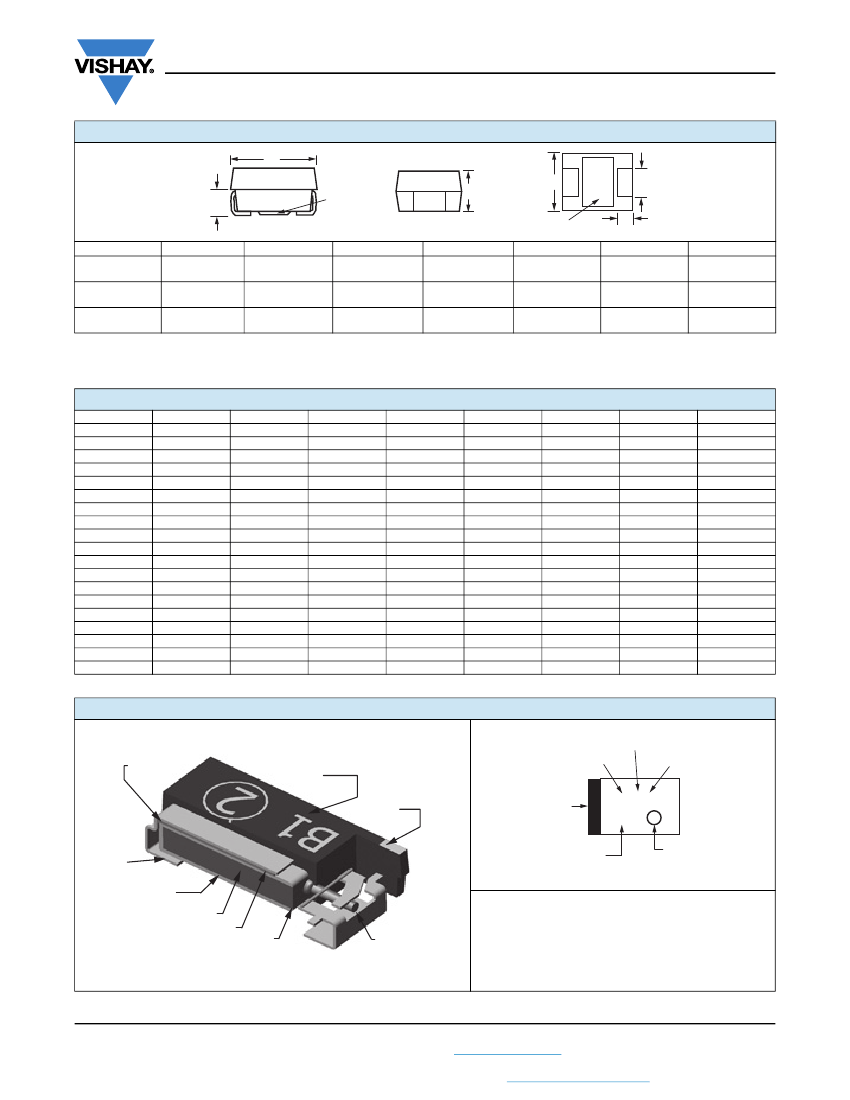

DIMENSIONS
in inches [millimeters]
L
W
T
H
(MIN.)
Glue
Pad
H
Glue
Pad
P
T
W
CASE CODE
C
D
E
EIA SIZE
6032-28
7343-31
7343-43
L
0.236 ± 0.012
[6.0 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
W
0.126 ± 0.012
[3.2 ± 0.30]
0.169 ± 0.012
[4.3 ± 0.30]
0.169 ± 0.012
[4.3 ± 0.30]
H
0.098 ± 0.012
[2.5 ± 0.30]
0.110 ± 0.012
[2.8 ± 0.30]
0.157 ± 0.012
[4.0 ± 0.30]
P
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
T
W
0.087 ± 0.004
[2.2 ± 0.10]
0.094 ± 0.004
[2.4 ± 0.10]
0.094 ± 0.004
[2.4 ± 0.10]
T
H
(MIN.)
0.039
[1.0]
0.039
[1.0]
0.039
[1.0]
Note
• Glue pad (non-conductive, part of molded case) is dedicated for glue attachment (as user option).
RATINGS AND CASE CODES
μF
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
4V
6.3 V
10 V
16 V
20 V
25 V
35 V
50 V
C
C
C
C
C/D
C/D
D
D/E
C
C
D
D
D/E
E
C
C
C
C/D
C/D
D/E
D
D/E
E
C
C
C
C/D
C/D
D/E
D
D/E
E
C
C
C
C/D
C/D
D/E
D
E
E
C
C
C
C/D
D
D/E
E
E
C
C
C
C
C/D
D
D/E
E
C
C
C
C/D
D
D/E
D/E
E
CONSTRUCTION AND MARKING
Indicates
Fused Product
Silver
Adhesive
Epoxy
Encapsulation
Anode
Polarity Bar
Solderable
Cathode
Termination
MnO
2
/Carbon/
Silver
Coating
Sintered
Tantalum
Pellet
Leadframe
Fusible
Wire
Solderable
Anode
Termination
Capacitance
μF
Polarity
Band
Voltage
22E10
XX
2
Vishay
Sprague
Logo
Date Code
C, D, E, Cases
Marking:
Capacitor marking includes an anode (+) polarity band,
capacitance in microfarads and the voltage rating.
The Vishay Sprague
®
trademark is included if space
permits. Capacitors rated at 6.3 V are marked 6 V.
A manufacturing date code is marked on all capacitors.
Capital letter “E” stands for lead (Pb)-free terminations
small cap letter “e” stands for SnPb
Revision: 27-Jun-13
Document Number: 40145
2
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T86
www.vishay.com
Vishay Sprague
STANDARD (S)
MAX. ESR
AT + 25 °C
100 kHz
()
1.40
0.80
0.60
0.60
0.60
0.50
0.50
1.80
1.80
1.40
1.30
0.90
0.80
0.70
0.70
0.70
0.60
0.60
0.50
0.50
1.80
1.80
1.40
1.30
0.90
1.00
0.70
0.70
0.70
0.60
0.60
0.50
0.50
2.00
1.80
1.40
1.30
LOW (L)
MAX. ESR
AT + 25 °C
100 kHz
()
0.40
0.40
0.30
0.40
0.30
0.30
0.25
0.60
0.60
0.60
0.60
0.45
n/a
0.35
0.35
0.30
0.30
0.30
0.30
0.30
n/a
0.60
0.50
0.40
0.40
n/a
0.40
0.35
0.35
0.30
0.30
0.40
0.30
0.60
0.70
n/a
0.70
STANDARD RATINGS
CAPACITANCE
(μF)
CASE
CODE
PART NUMBER
MAX. DC
LEAKAGE
AT + 25 °C
(μA)
MAX. DF
AT + 25 °C
120 Hz
(%)
AVAILABLE
RELIABILITY
LEVEL
4 V
DC
AT + 85 °C; 2.7 V
DC
AT + 125 °C
68
100
150
220
330
330
470
15
22
33
47
47
68
68
100
100
150
220
220
330
10
15
22
33
33
47
47
68
68
100
150
150
220
6.8
10
15
22
C
C
D
D
D
E
E
C
C
C
C
D
C
D
D
E
D
D
E
E
C
C
C
C
D
C
D
D
E
D
D
E
E
C
C
C
C
T86C686(1)004(2)(6)(4)(5)
T86C107(1)004(2)(3)(4)(5)
T86D157(1)004(2)(6)(4)(5)
T86D227(1)004(2)(3)(4)(5)
T86D337(1)004(2)(3)(4)(5)
T86E337(1)004(2)(3)(4)(5)
T86E477(1)004(2)(3)(4)(5)
T86C156(1)6R3(2)(6)(4)(5)
T86C226(1)6R3(2)(6)(4)(5)
T86C336(1)6R3(2)(6)(4)(5)
T86C476(1)6R3(2)(6)(4)(5)
T86D476(1)6R3(2)(6)(4)(5)
T86C686(1)6R3(2)(3)(4)S
T86D686(1)6R3(2)(6)(4)(5)
T86D107(1)6R3(2)(6)(4)(5)
T86E107(1)6R3(2)(6)(4)(5)
T86D157(1)6R3(2)(3)(4)(5)
T86D227(1)6R3(2)(3)(4)(5)
T86E227(1)6R3(2)(3)(4)(5)
T86E337(1)6R3(2)(3)(4)(5)
T86C106(1)010(2)(6)(4)S
T86C156(1)010(2)(6)(4)(5)
T86C226(1)010(2)(6)(4)(5)
T86C336(1)010(2)(6)(4)(5)
T86D336(1)010(2)(6)(4)(5)
T86C476(1)010(2)(3)(4)S
T86D476(1)010(2)(6)(4)(5)
T86D686(1)010(2)(6)(4)(5)
T86E686(1)010(2)(6)(4)(5)
T86D107(1)010(2)(3)(4)(5)
T86D157(1)010(2)(3)(4)(5)
T86E157(1)010(2)(3)(4)(5)
T86E227(1)010(2)(3)(4)(5)
T86C685(1)016(2)(6)(4)(5)
T86C106(1)016(2)(6)(4)(5)
T86C156(1)016(2)(6)(4)S
T86C226(1)016(2)(6)(4)(5)
2.7
4.0
6.0
8.8
13.2
13.2
18.8
0.9
1.1
1.6
2.3
2.3
3.3
3.3
6.0
6.0
9.0
13.2
13.2
19.8
1.0
1.5
2.2
3.3
3.3
4.7
4.7
6.8
6.8
10.0
15.0
15.0
22.0
1.1
1.6
2.4
3.5
8
8
8
8
15
8
16
6
6
6
6
6
6
6
8
8
8
8
8
8
6
6
6
6
6
6
6
6
6
8
8
8
8
6
6
6
6
A, B, C, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
6.3 V
DC
AT + 85 °C; 4 V
DC
AT + 125 °C
10 V
DC
AT + 85 °C; 7 V
DC
AT + 125 °C
16 V
DC
AT + 85 °C; 10 V
DC
AT + 125 °C
Note
• Part number definitions:
(1) Capacitance tolerance codes: K, M
(2) Terminations and packaging codes: C, E, K, H, L, M, U, R, N
(3) Reliability level: A, B, S, Z
(4) Surge current: A, B, S
(5) ESR: L, S
(6) Reliability level: A, B, C, S, Z
Revision: 27-Jun-13
Document Number: 40145
3
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T86
www.vishay.com
Vishay Sprague
STANDARD (S)
MAX. ESR
AT + 25 °C
100 kHz
()
0.90
1.00
0.70
0.70
0.70
0.60
0.60
0.40
2.00
1.90
1.60
1.40
0.90
0.70
0.70
0.70
0.60
0.60
2.80
2.30
1.90
1.60
1.40
1.00
0.80
0.70
0.70
0.60
3.80
2.90
2.00
1.80
1.20
1.00
0.80
0.80
0.70
0.70
0.60
LOW (L)
MAX. ESR
AT + 25 °C
100 kHz
()
0.45
0.50
0.35
0.35
0.35
0.30
0.30
n/a
1.00
0.6
0.8
n/a
0.45
0.35
0.40
0.40
0.30
0.30
n/a
2.10
1.00
0.60
0.60
0.50
0.40
0.35
0.35
0.30
2.60
n/a
n/a
n/a
0.60
0.50
0.50
0.50
0.50
0.50
0.40
STANDARD RATINGS
CAPACITANCE
(μF)
CASE
CODE
PART NUMBER
MAX. DC
LEAKAGE
AT + 25 °C
(μA)
MAX. DF
AT + 25 °C
120 Hz
(%)
AVAILABLE
RELIABILITY
LEVEL
16 V
DC
AT + 85 °C; 10 V
DC
AT + 125 °C
22
33
33
47
47
68
100
150
4.7
6.8
10
15
15
22
33
33
47
68
2.2
3.3
4.7
6.8
10
10
15
22
22
33
1.5
2.2
3.3
4.7
4.7
6.8
10
10
15
15
22
D
C
D
D
E
D
E
E
C
C
C
C
D
D
D
E
E
E
C
C
C
C
C
D
D
D
E
E
C
C
C
C
D
D
D
E
D
E
E
T86D226(1)016(2)(6)(4)(5)
T86C336(1)016(2)(3)(4)(5)
T86D336(1)016(2)(6)(4)(5)
T86D476(1)016(2)(6)(4)(5)
T86E476(1)016(2)(6)(4)(5)
T86D686(1)016(2)(3)(4)(5)
T86E107(1)016(2)(3)(4)(5)
T86E157(1)016(2)(3)(4)S
T86C475(1)020(2)(6)(4)(5)
T86C685(1)020(2)(6)(4)(5)
T86C106(1)020(2)(6)(4)(5)
T86C156(1)020(2)(6)(4)S
T86D156(1)020(2)(6)(4)(5)
T86D226(1)020(2)(6)(4)(5)
T86D336(1)020(2)(6)(4)(5)
T86E336(1)020(2)(6)(4)(5)
T86E476(1)020(2)(3)(4)(5)
T86E686(1)020(2)(3)(4)(5)
T86C225(1)025(2)(6)(4)S
T86C335(1)025(2)(6)(4)(5)
T86C475(1)025(2)(6)(4)(5)
T86C685(1)025(2)(6)(4)(5)
T86C106(1)025(2)(6)(4)(5)
T86D106(1)025(2)(6)(4)(5)
T86D156(1)025(2)(6)(4)(5)
T86D226(1)025(2)(6)(4)(5)
T86E226(1)025(2)(6)(4)(5)
T86E336(1)025(2)(3)(4)(5)
T86C155(1)035(2)(6)(4)(5)
T86C225(1)035(2)(6)(4)S
T86C335(1)035(2)(6)(4)S
T86C475(1)035(2)(6)(4)S
T86D475(1)035(2)(6)(4)(5)
T86D685(1)035(2)(6)(4)(5)
T86D106(1)035(2)(6)(4)(5)
T86E106(1)035(2)(6)(4)(5)
T86D156(1)035(2)(3)(4)(5)
T86E156(1)035(2)(3)(4)(5)
T86E226(1)035(2)(3)(4)(5)
3.5
5.3
5.3
7.5
7.5
10.9
16.0
24.0
0.9
1.4
2.0
3.0
3.0
4.4
6.6
6.6
9.4
13.6
0.6
0.8
1.2
1.7
2.5
2.5
3.8
5.5
5.5
8.3
0.5
0.8
1.2
1.6
1.6
2.4
3.5
3.5
5.3
5.3
7.7
6
6
6
6
6
6
8
10
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, S, Z
A, B, S, Z
A, B, S, Z
20 V
DC
AT + 85 °C; 13 V
DC
AT + 125 °C
25 V
DC
AT + 85 °C; 17 V
DC
AT + 125 °C
35 V
DC
AT + 85 °C; 23 V
DC
AT + 125 °C
Note
• Part number definitions:
(1) Capacitance tolerance codes: K, M
(2) Terminations and packaging codes: C, E, K, H, L, M, U, R, N
(3) Reliability level: A, B, S, Z
(4) Surge current: A, B, S
(5) ESR: L, S
(6) Reliability level: A, B, C, S, Z
Revision: 27-Jun-13
Document Number: 40145
4
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T86
www.vishay.com
Vishay Sprague
STANDARD (S)
MAX. ESR
AT + 25 °C
100 kHz
()
6.70
5.90
4.40
5.00
2.80
2.10
2.40
2.00
1.10
0.90
0.90
LOW (L)
MAX. ESR
AT + 25 °C
100 kHz
()
n/a
n/a
2.70
3.20
n/a
0.90
1.60
n/a
n/a
n/a
n/a
STANDARD RATINGS
CAPACITANCE
(μF)
CASE
CODE
PART NUMBER
MAX. DC
LEAKAGE
AT + 25 °C
(μA)
MAX. DF
AT + 25 °C
120 Hz
(%)
AVAILABLE
RELIABILITY
LEVEL
50 V
DC
AT + 85 °C; 33 V
DC
AT + 125 °C
0.47
0.68
1.0
1.5
2.2
2.2
3.3
3.3
4.7
6.8
6.8
C
C
C
C
C
D
C
D
D
D
E
T86C474(1)050(2)(6)(4)S
T86C684(1)050(2)(6)(4)S
T86C105(1)050(2)(6)(4)(5)
T86C155(1)050(2)(6)(4)(5)
T86C225(1)050(2)(6)(4)S
T86D225(1)050(2)(6)(4)(5)
T86C335(1)050(2)(6)(4)(5)
T86D335(1)050(2)(6)(4)S
T86D475(1)050(2)(6)(4)S
T86D685(1)050(2)(6)(4)S
T86E685(1)050(2)(6)(4)S
0.5
0.5
0.5
0.8
1.1
1.1
1.7
1.7
2.4
3.4
3.4
4
4
4
6
6
6
6
6
6
6
6
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
A, B, C, S, Z
Note
• Part number definitions:
(1) Capacitance tolerance codes: K, M
(2) Terminations and packaging codes: C, E, K, H, L, M, U, R, N
(3) Reliability level: A, B, S, Z
(4) Surge current: A, B, S
(5) ESR: L, S
(6) Reliability level: A, B, C, S, Z
RECOMMENDED VOLTAGE DERATING GUIDELINES
(for temperatures below + 85 °C)
STANDARD CONDITIONS. FOR EXAMPLE: OUTPUT FILTERS
Capacitor Voltage Rating
4.0
6.3
10
16
20
25
35
50
SEVERE CONDITIONS. FOR EXAMPLE: INPUT FILTERS
Capacitor Voltage Rating
4.0
6.3
10
16
20
25
35
50
Operating Voltage
2.5
3.3
5.0
8.0
10
12
15
24
Operating Voltage
2.5
3.6
6.0
10
12
15
24
28
Revision: 27-Jun-13
Document Number: 40145
5
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
