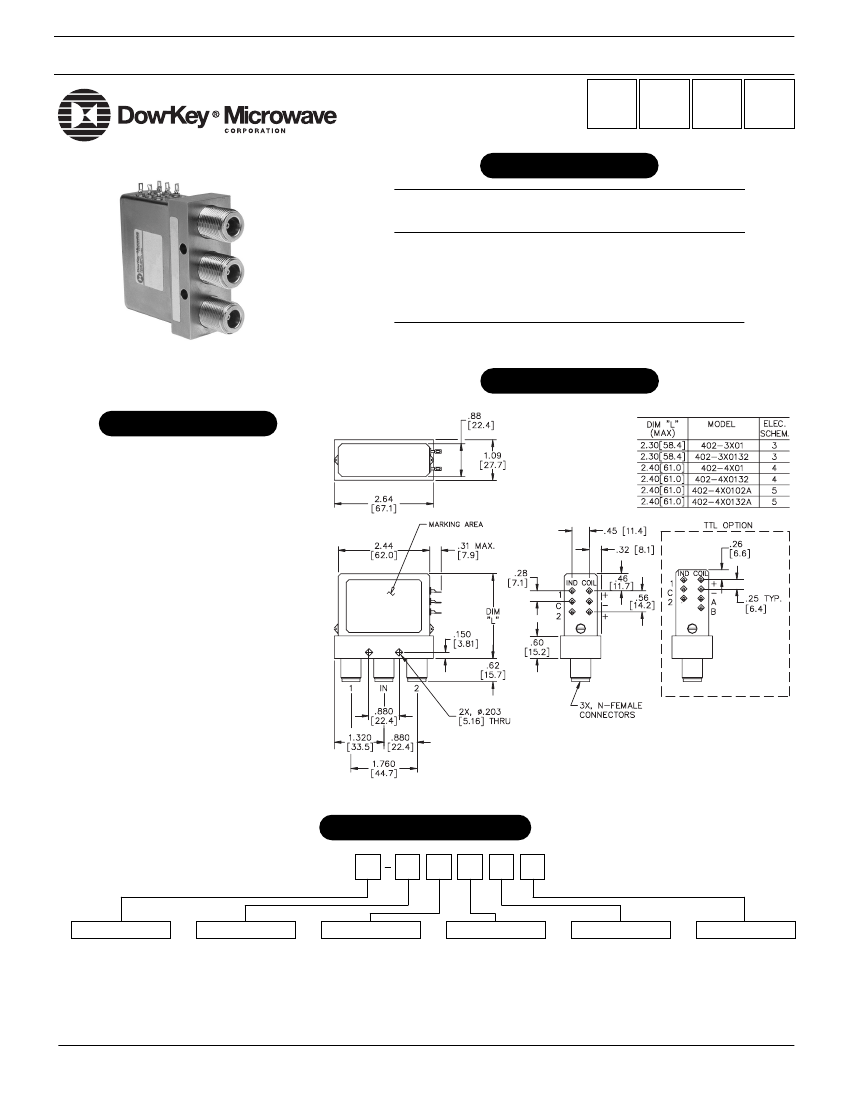

402 Series SPDT Latching
N, BNC, TNC, SC
C M A
Commercial
Military
Avionics
S
Space
RF Characteristics
Frequency
GHz
0-1
1-2
2-4
4-8
8-12.4
VSWR
(max)
1.15
1.20
1.25
1.35
1.50
Isolation
dB (min)
85
80
70
60
60
Ins. Loss
dB (max)
0.15
0.20
0.25
0.40
0.50
402 Series SPDT Latching
with Indicator Option, N
Specifications
Operating Voltage:
(across temperature range)
12 Vdc (11-14 Vdc)
28 Vdc (24-32 Vdc)
Coil Current (max @ nom.Vdc & 20°C):
12 Vdc 320 mA
28 Vdc 135 mA
Switching Time:
20 mS maximum
Operating Temperature:
-25ºC to +65ºC (Standard)
-55ºC to +85ºC (Extended “T” Option)
Mechanical Life, Cycles:
1,000,000 minimum
Vibration, Operating:
10G RMS, 20-2000 Hz
Mechanical Shock, Non-Operating:
50 G, 1/2 Sine, 11 mS
Nominal Weight:
9.0 oz. (260g.)
Note: RF characteristics are for Type N & TNC female connectors, consult
Dow-Key for other connector configurations
Mechanical
402-3X0132 Shown
Part Number Selection
402
J
4
2
01
02
A

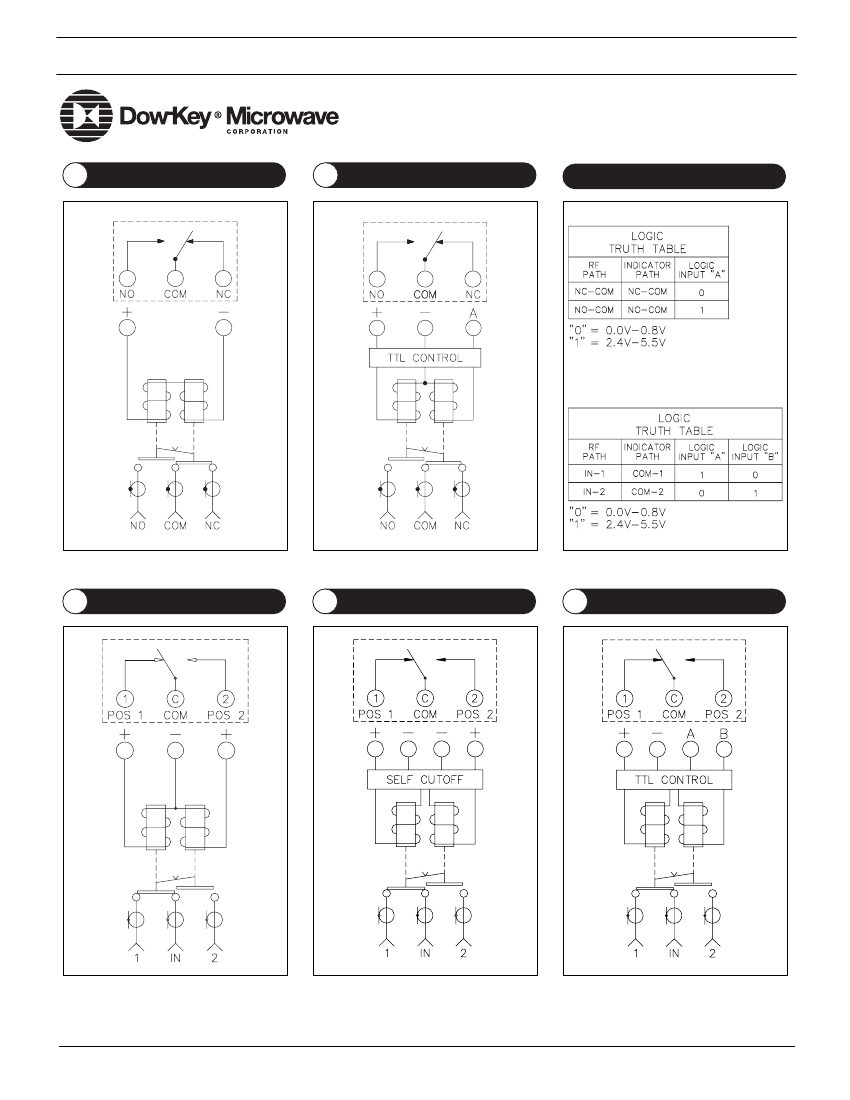

For Electrical Schematic
see page # 1-8
Special Options
Actuator
Coil Voltage
Connectors
Indicators
Circuit Options
A
=
J
=
P
=
R
=
T
=
High Power
'D' Connector
Power Connector
(+) Com
-55°C to + 85°C
3
= Pulse Latching
4
= Latching Self Cutoff
7
= Pulse Latching with
Suppression Diodes
2
= 12Vdc
3
= 28Vdc
4
= 48Vdc
7
= 20Vdc
8
= 24Vdc
9
= 15Vdc
01
= N Female
02
= BNC Female
03
= TNC Female
53
= SC Female*
*1” connector spacing
Consult Dow-Key for dimensions
02
= No Indicators
32
= Indicators
A = TTL High
L = TTL Low
