P160KN-0QD15B1K: Descriptionpot rotary 1K ohm 16mm PC pin; CategoryPassive components; File Size85KB，4 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

P160KN-0QD15B1K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P160KN-0QD15B1K	-	-	View	Buy Now

P160KN-0QD15B1K Overview

pot rotary 1K ohm 16mm PC pin

P160KN-0QD15B1K Parametric

Parameter Name	Attribute value
Datasheets
P160 Series
Product Photos
P160KN-0QD15B1K
Product Training Modules
Panel Potentiomete
Featured Produc
P160 Series Panel Potentiometers
Standard Package	300
Category	Potentiometers, Variable Resistors
Family	Rotary Potentiometers - Line
Packaging	Tray
Resistance (Ohms)	1k
Power (Watts)	0.2W, 1/5W
Tolerance	±20%
Temperature Coefficie	-
Number of Turns	Single
Rotati	300°
Adjustment Type	Side Adjustme
Resistive Material	Conductive Plastic
Termination Style	PC Pi
Actuator Length	0.591" (15.00mm)
Actuator Type	Knurled Shaf
Actuator Diamete	0.236" (6.00mm)
Size - Body	Round - 0.669" Dia x 0.374" L (17.00mm x 9.50mm)
Mounting Type	Through Hole
Dynamic Catalog	P160 Series
Associated Produc	226-4155-ND - KNOB BLK/MATTE.925"DIA 6MM SHAFT226-3155-ND - KNOB CLR/MATTE.925"DIA 6MM SHAFT226-1155-ND - KNOB BLK GLOSS.925"DIA 6MM SHAFT226-2155-ND - KNOB CLR GLOSS.925"DIA 6MM SHAFT226-4154-ND - KNOB BLK/MATTE .75"DIA 6MM SHAFT226-3154-ND - KNOB CLR/MATTE .75"DIA 6MM SHAFT226-1154-ND - KNOB BLK GLOSS .75"DIA 6MM SHAFT226-2154-ND - KNOB CLR GLOSS .75"DIA 6MM SHAFT226-4153-ND - KNOB BLK/MATTE.625"DIA 6MM SHAFT226-3153-ND - KNOB CLR/MATTE.625"DIA 6MM SHAFT226-1153-ND - KNOB BLK GLOSS.625"DIA 6MM SHAFT226-2153-ND - KNOB CLR GLOSS.625"DIA 6MM SHAFT226-4152-ND - KNOB BLK/MATTE .50"DIA 6MM SHAFT226-3152-ND - KNOB CLR/MATTE .50"DIA 6MM SHAFT226-1152-ND - KNOB BLK GLOSS .50"DIA 6MM SHAFT226-2152-ND - KNOB CLR GLOSS .50"DIA 6MM SHAFT226-4143-ND - KNOB BLK/MATTE.925"DIA 6MM SHAFT226-3143-ND - KNOB CLR/MATTE.925"DIA 6MM SHAFT226-1143-ND - KNOB BLK GLOSS.925"DIA 6MM SHAFT226-2143-ND - KNOB CLR GLOSS.925"DIA 6MM SHAFT226-4142-ND - KNOB BLK/MATTE .75"DIA 6MM SHAFT226-3142-ND - KNOB CLR/MATTE .75"DIA 6MM SHAFT226-1142-ND - KNOB BLK GLOSS .75"DIA 6MM SHAFT226-2142-ND - KNOB CLR GLOSS .75"DIA 6MM SHAFT226-4141-ND - KNOB BLK/MATTE.625"DIA 6MM SHAFT226-3141-ND - KNOB CLR/MATTE.625"DIA 6MM SHAFT226-1141-ND - KNOB BLK GLOSS.625"DIA 6MM SHAFT226-2141-ND -

Preview

Download Datasheet

View All

Model P160

16mm Rotary Potentiometer

Conductive Plastic Element

100,000 Cycle Life

Metal shaft / Bushing

Multi – Ganged available

RoHS Compliant

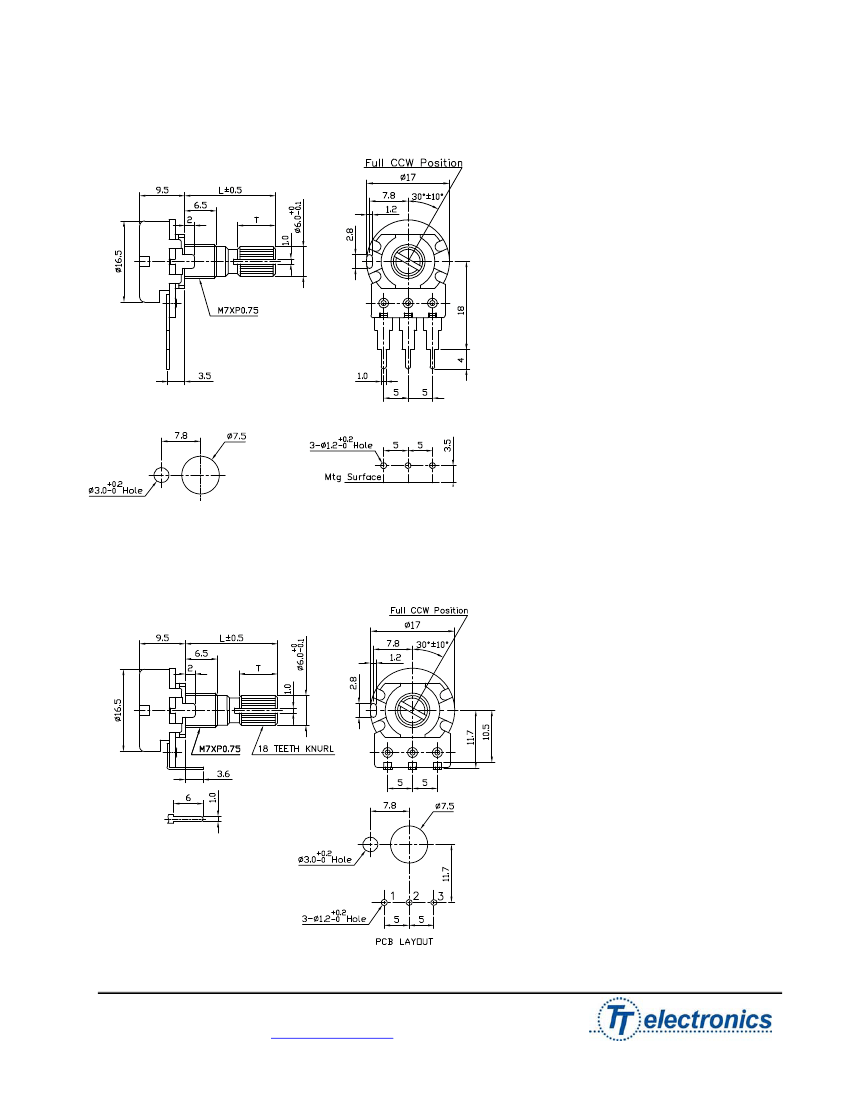

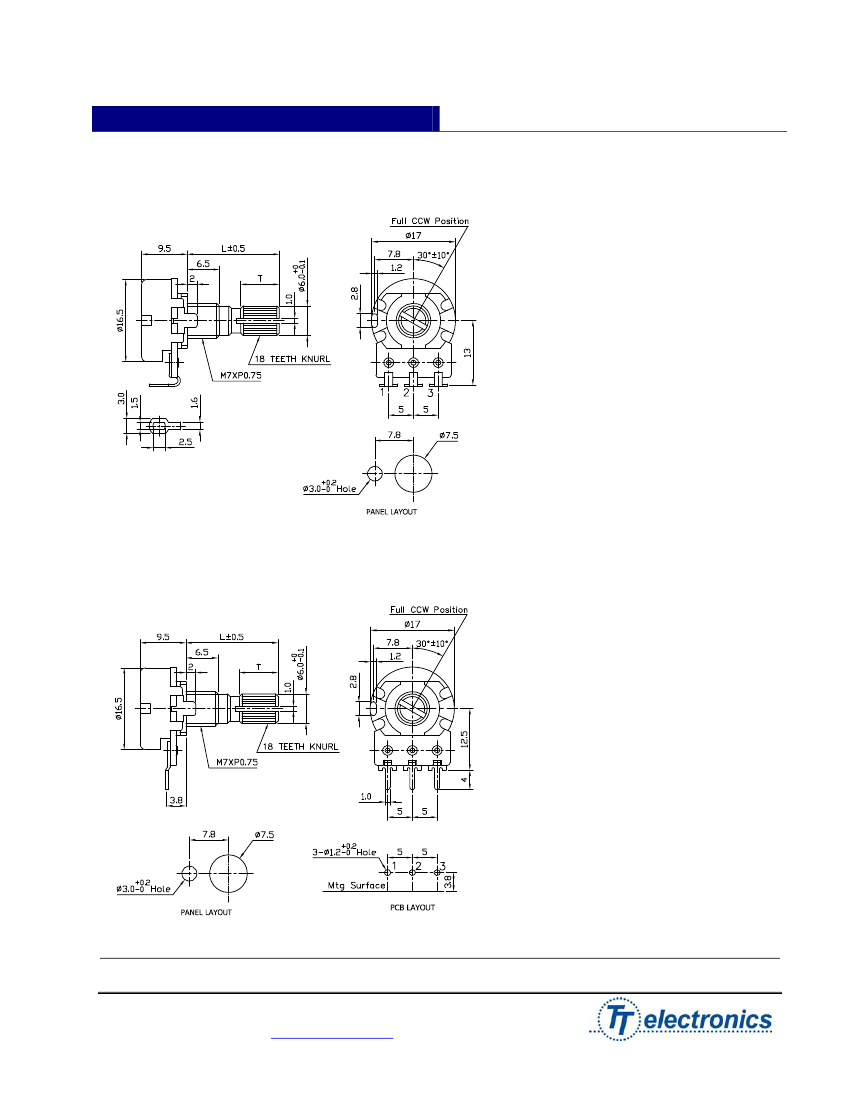

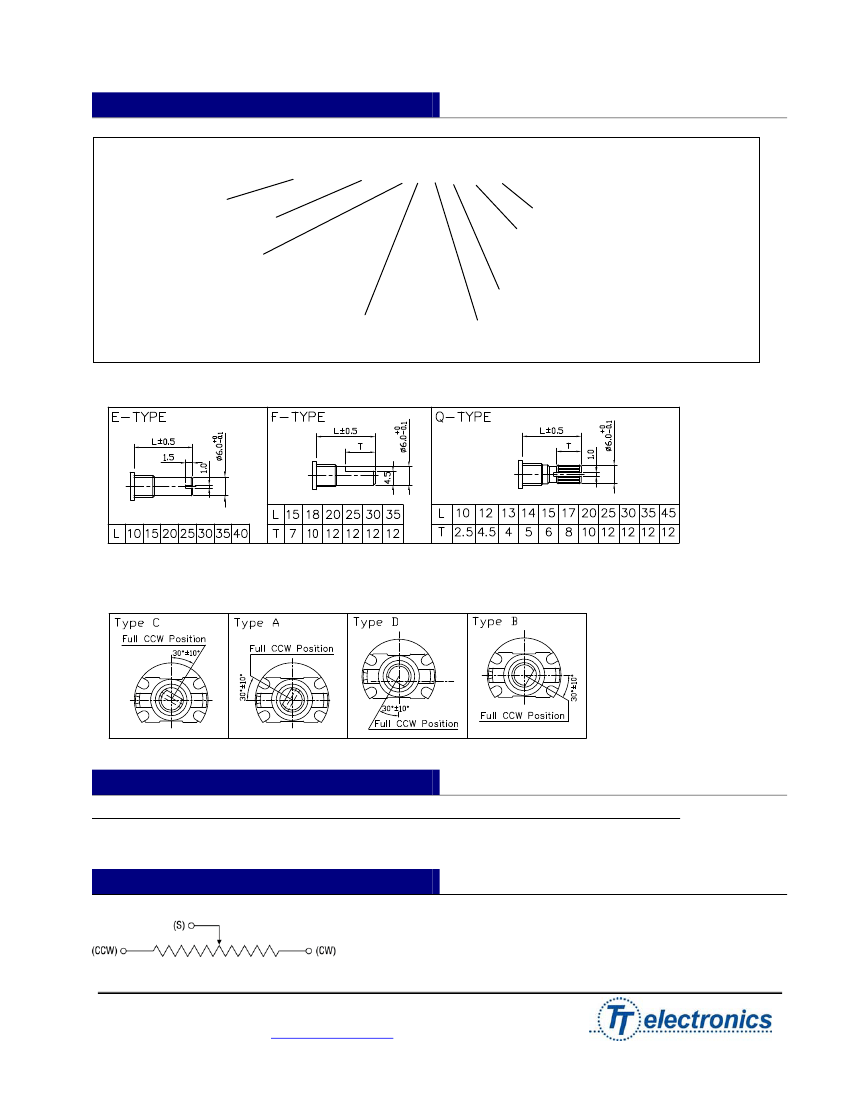

MODEL STYLES

Side Adjust , Solder Lugs

Side Adjust , PC pins

Side Adjust , PC Pins, Long pins

Rear Adjust, PC pins

P160KNP

P160KN

P160KN2

P160KNPD

ELECTRICAL

Resistance Range, Ohms

Standard Resistance Tolerance

Residual Resistance

Power rating Input Voltage, maximum

Power Rated, Watts

Dielectric Strength

Insulation Resistance, Minimum

Sliding Noise

Actual Electrical Travel, Nominal

500-1M

20%

20 ohms max.

200 Vac max.

0.2W- B taper, 0.1W-others

500Vac, I minute

100M ohms at 250Vdc

100mV max.

260°

MECHANICAL

Total Mechanical Travel

Static Stop Strength

Rotational Torque

300°± 10°

90 oz-in

0.5 to 1.25 oz-in

ENVIRONMENTAL

Operating Temperature Range

Rotational Life

-20°C to +70°C

100,000 cycles

Specifications subject to change without notice.

BI Technologies Corporation

4200 Bonita Place, Fullerton, CA 92835 USA

Phone: 714 447 2345

July 18, 2008

Website:

www.bitechnologies.com

page 1 of 4
