8
VICOR CONFIDENTIAL
THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR
HEREWITH IS NOT TO BE REPRODUCED, USED OR
DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT
THE PERMISSION OF VICOR CORP.
7
6
5
4
3
2
1
REV.
1
2
3
<>
#30 DRILL THRU
( .1285 )
(6) PL.
4
DESCRIPTION
RELEASED PER ECO REQUEST E070416 REJH
REVISED PER ECO REQUEST E091085
REDRAWN PER E100871
REVISED PER E120702
AR
DCS
ZMB
DATE
03/05/07
07/14/09
6/11/10
07/31/12
APPROVED
EF
REJH
KUK
REJH
F
F
<>
.16 TYP
(12) PL.
SEE NOTE 5
SEE NOTE 6
.40
.010
MATL
TO BE
REMOVED
E
E
2.220
2.000
<>
D
D
.11
1.800
<>
.50
3.600
<>
4.60
.190
-A-
.100
<>
.005
C
C
.410
B
B
A
NOTES:
1.
MATERIAL: EXTRUSION SEE SHEET 2 OF 2.
2.
REMOVE ALL BURRS AND SHARP EDGES.
<> 3.
CLEAR FINISH, RoHS COMPLIANT PER CST-0001, LATEST
REVISION PER A.) CHROMIUM FREE, OR B.) TRIVALENT CHROMIUM
IN ACCORDANCE WITH MIL-DTL-5541, TYPE II, CLASS 1A OR 3.
SEE CST-0003 FOR TYPES OF AVAILABLE FINISHES.
4.
"<>" DENOTES CRITICAL CHARACTERISTIC FOR LOT INSPECTION.'
5.
DIMENSIONS APPLIES AT SURFACE -A- (12) PL.
6.
MACHINED SURFACE TO BE .010 MAX BELOW SURFACE -A- (6) PL.
7.
DIMENSIONS ARE INCHES ONLY.
DRAWN BY
D.P. KELLY
DATE
10/05
VICOR
SWD
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE : INCH / [MM]
TOLERANCES ARE:
DECIMALS
ANGLES
X.XX [X.X] = ±0.01 [0.25]
±1°
X.XXX [X.XX] = ±0.005 [0.127]
THIRD ANGLE PROJECTION

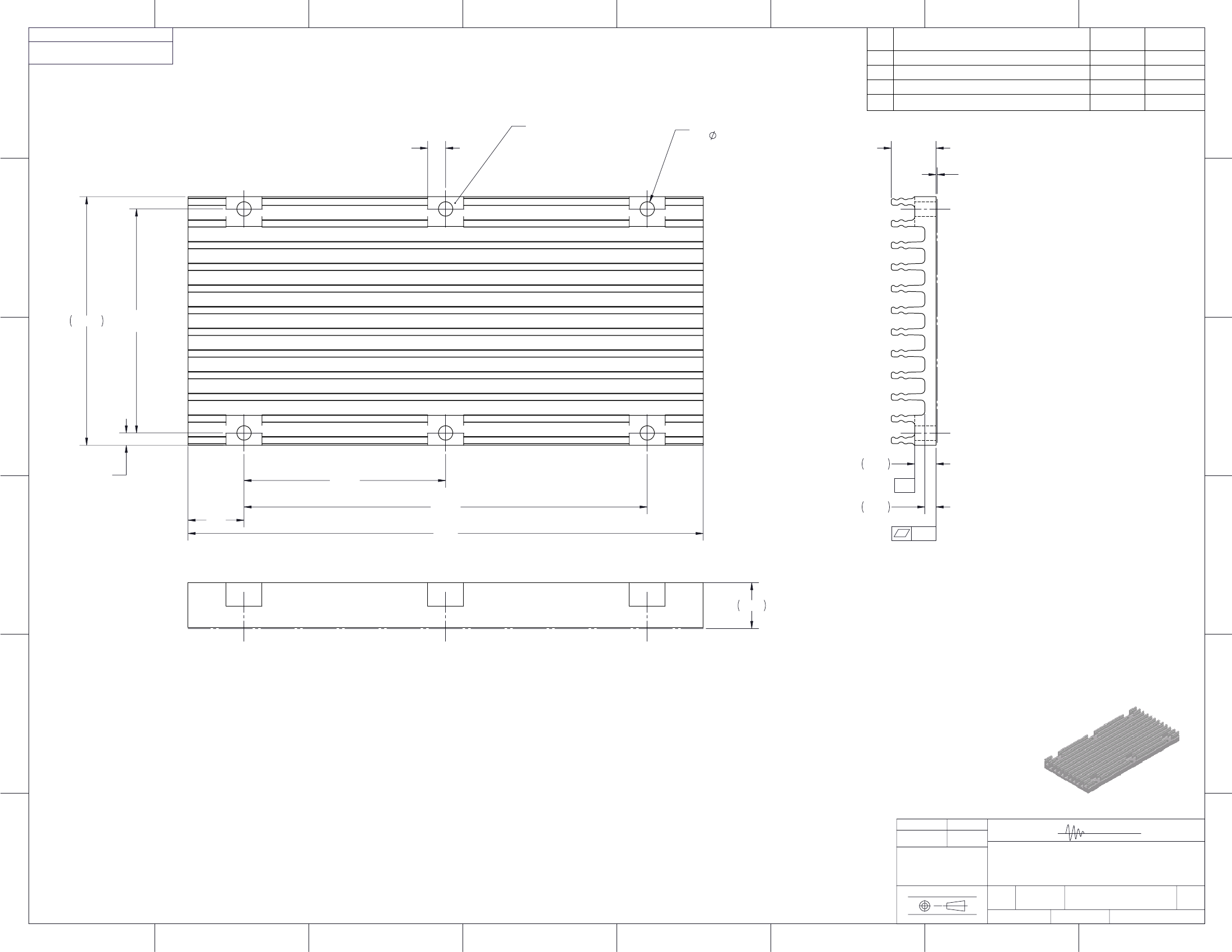

HS CFG 'A' LONG .4H LOW FLOW,
THRU HOLE
SIZE
A
C
2
CAGE CODE
DWG NO
REV
67131
30718
SHEET 1 OF 2
4
1
DO NOT SCALE DRAWING
SCALE 1:1
8
7
6
5
4
3
8
VICOR CONFIDENTIAL
THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR
HEREWITH IS NOT TO BE REPRODUCED, USED OR
DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT
THE PERMISSION OF VICOR CORP.
7
6
5
4
3
2
REVISIONS
REV
DESCRIPTION
SEE SHEET 1
DATE
1
APPROVED
F
F
E
SEE DETAIL A
A
R.035
(24) PL.
E
R.035
.410
.200
.235
.110
* .133
(9) PL.
* .138
(2) PL.
* .058
(2) PL.
* .269
+.020
2.220
- .000
.017
(2) PL.
3.00°
1.5 EACH
SIDE OF VERT
D
1.756
* .060
(8) PL.
R.010
(2) PL.
D
R.018
(2) PL.
.023
.036
.031
.040
R.030
(8) PL.
.080
C
.252
C
* .030
* .060
B
PROFILE COMMON
FOR
NOTES:
1.
MATL: ALUMINUM 6063-T5
2.
* DENOTES DIMENSION TO THEORETICAL SHARP CORNER.
3.
ALL DIMENSIONS ARE CRITICAL CHARACTERISTICS
4.
RoHS COMPLIANT PER CST-0001 LATEST REVISION.
5.
DIMENSIONS ARE INCHES ONLY
30195
30718
32188
30482
DETAIL A
SCALE 8 : 1
B
DRAWN BY
A. RAGIPANI
DATE
07/14/09
VICOR
SWD
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE : INCH / [MM]
A
TOLERANCES ARE:
DECIMALS
ANGLES
X.XX [X.X] = ±0.01 [0.25]
±1°
X.XXX [X.XX] = ±0.005 [0.127]
THIRD ANGLE PROJECTION

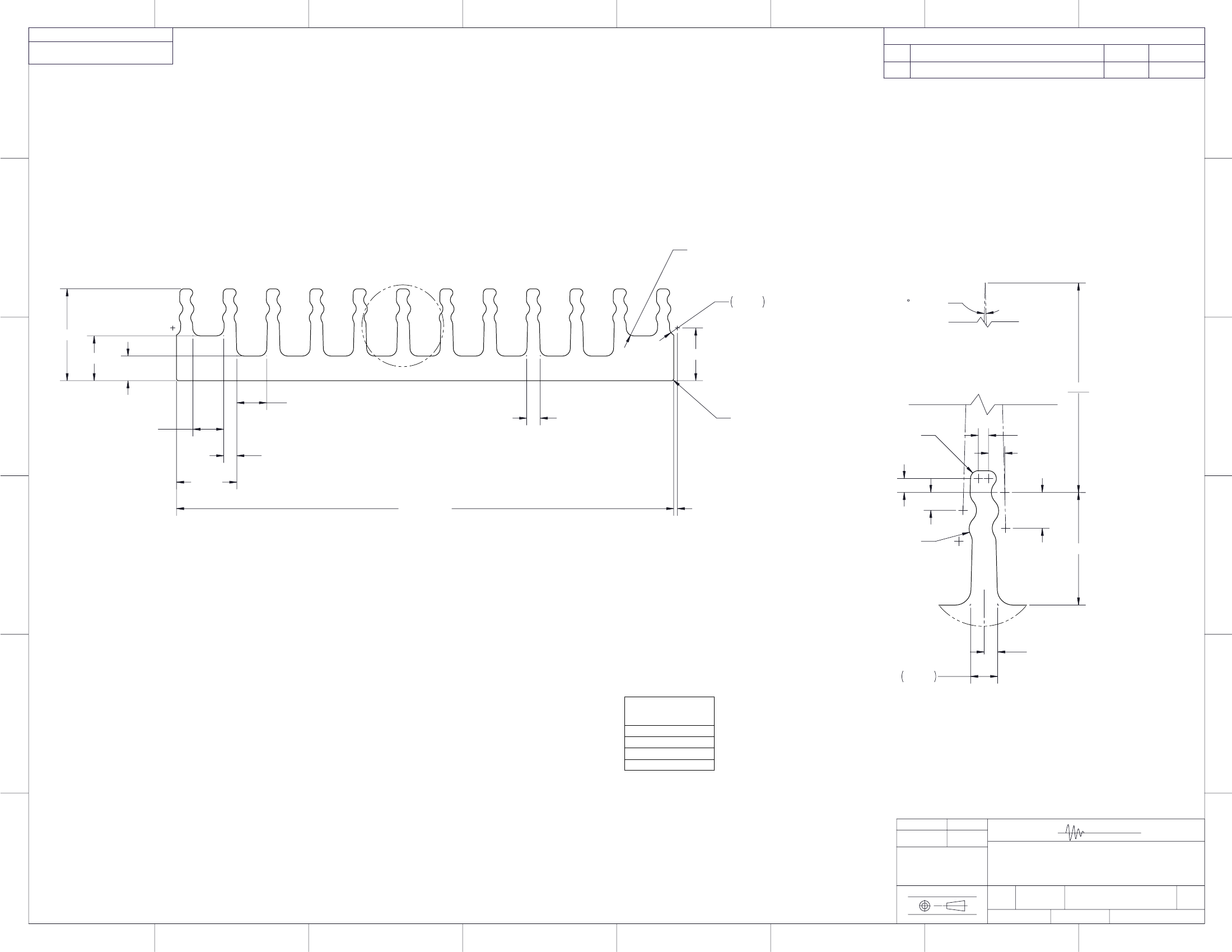

HS CFG "A" LONG .4H LOW
FLOW, THRU HOLE, EXTRUSION
SIZE
CAGE CODE
DWG NO
REV
A
C
DO NOT SCALE DRAWING
67131
30718
SHEET 2 OF 2
4
1
SCALE 1:1
8
7
6
5
4
3
2
