8
VICOR CONFIDENTIAL
THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR
HEREWITH IS NOT TO BE REPRODUCED, USED OR
DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT
THE PERMISSION OF VICOR CORP.
7
6
5
4
3
2
REVISIONS
REV
1
2
3
DESCRIPTION
RELEASED PER E050350
REVISED PER E091977a
REDRAWN PER E100902
DATE
1
APPROVED
EF
MM
KUK
F
LEK
11/16/05
GCK
11/2/09
DCS
7/14/10
F
.49
E
.650
E
2.28
1.300
#4-40 UNC-2B COLD FORM TAP
.140 DP MIN. FROM FAR SIDE
DO NOT BREAK THRU
(6) PL.
D
D
.910
.100±.010
1.270
1.470
C
C
.90
.005
.190
B
.100
.010
MATL TO BE
REMOVED
B
DRAWN
DATE
06/29/05
A
NOTES:
1.
MATERIAL: EXTRUSION SEE SHEET 2 OF 2.
2.
REMOVE ALL BURRS AND SHARP EDGES.
3.
CLEAR FINISH, RoHS COMPLIANT, CHROMIUM FREE PER CST-0001 LATEST REVISION.
4.
" " DENOTES CRITICAL CHARACTERISTIC FOR LOT INSPECTION.'
5.
DIMENSIONS ARE INCHES ONLY.
P.E.IENI
MATERIAL
SEE NOTES
VICOR
SWD
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE INCH [MM]
TOLERANCES ARE:
DECIMALS
ANGLES
X.XX [X.X] = ±0.01 [0.25]
±1°
X.XXX [X.XX] = ±0.005 [0.127]
THIRD ANGLE PROJECTION

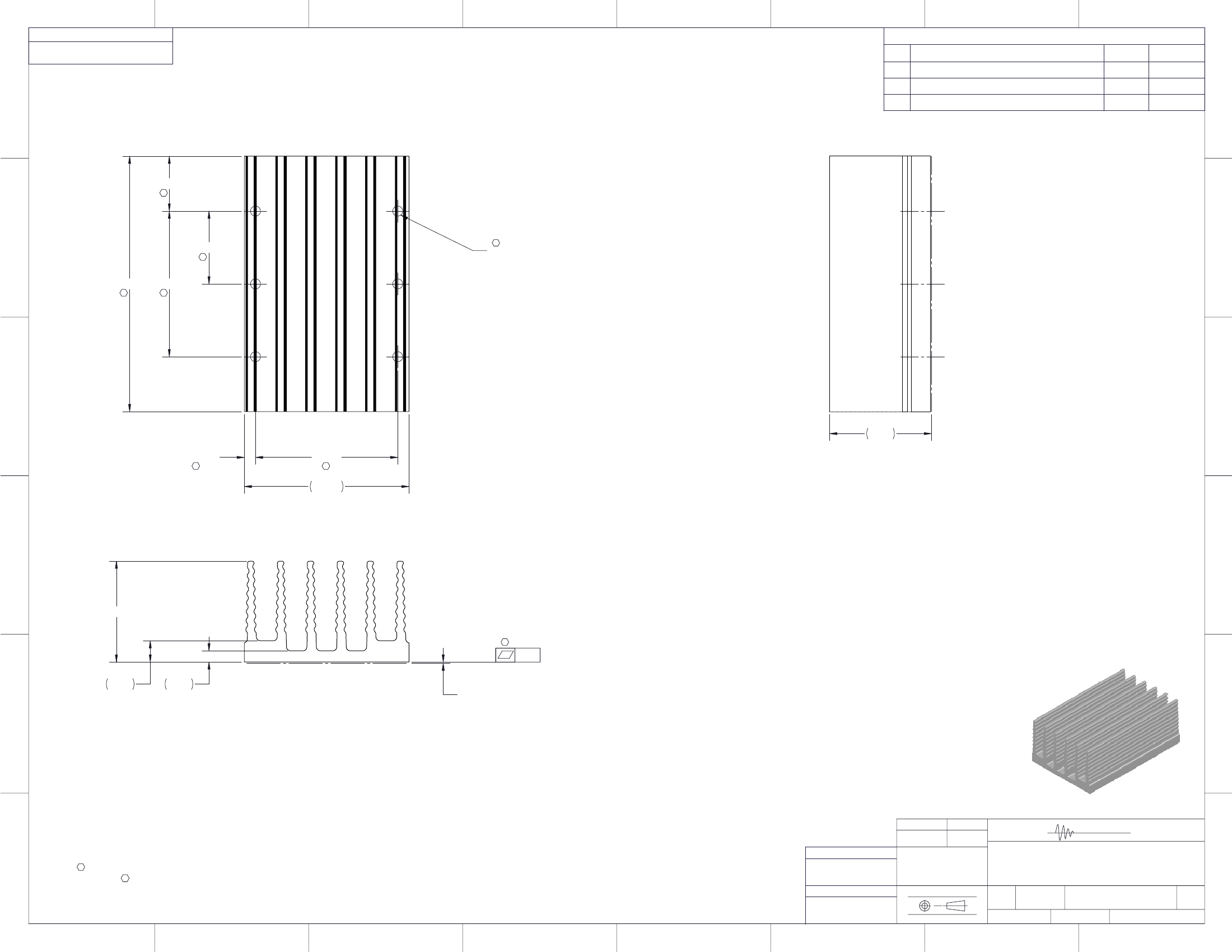

HS CFG "C" LONG, .9H,
LOW FLOW, THREADED
SIZE
CAGE CODE
DWG NO
REV
A
FINISH
SEE NOTES
C
DO NOT SCALE DRAWING
67131
30190
SHEET 1 OF 2
3
1
SCALE 2 : 1
8
7
6
5
4
3
2
8
VICOR CONFIDENTIAL
THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR
HEREWITH IS NOT TO BE REPRODUCED, USED OR
DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT
THE PERMISSION OF VICOR CORP.
7
6
5
4
3
2
REVISIONS
REV
DESCRIPTION
SEE SHEET 1 OF 2
DATE
1
APPROVED
F
F
3°
1.5 EACH
SIDE OF VERT
SEE DETAIL A
E
1.756
E
R.018
(2) PL.
.023
.036
.031
.910
D
R.035
.040
.080
(14) PL.
D
.200
.110
.215
R.030
(33) PL.
R.035
(12) PL.
C
* .084
(2) PL.
* .185
(2) PL.
+.020
1.470
- .000
* .087
(2) PL.
* .180
(3) PL.
R.010
(2) PL.
.752
C
.007
(2) PL.

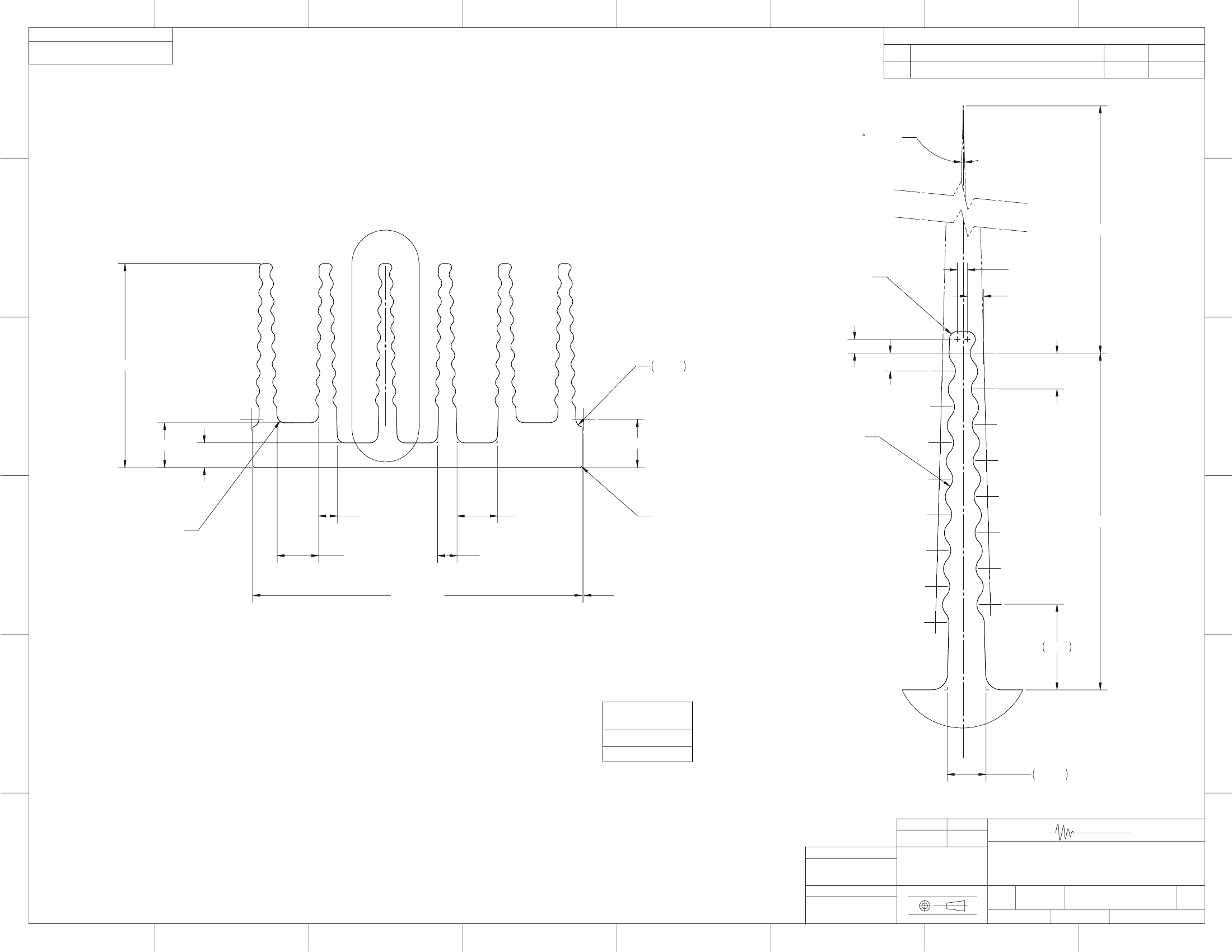

DETAIL A
SCALE 8 : 1
C
L
B
.191
PROFILE COMMON
FOR
30183
30190
* .087
NOTES:
1.
MATL: ALUMINUM 6063-T5
2.
*DENOTES DIMENSION TO THEORETICAL SHARP CORNER.
3.
ALL DIMENSIONS ARE CRITICAL CHARACTERISTICS.
4.
RoHS COMPLIANT PER CST-0001 LATEST REVISION.
5.
WORKMANSHIP STANDARDS WS-0004, WS-0006 AND WS-0007 APPLY TO THIS PART.
6.
DIMENSIONS ARE INCHES ONLY.
B
DRAWN
G. C. KEAY
MATERIAL
SEE NOTES
DATE
11/2/09
VICOR
SWD
A
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE INCH [MM]
TOLERANCES ARE:
DECIMALS
ANGLES
X.XX [X.X] = ±0.01 [0.25]
±1°
X.XXX [X.XX] = ±0.005 [0.127]
THIRD ANGLE PROJECTION
HS CFG "C" LONG, .9H, LOW
FLOW, THREADED, EXTRUSION
SIZE
CAGE CODE
DWG NO
REV
A
FINISH
SEE NOTES
C
DO NOT SCALE DRAWING
67131
30190
SHEET 2 OF 2
3
1
SCALE 4 : 1
8
7
6
5
4
3
2
