ISL2403A: DescriptionDC/DC converter 3.3V 1.5W; CategoryPower/power management The power supply circuit; File Size203KB，1 Pages; ManufacturerXP Power; Websitehttps://www.xppower.com/; Environmental Compliance

Download Datasheet Parametric View All

ISL2403A Overview

DC/DC converter 3.3V 1.5W

ISL2403A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	XP Power
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	9 V
Nominal input voltage	24 V
JESD-30 code	R-XDMA-G6
length	23.86 mm
Number of functions	1
Output times	1
Number of terminals	6
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Maximum output voltage	3.399 V
Minimum output voltage	3.201 V
Nominal output voltage	3.3 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum seat height	8.25 mm
surface mount	YES
technology	HYBRID
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	1.5 W
Fine-tuning/adjustable output	NO
width	13.7 mm

Preview

Download Datasheet

View All

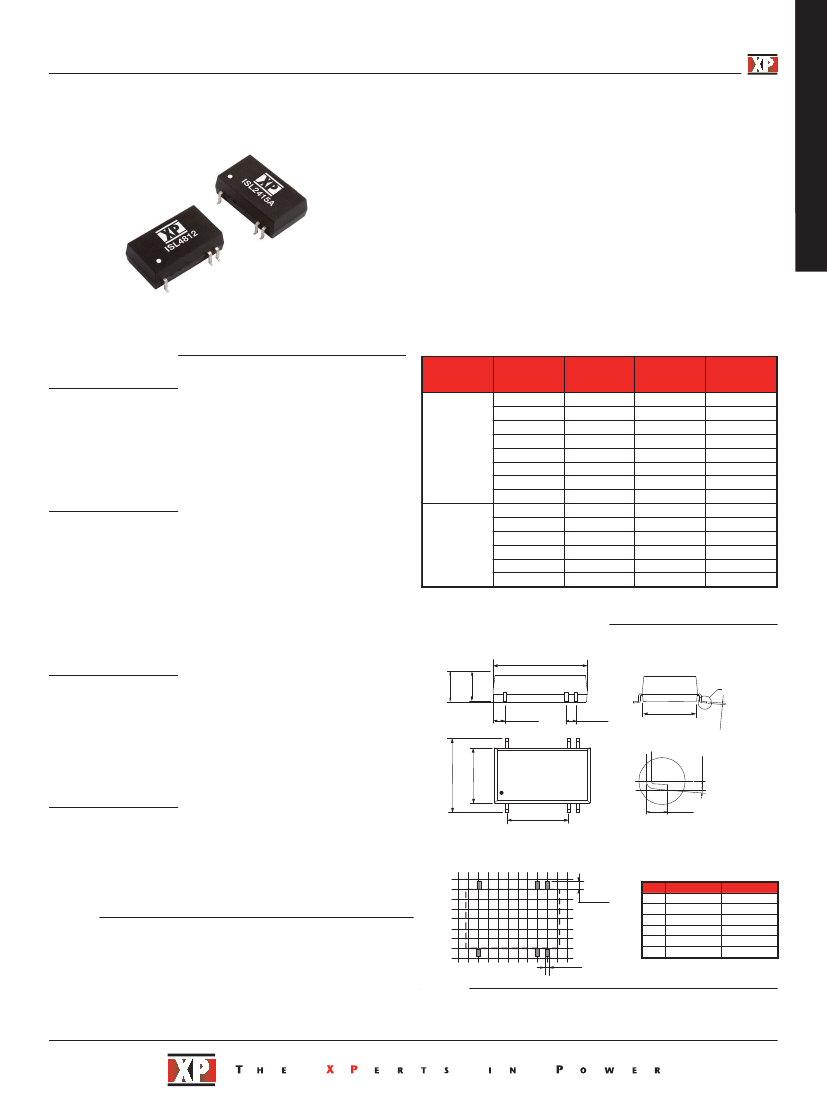

1.5 Watts

ISL Series

•

DC DC

xppower.com

Single & Dual Regulated Outputs

4:1 Input Range

SMD Package

Industry Standard Pinout

1500 VDC Isolation

Short Circuit Protection

3 Year Warranty

Specification

Input

Input Voltage Range

Input Reverse Voltage

Protection

Input Surge

• 24 V (9-36 VDC)

48 V (18-72 VDC)

• None

• 24 V: 40 VDC for 100 ms

48 V: 80 VDC for 100 ms

24 VDC

Input

Voltage

Output

Voltage

3.3 V

5.0 V

9.0 V

12.0 V

15.0 V

±5.0 V

±12.0 V

±15.0 V

5.0 V

12.0 V

48 VDC

15.0 V

±5.0 V

±12.0 V

±15.0 V

Output

Current

455 mA

300 mA

167 mA

125 mA

100 mA

±150 mA

±63 mA

±50 mA

300 mA

125 mA

100 mA

±150 mA

±63 mA

±50 mA

Efficiency

(typ)

72%

76%

78%

79%

80%

74%

78%

80%

76%

79%

80%

74%

78%

80%

Model

Number

ISL2403A

ISL2405A

ISL2409A

ISL2412A

ISL2415A

ISL2405

ISL2412

ISL2415

ISL4805A

ISL4812A

ISL4815A

ISL4805

ISL4812

ISL4815

Output

Output Voltage

•

Minimum Load

•

Line Regulation

•

Load Regulation

•

Setpoint Accuracy

•

Ripple & Noise

•

Temperature Coefficient

•

Short Circuit Protection

•

See table

10%

(1)

±0.2% typical

±0.5% typical

±1%/±3% typical, positive/negative output

100 mV pk-pk 20 MHz bandwidth

0.03%/°C

Continuous, automatic recovery

Mechanical Details

0.94 (23.86)

General

Efficiency

Isolation Voltage

Isolation Resistance

Isolation Capacitance

Switching Frequency

MTBF

•

See table

1500 VDC

1000 pF typical

550 kHz typical at nominal input, full load

>1 MHrs to MIL-HDBK-217F at 25 º C, GB

0.31

(8.00)

0.29

(7.50)

Side View

0.51 (13.10)

0.12

(3.04)

0.10

(2.54)

0.713 (18.10)

0.54 (13.70)

Top View

Environmental

Operating Temperature

• -40 °C to +85 °C, derate from 100% load

at 70 °C to 0% load at 100 °C

Storage Temperature

• -55 °C to +125 °C

Case Temperature

• 100 °C max

Cooling

• Convection-cooled

Lead Temperature

• 240 º C, 0.06 in (1.5 mm) from case, 10 s

Notes

Operation at no load will not damage unit but it may not meet all specifications.

0.60 (15.24)

0.05

(1.35)

Recommended footprint

Top view grid: 0.1 x 0.1 in (2.54 x 2.54 mm)

Single

-Vin

N.C.

+Vo

+Vin

Dual

-Vin

N.C.

+Vo

-Vo

+Vin

10 9

0.079

(2.00)

7 8

0.039

(1.00)

N.C. Not connected

Notes

1. All dimensions in inches (mm)

2. Tolerance: ±0.010 (±0.25)

3. Weight: 0.011 lbs (5.2 g)

4. Pin tolerance: ±0.004 (±0.10 mm)

0.02

(0.50)

5 º max

10 9

0.01

(0.25)

15-May-14
