P110KH-0Y20BR10K datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> P110KH-0Y20BR10K

P110KH-0Y20BR10K: Descriptionpot rotary 10k ohm 11mm; CategoryPassive components The resistor; File Size84KB，5 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

P110KH-0Y20BR10K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P110KH-0Y20BR10K	-	-	View	Buy Now

P110KH-0Y20BR10K Overview

pot rotary 10k ohm 11mm

P110KH-0Y20BR10K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TT Electronics plc
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
Actuator direction	VERTICAL
Actuator type	SHAFT
gang number	1
Manufacturer's serial number	P110
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
number of turns	1
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package shape	RECTANGULAR PACKAGE
Rated power dissipation(P)	0.05 W
Rated temperature	70 °C
resistance	10000 Ω
resistance law	LINEAR
Resistor type	POTENTIOMETER
surface mount	NO
technology	CONDUCTIVE PLASTIC
Terminal shape	FLAT
Tolerance	20%

Preview

Download Datasheet

View All

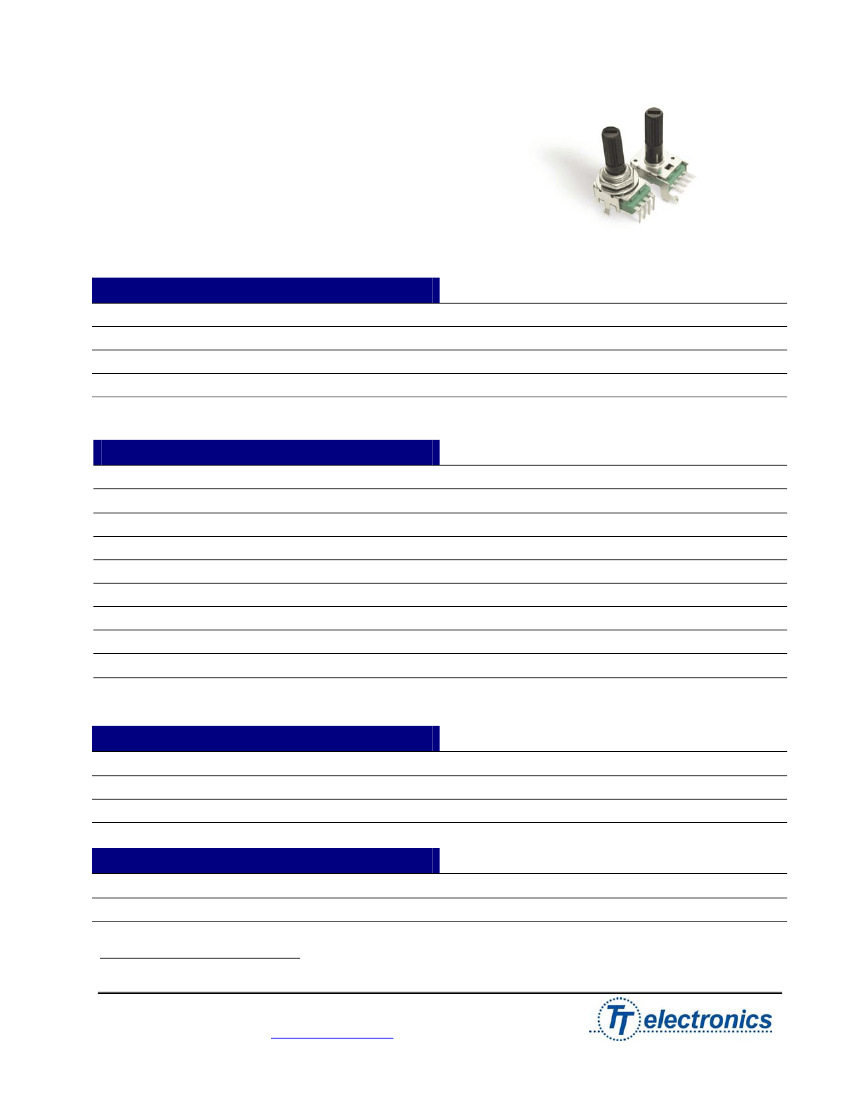

Model P110

11mm Rotary Potentiometer

Insulated Shaft

Conductive Plastic Element

With / Without Bushing

RoHS Compliant

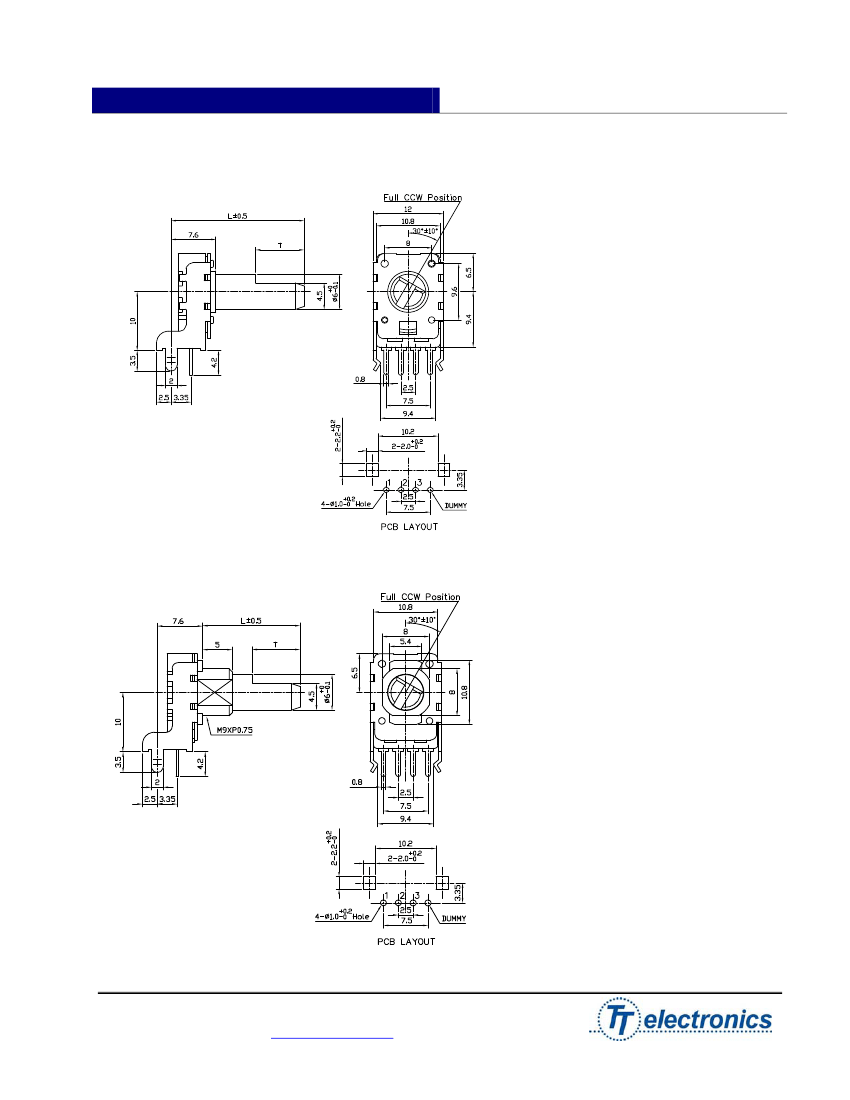

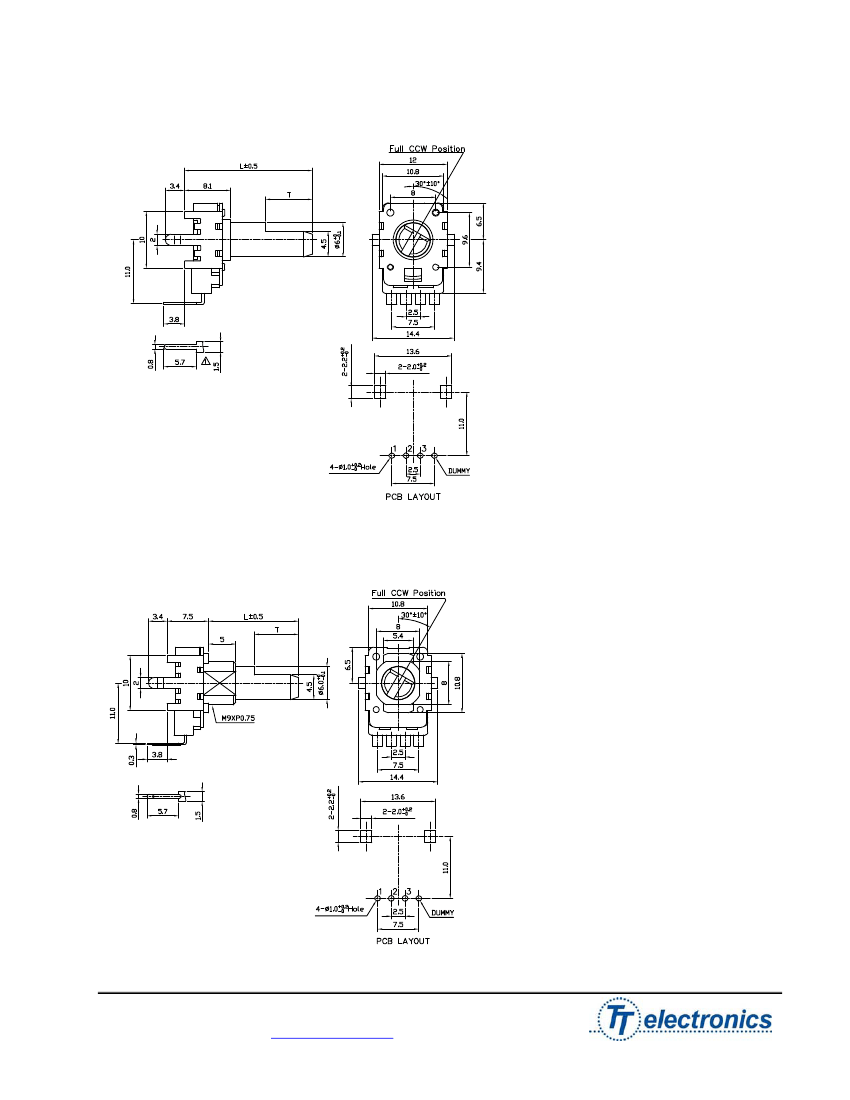

MODEL STYLES

Side Adjust , PCB pins

Side Adjust , PCB pins, with Bushing

Top Adjust, PCB pins

Top Adjust, PCB pins, with Bushing

P110KV

P110KV1

P110KH

P110KH1

ELECTRICAL

Resistance Range, Ohms

Standard Resistance Tolerance

Residual Resistance

Input Voltage, maximum

Power rating, Watts

Dielectric Strength

Insulation Resistance, Minimum

Sliding Noise

Actual Electrical Travel, Nominal

500-1M

20%

20 ohms max.

50 Vac max.

0.05

500Vac, I minute

100M ohms at 500Vdc

100mV max.

260°

MECHANICAL

Total Mechanical Travel

Static Stop Strength

Rotational Torque

300°± 10°

40 oz-in

0.5 to 1.25 oz-in

ENVIRONMENTAL

Operating Temperature Range

Rotational Life

-20°C to +70°C

30,000 cycles

Specifications subject to change without notice.

BI Technologies Corporation

4200 Bonita Place, Fullerton, CA 92835 USA

Phone: 714 447 2345

July 18, 2008

Website:

www.bitechnologies.com

page 1 of 5

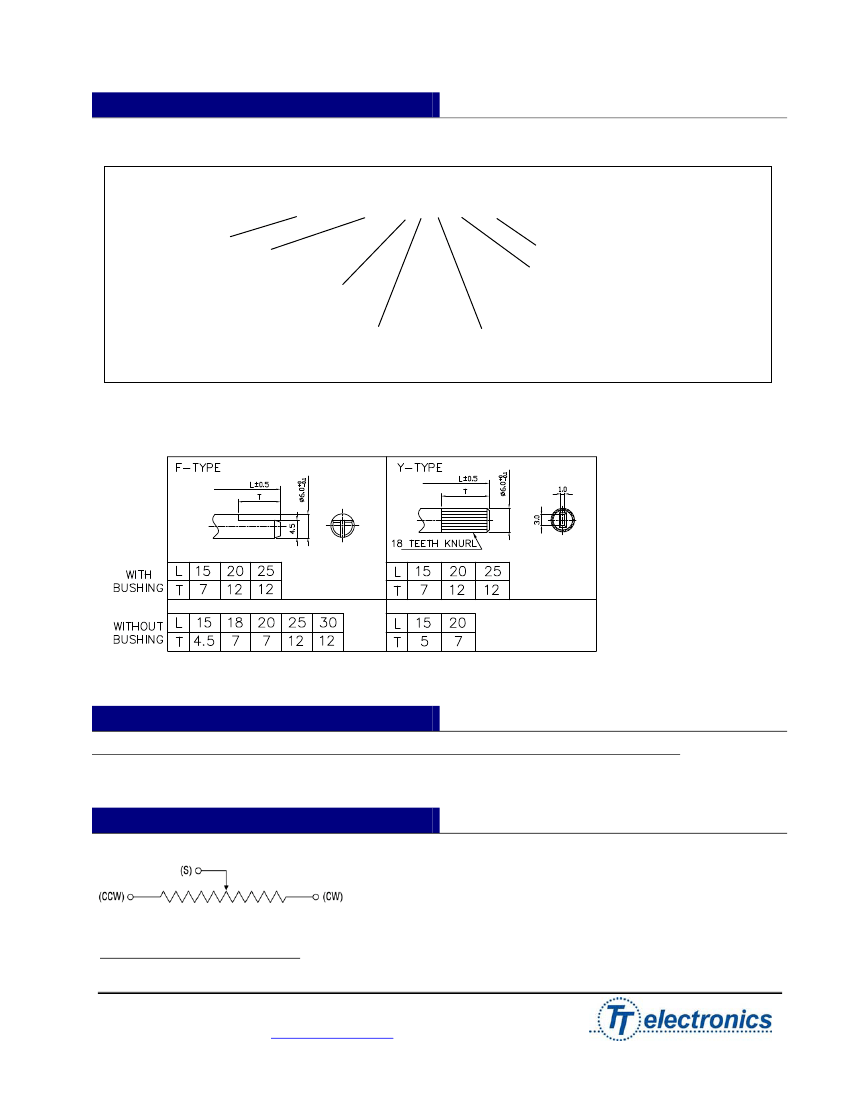

BI technologies

P110KH-0Y20BR10K Related Products

	P110KH-0Y20BR10K	P110KH1-0F25BR10K	P110KV1-1F15BR100K
Description	pot rotary 10k ohm 11mm	pot rotary 10k ohm 11mm bushing	pot rotary 100k ohm 11mm bushing
Tolerance	20%	±20%	-
