FFPF30UP20DP Ultrafast Recovery Power Rectifier
March 2006
FFPF30UP20DP
Ultrafast Recovery Power Rectifier
Features
• Ultrafast with Soft Recovery : < 45ns (@I
F
= 15A)
• High Reverse Voltage : V
RRM
= 200V
• Avalanche Energy Rated
• Planar Construction
Applications
• Output Rectifiers
• Switching Mode Power Supply
• Free-wheeling diode for motor application
• Power switching circuits
1
2
3
1
TO-220F
1. Cathode 2. Anode 3. Cathode
1.Anode 2.Cathode 3.Anode
Absolute Maximum Ratings
(per diode) T
Symbol
V
RRM
V
RWM
V
R
I
F(AV)
I
FSM
T
J,
T
STG
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Non-repetitive Peak Surge Current
60Hz Single Half-Sine Wave
C
= 25°C unless otherwise noted
Parameter
Value
200
200
200
@ T
C
= 105°C
15
150
- 65 to +150
Units
V
V
V
A
A
°C
Operating Junction and Storage Temperature
Thermal Characteristics
Symbol
R
θJC
Parameter
Maximum Thermal Resistance, Junction to Case
Max
3.8
Units
°C/W
Package Marking and Ordering Information
Device Marking
F30UP20DP
Device
FFPF30UP20DPTU
Package
TO-220F
Reel Size
-
Tape Width
-
Quantity
50
©2006 Fairchild Semiconductor Corporation
1
www.fairchildsemi.com
FFPF30UP20DP Rev. A
FFPF30UP20DP Ultrafast Recovery Power Rectifier
Electrical Characteristics
(per diode) T
Symbol
V
FM
I
RM
t
rr
t
a
t
b
Q
rr
W
AVL
*
C
= 25°C unless otherwise noted
Parameter
I
F
= 15A
I
F
= 15A
V
R
= 200V
V
R
= 200V
I
F
=1A, di/dt = 100A/µs, V
CC
= 30V
I
F
=15A, di/dt = 200A/µs, V
CC
= 130V
I
F
=15A, di/dt = 200A/µs, V
CC
= 130V
T
C
= 25
°C
T
C
= 100
°C
T
C
= 25
°C
T
C
= 100
°C
T
C
= 25
°C
T
C
= 25
°C
T
C
= 25
°C
T
C
= 25
°C
T
C
= 25
°C
Min.
-
-
-
-
-
-
-
-
-
20
Typ.
-
-
-
-
-
-
13
11
24
-
Max.
1.15
1.0
100
500
35
45
-
-
-
-
Units
V
V
µA
µA
ns
ns
ns
ns
nC
mJ
*
Avalanche Energy (L = 40mH)
* Pulse Test: Pulse Width=300µs, Duty Cycle=2%

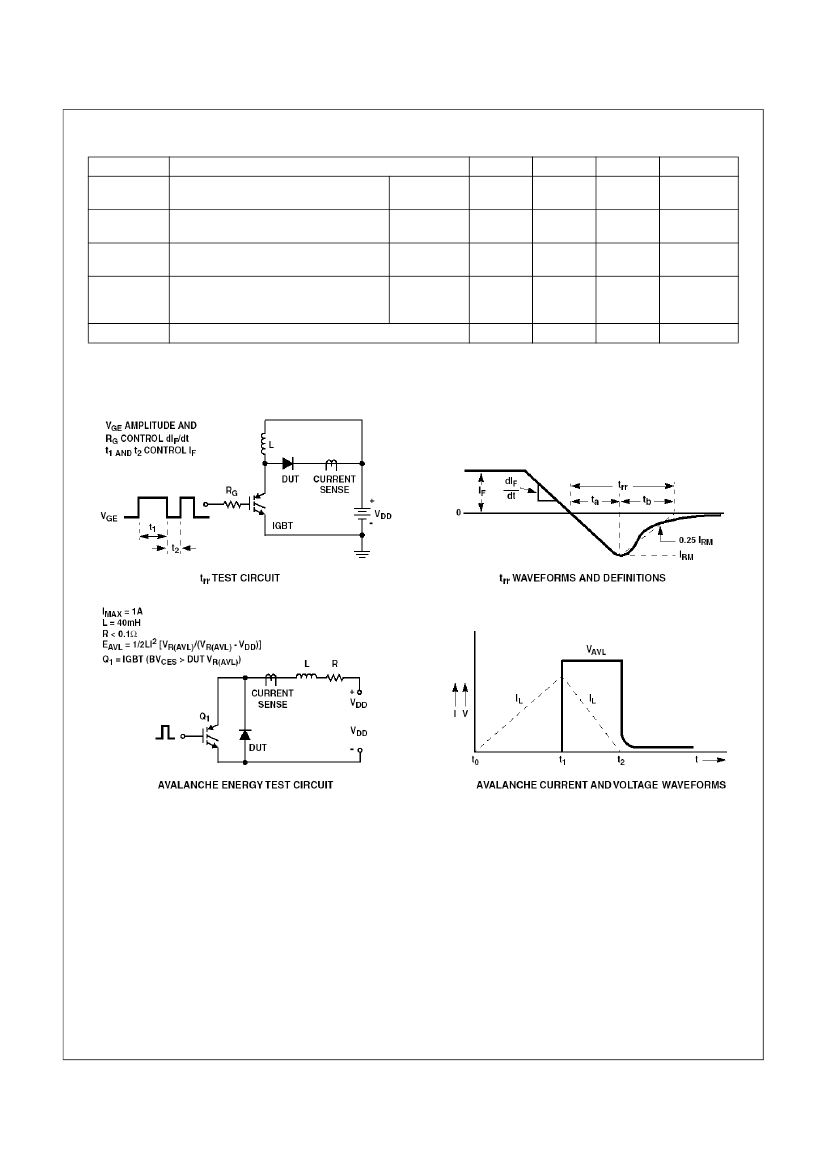

Test Circuit and Waveforms
FFPF30UP20DP Rev. A
2
www.fairchildsemi.com
FFPF30UP20DP Ultrafast Recovery Power Rectifier

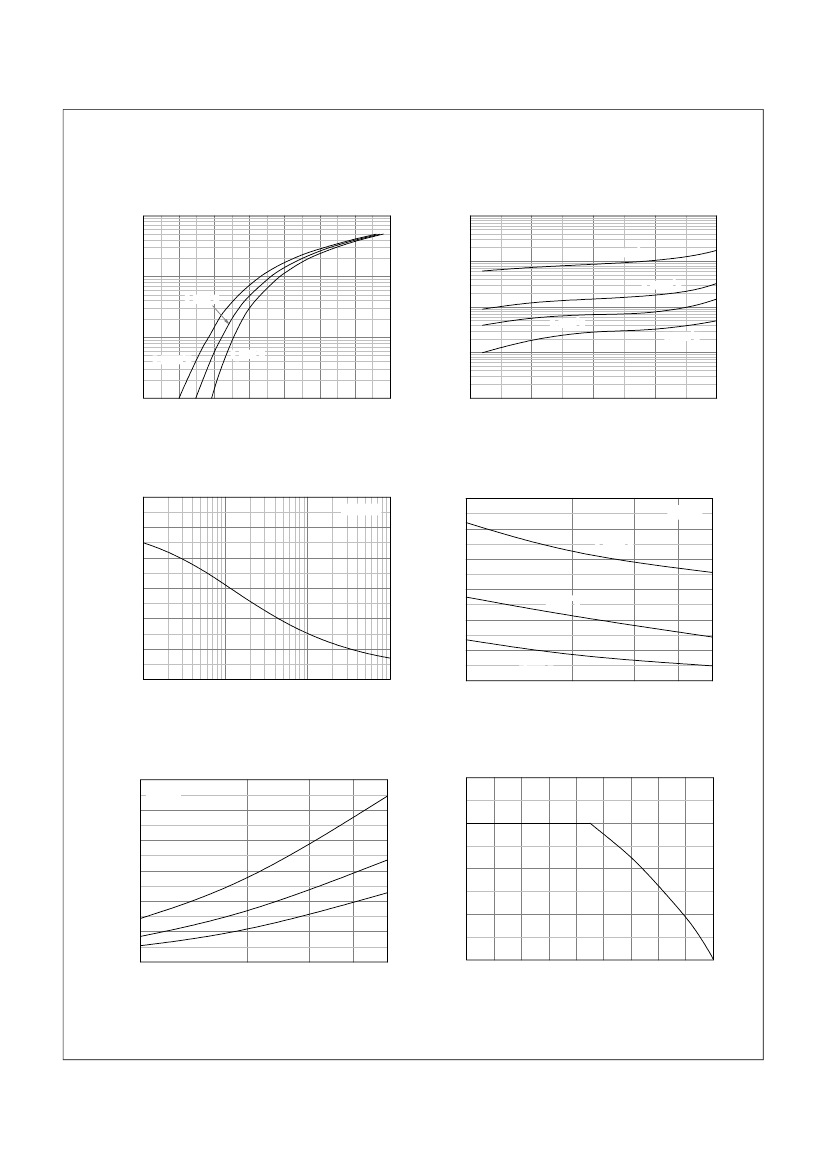

Typical Performance Characteristics
Figure 1. Typical Forward Voltage Drop
100
Figure 2. Typical Reverse Current
10
FORWARD CURRENT, I
F
[A]
REVERSE CURRENT, I
R
[A]
1
T
C
= 125 C
o
o
10
T
C
= 100 C
0.1
T
C
= 75 C
o
T
C
= 75 C
0.01
o
1
T
C
= 25 C
o
T
C
= 125 C
o
T
C
= 25 C
o
0.1
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1E-3
0
50
100
150
200
FORWARD VOLTAGE, V
F
[V]
REVERSE VOLTAGE, V
R
[V]
Figure 3. Typical Junction Capacitance
300
Figure 4. Typical Reverse Recovery Time
50
250
REVERSE RECOVERY TIME, trr [ns]
JUNCTION CAPACITANCE, C
J
[pF]
f = 1MHz
I
F
= 15A
45
T
C
= 125 C
40
o
200
150
35
T
C
= 75 C
30
o
100
50
25
T
C
= 25 C
20
100
200
300
400
500
o
0
0.1
1
10
100
REVERSE VOLTAGE, V
R
[V]
di/dt [A/
µ
s]
Figure 5. Typical Reverse Recovery Current
REVERSE RECOVERY CURRENT, Irr [A]
12
Figure 6. Forward Current Deration Curve
AVERAGE FORWARD CURRENT, I
F(AV)
[A]
20
I
F
= 15A
10
15
8
6
T
C
= 125 C
T
C
= 75 C
o
o
DC
10
4
T
C
= 25 C
2
o
5
0
100
200
300
400
500
0
60
70
80
90
100
110
120
o
130
140
150
di/dt [A/
µ
s]
CASE TEMPERATURE, T
C
[ C]
FFPF30UP20DP Rev. A
3
www.fairchildsemi.com
Package Demensions
FFPF30UP20DP Ultrafast Recovery Power Rectifier
TO-220F
3.30
±0.10
10.16
±0.20
(7.00)
ø3.18
±0.10
2.54
±0.20
(0.70)
6.68
±0.20
15.80
±0.20
(1.00x45°)
MAX1.47
9.75
±0.30
0.80
±0.10
(3
0
°
)
0.35
±0.10
2.54TYP
[2.54
±0.20
]
#1
0.50
–0.05
2.54TYP
[2.54
±0.20
]
4.70
±0.20
+0.10
2.76
±0.20
9.40
±0.20
Dimensions in Millimeters
©
Ultrafast Recovery Power Rectifier
15.87
±0.20
