FD-84.000-BBD00050: DescriptionSeries - 5Th Overtone Quartz Crystal, 84MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size482KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

FD-84.000-BBD00050 Overview

Series - 5Th Overtone Quartz Crystal, 84MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

FD-84.000-BBD00050 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TR, 10 INCH
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - 5TH OVERTONE
Drive level	500 µW
frequency stability	0.005%
frequency tolerance	50 ppm
Installation features	SURFACE MOUNT
Nominal operating frequency	84 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L7.5XB5.0XH1.1 (mm)/L0.295XB0.197XH0.043 (inch)
Series resistance	80 Ω
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

Ceramic Seam Sealed SMD Crystal

Model: FD

FEATURES

•

High Frequency Range

Fundamental to 218 MHz

Inverted Mesa: 50-218 MHz

Tape and Reel (3,000 pcs. STD)

RoHS Compliant / Pb Free

OPTIONS

• Tolerances to 5 PPM

• Stabilities to 3 PPM

• Temperatures to -40ºC ~ +85ºC

Rev. 9/24/2012

http://www.foxonline.com/need_a_sample.htm

• PART NUMBER

Part Number

218-Frequency-xxxxx

Model Number

FD

Frequency Range (MHz)

6.000 ~ 218.000

• STANDARD SPECIFICATIONS

1

PARAMETERS

Frequency Range

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

Over Operating Temp Range

Temperature Range

Operating (T

OPR

)

Storage

(T

STG

)

Shunt Capacitance

(Co)

Load Capacitance

(C

L

)

Drive Level

6.000 ~ 160.000 MHz

(Fund to 50MHz, 3rd OT, 5th OT)

50.000 ~ 218 MHz

(Fund Inverted Mesa)

Aging per year

1

MAX

(unless otherwise noted)

6.000 ~ 218.000 MHz

±50 PPM

-10ºC ~ +60ºC

-40ºC ~ +85ºC

7.0 pF

10 pF ~ Series

(Customer Specified)

0.5 mW

0.1 mW

±5 PPM

Other tolerances, stabilities & operating temperature ranges available. Consult Fox Customer Service for

specific requirements.

All specifications subject to change without notice.

Frequency Range

(MHz)

8.000 ~ 10.000

10.000 ~ 16.000

16.000 ~ 50.000

50.000 ~ 218.000

28.000 ~ 176.000

84.000 ~ 160.000

Operating Mode

Fundamental

Fundamental (Inv. Mesa)

3rd OT

5th OT

Max ESR

Ω

110

60

40

30

60

80

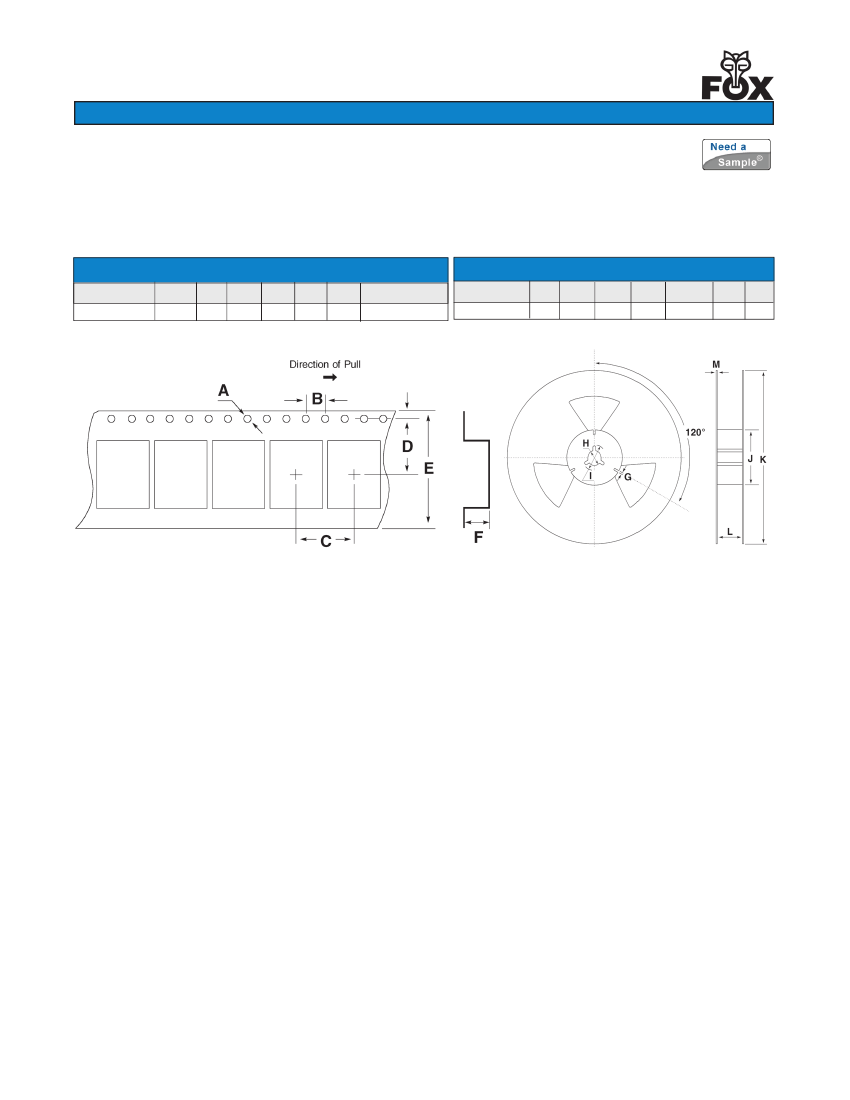

All dimensions are in millimeters.

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

www.foxonline.com

EMEA

Tel: +44 .1283.568153 |

Canada

+1.888.438.2369 |

Asia

Hong Kong Tel: +852.2854.4285 |

Japan

Tel: +81.3.3374.2079
