54228360 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54228360

54228360: DescriptionBoard Connector, 28 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size258KB，2 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric Compare View All

54228360 Overview

Board Connector, 28 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

54228360 Parametric

Parameter Name	Attribute value
Maker	W+P Products GmbH
Reach Compliance Code	compliant
body width	0.3 inch
subject depth	0.451 inch
body length	1.4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	3000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	542
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	28
Base Number Matches	1

Preview

Download Datasheet

View All

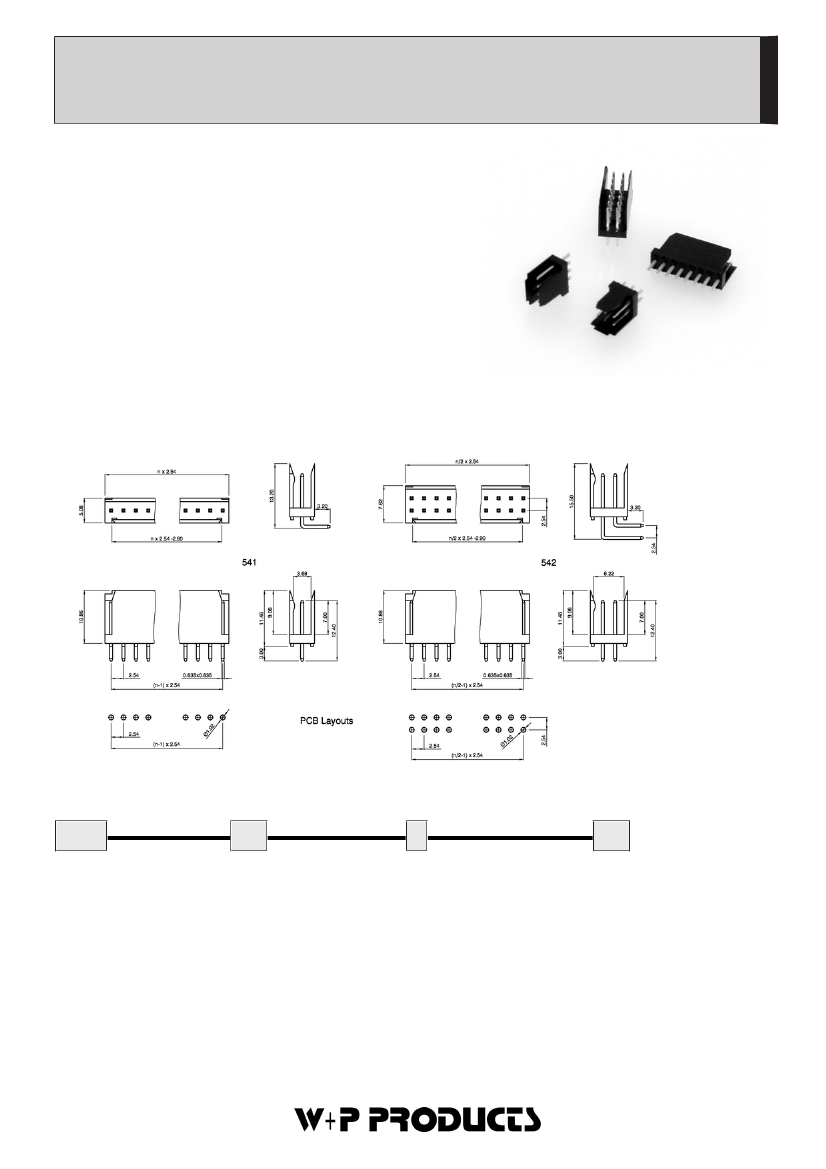

541 542

Stiftleisten - Crimp-Rast-System - RM 2,54mm

Friction Lock Headers - 2,54mm Pitch

Technische Daten /Technical

Data

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Messing

Contact Material

Brass

Kontaktoberfläche

Lt. Oberflächenoptionen, über Ni (1,3 ... 2,5µm)

Contact Surface

Acc. to options (see below), over Ni (1,3 ... 2,5µm)

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 30mΩ

Contact Resistance

< 30mΩ

Isolationswiderstand

> 3x10

Ω

Insulation Resistance

> 3x10

Ω

Spannungsfestigkeit

500V

@ 1min

Test Voltage

500V

@ 1min

Nennstrom

Current Rating

Temperaturbereich

-40°C ... +105°C

Temperature Range

-40°C ... +105°C

Verarbeitung

Wellenlötverfahren; weitere Informationen in Kapitel T

Processing

Wave soldering, detailed information in ch. T

Series

Contacts

Type

Plating

542

541

Einreihig

Single row

542

Zweireihig

Double row

02-20

Einreihig

Single row

04-40

Zweireihig

Double row

Gerade

Straight

Gewinkelt

Right-angled

Sel. Au/Sn

(

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com

54228360 Related Products

	54228360	54214360	54206360	2220A0250824GBT	54117360	54116360	54226360	54110360	54234360
Description	Board Connector, 28 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Ceramic Capacitor, Multilayer, Ceramic, 25V, 2% +Tol, 2% -Tol, BX, 15% TC, 0.82uF, Surface Mount, 2220, CHIP	Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 16 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Manufacturer's serial number	542	542	542	X7R	541	541	542	541	542
Maximum operating temperature	105 °C	105 °C	105 °C	125 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-55 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Guideline	UL	UL	UL	IECQ-CECC	UL	UL	UL	UL	UL
Maker	W+P Products GmbH	W+P Products GmbH	W+P Products GmbH	-	W+P Products GmbH	W+P Products GmbH	-	-	-
body width	0.3 inch	0.3 inch	0.3 inch	-	0.2 inch	0.2 inch	0.3 inch	0.2 inch	0.3 inch
subject depth	0.451 inch	0.451 inch	0.451 inch	-	0.451 inch	0.451 inch	0.451 inch	0.451 inch	0.451 inch
body length	1.4 inch	0.7 inch	0.3 inch	-	1.7 inch	1.6 inch	1.3 inch	1 inch	1.7 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	-	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN	TIN	TIN	-	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	-	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	-	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ	-	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	-	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	3000000000 Ω	3000000000 Ω	3000000000 Ω	-	3000000000 Ω	3000000000 Ω	3000000000 Ω	3000000000 Ω	3000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	-	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	-	-	-	0.1 inch	-	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING	-	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK	-	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	-	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	-	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	-	1	1	2	1	2
Number of rows loaded	2	2	2	-	1	1	2	1	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	-	-	-	2.54 mm	-	2.54 mm
Rated current (signal)	2 A	2 A	2 A	-	2 A	2 A	2 A	2 A	2 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.118 inch	-	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	-	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	28	14	6	-	17	16	26	10	34
ECCN code	-	-	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
