HA17-0623-0701-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> HA17-0623-0701-Z

HA17-0623-0701-Z: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size232KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

HA17-0623-0701-Z Overview

Board Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Receptacle

HA17-0623-0701-Z Parametric

Parameter Name	Attribute value
Objectid	304395082
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.24 inch
subject depth	0.35 inch
body length	0.7 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	HA17
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.81 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	14

Preview

Download Datasheet

View All

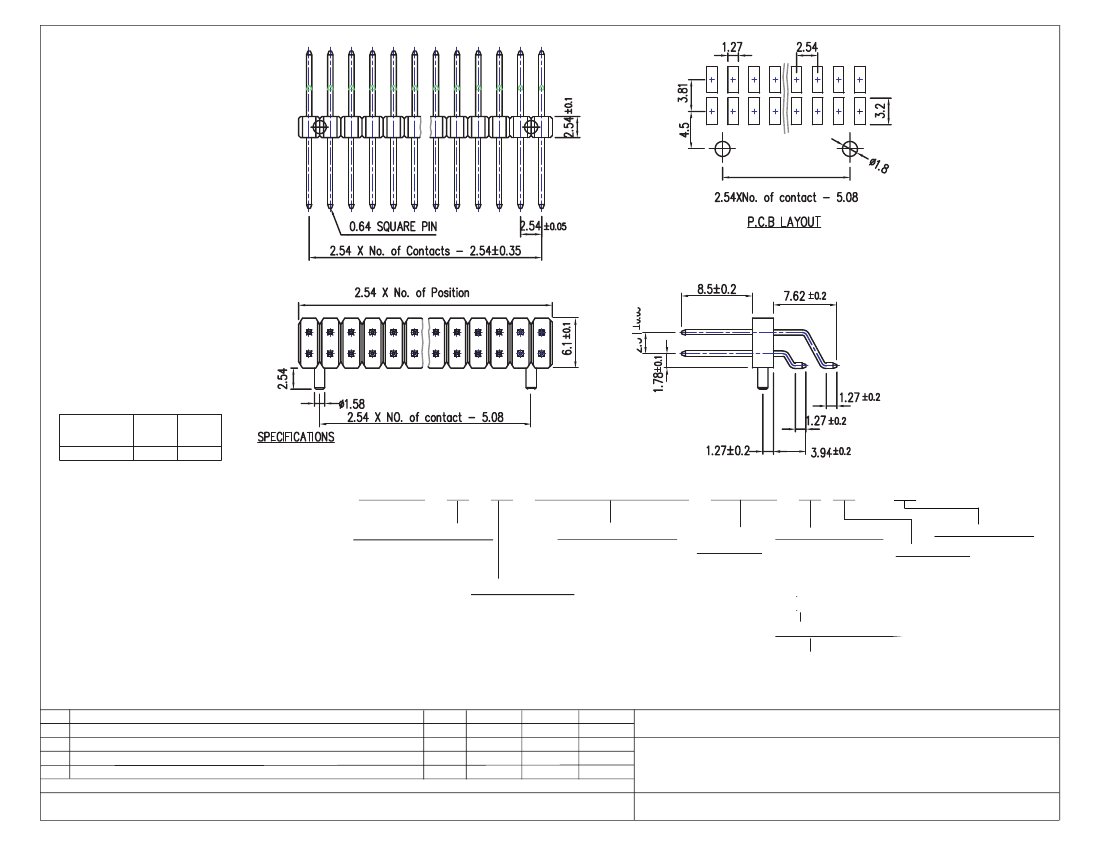

DIMENSION NUMBER (mm)

DIMENSION

NUMBER

0623

7.62

8.5

HOW TO ORDER:

ELECTRICAL:

INSULATOR THICKNESS:

DIMENSION NUMBER:

CURRENT RATING: 3 AMP

1 - 2.54 mm (E)

SEE DIMENSION

CONTACT RESISTANCE: 20 MilliOhms Max

TABLE ABOVE

INSULATOR RESISTANCE: 5000 MegaOhms

DIELECTRIC WITHSTANDING: AC 500V

NUMBER OF ROWS:

OPERATING TEMPERATURE: -40° C TO +105° C

MAX PROCESSING TEMPERATURE: 230°C for 30-60 Seconds

7 - Double Row - Right Angle with Post

(260°C for 10 Seconds)

MATERIAL:

RoHS COMPLIANT

NUMBER OF PLATING OVERALL:

CONTACTS:

0 - FULL TIN

PACKAGING:

01 thru 40

1 - FULL Au FLASH

1 - W/out CAP In Tube

3 - 10u" Au

2 - With CAP In Tube

4 - 15u" Au

3 - With CAP In Tube & Reel

5 - 30u" Au

6 - Au FLASH CONTACT AREA/TIN TAIL

SELECTIVE PLATING:

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

INSULATOR: NYLON 6T & 30% GF (UL94V-0)

CONTACT MATERIAL: BRASS

CONTACT PLATING: FULL GOLD, FULL TIN , SELECTIVE PALTED

Rev

0 Issued

0 Updated for RoHS Compliance

SCALE: N/A

DRAWING No. HA-1

TOL. DEC.

.X +/- 0.35

Drawn

D.H.

B.S.

Date

Checked Approved

S.M.

07/20/04

S.M.

2/5/08

SMP TECHNOLOGY, INC.

Pin Header,Surface Mount, 2.54mm Pitch, Double Row, Right Angle,

with Mounting Post, 8.5 Mating Length

, SERIES: HA17-0623-XXXX-Z

Pg: 1

.XX +/- 0.2

.XXX +/-

ANGLE +/- 5°

UNIT: mm
