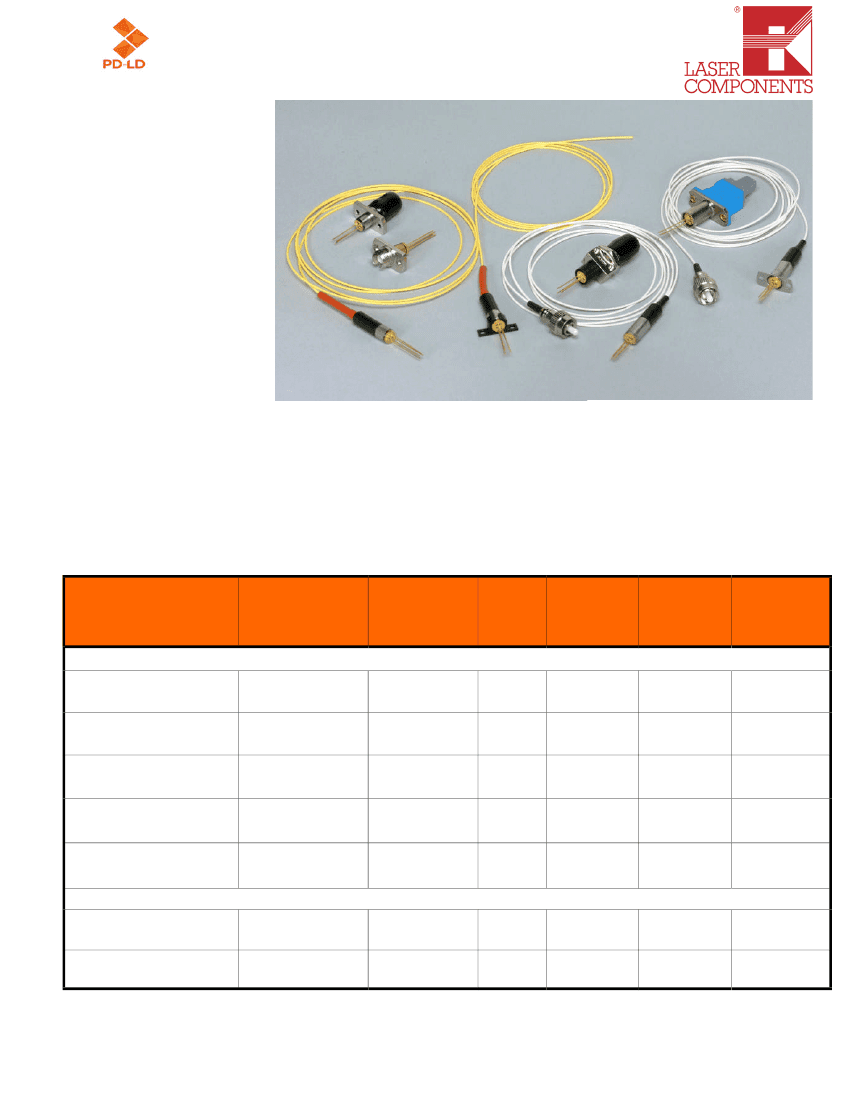

PL13/15 FP Series Laser Diode Modules
PD-LD Inc. offers a
variety of packaging options for
its’ Fabry Perot Series of laser
diodes. These units are available
in ready-to-use, fiber-coupled
packages, including FC, ST, and
SC receptacles, as well as fiber-
pigtailed units.
The InGaAsP MQW
laser diodes offered by PD-LD
are of proven design and
manufacture; the standard
wavelengths are centered at
1310 and 1550nm. Fiber-
coupled CW (continuous-
wavelength) output powers
range from 0.1 - 2 mW,
depending on the fiber type and
desired performance level.
Tracking error over OTR -40 to
Features
+85C is +/-1.0 dB maximum .
Internal Monitor Photdetector
Compact, reliable receptacle & coax
fiber-coupled package
0.1 - 2.0 mW singlemode (9/125)
1.7nm RMS Spectral Width
1.5 GHz Bandwidth
Applications
Fiberoptic communications
systems
Fiberoptic test instrumentation
Digital and Analog Signal
transmission
Performance Specifications: Typical Product Configurations (more options available)
PD-LD
Part No.
1
Wavelength (nm)
Min. Fiber
Min. Typ. Max. Coupled Power
(mW)
Pin-out
Threshold
Current
(mA)
Typ. Max.
Operating
Current
(mA)
Typ. Max.
Monitor PD
Current (mA)
Min. Typ.
Continuous Wavelength InGaAsP MQWLasers @ 25C:
Pigtails
PL13B001100A-0-0-01
PL13P0021FAA-0-0-01
PL15B001FC11-S-0
PL15P0.51FCA-0-0-01
PL15P0011FCA-0-0-01
1290
1310
1330
1295
1310
1325
1530
1530
1530
1 mW
into 9/125 SMF
2 mW
into 9/125 SMF
“H”
5
“T”
10
“H”
10
“T”
10
“T”
10
20
20
35
20
20
35
20
30
50
20
20
35
15
20
35
InGaAs
0.1
0.8
InGaAs
0.1
0.8
InGaAs
0.1
0.8
InGaAs
0.1
0.8
InGaAs
0.1
0.8
1 mW
1550
1570 into 9/125 SMF
1550
1570
1550
1570
0.5 mW
into 9/125 SMF
1 mW
into 9/125 SMF
Continuous Wavelength InGaAsP MQWLasers @ 25C:
Receptacles
PL13B0.5ST71-S-0
PL13P001FC11-S-0
1
1290
1310
1330
1295
1310
1325
0.5mW
ST Receptacle
1 mW
FC Recptacle
“H”
“T”
5
10
15
20
20
20
35
35
InGaAs
0.1
0.8
InGaAs
0.1
0.8
98-
07-02PLFP1315.
96-02FOLD1.Rev. A
Examples only; most device/packaging combinations available. See part numbers on reverse; c
ontact Sales Dept.
1
Examples only; most device/packaging combinations available.
Changes to specifications may be made without notice.
02FOLDa.Rev C
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
France: LASER COMPONENTS S.A.S., Phone: +33 1 3959 5225, Fax: +33 1 3959 5350, info@lasercomponents.fr
PL13/15 FP Series Laser Diode Modules
Packaging Options
Optional board- or panel -mount flanges are available for pigtailed devices; contact PD-LD Sales. Also,
PD-LD Inc. will package non-standard lasers or parts specified by a customer using standard or custom
receptacle or pigtailing techniques.
Both receptacle and pigtail packages are made using an active
micro-positioning system and proven packaging techniques. Reliable and efficient devices are produced.

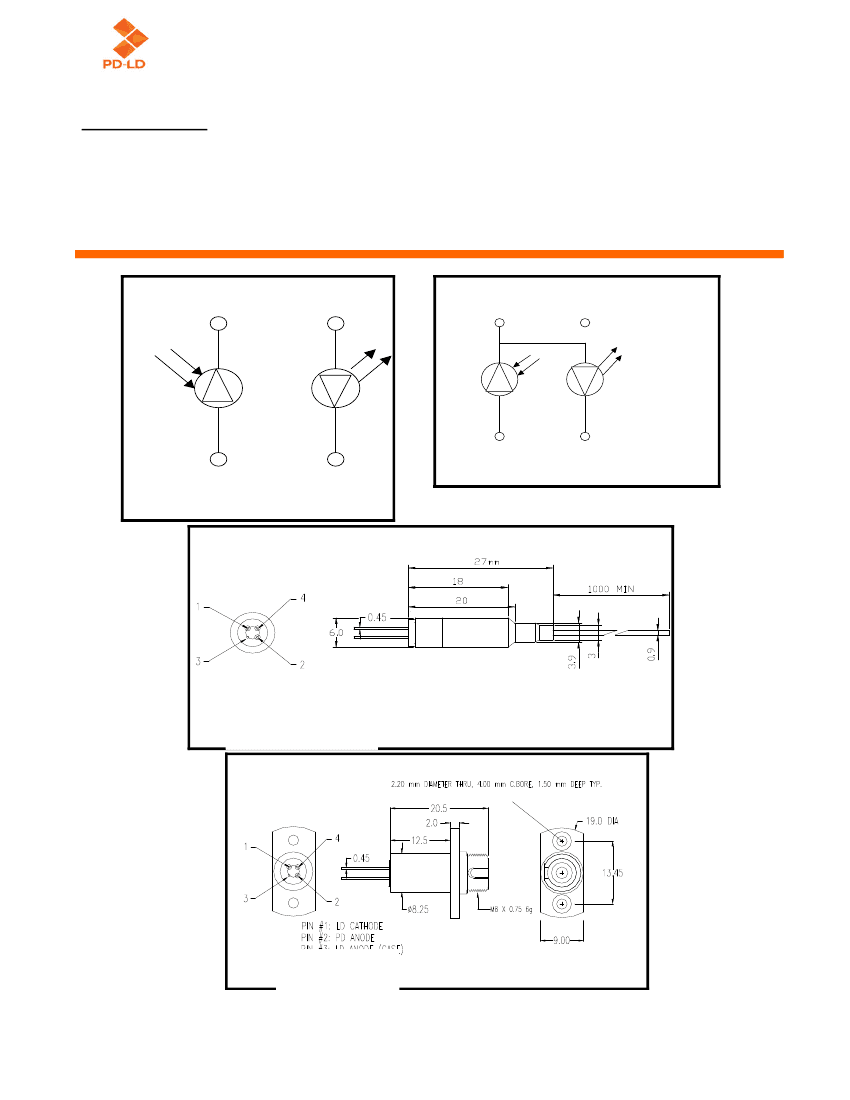

Physical Dimensions (mm) & Pin Connection
“H ”
(4 )
(3 )
(2)
(3) Case
“T”
Case
PD
LD
PD
LD
(4)
(1)
13P, 15P Laser
(2 )
1 3 B ,1 5 B L a s e rs
(1 )
.
PIN
PIN
PIN
PIN
#1:
#2:
#3:
#4:
LD CATHODE
PD ANODE
LD ANODE (CASE)
PD CATHODE
1
Examples only; most device/packaging combinations available. See part numbers on reverse; c
ontact Sales Dept.
1
Examples only; most device/packaging combinations available.
Changes to specifications may be made without notice.
02FOLDa.Rev C
98-
07-02PLFP1315.
96-02FOLD1.Rev. A
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
France: LASER COMPONENTS S.A.S., Phone: +33 1 3959 5225, Fax: +33 1 3959 5350, info@lasercomponents.fr
PL13/15 FP Series Laser Diode Modules
Ordering Informtion
Data Legend:
Pigtailed
Laser Diodes
PL WWW PPP F CC B-O-V-LL
L
=Laser
WWW
= Wavelength &
Device Type
13B, 13P, 13AM
= 1310nm
15B, 15P
= 1550nm
LL
= Length
(in meters)
01
= 1m,
02
= 2m,
.5
= .5m
etc.
V
= Version
0
= Standard
Unique codes for specific requirements
O
= Orientation
0
= N/A
A
= Bracket Shipped Loose
PPP
= Fiber-Coupled Power
0.1
= 0.10mW (100µW)
0.2
= 0.20mW (200µW)
0.5
= 0.50mW (500µW)
001
= 1.0mW
1.6
= 1.6mW
002
= 2.0mW
B
= Bracket Type
A
= None
B
= Panel Mount
C
= Board Mount
G
= Board Mount
(bracket
shipped loose)
F
= Fiber Type
1
= 9/125 SMF
2
= 50/125 MMF
3
= 62.5/125 MMF
4
= 100/140 MMF
9
= Customer Supplied
CC
= Connector Type
ST
= ST/PC
SC
= SC/PC
SA
= SC/APC
FC
= FC/PC
FA
= FC/APC
FU
= FC/UPC
00
= No Connector
D ata Legend:
R eceptacle
Laser D iodes
Ex:
PL W W W PPP RRR F-O -V
V
= Version
0
= Standard
Unique codes for specific
requirem ents
L
=Laser
W W W
= W avelength &
Device Type
13B, 13P, 13AM
= 1310nm
15B, 15P
= 1550nm
O
= O rientation
0
= N/A
A
= Bracket Shipped Loose
F
= Fiber Type
1
= 9/125 SM F
2
= 50/125 M M F
3
= 62.5/125 M M F
4
= 100/140 M M F
9
= Custom er Supplied
PPP
= Fiber-Coupled
Power
0.1
= 0.10m W (100µW )
0.2
= 0.20m W (200µW )
0.5
= 0.50m W (500µW )
001
= 1.0m W
1.6
= 1.6m W
002
= 2.0m W
RRR
= Receptacle Type
FC1
= FC Panel M ount
FC2
= FC Board M ount
SC1
= SC Panel M ount only
SC2
= SC Panel/Board M ount
ST7
= ST low profile
ST8
= ST high profile
07/11 / V7 /
SB
/
pd_ld/ pl1315fp.pdf
www.lasercomponents.com
Germany and other countries: LASER COMPONENTS GmbH, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
France: LASER COMPONENTS S.A.S., Phone: +33 1 3959 5225, Fax: +33 1 3959 5350, info@lasercomponents.fr
