3963-2-19-E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3963-2-19-E

3963-2-19-E: DescriptionBoard Connector, 19 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size114KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

3963-2-19-E Overview

Board Connector, 19 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Locking, Receptacle

3963-2-19-E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307348539
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.378 inch
subject depth	0.599 inch
body length	2.962 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
Manufacturer's serial number	3963
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	19

Preview

Download Datasheet

View All

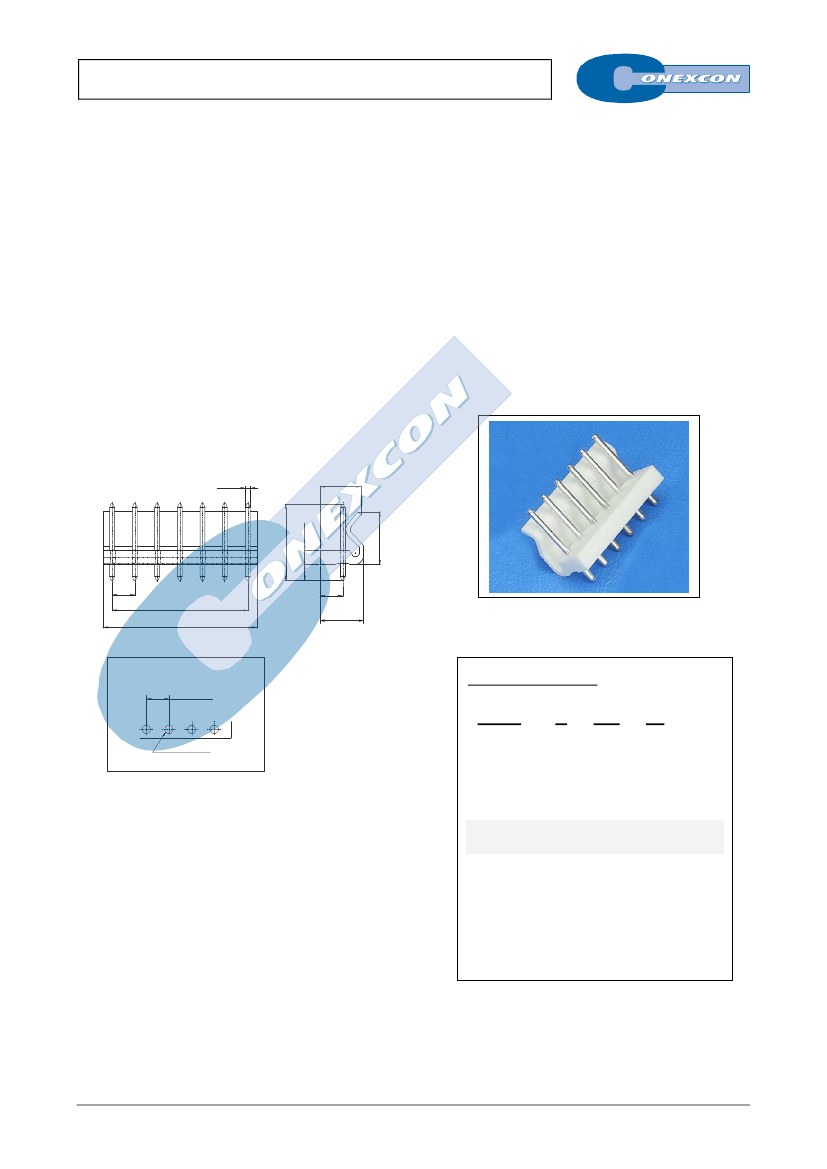

SINGLE ROW TOP ENTRY PIN HEADER

3963 SERIES.

3.96 mm (0.156”) pitch.

General Features

Electrical Features



Available in 2 through 20 circuits

Mates with PCB sockets 3970 and 3971 series and wire

housing 3940, 3930 and 2631 series

1.14 mm. round pin

Pin omit options are available in any circuits

Polarised with friction lock



Voltage rating: < 250V

Current rating: < 5 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1500 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Insulator: Nylon 66 UL 94 V-0

Optional: GWT compliant *

Contact: brass

Operating temperature: -40ºC to +105ºC

RoHS compliant

Mechanical Features



Pin retention force to insulator: > 2.00 Kgf

Durability: 25 cycles

Dimensional Information

1.14

.045

9.0

.354

16.95

.667

3.50

3.2

.126

.138

3.96

.156

5.00

.197

9.6

.378

RECOMMENDED HOLE PATTERN

3.96±0.05

.156±.002

11.7

.461

Ordering Information:

3963 -

T-

XX-

Ø1.40±0.10

.055±0.04

1. Connector Series

2. (T) Contact Plating



Dimensions:

(In mm.)

= 3.96 x (XX*-1)

= 3.96 x (XX*)

* XX

(Number of circuits)

T =

Tin plated

Recommended Finish

3. (XX) Number of circuits



Available in 2 through 20 circuits

* GWT Options

For GWT options add

at the end

of part number

E-XX
