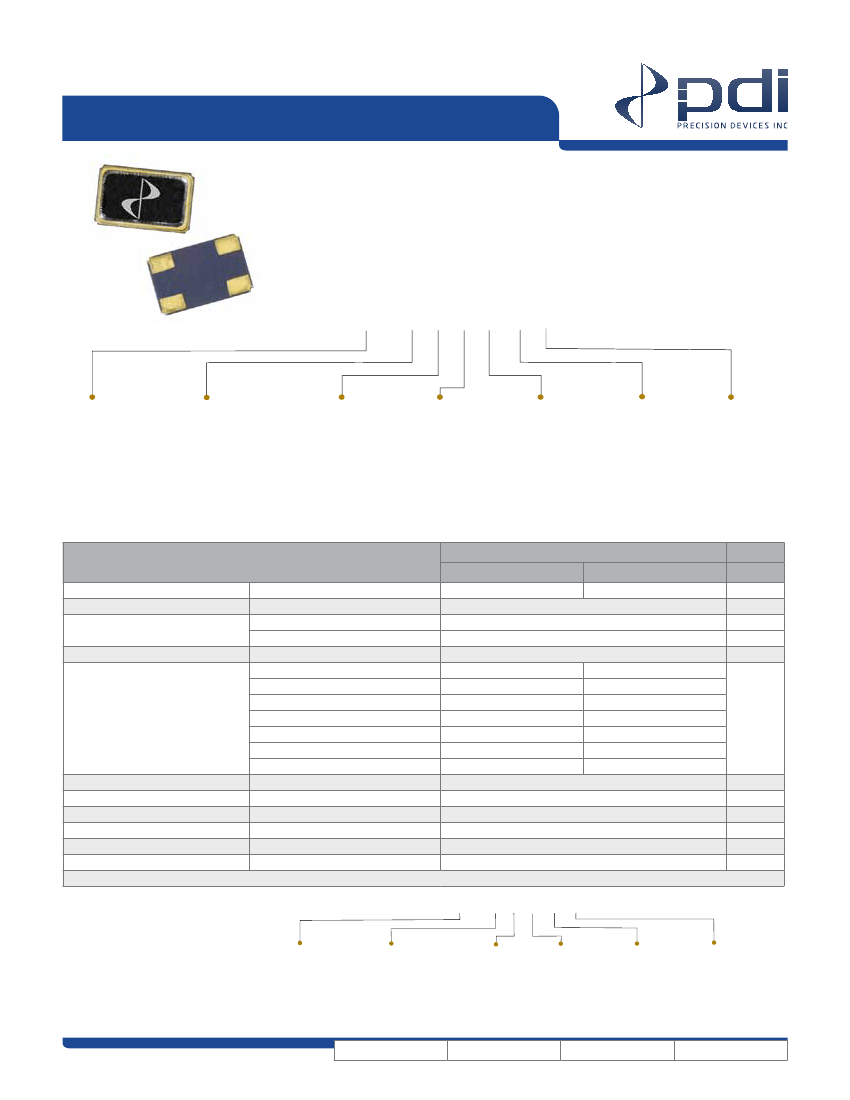

C5-Series Specifications
5.00L x 3.20W x 0.90H
(mm)
PDI
C5-Series
is a hermetically sealed quartz crystal in a seam-welded ceramic
SMT package. This crystal, designed to meet your most demanding specification,
is available in standard or custom frequencies and/or with customized parameters.
PDI provides quick-turn sampling for your proto-typing needs, mass production
capability, and competitive pricing.
ex)
C5—25000X—F—B—C—B—18—2—X
*
*(X) for standard or assigned for customization.
FREQUENCY
08000X – 99999X
=
8.0000MHz -
99.999MHz -
C10000 – C12500
=
100.00MHz -
125.00MHz -
MODE
F
= Fundamental
3
= 3rd Overtone
TOLERANCE
@ 25°C
A
= ±10
B
= ±25
C
= ±50
S
= Special
FREQUENCY
STABILITY
B
= ±25
C
= ±50
E
= ±100
S
= Special
OPERATING
TEMPERATURE
A
= 0 to +70°C
B
= -20 to +70°C
D
= -40 to +85°C
S
= Special
LOAD
08-99
= pF
SE =
Series
PAD CONFIG
2
= 2 Pads
4
= 4 Pads
See below for legacy part numbering configuration for parts designed prior to 02-01-2014, which are still available
Parameter
Frequency Range
Frequency Tolerance
Temperature Range
*1
Frequency Stability
*1
*1
Mode
Fundamental
3rd Overtone
Units
MHz
ppm
°C
°C
ppm
Equivalent Series Resistance
(Maximum)
Drive Level (Typical)
Shunt Capacitance (Maximum)
Load Capacitance (Typical)
Aging (Maximum)
Seal Method
Insulation Resistance
8.000000 to 50.000000
40.000000 to 125.000000
@ +25°C
Per Option
Operating
Per Option
Storage
- 55 to +125
Over Operating Temperature
Per Option
8.000000 to 10.000000 MHz
100
N/A
10.000000 to 12.000000 MHz
80
N/A
12.000000 to 16.000000 MHz
60
N/A
16.000000 to 20.000000 MHz
50
N/A
20.000000 to 24.000000 MHz
40
N/A
24.000000 to 50.000000 MHz
30
N/A
40.000000 to 125.000000 MHz
N/A
80
100
5.0
Per Option
Per Year
±5.0
Seam Weld
500MΩ Minimum @100Vdc ±15V
*1 - Not all Frequency/Stability/Temperature combinations are available
Ω
uW
pF
pF
ppm
ex)
C5—25000X—F—C—B—18—R—X
*
Legacy Part Numbering Configuration
FREQUENCY
10000X – 99999X
=
10.000MHz -
99.999MHz -
C10000 – C12500
=
100.00MHz -
125.00MHz -
MODE
F
= Fundamental
3
= 3rd Overtone
FREQUENCY
STABILITY
B
= ±25
C
= ±50
D
= ±100
S
= Special
SIZE:
A
OPERATING
TEMPERATURE
A
= 0 to +70°C
B
= -20 to +70°C
D
= -40 to +85°C
S
= Special
CAGE:
A
LOAD
08-99
= pF
SE =
Series
PACKAGE
R
= Tape & Reel
REV:
NA
1
of
3
C5-Series
5.00 x 3.20 x 0.90
(mm)

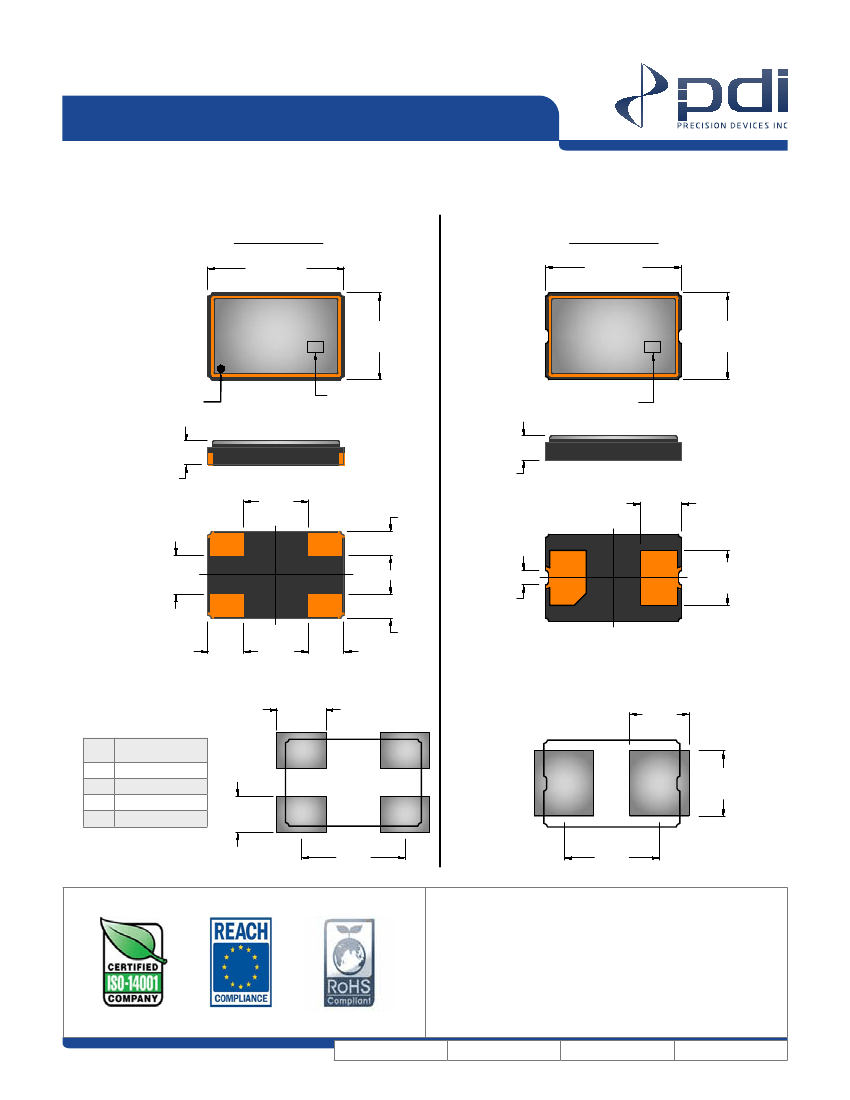

PA C K A G E D I M E N S I O N S
Decimal XXX = ± .008, XX = ± .02 Metric [XXX = ± .20], [XX = ± .50]
4-Pad Option
Top View
.197 ±.004
[5.00 ±.10]
Top View
2-Pad Option
.197±.004
[5.00±.10]
P FKA
Date Code
.126 ±.004
[3.20 ±.10]
P FKA
Date Code
.126±.004
[3.20±.10]
Pin #1
Traceability Code
Traceability Code
.035 Max
[.90 Max]
.094
[2.40]
1
2
.035 Max
[.90 Max]
.035
[.90]
.059 ±.008
[1.50 ±.20]
.055
[1.40]
4
3
.031
[.80]
.035
[.90]
Bottom View
.079 ±.008
[2.00 ±.20]
Bottom View
.051
[1.30]
.051
[1.30]
.071
[1.80]
4
Recommended Land Pattern
(Top View)
Recommended Land Pattern
(Top View)
.087
[2.20]
PIN
1
2
3
4
CONNECTION
Crystal
Ground/Cover
Crystal
Ground/Cover
3
.094
[2.40]
.051
[1.30]
1
2
.150
[3.81]
.138
[3.50]
NOTES:
Terminals are Au.
Other options are available, please consult factory.
All product is supplied
RoHS
and
REACH
compliant.
Product can be supplied on Tape and Reel, on reels of 1,000 units.
Specifications subject to change without notice, last updated 4/1/13.
REV:
NA
SIZE:
A
CAGE:
A
2
of
3
C5-Series
5.00 x 3.20 x 0.90
(mm)

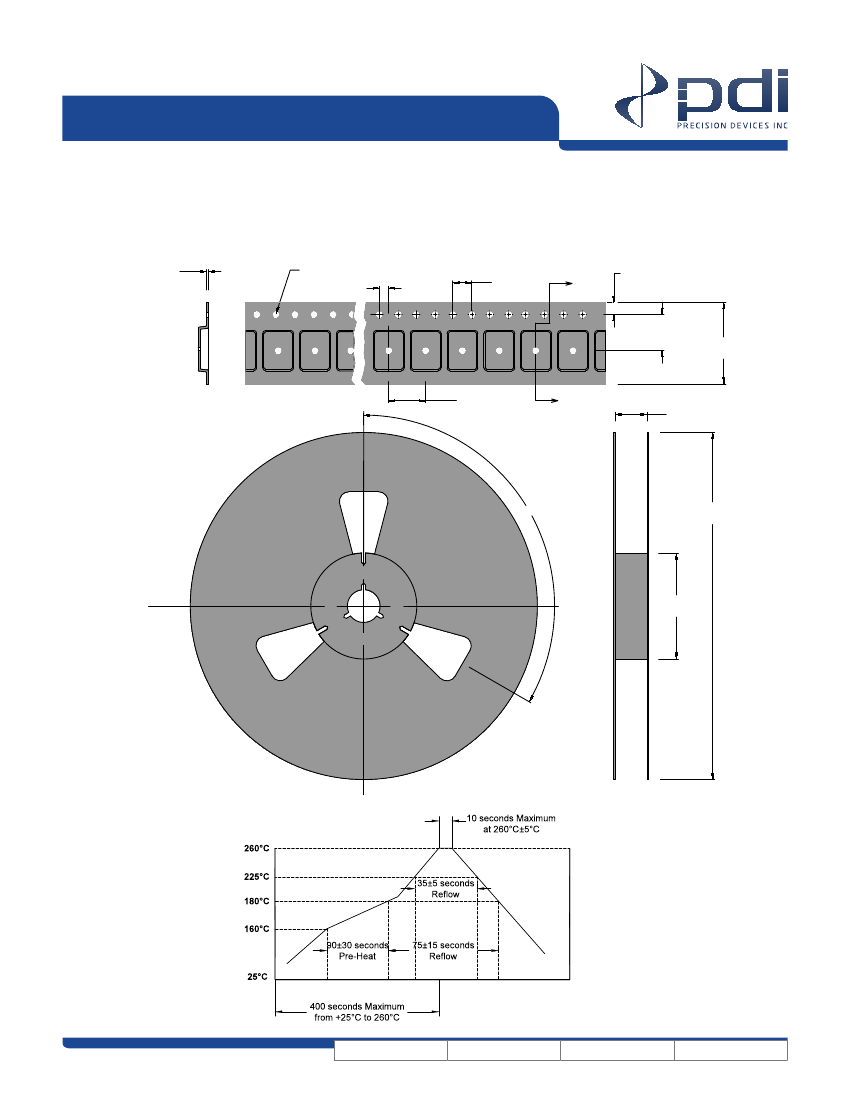

1.
Material: Black Conductive Polystyrene or equivalent.
2.
10 Sprocket Hole pitch cumulative tolerance of ±.008
3.
Camber in compliance with EIA 481
4.
Empty pockets: Trailing end (Minimum) 200 mm. and Leading end (Minimum) 400 mm.
5.
Pocket position relative to sprocket hole measured as true position of pocket, not pocket hole.
.012±.002
[0.30±.05]
Ø.059
[Ø1.50]
.069
[1.75]
.079
[2.00]
.157 Typ.
[4.00 Typ.]
A
.217
[5.50]
.472 ±.012
[12.00 ±.30]
Section A-A
.315 Typ.
[8.00 Typ.]
A
.480
[12.20]
120°
Ø7.09
[Ø180.00]
3.15
[80.00]
REV:
NA
SIZE:
A
CAGE:
A
3
of
3
