HEF4051BT,013 Overview

HEF4051B - 8-channel analog multiplexer/demultiplexer SOP 16-Pin

HEF4051BT,013 Parametric

Parameter Name	Attribute value
Brand Name	Nexperia
Is it Rohs certified?	conform to
Maker	Nexperia
Parts packaging code	SOP
package instruction	SOP-16
Contacts	16
Manufacturer packaging code	SOT109-1
Reach Compliance Code	compliant
Samacsys Description	HEF4051B - 8-channel analog multiplexer/demultiplexer@en-us
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G16
JESD-609 code	e4
length	9.9 mm
Humidity sensitivity level	1
Number of channels	8
Number of functions	1
Number of terminals	16
Nominal off-state isolation	50 dB
On-state resistance matching specifications	5 Ω
Maximum on-state resistance (Ron)	175 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	15 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	230 ns
Maximum connection time	80 ns
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	3.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

HEF4051B

8-channel analog multiplexer/demultiplexer

Rev. 12 — 25 March 2016

Product data sheet

1. General description

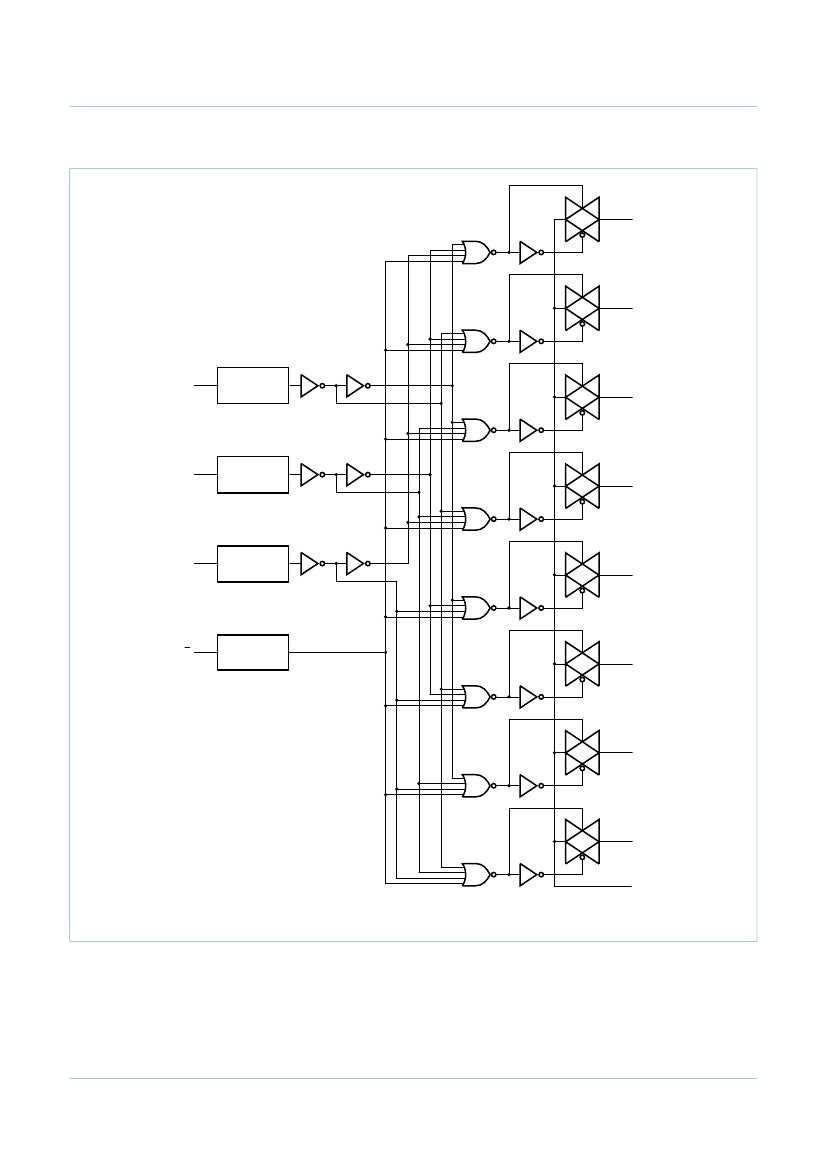

The HEF4051B is an 8-channel analog multiplexer/demultiplexer with three address

inputs (S1 to S3), an active LOW enable input (E), eight independent inputs/outputs

(Y0 to Y7) and a common input/output (Z). The device contains eight bidirectional analog

switches, each with one side connected to an independent input/output (Y0 to Y7) and the

other side connected to a common input/output (Z). With E LOW, one of the eight

switches is selected (low-impedance ON-state) by S1 to S3. With E HIGH, all switches

are in the high-impedance OFF-state, independent of S1 to S3. If break before make is

needed, then it is necessary to use the enable input.

and V

are the supply voltage connections for the digital control inputs (S1 to S3,

and E). The V

to V

range is 3 V to 15 V. The analog inputs/outputs (Y0 to Y7, and Z)

can swing between V

as a positive limit and V

as a negative limit. V



may not

exceed 15 V. Unused inputs must be connected to V

, V

, or another input. For

operation as a digital multiplexer/demultiplexer, V

is connected to V

(typically

ground). V

and V

are the supply voltage connections for the switches.

2. Features and benefits



Fully static operation

5 V, 10 V, and 15 V parametric ratings

Standardized symmetrical output characteristics

Specified from

40 C

to +85

C

and

40 C

to +125

C

Complies with JEDEC standard JESD 13-B

3. Applications



Analog multiplexing and demultiplexing



Digital multiplexing and demultiplexing



Signal gating
