FTX6.000M20A9-20/20D datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> FTX6.000M20A9-20/20D

Preview

FTX6.000M20A9-20/20D: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size164KB，2 Pages; ManufacturerFronter Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

FTX6.000M20A9-20/20D Overview

Parallel - Fundamental Quartz Crystal,

FTX6.000M20A9-20/20D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7019837987
package instruction	DIP-2
Reach Compliance Code	unknown
Other features	AT CUT
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.002%
frequency tolerance	20 ppm
load capacitance	20 pF
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	6 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	D3.0XH9.0 (mm)/D0.118XH0.354 (inch)
Series resistance	100 Ω
surface mount	NO

Preview

Download Datasheet

View All

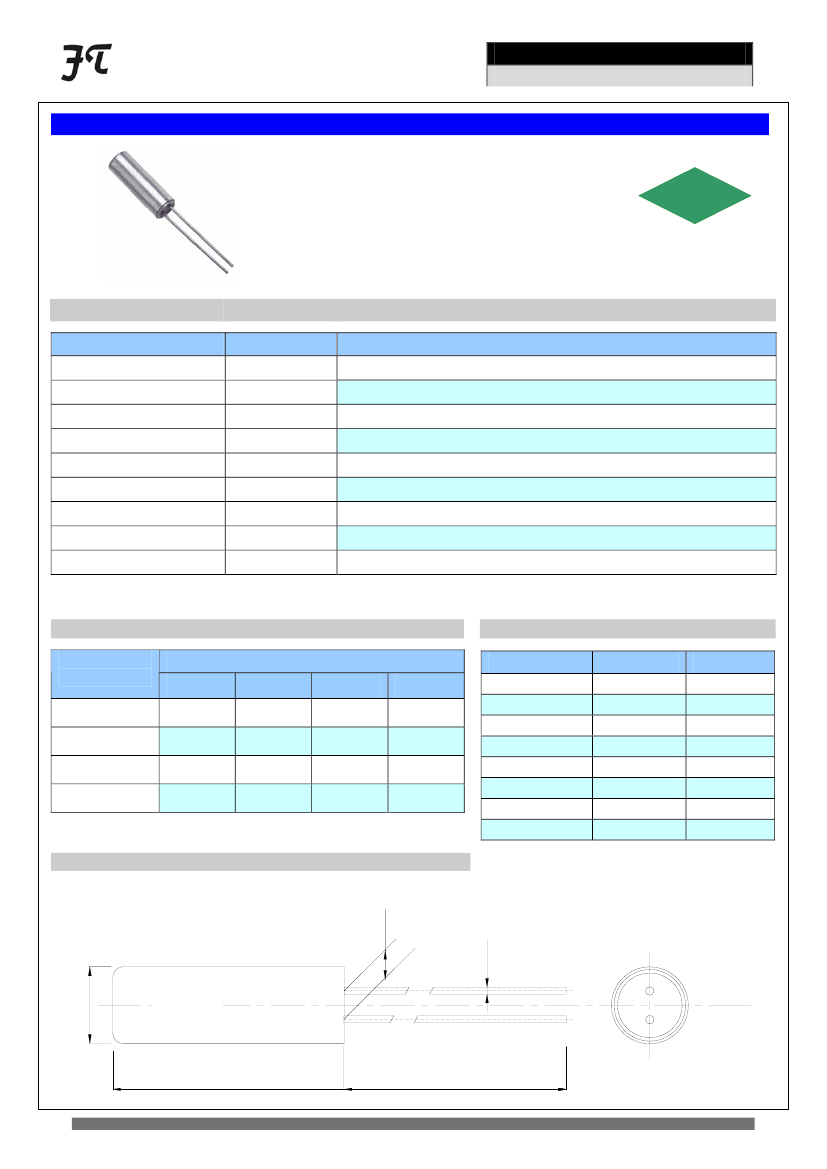

FRONTER ELECTRONICS CO., LTD.

深圳市福浪电子有限公司

DIP QUARTZ CRYSTAL RESONATOR

石英晶 ½ 谐振器

DIP Cylindrical Crystal MHzφ3×9 mm

3 x 9 mm cylinder type

Small size

±20 ppm Standard

With Insulation Sleeve Available

RoHS compliant

RoHS

2002/95/EC

★

PARAMETERS

技术参数

参数

频率范围

负½½电容

激励电平

频率偏差

谐振电阻

频率稳定性

工½温度范围

储存温度范围

年老化率

SPECIFICATION

规格

4.000½50.000MHz

20pF Std. 7pF~33pF available

10μW（300μW Max）

±10ppm / ±20ppm（at 25℃）

See Below

±10ppm½±30ppm

0½+50℃ to -40½+85℃

-40½+85℃

±5ppm max

PARAMETERS

Frequency Range

Loading Capacitance

Drive Level

Frequency Tolerance

Equivalent Resistance

Frequency Stability

Operating Temp. Range:

Storage Temp. Range:

Aging（25℃，First Year）

☉All

specification subject change without notice.

规格变化，恕不另行通知。

★

FREQUENCY STABILITY VS. TEMPERATURE

Operation

频率温度特性

★

ESR（SERIES RESISTANCE RS）

Frequency

Vibration Mode

AT CUT/FUND.

AT 3rd /OT

ESR

120Ω(MAX)

100Ω(MAX)

80Ω(MAX)

60Ω(MAX)

50Ω(MAX)

40Ω(MAX)

30Ω(MAX)

100Ω(MAX)

Frequency Stability

±10ppm

○

±20ppm

●

○

±30ppm

○

●

○

±50ppm

○

●

Temperature Range

0℃~+50℃

-10℃~+60℃

-20℃~+70℃

-40℃~+85℃

●

★

4.000-5.999MHz

6.000-7.999MHz

8.000-9.999MHz

10.000-11.999MHz

12.000-15.999MHz

16.000-19.999MHz

20.000-33.000MHz

30.000-50.000MHz

standard

○

available

DIMENSIONS& LAND PATTERN LAYOUT (Unit: mm)

外½尺寸

1.1

±

0.2

φ

3.0

±

0.2

9.0

9.5 min

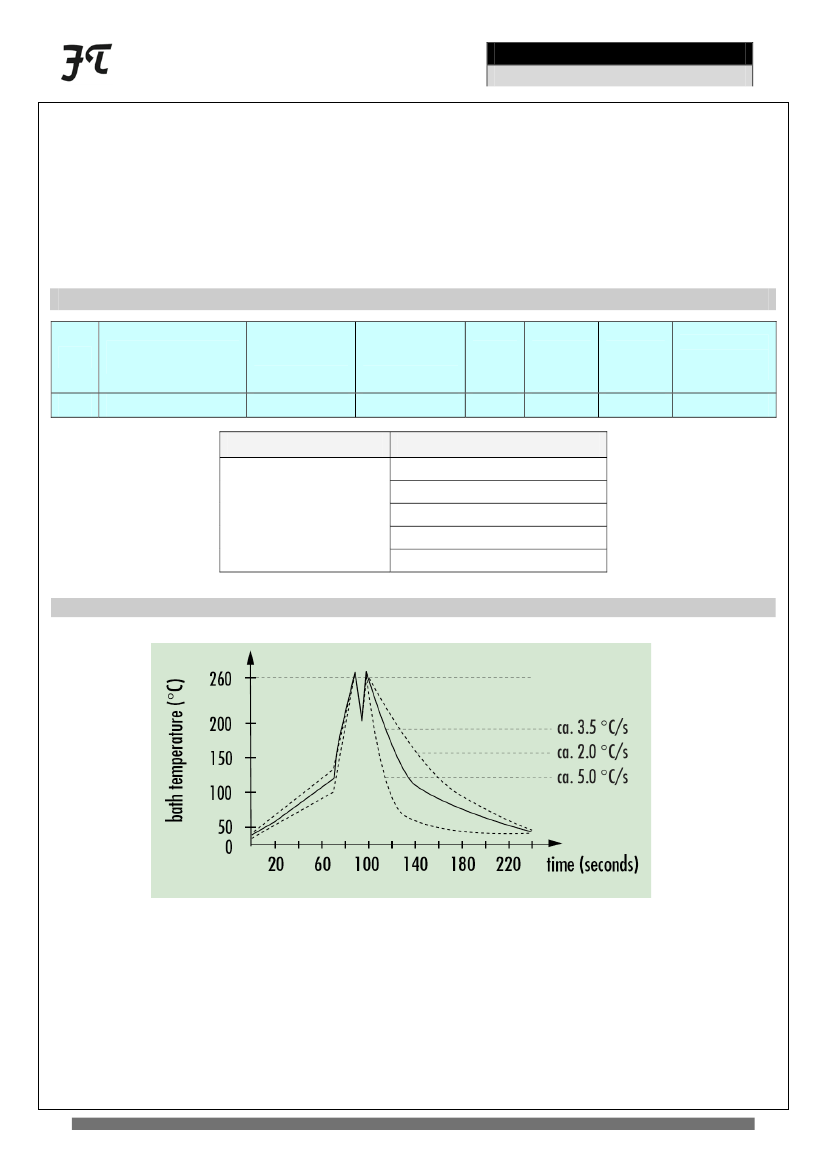

Address:Rm 1112-1117., Xinian Center. NO. 6021, Shennan Rd. Shenzhen Gaungdong 518040, China Tel:(86)755-83458718 Fax: (86)755-83459818 E-mial: sales@chinafronter.com

φ

0.3
