S1206N220J2ABP-E313

Description
Ceramic Capacitor, Ceramic, 100V, 5% +Tol, 5% -Tol, NP0, -/+30ppm/Cel TC, 0.000022uF, 1206,
CategoryPassive components    capacitor
File Size965KB,15 Pages
ManufacturerIBS Electronics Inc
Download Datasheet Parametric View All

S1206N220J2ABP-E313 Overview

Ceramic Capacitor, Ceramic, 100V, 5% +Tol, 5% -Tol, NP0, -/+30ppm/Cel TC, 0.000022uF, 1206,

S1206N220J2ABP-E313 Parametric

Parameter NameAttribute value
Objectid874110729
package instruction, 1206
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance0.000022 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
high1.52 mm
length3.2 mm
negative tolerance5%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package formSMT
method of packingTape, Embossed
positive tolerance5%
Rated (DC) voltage (URdc)100 V
seriesS1206N(2A,J TOL)
size code1206
Temperature characteristic codeNP0
Temperature Coefficient30ppm/Cel ppm/°C
width1.6 mm

S1206N220J2ABP-E313 Preview

Ceramic Chip Capacitors
Introduction
RGA Multilayer Ceramic Capacitors are constructed by screen printing alternative layers of internal metallic
electrodes onto ceramic dielectric materials and firing into a concrete monolithic body. Secondly, they are applied
with metal end terminations which are fired to assure permanent bonding with the individual internal electrodes.
Reliable performance is built-in through fine formulation of dielectric materials, preparation of conductive pastes,
automatic manufacturing and strict process control. This assures excellent control in dielectric thickness, electrode
integrity, electrode to termination continuity, termination to lead connection and coating insulation.
Dielectric formulations are identified and classified by the capacitance temperature coefficient of materials.
NPO, X7R, Z5U and Y5V are the four most common for industrial use. The internal electrodes and end
termination pastes are made of extremely precious metals; such as palladium, and silver, which result in a lower
dissipation factor. The inherent high resistivity of ceramic dielectrics yields very high values of insulation resis-
tance. A safety factor is also added up in thickness design to withstand undesired transient voltage surges. The
final construction has excellent frequency characteristics.
Since the soldering period of the SMT process takes a much longer time than the conventional assembly
process, a special treatment of MLC chip end termination is required to prevent silver electrode from leaching
during soldering. Nickel barrier is electroplated on the top of the silver layer which is suitable for this purpose,
along with a solder layer which is electroplated consequently to enhance the solderability.
This type of capacitor is especially produced for SMT or hybrid assembly, which use reflow, vapor phase, wave
or any other kind of soldering systems.
Features
Small in size and large in capacitance.
Superior humidity characteristic and long life due to complete sealing of inner electrodes.
Low inductance and excellent frequency characteristics.
Excellent solderability and resistance to soldering heat due to solder plating.
Reduction of assembly costs and matching with auto placement machines.
Application
Hybrid thick and thin film integrated circuits
Telecommunication equipment
Computers
Electronic wrist watches and cameras
TV tuners
Video cameras
Radio and Tape Recorders
Stacking
Layers
End-Terminated
Chip
Metallized
Terminal
Ceramic
Green sheet
Printed
Electrode
Electrode
End
Ceramic
Element
Double-
Electroplated Chip
Tin Layer
Construction
Nickel Layer
Inner Electrodes Ag-pd Layer
7267 Coldwater Canyon, North Hollywood. California 91605 • Phone (818) 765-8300 • Toll Free (800) 827-7422 • Fax (818) 765-2387
B2
Ceramic Chip Capacitors
Rated Voltage
Code
Voltage
(VDC)
1A
10
1C
16
1E
25
1H
50
2A
100
2D
200
2E
250
2H
500
2O
630
3A
1000
*For voltages above 100V, please consult factory
Part Dimension
Part Dimension (mm)
EIA
Size
0402
0603
0805
1206
Length
(L)
1.0±0.05
1.6±0.1
2.0±0.2
3.2±0.2
Width
(W)
.5±0.05
0.8±0.1
1.2
+0.2
-0.15
1.6±0.2
Thickness
(T)
0.5±0.05
0.8±0.1
1.4 Max.
1.52 Max.
* For larger case sizes, please consult factory.
* For 0201 specifications, please consult factory.
Temperature Characteristic Code
N(NPO)
Temperature
Coeff.
Operating
Temperature
0±30
ppm/°C
-55°C +125°C
W(X7R)
±15%
-55°C +125°C
Z(Z5U)
+22% -56%
+10°C +85°C
Y(Y5V)
+22% -82%
-30°C +85°C
Capacitance Code
Code
1R0
1R5
100
101
Capacitance(pF)
1
1.5
10
100
Code
102
222
472
103
Capacitance(pF)
1000
2200
4700
10000
7267 Coldwater Canyon, North Hollywood. California 91605 • Phone (818) 765-8300 • Toll Free (800) 827-7422 • Fax (818) 765-2387
B3
Ceramic Chip Capacitors
Tolerance Code
Code
B
C
D
F
G
Tolerance
±.1pF
±0.25pF
±0.50pF
±1%
±2%
Code
J
K
M
Z
Tolerance
±5%
±10%
±20%
+80 – 20%
Termination Code
Code
Termination Type
S
Silver
P (Pd-Ag)
N
Paladium Silver Nickel Barrier
Packaging Code
Packaging Code
Paper = P
Plastic = E
Quality Per Reel
01 = 1000
2 = 2000
3 = 3000
4 = 4000
5 = 5000
1 = 10,000
Size of Reel
7”
10”
13”
* For Taping Specification, please see Page B15
Part Numbering System
S
Chip
Cap.
0805
Size
0402
0603
0805
1206
N
T.C.
N= NP0
W= X7R
Z= Z5U
Y= Y5V
101
Capacitance Code
Two Significant digits +
No. of zeros. Example:
10PF=100
100PF=101
1,000PF=102
22,000PF=223
100,000PF=104
J
1H
R
Package
B: Bulk
R: Tape & Reel
N
Termination
N= Ni-Barrier
P= Pd-Ag
S= Silver
P47
Packaging
Code
See Box Above
Tolerance Voltage
J = ±5%
1A = 10V
K = ±10% 1C = 16V
M = ±20% 1E = 25V
Z = +80% 1H = 50V
-20%
2A = 100V
2E = 250V
7267 Coldwater Canyon, North Hollywood. California 91605 • Phone (818) 765-8300 • Toll Free (800) 827-7422 • Fax (818) 765-2387
B4
Ceramic Chip Capacitors
NPO Dielectric
Introduction:
The NPO (COG) is a high Q, low K temperature compensating type of dielectric with stable electrical properties
under varying voltage, temperature, frequency and time. It’s suitable for circuits that require low loss, as well as
timing and tuning applications.
Features:
Very low temperature coefficient
Stable electrical characteristics
Small size with high capacitance values
Consistent dimension and finish surface
Engineered for automatic handling and insertion
L
W
T
MB
(in mm)
G (min)
General Specifications
Capacitance Range
Capacitance Tolerance
Operating Temperature Range
Temperature Coefficient (C Max.)
Rated Voltage
Dissipation Factor (tan)
Insulation Resistance (IR), @25
@125
Aging Rate
Dielectric Strength
Testing Parameters
0.5pF to 4,700pF
± .1pF, ±0.25pF, ±0.5pF, ±2%, ±5%, ±10%
-55°C
+125°C
0±30 ppm
25, 50, 100VDC
0.1% Max, 0.04% typical
Lesser of 100G or 1000M F
Lesser of 1G or 10M F
0% per Decade hour
2.5 times the rated WVDC
For Values
1000pF MHz@1.0±0.2Vrms
For Values > 1000pF KHz@ 1.0±0.2Vrms
7267 Coldwater Canyon, North Hollywood. California 91605 • Phone (818) 765-8300 • Toll Free (800) 827-7422 • Fax (818) 765-2387
B5
Ceramic Chip Capacitors
NPO Dielectric

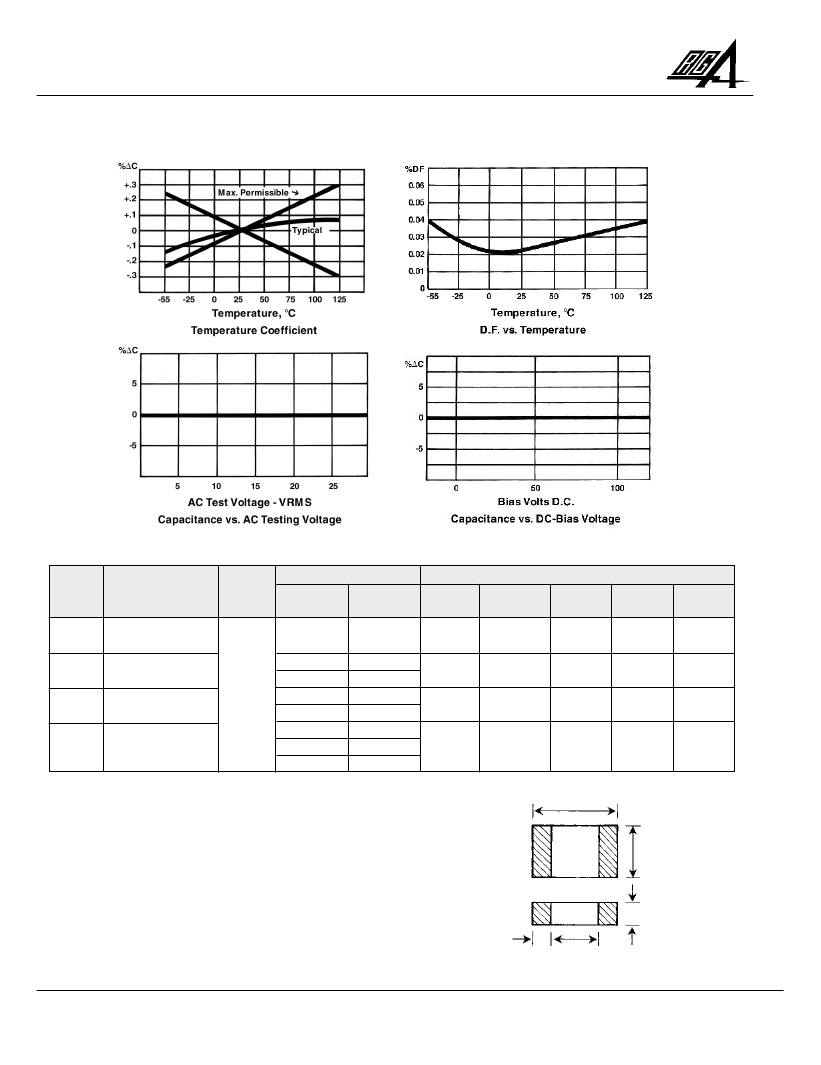

Typical Characteristic Curves
Capacitance Chart (NPO)
Case
Size
0402
0603
0805
Rated
Voltage
1H=50V
1E=25V
1H=50V/2A=100V
1H=50V/2A=100V
1H=50V/2A=100V
1H=50V/2A=100V
1H=50V/2A=100V
1H=50V
2A-100V
Temp.
Chart
Capacitance
Range
1pF 220pF
270pF 330pF
.5pF 9.9pF
10pF 680pF
.5pF 9.9pF
10pF
.5pF
10pF
10pF
1800pF
9.9pF
4700pF
3300pF
Dimension (mm)
L
1.0±0.05
1.6±0.10
2.0±0.20
Tolerance
J,K
C,D
J, K
C,D
J, K
C,D
G,J,K
J
W
0.5±0.05
0.8±0.10
1.2+0.2-0.15
T(max)
0.5±0.05
0.8±0.10
1.4
MB(min)
0.10
0.20
0.25
G(min)
0.30
0.30
0.70
0±30
PPM
1206
3.2±0.20
1.6±0.20
1.52
0.25
1.40
* Additional capacitances and voltages available upon request.
* For 0201 specifications, please consult factory.
L
W
T
MB
G (min)
7267 Coldwater Canyon, North Hollywood. California 91605 • Phone (818) 765-8300 • Toll Free (800) 827-7422 • Fax (818) 765-2387
B6
