Quartz crystals
GENERAL PRODUCT SPECIFICATION
Quartz crystal unit in ceramic seam seal SMD package,
size 3.2 x 2.5mm.

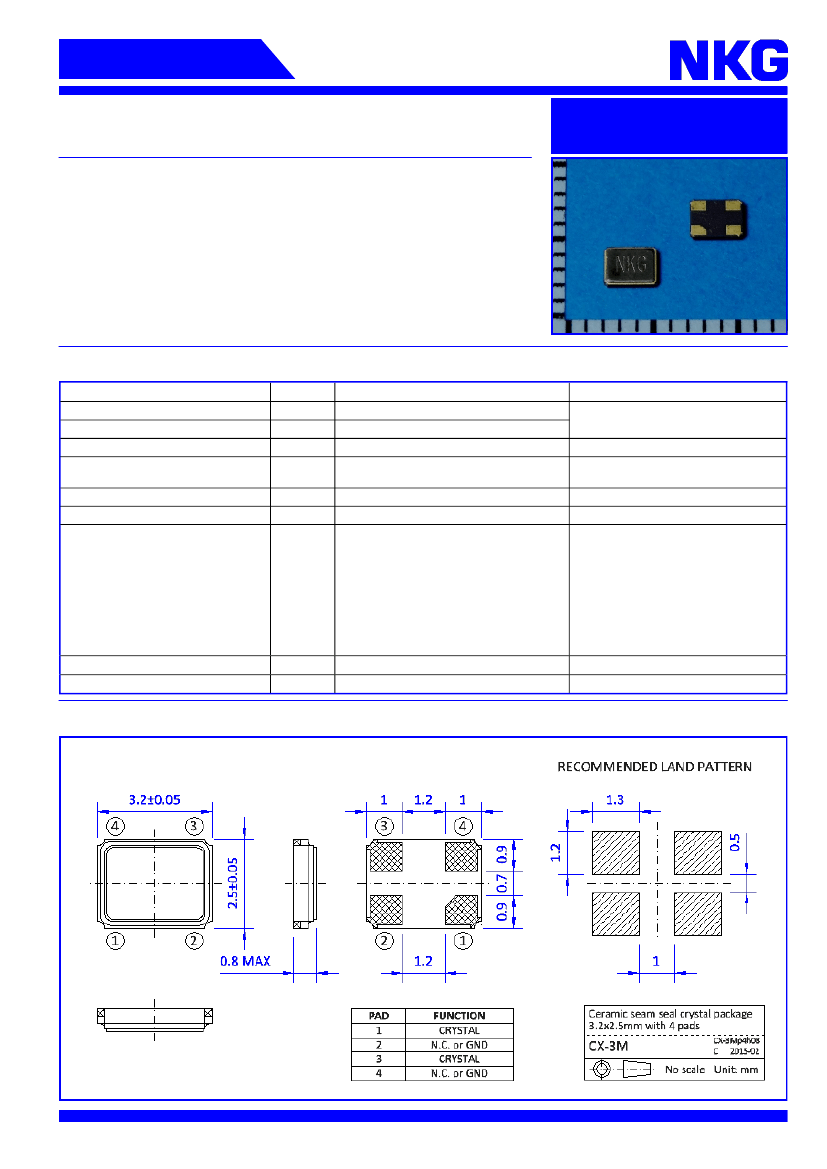

PRODUCT FEATURES
S3M
Miniature package size 3.2 x 2.5 x 0.6mm with 4 pads.
Excellent heat and shock resistance.
Highly reliable and low aging due to vacuum seal.
Automotive grade compliant to AEC-Q200 is available.
Portable devices
USB memory devices.
APPLICATIONS
Wireless, Bluetooth
Mobil communication
PRODUCT SPECIFICATIONS
Parameter
Frequency range
Operation mode
Frequency tolerance
Stability over operating temp.
Operating temperature range
Load capacitance
Symbol
F
N
—
Δf/f
T
C
T
OP
CL
Specifications
Remarks
Fundamental up to 60MHz
11.0 ~ 120.0MHz
FUNDAMENTAL / 3rd OVERTONE
Overtone above 54MHz
±10ppm, ±20ppm, ±30ppm, ±50ppm
Other options available
±10ppm, ±20ppm, ±30ppm, ±50ppm
temperature range
Other options available
–20°C ~+70°C or –40°C ~+85°C
Please specify load capacitance
8 to 32pF or SERIES
150Ω MAX
FUND mode
11 ~ 12MHz
100Ω MAX
FUND mode
12 ~ 14MHz
80Ω MAX
FUND mode
14 ~ 16MHz
60Ω MAX
FUND mode
16 ~ 20MHz
50Ω MAX
FUND mode
20 ~ 26MHz
40Ω MAX
FUND mode
27 ~ 60MHz
100Ω MAX
3rd OT mode 54 ~120MHz
100µW TYP, 300µW MAX
—
@+25°C
±3ppm
Depending on operating
Equivalent series resistance
ESR
Drive level
Aging first year
MECHANICAL DIMENSIONS
DL
Δf/y
1
Page 1
NKG-GPS_S3M_RevE
2018 / 05
G103
Quartz crystals
GENERAL PRODUCT SPECIFICATION
Quartz crystal unit in ceramic seam seal SMD package,
size 3.2 x 2.5mm.

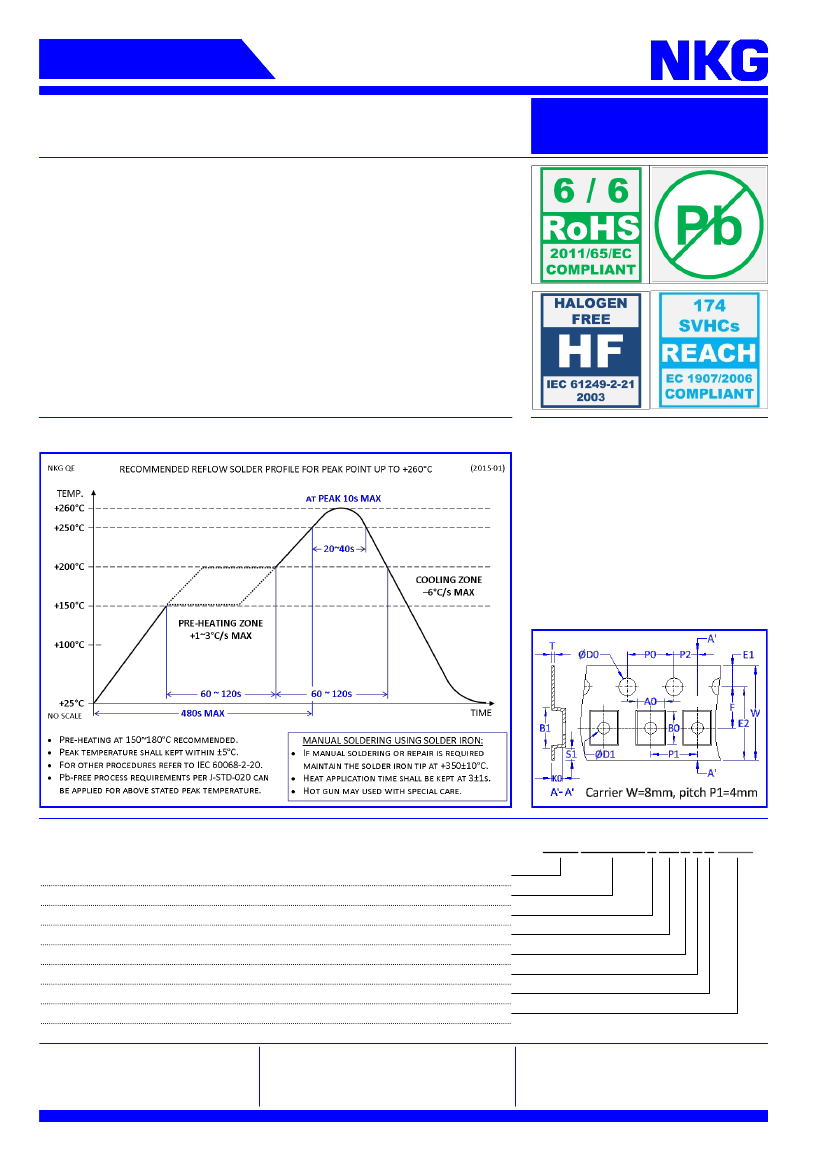

ENVIRONMENTAL COMPLIANCE INFORMATION
S3M
RoHS 6/6 compliant (Directive 2011/65/EC) and LEAD-FREE.
Compliant to RoHS 2 (Directive 2015/863) (also called RoHS 10).
HALOGEN-FREE per definition of IEC 61249-2-21 2033.
None-use of SVHCs per REACH is currently given, continuously
monitored and updated as the commission issues new releases.
Product does not contain any Phthalates (PHs).
Product does not contain PVC (Polyvinyl Chloride).
Product does not contain PFOS/PFOA nor being same used to
manufacture the components of this product.
Moisture sensitivity level (MSL) 1 per J-STD-020C.
SOLDERING RECOMMONDATIONS
PACKAGING INFORMATION
Packaging in Tape & Reel in
compliance to EIA-481.
QTY per reel: 3,000pcs
or alternatively 2,000pcs
Reel DIA A=180mm.
Embossed Carrier tape
width W = 8mm (or 12mm).
Component pitch P1 = 4mm.
PART NUMBER SYNTAX
Part number family
(represents product model and package size / type)
Nominal frequency
(in MHz with at least four digits after decimal point)
Operation mode code
(F = Fundamental / T = 3rd overtone)
Load capacitance
(actual value or “00” for SERIES)
Operating temperature range code
(i.e. C= -10~60°C, E= -20~70°C, M= -40~85°C)
Frequency tolerance designator
(i.e. 1=10ppm, 2=20ppm, Y=15ppm, Z=25ppm)
Frequency stability designator
(i.e. 3=30ppm, 5=50ppm, Y=15ppm, Z=25ppm)
Part number extension
(only for none-standard or customized part)
S3M 25.0000 F 18 E 2 3
-EXT
For more information please contact us.
