9406S-E01-11-03-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> 9406S-E01-11-03-TR

9406S-E01-11-03-TR: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size117KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric View All

9406S-E01-11-03-TR Overview

Board Connector, 6 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug

9406S-E01-11-03-TR Parametric

Parameter Name	Attribute value
Objectid	1324274958
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TAPE & REEL PACKAGING
body width	0.118 inch
subject depth	0.142 inch
body length	0.168 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	9600S
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.556 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	6

Preview

Download Datasheet

View All

Specifications

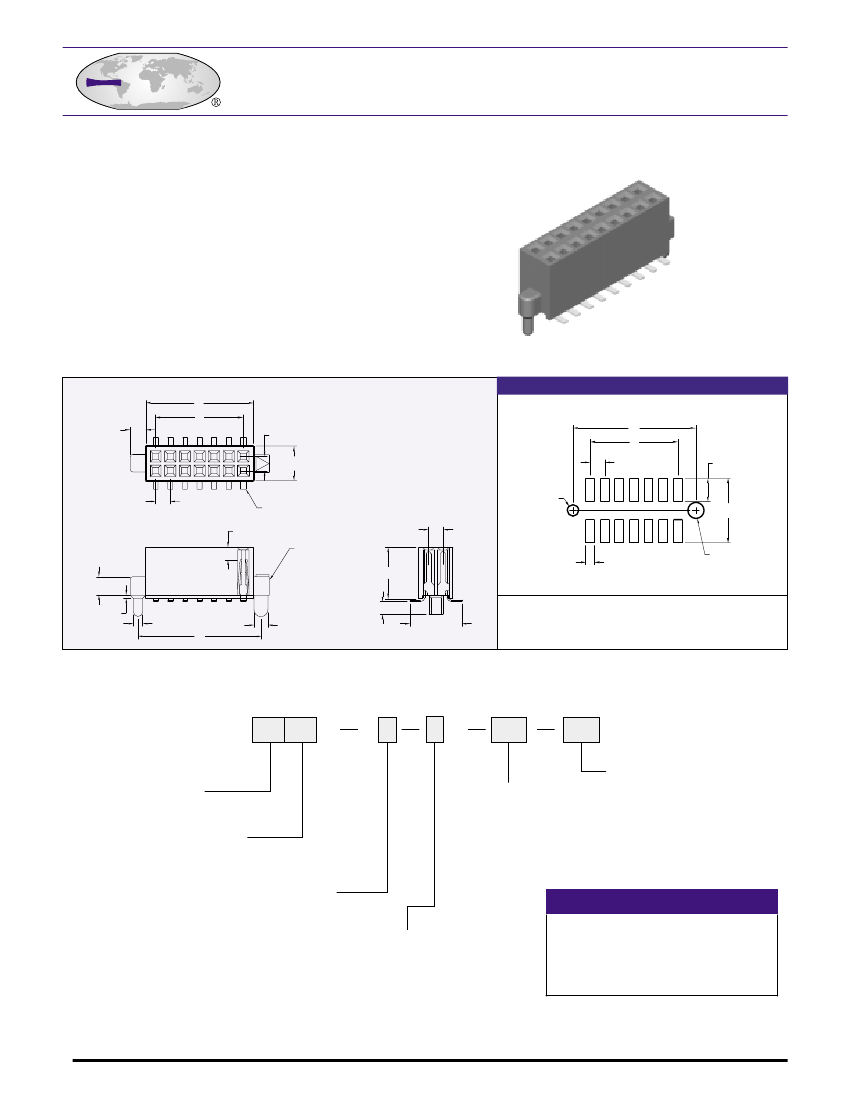

9600S Series Sockets

.050 x .050 SMT Socket

Insulator Material: Glass filled polyester, Thermoplastic,

94V-O Nylon-6T, UL Recognized.

Contact Material: Copper Alloy

Contact Plating: Gold or Tin over .000050” Ni

(See contact plating options)

Insulation Resistance:

5000 M ohms min.

Contacts Resistance:

20 m ohms max.

Dielectric Withstand Voltage: 500 VAC

Current Rating:

1 AMP

Operating Temperature:

-40°C To +105°C

Max Processing Temp:

230°C for 60 seconds

UL File Numbers:

E146967 & E176234

PCB LAYOUT

.053 [1.35]

.050 [1.27]

.118 [3.0]

.050 [1.27]

.080 [2.05]

.050 [1.27]

.016 [.41] X .006 [.15]

.043 [1.10]

LOCATING PEG

(OPTIONAL)

BODY HEIGHT

.050 [1.27]

Ø .039 [1.00]

.220 [5.60]

.030 [.76]

Ø.055 [1.40]

.063 [1.60]

.012 [.30]

.043 [1.10]

Ø .032 [.80]

DIMENSIONS ARE IN INCHES & [MM]

Ø .047 [1.20]

.177 [4.50]

= .018 + .050 x No. of Pos.

= .050 x (No. of Cont./2 -1)

= .120 + .050 x (No. of Cont./2 -1)

PART NUMBERING

94 XX S

SERIES CODE

.050 SOCKETS

E X

X 1

PACKAGING

= TAPE & REEL PACKAGING

= PICK AND PLACE PAD

BLANK = STANDARD PACKAGING

CONTACT PLATING

.000050” Nickel underplate

MATING

TAIL

100µ”Sn

= 100µ”Sn

Flash Au

= Flash Au

15µ”Au

= 15µ”Au

30µ”Au

= 30µ”Au

NO. OF CONTACTS

06 - 98

100 =

CONSULT FACTORY FOR

AND

PACKAGING

AVAILABILITY

BODY HEIGHT

= .142 [3.60]

= .177 [4.50]

SUGGESTED MATING CONNECTORS

LOCATING PEG

= WITH LOCATING PEG

= WITHOUT LOCATING PEG

96XX-DX-XX-XX

96XX-EX-XX-XX

96XX-FX-XX-XX

96XX-GX-XX-XX

96XX-HX-XX-XX-XXXX

96XX-IX-XX-XX

(PAGE F-08)

(PAGE F-09)

(PAGE F-10)

(PAGE F-11)

(PAGE F-12)

(PAGE F-13)

CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR SPECIFICATION
