EQ3225-T-V10-9.600-2/-30+80 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EQ3225-T-V10-9.600-2/-30+80

EQ3225-T-V10-9.600-2/-30+80: DescriptionHCMOS Output Clock Oscillator, 9.6MHz Nom, ROHS AND REACH COMPLIANT, ULTRA MINIATURE, CERAMIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size192KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

EQ3225-T-V10-9.600-2/-30+80 Overview

HCMOS Output Clock Oscillator, 9.6MHz Nom, ROHS AND REACH COMPLIANT, ULTRA MINIATURE, CERAMIC, SMD, 4 PIN

EQ3225-T-V10-9.600-2/-30+80 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1083712057
Reach Compliance Code	compliant
Ageing	1 PPM/YEAR
Maximum control voltage	3.3 V
Minimum control voltage
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	10 ppm
frequency stability	2%
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	9.6 MHz
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
Oscillator type	HCMOS
Output load	1 KOHM, 15 pF
physical size	3.2mm x 2.5mm x 1.0mm
Maximum supply voltage	3.6 V
Minimum supply voltage	2.4 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

EURO

QUARTZ

3.2 x 2.5mm SMD TCXO

Ultra-miniature 3.2 x 2.5 x 1.0mm SMD package

Frequency range: 9.6MHz to 30.0MHz

Available with either CMOS or clipped sinewave output

May be ordered as TCXO or Voltage-Controlled TCXO

Supply voltage 3.3 Volts

DESCRIPTION

EQ3225 TCXOs are packaged in an ultra-miniature 4 pad ceramic,

3.2 x 2.5mm outline SMD package. The part is available as a TCXO

or as a voltage-controlled TCXO (VCTCXO). Output may be specified

as either clipped sinewave or CMOS. The part has excellent phase

nose characteristics and provides a stable source of clock signals over

a wide operating temperature range.

EQ3225 TCXO

9.6MHz to 30.0MHz

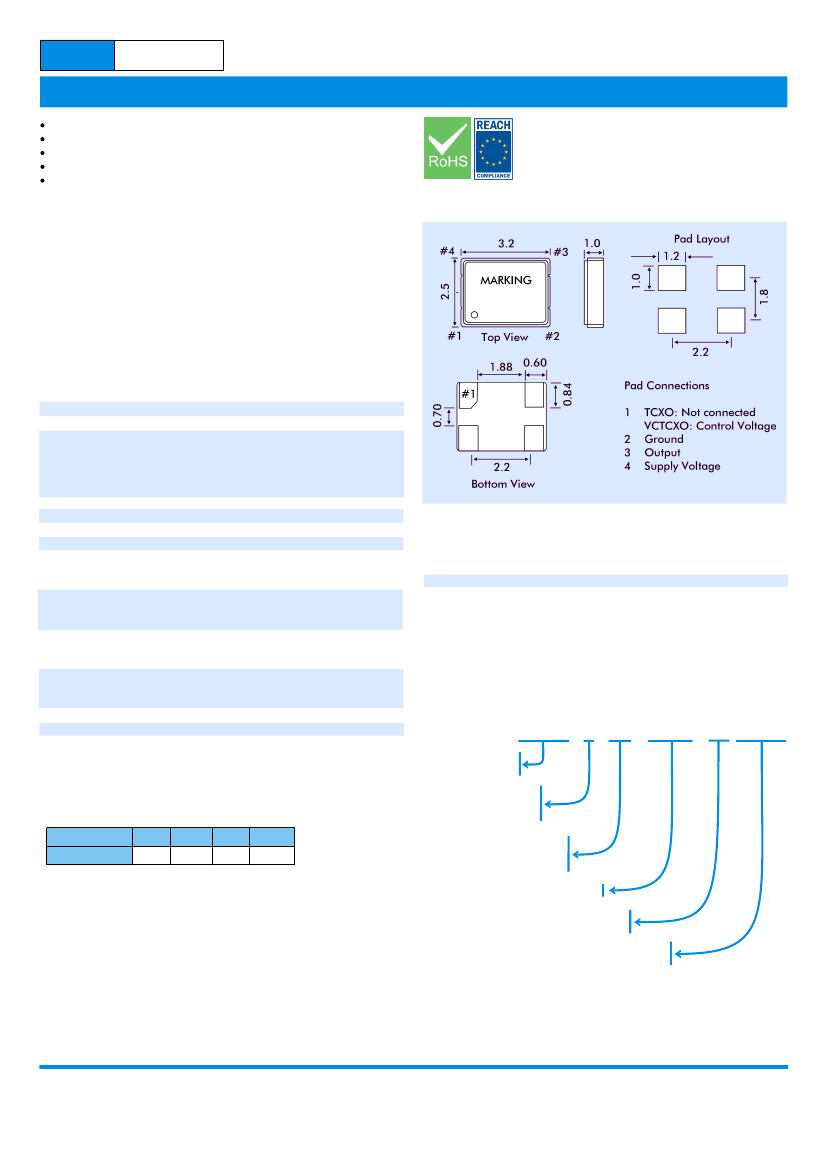

EQ3225 - OUTLINES AND DIMENSIONS

SPECIFICATION

Product Code:

EQ3225

Frequency Range:

9.6MHz to 30.0MHz

Frequency Stability

vs. Temperature Range:

±2.0 or ±2.5ppm

vs. Supply Voltage (±5%):

±0.3ppm maximum

vs. Load Change (±5%):

±0.2ppm maximum

vs. Ageing (at 25°C):

±1.0ppm maximum

Intitial Frequency Tolerance:

±1.5ppm maximum

Operating Temperature Range:

-30° to +80°C

Storage Temperature Range:

-40° to +90°C

Supply Voltage:

+2.4V min., +3.6V max.

Current Consumption

CMOS:

6.0mA maximum

Clipped Sinewave: 2.0mA maximum

Output Voltage Level

CMOS:

80% Vdd minimum

Clipped Sinewave:

0.8V p-p minimum

Output Load

CMOS:

1kΩ//15pF

Clipped Sinewave:

10kΩ//10pF

Dynamic Behaviour

-20° to +80°C:

±0.30ppm/°C

-30° to -20°C:

±1.0ppm/°C

Start-up Time:

3.0ms max. to 90% Vdd

Duty Cycle:

60/40%

Harmonics:

-9dBc maximum

EQ3225 VOLTAGE CONTROL SPECIFICATION

Control Voltage:

Frequency Deviation:

Nominal 50% Vdd (0V min, Vdd max.)

±5.0ppm min., ±15ppm max.

PART NUMBERS

Example: EQ3225-S-V10-20.000-2.5/-30+80

Explanation:

Series Description

EQ3225

Output Type

T = HCMOS

S = Clipped Sinewave

EQ3225 - S - V10 - 20.000 - 2.5/-30+80

SSB PHASE NOISE at 25°C

Offset

EQ3225 (dBc/Hz)

10Hz

-86

100Hz

-115

1kHz

-138

10kHz

-146

VCTCXO

(V10 = VCTCXO ±10ppm

pullability.) Blank for TCXO

Nominal Frequency (MHz)

Stability over Temperature

±ppm

Operating Temperature Range

Lower and upper limits °C

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
