EURO
QUARTZ
5.0 x 3.2mm SMD TCXO
Miniature 5.0 x 3.2 x 1.5mm SMD package
Frequency range: 9.6MHz to 30.0MHz
Available with either CMOS or clipped sinewave output
May be ordered as TCXO or Voltage-Controlled TCXO
Supply voltage 3.3 Volts
DESCRIPTION
EQ5032 TCXOs are packaged in a miniature 4 pad ceramic, 5.0 x
3.2mm outline SMD package. The part is available as a TCXO or as a
voltage-controlled TCXO (VCTCXO). Output may be specified as
either clipped sinewave or CMOS. The part has excellent phase nose
characteristics and provides a stable source of clock signals over a
wide operating temperature range.
EQ5032 TCXO
9.6MHz to 30.0MHz

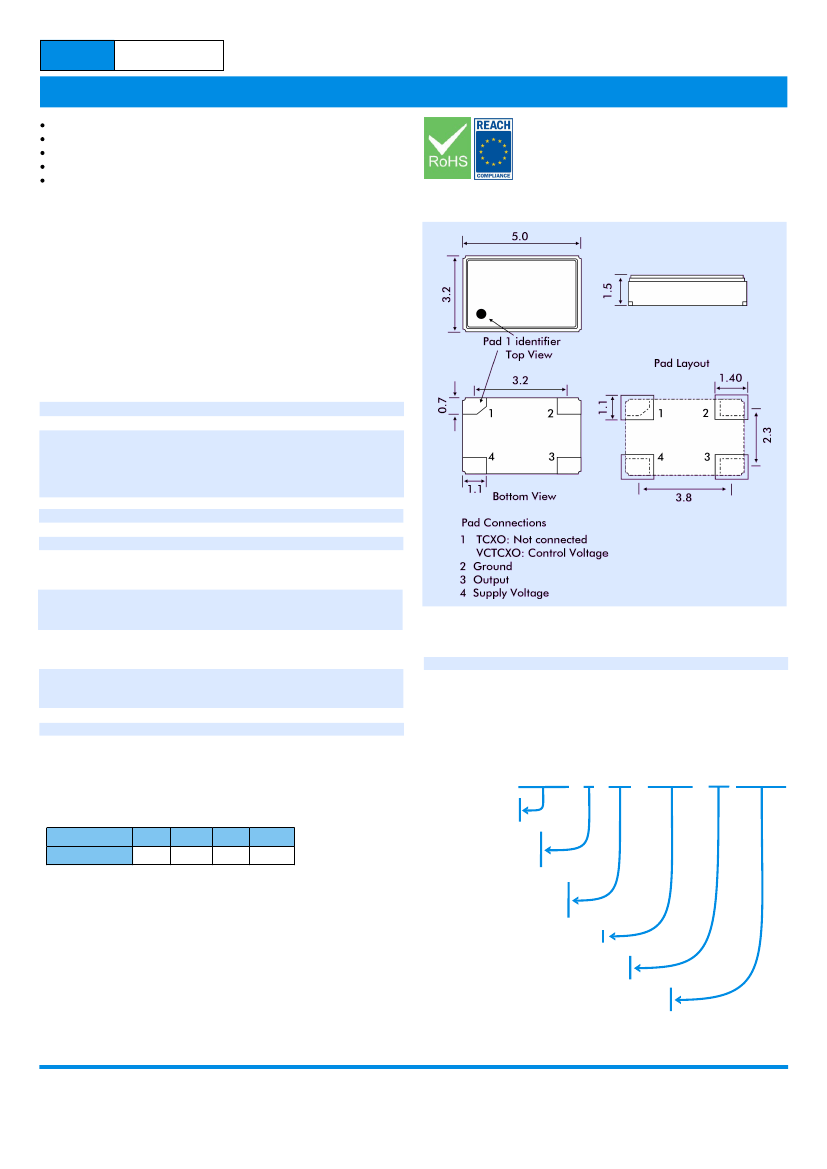

EQ5032 - OUTLINES AND DIMENSIONS
SPECIFICATION
Product Code:
EQ5032
Frequency Range:
9.6MHz to 30.0MHz
Frequency Stability
vs. Temperature Range:
±2.0 or ±2.5ppm
vs. Supply Voltage (±5%):
±0.3ppm maximum
vs. Load Change (±5%):
±0.2ppm maximum
vs. Ageing (at 25°C):
±1.0ppm maximum
Intitial Frequency Tolerance:
±1.5ppm maximum
Operating Temperature Range:
-30° to +80°C
Storage Temperature Range:
-40° to +90°C
Supply Voltage:
+2.4V min., +3.6V max.
Current Consumption
CMOS:
6.0mA maximum
Clipped Sinewave: 2.0mA maximum
Output Voltage Level
CMOS:
80% Vdd minimum
Clipped Sinewave:
0.8V p-p minimum
Output Load
CMOS:
1kΩ//15pF
Clipped Sinewave:
10kΩ//10pF
Dynamic Behaviour
-20° to +80°C:
±0.30ppm/°C
-30° to -20°C:
±1.0ppm/°C
Start-up Time:
3.0ms max. to 90% Vdd
Duty Cycle:
60/40%
Harmonics:
-9dBc maximum
EQ5032 VOLTAGE CONTROL SPECIFICATION
Control Voltage:
Frequency Deviation:
Nominal 50% Vdd (0V min, Vdd max.)
±5.0ppm min., ±15ppm max.
PART NUMBERS
Example: EQ5032-S-V10-20.000-2.5/-30+80
Explanation:
EQ5032 - S - V10 - 20.000 - 2.5/-30+80
SSB PHASE NOISE at 25°C
Offset
EQ5032 (dBc/Hz)
10Hz
-86
100Hz
-115
1kHz
-138
10kHz
-146
Series Description
EQ5032
Output Type
T = HCMOS
S = Clipped Sinewave
VCTCXO
(V10 = VCTCXO ±10ppm
pullability.) Blank for TCXO
Nominal Frequency (MHz)
Stability over Temperature
±ppm
Operating Temperature Range
Lower and upper limits °C
