380HS131XMT2308

Description
Connector Accessory
CategoryThe connector    Connector bracket
File Size161KB,1 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

380HS131XMT2308 Overview

Connector Accessory

380HS131XMT2308 Parametric

Parameter NameAttribute value
Objectid1331992001
Reach Compliance Codecompliant
Related Mil-Spec Back CasesMIL-DTL-38999 SERIES III, MIL-DTL-38999 SERIES IV
Connector bracket typeCONNECTOR ACCESSORY
DIN complianceNO
IEC complianceNO
MIL complianceYES
MaterialCOMPOSITE
Military connector accessories nameBACKSHELL
Maximum operating temperature175 °C
Minimum operating temperature-65 °C
Housing size23
EMI/RFI Shield Termination Backshell
with Strain-Relief Clamp and Rotatable Coupling
CONNECTOR DESIGNATOR:
Angle and Profile
S
- Straight
Product Series
380
- EMI/RFI Non Environmental
Backshells with Strain Relief
Finish Symbol
(See
Table III)
Strain Relief Style
SB
- Shrink Boot Groove
SBT
- Shrink Boot Groove
with boot supplied
(Omit for none)
A
F
L
H
MIL-DTL-5015, -26482 Series II, and
-83723 Series I and III
MIL-DTL-38999 Series I, II
MIL-DTL-38999 Series 1.5 (JN1003)
MIL-DTL-38999 Series III and IV
Basic Part
Number
380
H
S
131
XM
15 - 01
SB
ROTATABLE COUPLING
Connector Designator
A, F, L and H
Connector Shell Size
(See
Table II)
Cable Entry
(See
Table IV)
1.300 +.02
(33.0 + 0.5)
.390 (10.0)
E
F
D DIA
Equally Spaced Holes
to Accommodate Knit Braid 107-044
Self-Locking Rotatable Coupling
Optional Shrink Boot Groove
TABLE II: SHELL SIZE
Shell Max
Size Entry
A Code**
08
00
01
10
02
12
14
03
16
04
05
18
20
06
22
07
08
24
Shell
Max
Size
Entry
F/L H Code**
08 09
01
10 11
02
12 13
03
14 15
04
16 17
05
18 19
06
20 21
07
22 23
08
24 25
09
APPLICATION NOTES
1.
2.
3.
4.
5.
Coupling nut and saddle bars supplied unplated.
TABLE IV: CABLE ENTRY
E
F
Number
Entry
D
Code** +.010 (0.25) +.020 (0.50) +.060 (1.5) of Holes
.512 (13.0)
.880 (22.4) 2
00
.268 (6.8)
.512 (13.0)
.940 (23.9) 2

01
.354 (9.0)
.512 (13.0) 1.170 (29.7) 2

02
.472 (12.0)
.630 (16.0) 1.280 (32.5) 2
03
.591 (15.0)
.630 (16.0) 1.410 (35.8) 2
04
.709 (18.0)
.630 (16.0) 1.500 (38.1) 2
05
.837 (21.3)
.630 (16.0) 1.560 (39.6) 2
06
.945 (24.0)
.630 (16.0) 1.690 (42.9) 4
07
1.063 (27.0)
.630 (16.0) 1.820 (46.2) 4
08
1.191 (30.3)
.630 (16.0) 1.910 (48.5) 4
09
1.319 (33.5)
Oval Holes, .256 (6.5) x .512 (13.0)

Oval Holes, .315 (8.0) x .512 (13.0)
Circular Holes, .512 (13.0) Diameter.
TABLE III: FINISH
Symbol
XM
XMT
XW
Finish Description
2000 Hour Corrosion Resistant Electroless Nickel
2000 Hour Corrosion Resistant Ni-PTFE, Nickel-
Fluorocarbon Polymer.
1000 Hour Grey
TM
2000 Hour Corrosion ResistantCadmium/Olive
Drab over Electroless Nickel
Printed in U.S.A.
Metric dimensions (mm) are in parentheses and are for reference only.
Consult factory for additional entry sizes available.
For angled part requirements, use in conjuncion with Glenair 327-060
Extenders.
See Table I in Intro for additional connector front-end dimensions.
© 2009 Glenair, Inc.
CAGE Code 06324
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-57
Rev. 12 FEBRUARY 2013

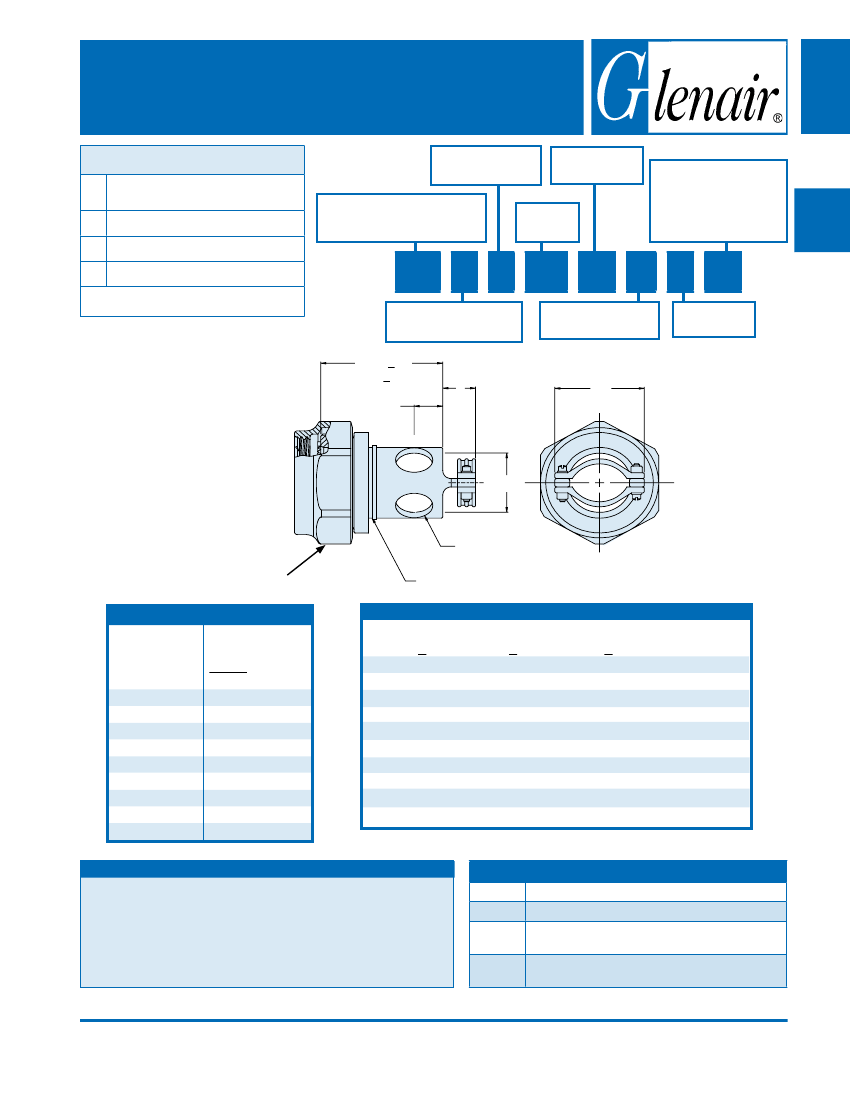

Composite
Backshells
380-131
Composite Knit-Braid Style
A
B
C
D
E
F
G
