GSX-323/112SFFREQ datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> GSX-323/112SFFREQ

GSX-323/112SFFREQ: DescriptionSeries - Fundamental Quartz Crystal, 16MHz Min, 48MHz Max, ROHS COMPLIANT, MINIATURE, CERAMIC PACKAGE-4; CategoryPassive components Crystal/resonator; File Size65KB，2 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

GSX-323/112SFFREQ Overview

Series - Fundamental Quartz Crystal, 16MHz Min, 48MHz Max, ROHS COMPLIANT, MINIATURE, CERAMIC PACKAGE-4

GSX-323/112SFFREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1629002520
package instruction	ROHS COMPLIANT, MINIATURE, CERAMIC PACKAGE-4
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	1 PPM/FIRST YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.001%
frequency tolerance	10 ppm
JESD-609 code	e4
Manufacturer's serial number	GSX-323
Installation features	SURFACE MOUNT
Maximum operating frequency	48 MHz
Minimum operating frequency	16 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L2.5XB2.0XH0.6 (mm)/L0.098XB0.079XH0.024 (inch)
Series resistance	100 Ω
surface mount	YES
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

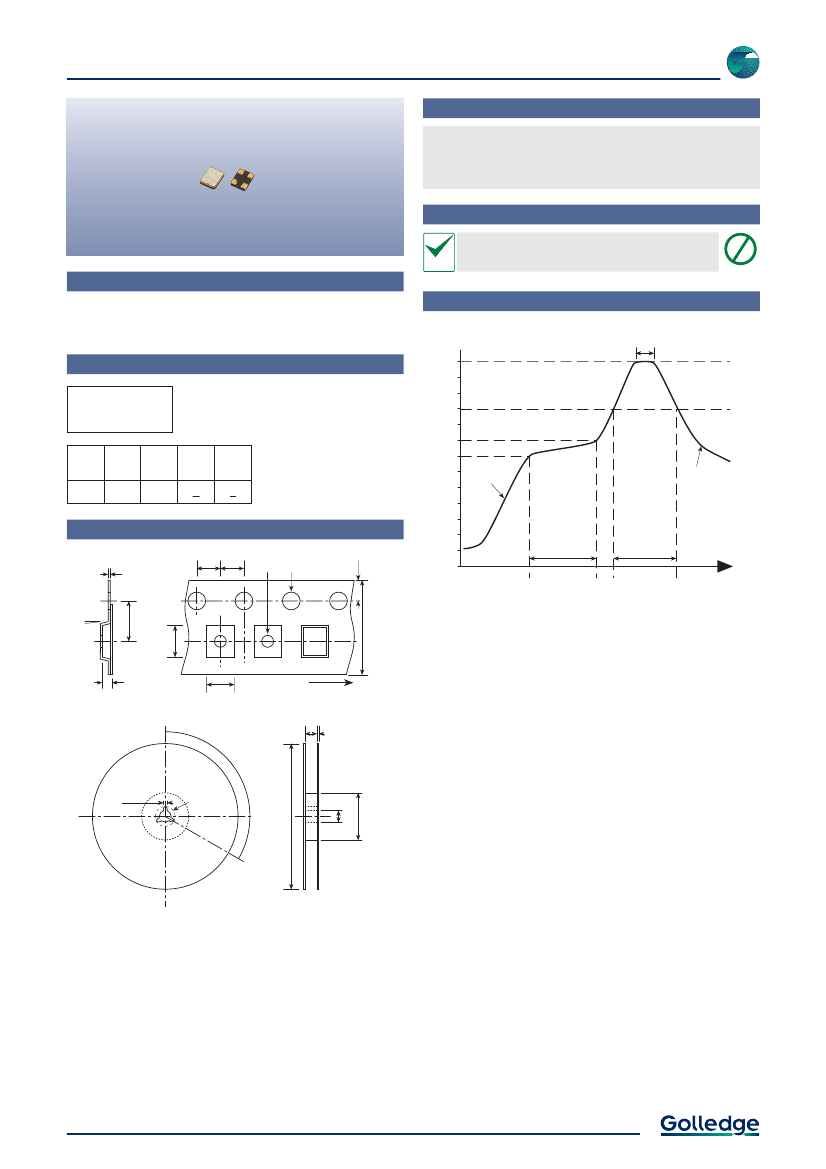

SM Crystal for Bluetooth / Wireless

Specifications

GSX-323

Product

GSX-323

Option

Codes

Parameters

Frequency range:

16.0 ~ 48.0MHz

Calibration tolerance:

±10ppm

±15ppm

±20ppm

Other values (±7.5 ~ ±100ppm)

±10ppm

±15ppm

±20ppm

±30ppm

Other values (±7.5 ~ ±100ppm)

specify

Temperature stability:

2.50

±0.10

2.00

±0.10

0.60

(max)

ACTUAL SIZE

0.40

0.90

0.20

0.60

1.00

Operating temperature range:

-10 to +60°C

-20 to +70°C

-30 to +80°C

Other values

Storage temperature range:

-40 to +85°C

Circuit condition:

8pF

9pF

12pF

16pF

Series resonant

Other values

Fundamental

1.20 1.20

TOP VIEW

PAD

CONNECTION

Crystal

Ground & lid

Crystal

Ground & lid

specify

Oscillation mode:

Scale 4:1

Equivalent series resistance:

100 max

Ageing:

±1ppm max first year

10µW

Features

Test drive level:

Ultra-miniature for maximum space saving

Ideal for Bluetooth / Wireless applications

Metal lid can be grounded to minimise EMI

Seam sealed for excellent long-term stability

Soldering condition:

260°C, 10 sec x2 max

Standard.

Optional - Please specify required code(s) when ordering

Ordering Information

Part No, or product name + option codes + frequency

eg:

GSX-323/111NF 16.0MHz

10/10/10/9-F

GSX-323/1P3AF 26.0MHz

10/15/30/10-F

Option code X (eg GSX-323/X) denotes a custom specification.

±10ppm temperature stability may not be available over -30+80C.

Check with our sales office before ordering.

Bluetooth Applications

Frequency

16.0MHz

26.0MHz

Specification

9pF, 9ppm/pF typ pullability

9pF, 14ppm/pF typ pullability

CSR

Part No

MA07246*

MA07232*

* Designed for use with CSR chipset solutions. Golledge is a global supply partner for CSR

Tel:

+44 1460 256 100

04 Dec 2007

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
