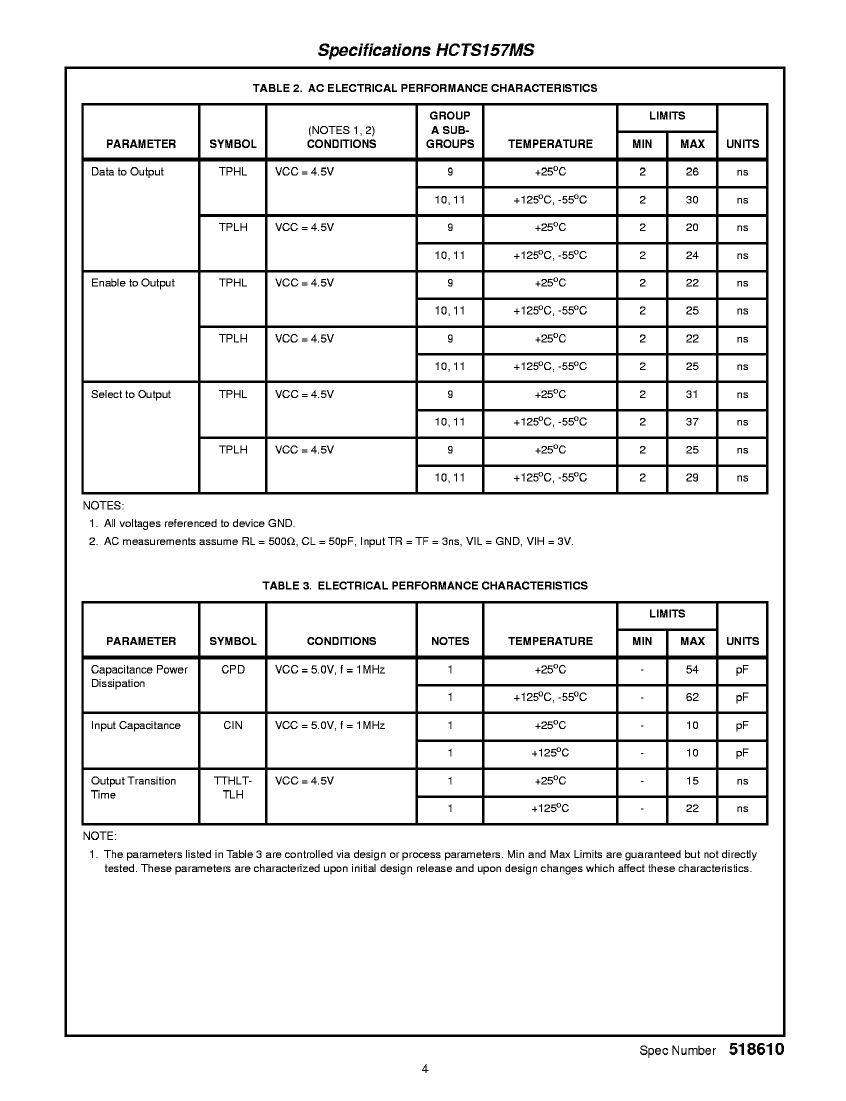

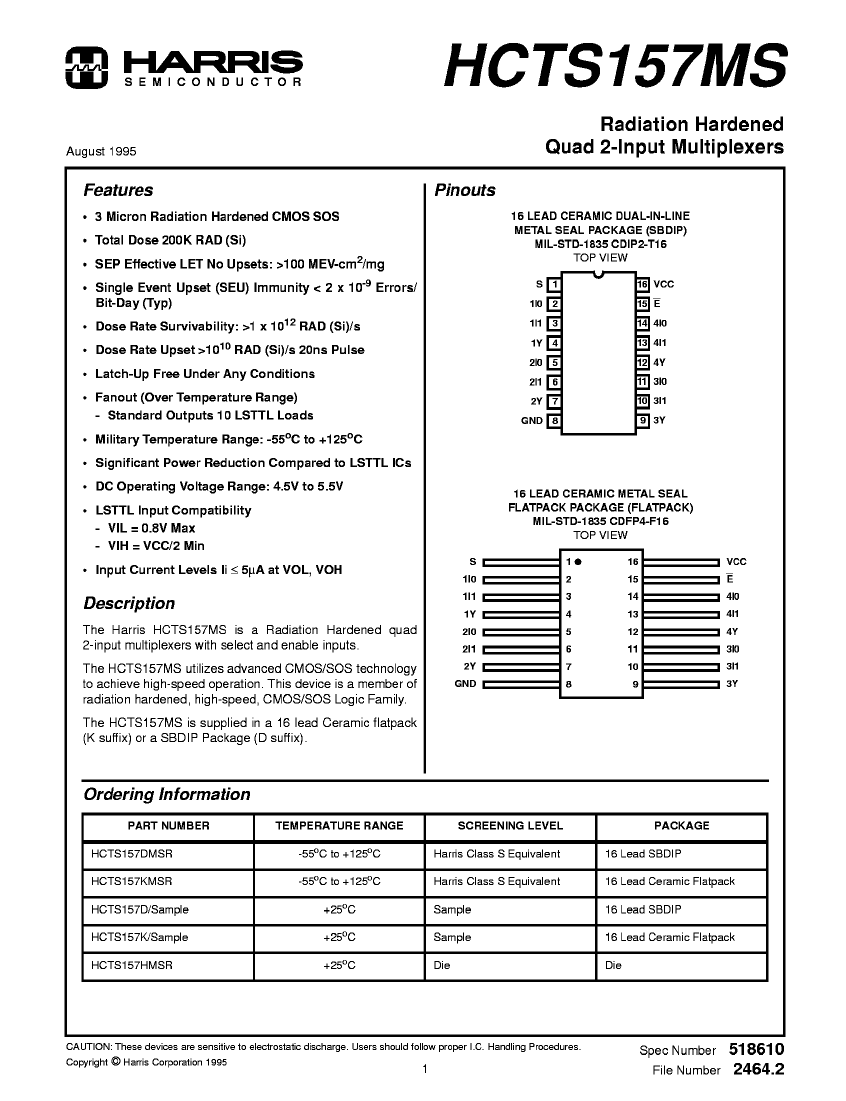

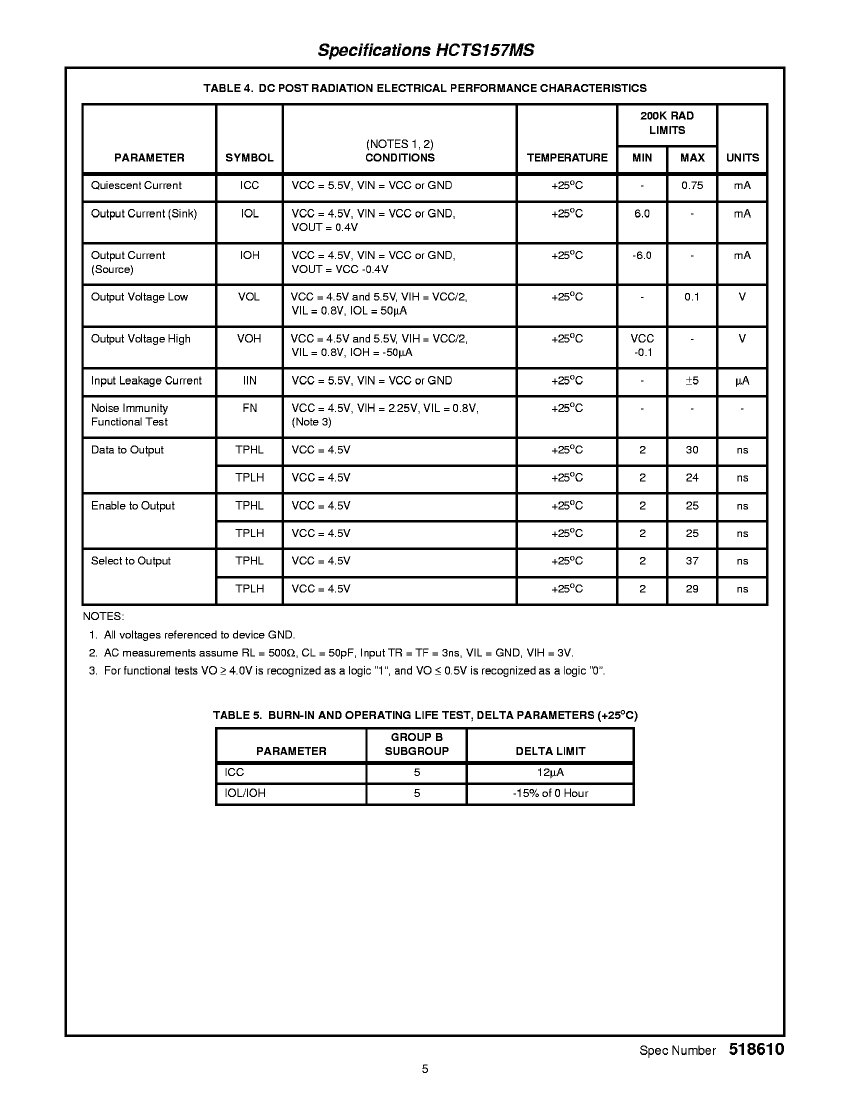

5962R9575501VXC datasheet, PDF

5962R9575501VXC: DescriptionHCT SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDFP16, METAL SEALED, CERAMIC, DFP-16; Categorylogic logic; File Size216KB，9 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric View All

5962R9575501VXC Overview

HCT SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDFP16, METAL SEALED, CERAMIC, DFP-16

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP, FL16,.3
Contacts	16
Reach Compliance Code	unknow
series	HCT
JESD-30 code	R-CDFP-F16
JESD-609 code	e4
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.006 A
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Prop。Delay @ Nom-Su	30 ns
propagation delay (tpd)	37 ns
Certification status	Not Qualified
Filter level	38535V;38534K;883S
Maximum seat height	2.92 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
width	6.73 mm
Base Number Matches	1
