17D-C-M-G-21WA4-P-C

Description
D Type Connector, 21 Contact(s), Male, Solder Terminal, M3, Receptacle
CategoryThe connector    The connector
File Size522KB,7 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

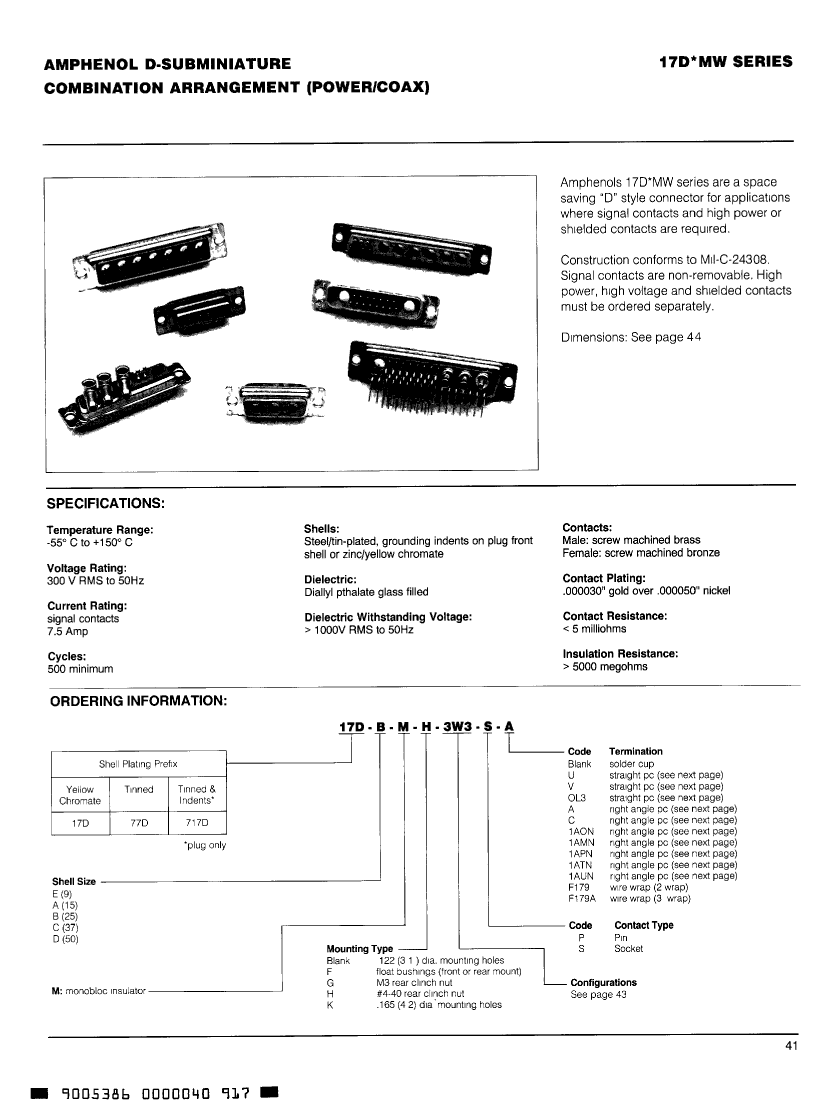

17D-C-M-G-21WA4-P-C Overview

D Type Connector, 21 Contact(s), Male, Solder Terminal, M3, Receptacle

17D-C-M-G-21WA4-P-C Parametric

Parameter NameAttribute value
Objectid1148606653
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.488 inch
body length2.724 inch
Body/casing typeRECEPTACLE

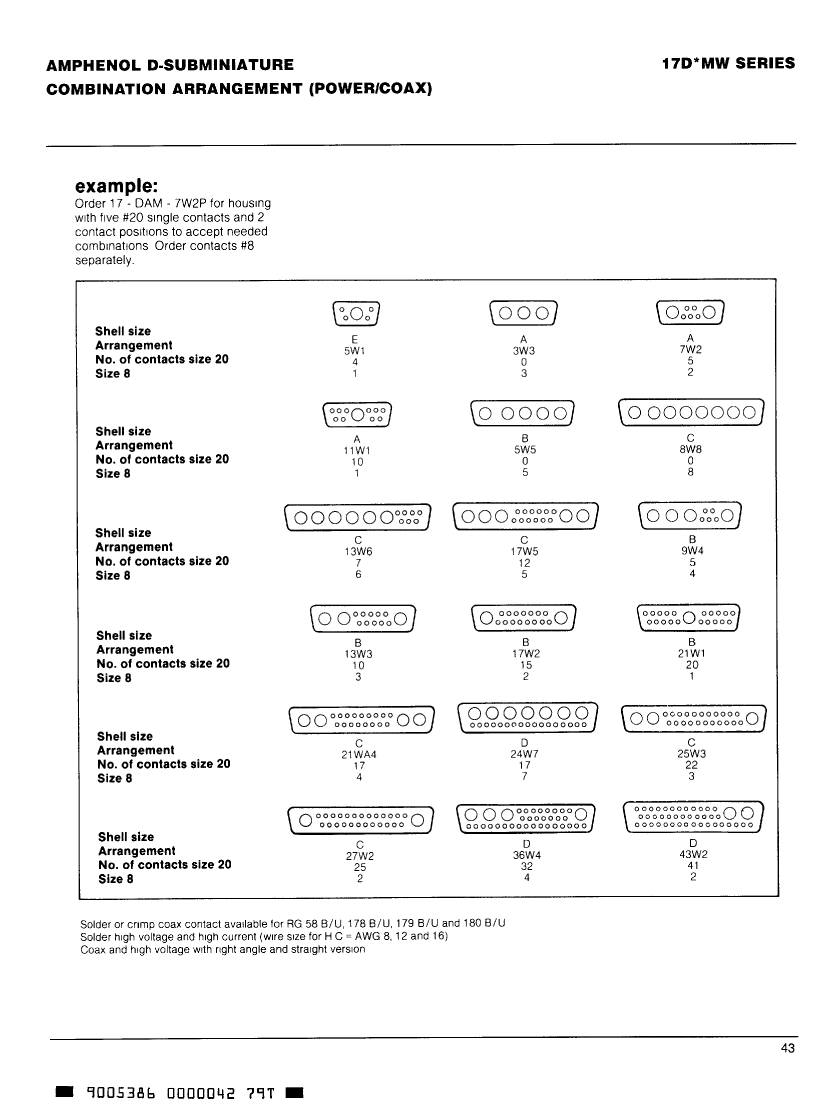

Contact arrangementS17C4
Contact to complete cooperationAU ON NI
Contact point genderMALE

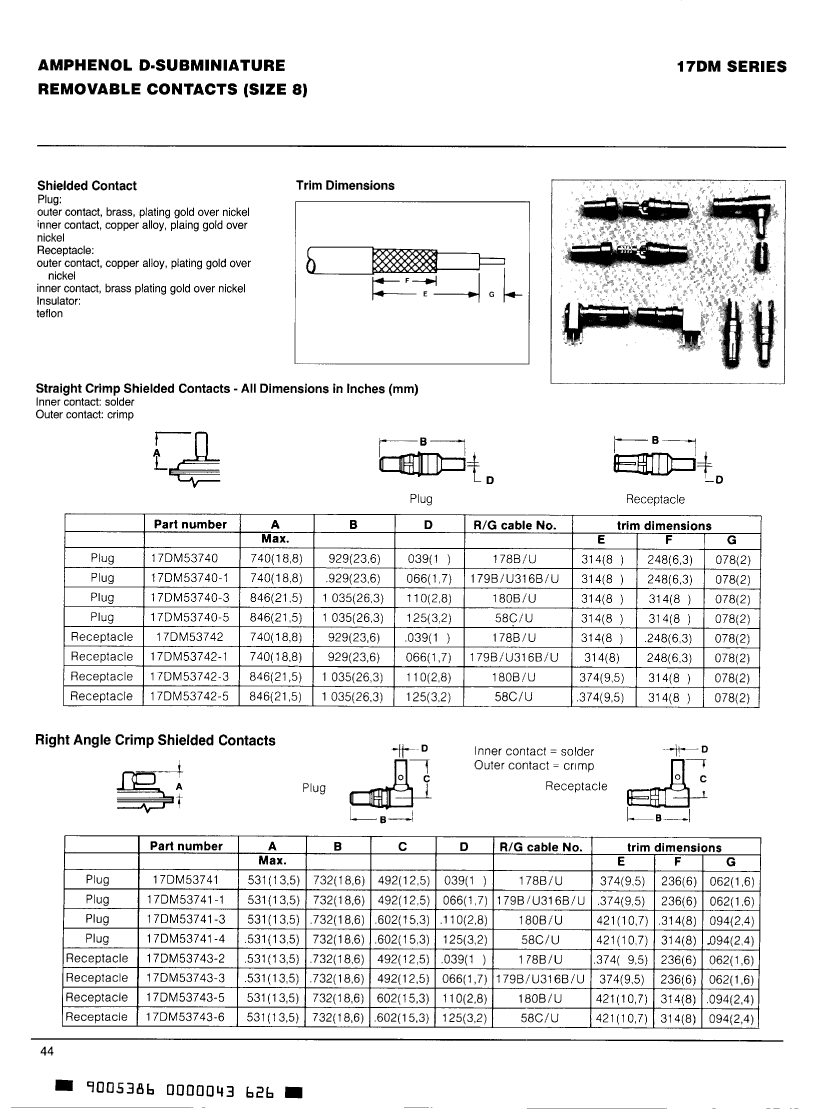

Contact materialBRASS
Contact resistance5 mΩ
Contact styleHYBRID
Dielectric withstand voltage1000VAC V
Durability500 Cycles
Insulation resistance5000000000 Ω
insulator materialGLASS FILLED DIALLYL PHTHALATE
MIL complianceYES
Mixed contactsYES
Installation option 1M3
Installation option 2CLINCH NUT
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Plating thickness30u inch
Rated current (signal)7.5 A
GuidelineUL
reliabilityMIL-C-24308
Shell surfaceYELLOW CHROMATE
Shell materialSTEEL
Terminal length0.118 inch

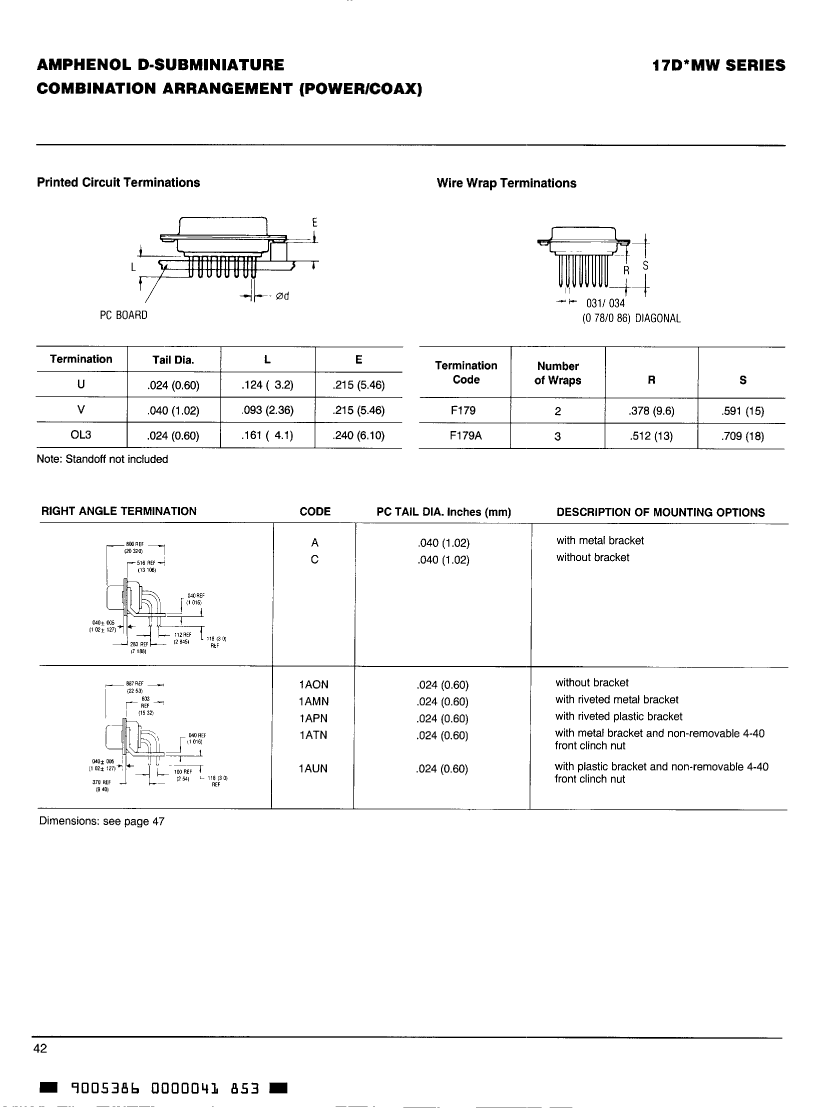

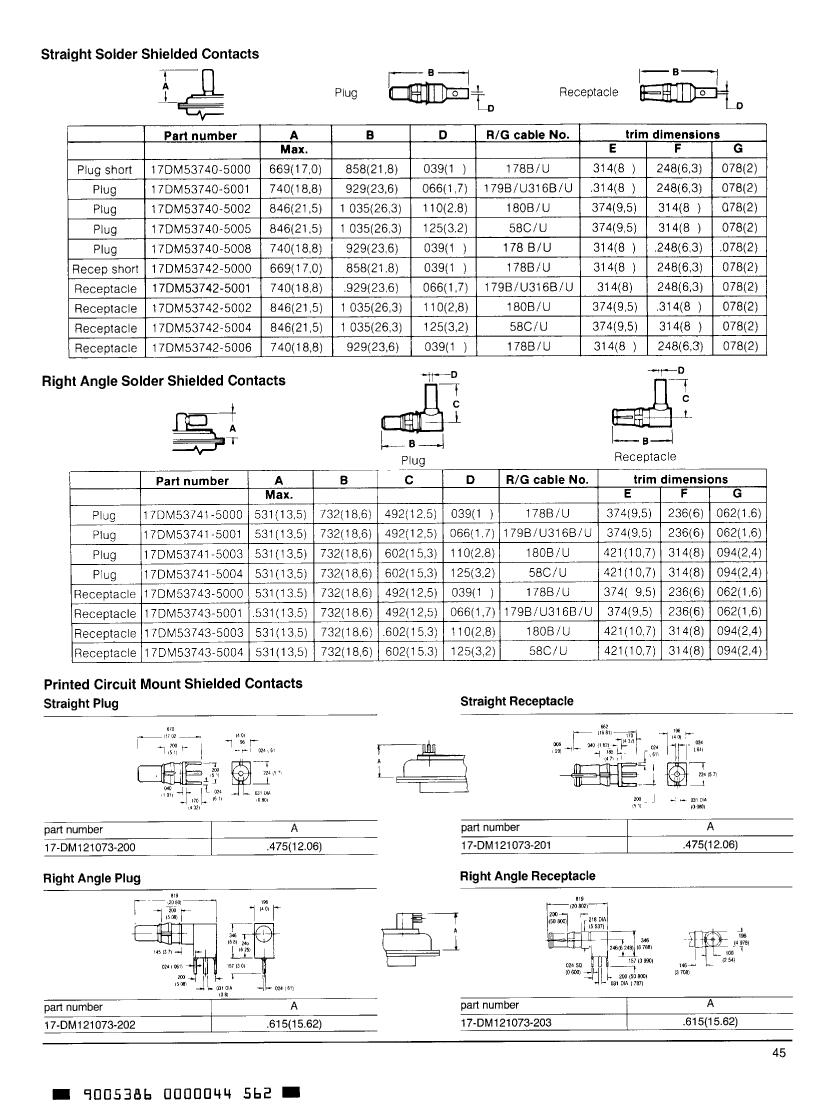

Termination typeSOLDER
Total number of contacts21
